Gigabit Wireless Bridge, KuWFi 1200Mbps WiFi Bridge Point to Point Outdoor, 2.4&5.8G Long Range WiFi Bridge CPE with Panel Antenna Up to 5KM with 48V PoE Power[2-Pack]

Previous page
Next page Applications Case1:[Point to Point WiFi Extender]
KuWFi company have a second building that is about 180' from the main building and needed stable internet for both employees and security systems. We tried reaching it with our mesh routers, but even placing one on an outside wall wouldn't supply a stable signal. We could have installed a second modem/router but that would add hundreds to our initial install and monthly costs. Installing this wireless bridge has offered a stable signal and wiring it into a mesh system, it has allowed us to expand our net throughout the second building.
Applications Case2:[Point to Point Surveillance Camera]
I have a barn on my farm which is 3 km from my house and I need to install surveillance cameras there, but there is no internet, you know that. So I chose the KuWFi bridge, these two devices perfectly solved my concerns, I installed the master device on this side of the house, and the slave devices on the far away barn wall, they can communicate with each other and connect the camera , now I can see everything in the barn through the monitoring screen in the house, thanks to KuWFi, it is worth recommending
Wireless Transmission in Buildings:Gigabit Wireless Bridge With Operation mode of AP/Repeater/Gateway/WISP/WDS networking mode. Easy to achieve PTP/PTMP wireless connection, meet with long range wireless transmission in buildings, factories, rural areas, squares
Main Features
Data Rate: 1200Mbps (2.4G(802.11b/g/n) 300Mbps; 5.8G(802.11a/n/ac) 900Mbps)
Support 48V active PoE, work with IEEE 802.3at standard PoE switch or 48V PoE adapter
Power consumption: 48V PoE<30W; 500mW high power
With function of firewall, IP filter, URL filter and MAC filter
Comply with IEEE 802.3az standard,RF power adjustment and frequency analyzer for better application in different environment
Support DDNS, VPN pass through, Port forwarding and DMZ host
Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security; more user(up to 64 users)
Size: 315mm * 145 mm * 80 mm

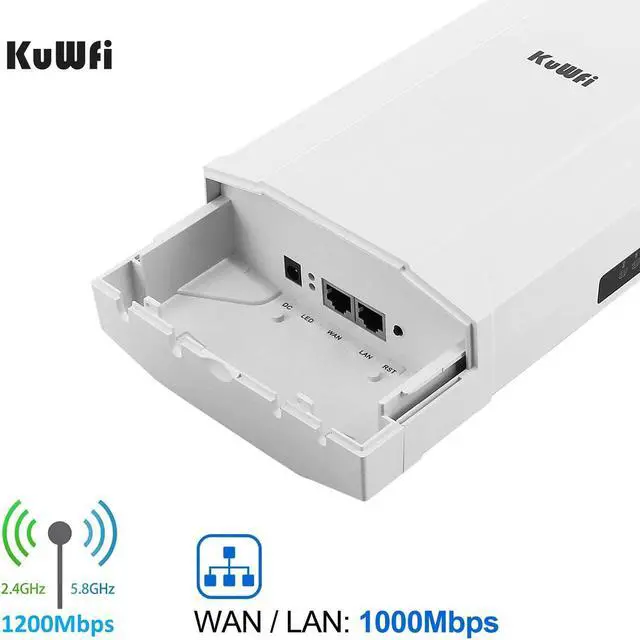

Interface
1 * 10/100/1000Mbps RJ45 WAN Port, WAN port support IEEE 802.3at standard PoE
1 * 10/100/1000Mbps RJ45 LAN Port
1 * Reset button, press 15 seconds to revert to default setting

Package List

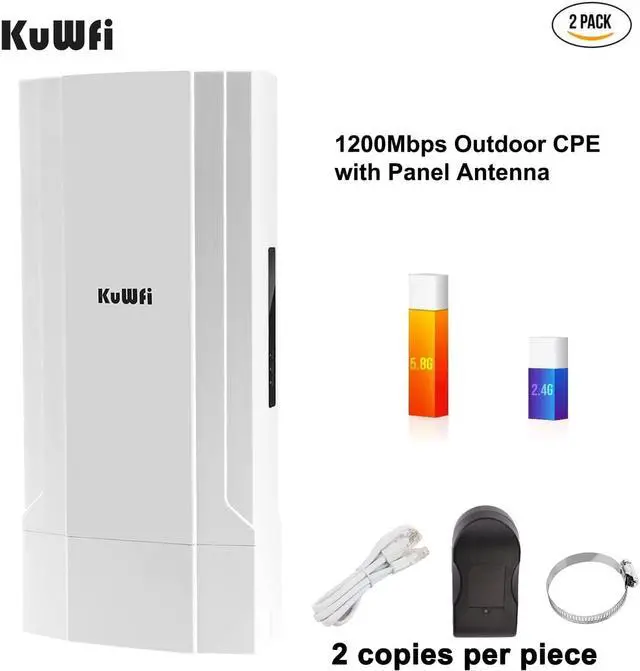

1 * KuWFi CPE2200 PTP Bridge (2-Pack) + 2 * Stainless ties + 2 * RJ45 Cable + 2 * 48V PoE Power (US Plug)

SSIDWireless 2.4G(5.8G)
Password66666666
Before logging in to the management page
Please set the IP address to (192.168.188.X)(x: 2--250)

WebUI: 192.168.188.253
Defaultpassword: admin

Comply with new and latest 11ac Technology
Faster wireless speed with less Wi-Fi interference, signal more stable

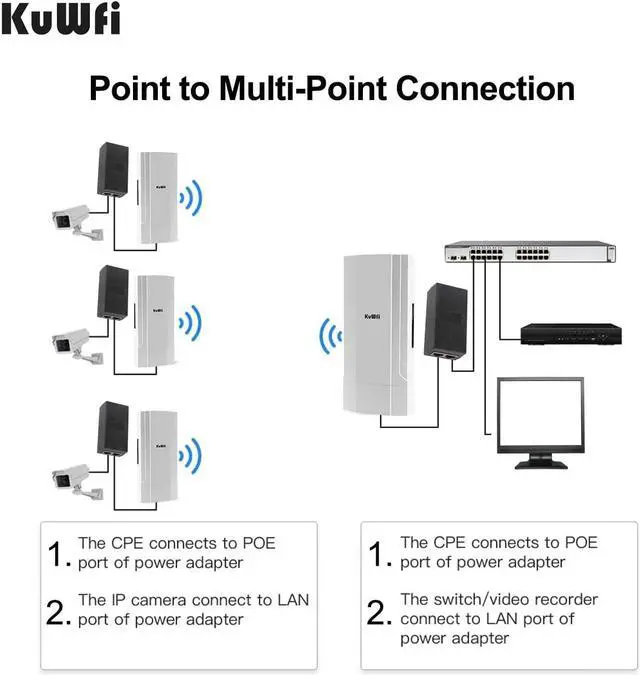

Widely be used in wireless security or long range PTP/PTMP connections
The transmission RF power is adjustable based on environment
Cut down RF power in place with high density of people or wireless AP Or increase RF power in long range place to improve the performance

It has integrated passive Power over Ethernet (48V PoE)
For easy installation and lower cost
So it can be installed in areas where power outlets are not readily available
Eliminating the mess of altering existing network infrastructure

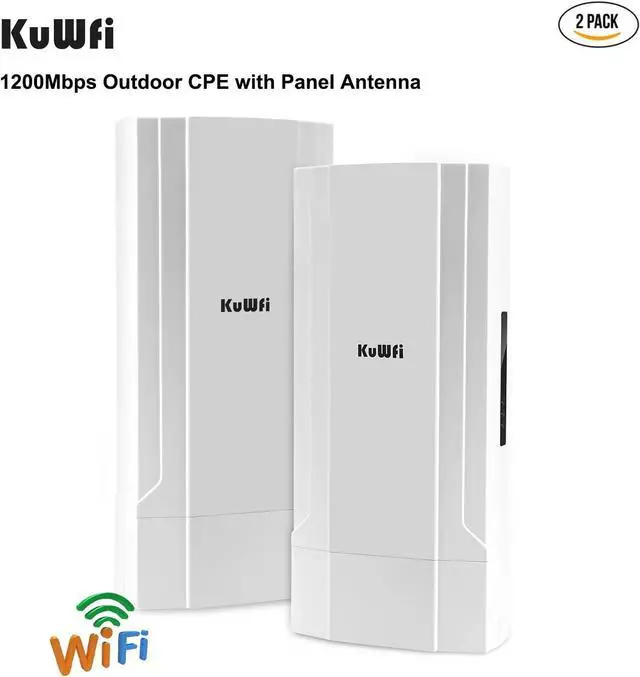

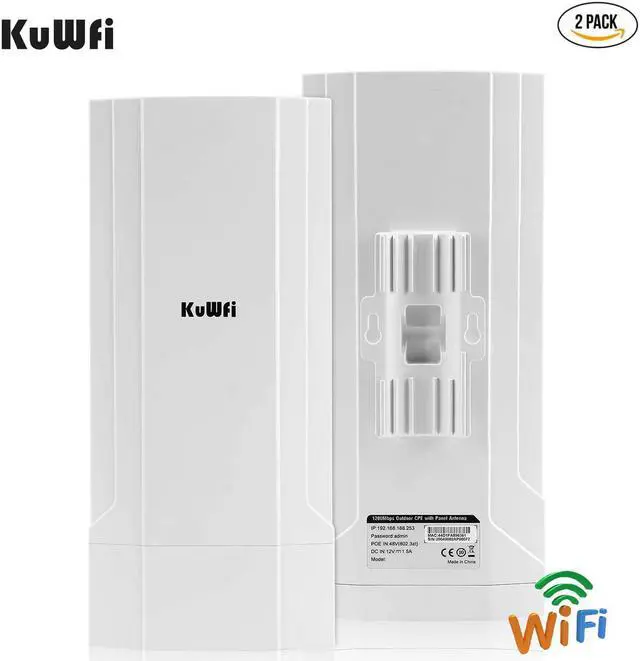

CPE2200 Outdoor wireless WiFi bridge with 12dBi(2.4G)/14dbi(5.8G) high gain panel antenna

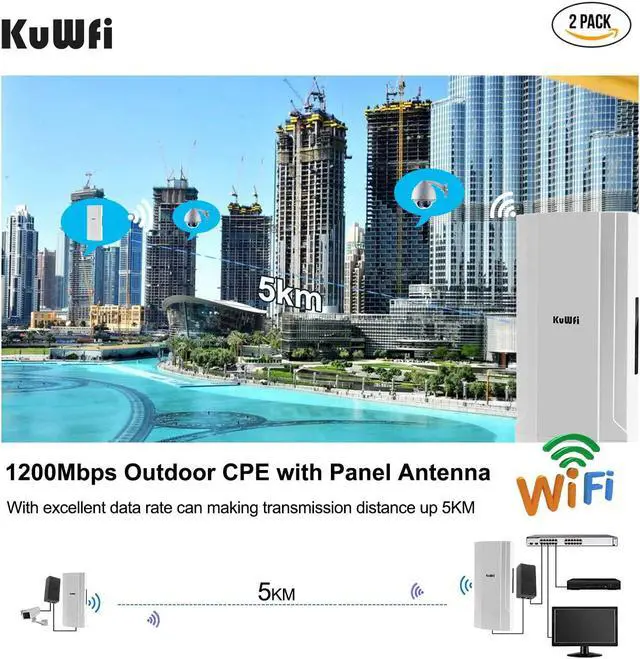

The WiFi transmission distance under barrier-free conditions is max 5KM

Support Wireless AP, Repeater operation mode
Support SSID broadcasting, Multi SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz)
Support tag VLAN based on SSID to protect the whole data safety
