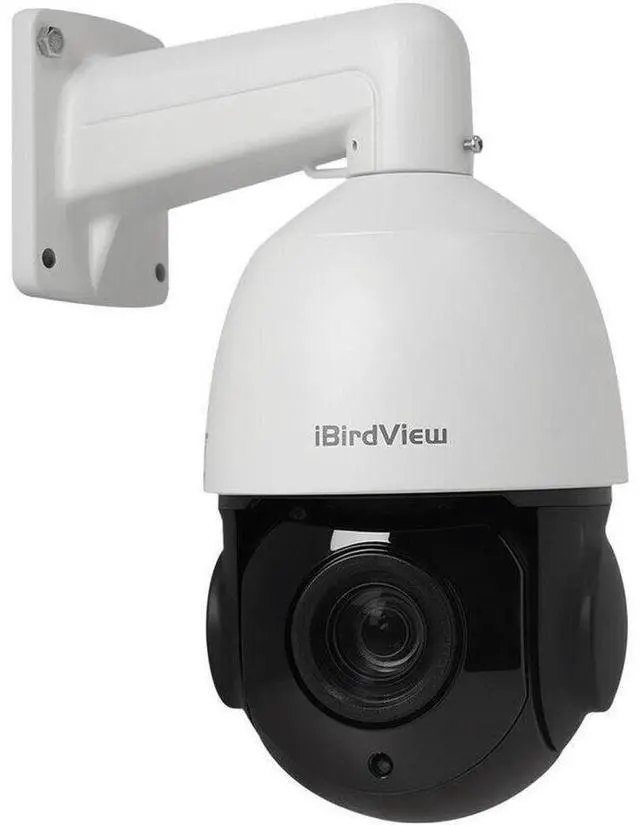

30X Zoom 4 in1 1080P 2MP 4.5'' PTZ Speed Dome IR IP Camera iB-AHD54F-30X_NTSC

Note: This is a HD 4in1 PTZ camera! It's time to update your old fashion PTZ camera among CVBS, AHD, TVI, CVI. You don't need to change your Digital Video Recorder AND rewiring! Cause signal transfer is selectable among AHD/CVI/TVI/CVBS, But the premise is that you must make sure your DVR is 4 in 1 DVR.



Mini 4in1 PTZ 1080P Security Camera 30x Zoom IR Outdoor Medium Speed Dome 2MP




Feature:


1. Keep the original analog system


2. Real-time transmission, lossless video


3. High definition 1080P, 30X zoom


4. Long distance transmission up to 500 meters

5. OSD menu available/with 6pcs IR-Led.
IR range: 80M

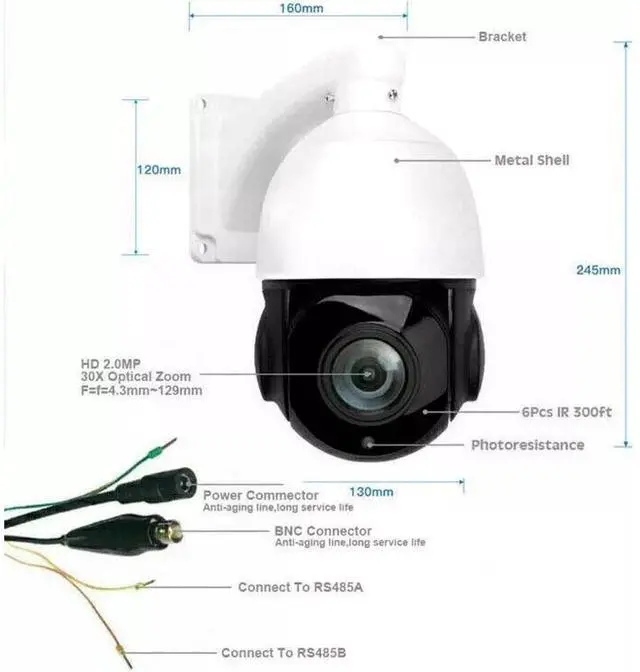

6. 4.5 '' total metal body construction, IP66 rate protection

7. IR illumination&power consumption is variable dependant on the zoom factor

Parameter:


Camera

Sensor: 1/3'' Sony 323 CMOS


Effective Pixels: 1080P 1920 (H) x 1080 (V)


Total Pixels: 2.0MP


Lens: 30X f= 4.3 mm~129mm


Iris: F 1.6 ~F 3.0


Min. illumination: Color: 0.5L ux \ B/W: 0.05L ux


BLC: Support


WB: Indoor/outdoor/auto/manual


D/N: IR-Cut


S/N Ratio: 50dB

WDR: DWDR







Dome

DSP: NVP2441

Horizontal Rotation Speed: 0.1 °-60°/s

Horizontal Rotation Range: 360°

Tilt Rotation Speed: 0.1 °-45°/s

Tilt Rotation Range: 93º

Auto Flip: Horizontal 180°, vertical 93°

Ratio Speed: Support

Preset Points: 220

Go to Preset Speed: 1-9 grades setting available

360° Scan: User programmable

A-B Scan: User programmable

A-B Scan Speed: 1-9 grades setting available

Dwell Preset: 1-60s interval available

Guard Tours: 3 groups

Guard Points: Max. 16 points, dwell time user selectable

OSD Menu: Chinese, English

PWR on Action: Memory/Pattern 1/Tour 1/360 scan/AB scan/Preset 1-8/None


Signal Transfer: AHD/CVI/TVI/CVBS selectable


Park Time: 1-60 mins setting available

Pan and Tilt Position Display: Support

Baud Rate: 1200/2400/4800/9600bps

Communication: RS485 /coaxical cable

Operating Temperature: Indoor: 0°~ +40°: Outdoor: -40°~ +60°


Operating Humidity: 95% non condensing

Power Supply: DC12V 3A

Power Consumption: 5W

Lightning Protection: Transient voltage 6000V

IR Parameters

Auto Control IR LED: PWM

LEDs: Array 42Mil

IR Distance: Up to 80 meters

IR illumination On: 1-15 grades selectable

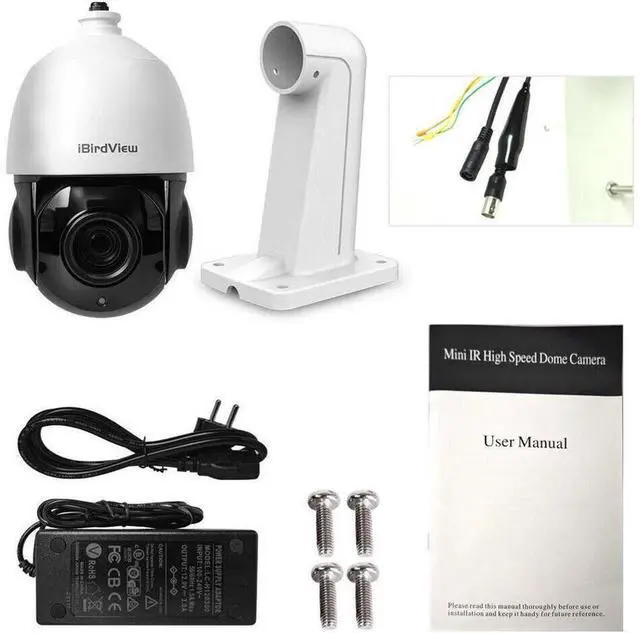

Package Included

1 x 4.5" 4 in 1 Medium Speed Dome Camera

1 x English Manual
