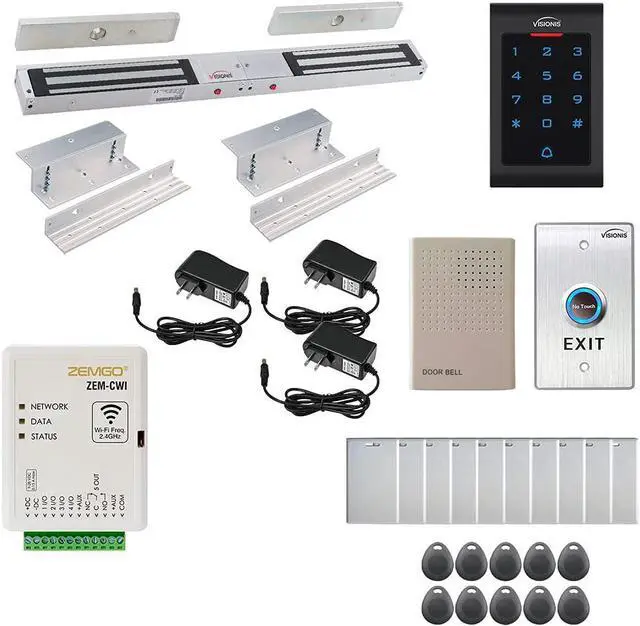

Smart Mobile WiFi Controller for Access Control with Android + Apple App, Web Browser + Smartphone Remote Viewing, Inswinging Door 600lbs Double Maglock, Indoor Keypad/Reader Kit
- This kit is designed for a one double door system. Wiring diagrams and full instructions are provided plus information on installation video. Technical support available for any and all questions. CELL PHONE NOT INCLUDED.
- Internet connection is required. The door is locked and unlocked via the OpenSee mobile application. The app provides push notifications, entry/exit records, and much more. The OpenSee app can be downloaded on the Apple app store and Google play store. We recommend that at the time of install, you set everything up on a work bench to make sure everything is ready to go before. Make sure to follow your local fire code. We are not responsible for the improper installation of this kit.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Mobile Application

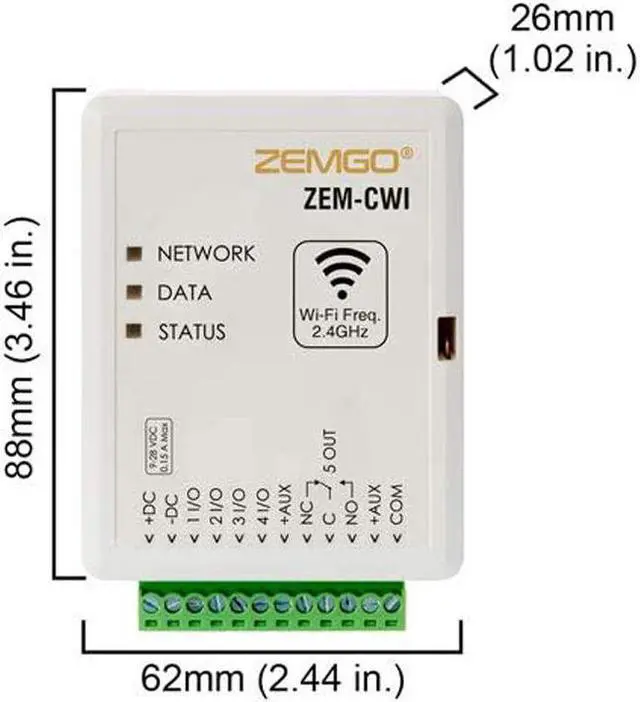

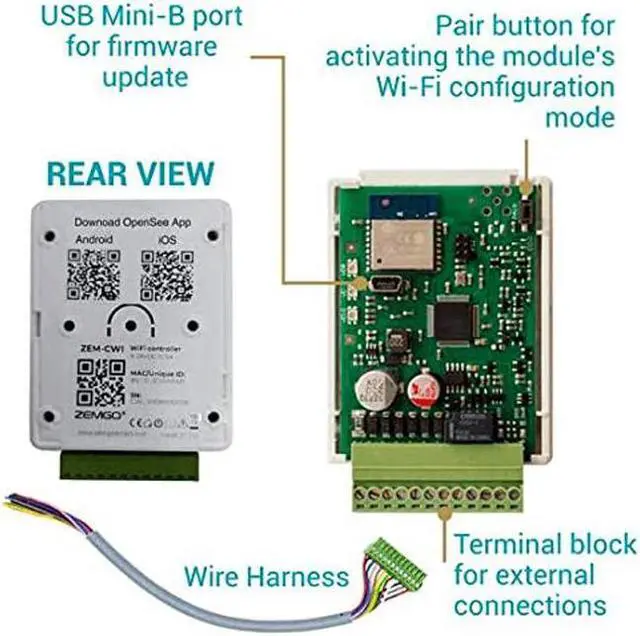

The OpenSee App is the mobile and web app for the ZEM-CWI 2.4 GHZ Wi-Fi Smart Door Controller for Access control. With OpenSee App you can control remotely from your smartphone, tablet or computer (via web browser) electric locking devices like Automatic Door Openers, Maglocks, Electric Strikes, Drop Bolts, ETC., that can be installed in gates, main doors, side doors and another type of doors.

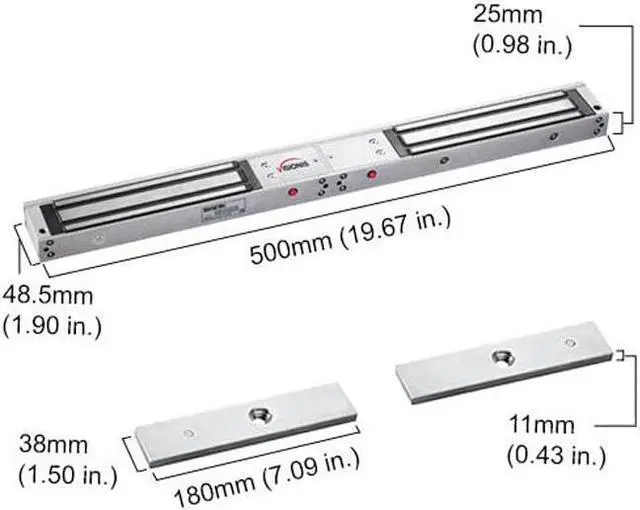

Magnetic Door Lock for Access Control
The VIS-600D-LED double door magnetic door lock provides a strong sense of security with its outstanding holding force and significant features. The maglock is installed beneath the top of the door frame to make sure that both doors remains closed and locked. With the 600D-LED, you have up to 600lbs of force protecting each door, which means it would take above 600lbs of force to open the door if someone wanted to force entry into either door. The LED light on the maglock helps you identify when the maglock is locked and unlocked. When the light is red, the maglock is locked.
When the light is green, the maglock is unlocked.
Size: 500Lx 48.5W x25H (mm) 19.67L x 1.90W x 0.98H (in. )
Armature Plate Dimension: 180Lx38Wx11H (mm) 7.09L x 1.50W x 0.43H (in. )
Holding Force: 280kgx2 (600Lbsx2)
Input Voltage: 12 or 24VDC
Current: 12V/500mA*2 or 24V/250mA*2
Suitable: Wooden door, Glass door, Metal door, Fireproof door
Operating Temp.: -10~+55°C (14-131°F)
Weight: 4.2 kg ( 9.26 pounds)

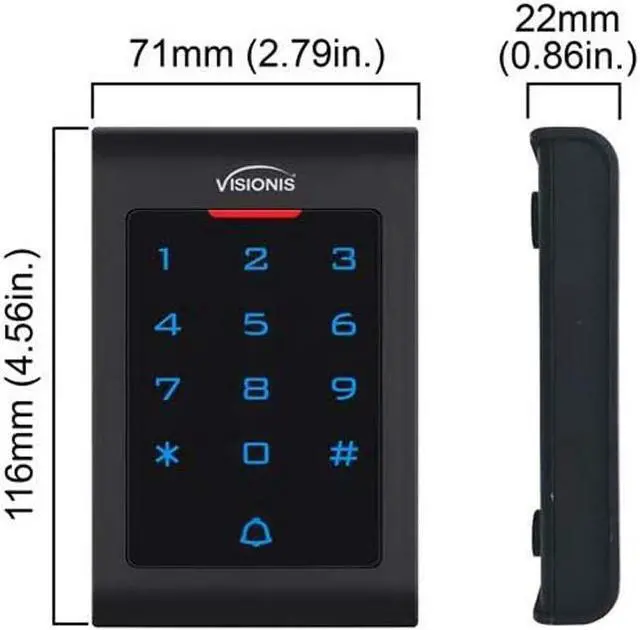

Indoor Keypad with RFID Reader
A diverse keypad in its functionality, the VIS-3002 provides access through three different options. You can enter a pin code onto the keypad, use a proximity card, or proximity key tag. If you use this as a standalone system, meaning that there is no software, it is recommended for you to keep a record of all personnel and their assigned user ID with key code, key card, key tag, or mobile phone.
Ultra-low power consumption: Standby current is less than 30mA.
Input & Output: Wiegand26.
Searching Time: Less than 0.1 s after reading card.
Backlight Keypad: Easy to operate at night.
Doorbell interface: Support external wired doorbell.
Independent codes: Use codes without related card.
Access ways: Card, code, card+code.
Anti-tamper alarm: Alarm is activated after tear down illegally.
Delete Users by card NO.: Delete card NO. by keypad to eliminate security risk completely.

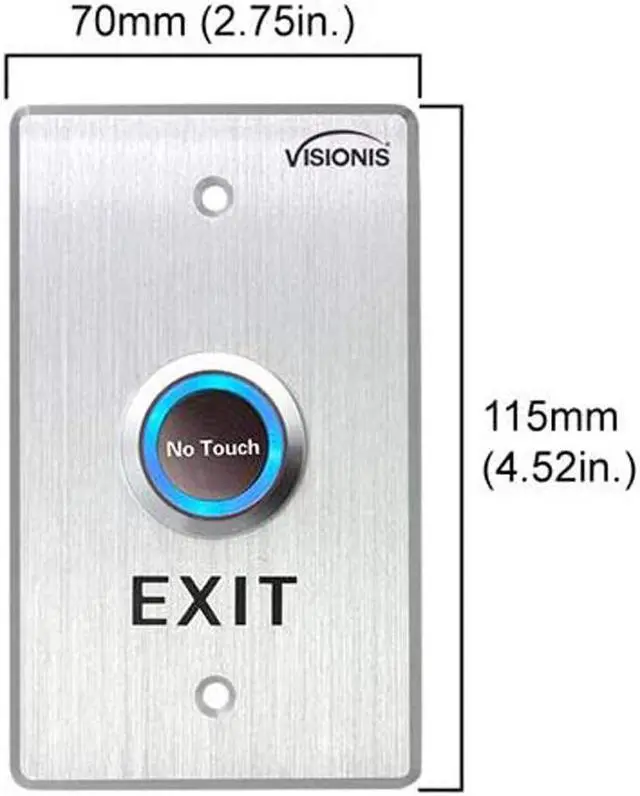

Exit Button
The no touch request to exit button (VIS-7013) is for indoor use. With just the wave of your hand, the sensor will unlock the door. This exit button also has a release that can be programmed between 0-25 seconds. The LED light on the button helps you recognize when it is on standby (red), sensation (green), or off. It has an adjustable range of 4-10 cm so you can pick your distance of detection.
Contact Rating: 12-24V, 3A, Output Contact: NO/NC/COM
Detection Range: 5-15cm ( 1.96 5.90 in. ), Adjustable
Power: 12VDC or 24VDC
LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
Time Delay: 0.5 ~22s
Panel: 4mm ( 0.15 ) Thick Aluminium Alloy (CNC)
Mechanical Life: 100.000 tests
Weight: 0.105 kg
Dimensions: 115L × 70W × 25H mm 4.52L x 2.75W x 0.98H in.
The OpenSee App is the mobile and web app for the ZEM-CWI 2.4 GHZ Wi-Fi Smart Door Controller for Access control. With OpenSee App you can control remotely from your smartphone, tablet or computer (via web browser) electric locking devices like Automatic Door Openers, Maglocks, Electric Strikes, Drop Bolts, ETC., that can be installed in gates, main doors, side doors and another type of doors.
Magnetic Door Lock for Access Control
The VIS-600D-LED double door magnetic door lock provides a strong sense of security with its outstanding holding force and significant features. The maglock is installed beneath the top of the door frame to make sure that both doors remains closed and locked. With the 600D-LED, you have up to 600lbs of force protecting each door, which means it would take above 600lbs of force to open the door if someone wanted to force entry into either door. The LED light on the maglock helps you identify when the maglock is locked and unlocked. When the light is red, the maglock is locked.
When the light is green, the maglock is unlocked.
Size: 500Lx 48.5W x25H (mm) 19.67L x 1.90W x 0.98H (in. )
Armature Plate Dimension: 180Lx38Wx11H (mm) 7.09L x 1.50W x 0.43H (in. )
Holding Force: 280kgx2 (600Lbsx2)
Input Voltage: 12 or 24VDC
Current: 12V/500mA*2 or 24V/250mA*2
Suitable: Wooden door, Glass door, Metal door, Fireproof door
Operating Temp.: -10~+55°C (14-131°F)
Weight: 4.2 kg ( 9.26 pounds)
Indoor Keypad with RFID Reader
A diverse keypad in its functionality, the VIS-3002 provides access through three different options. You can enter a pin code onto the keypad, use a proximity card, or proximity key tag. If you use this as a standalone system, meaning that there is no software, it is recommended for you to keep a record of all personnel and their assigned user ID with key code, key card, key tag, or mobile phone.
Ultra-low power consumption: Standby current is less than 30mA.
Input & Output: Wiegand26.
Searching Time: Less than 0.1 s after reading card.
Backlight Keypad: Easy to operate at night.
Doorbell interface: Support external wired doorbell.
Independent codes: Use codes without related card.
Access ways: Card, code, card+code.
Anti-tamper alarm: Alarm is activated after tear down illegally.
Delete Users by card NO.: Delete card NO. by keypad to eliminate security risk completely.
Exit Button
The no touch request to exit button (VIS-7013) is for indoor use. With just the wave of your hand, the sensor will unlock the door. This exit button also has a release that can be programmed between 0-25 seconds. The LED light on the button helps you recognize when it is on standby (red), sensation (green), or off. It has an adjustable range of 4-10 cm so you can pick your distance of detection.
Contact Rating: 12-24V, 3A, Output Contact: NO/NC/COM
Detection Range: 5-15cm ( 1.96 5.90 in. ), Adjustable
Power: 12VDC or 24VDC
LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
Time Delay: 0.5 ~22s
Panel: 4mm ( 0.15 ) Thick Aluminium Alloy (CNC)
Mechanical Life: 100.000 tests
Weight: 0.105 kg
Dimensions: 115L × 70W × 25H mm 4.52L x 2.75W x 0.98H in.
