4 Doors Access Control System Infrared No Touch Exit Keypad Scanner 600lbs Electric Magnetic Lock 110V Metal Power Box RFID Reader RFID Card Key Fob(Phone APP remotely Open Door)

Package include:

1 x Power Supply Box(110-240V input, 5A output, to power the whole system, also as cabinet for above control board)

1 x 4 Doors Wiegand Access Control Panel

4 x Electric Magnetic Lock (600 LBS Force)

4 x RFID Keypad/PIN Pad Reader (swipe card/key fob or PIN or card+PIN for entry)

4 x Infrared Exit Button

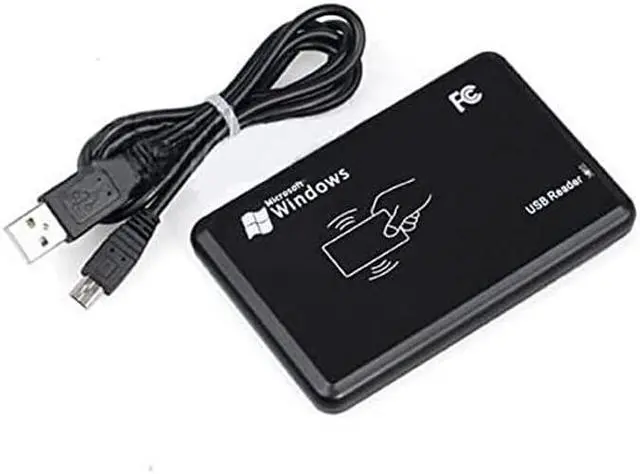

1 x Enroll RFID USB Reader

50 x RFID Cards

50 x RFID Key Fobs

1 x English User Manual+Software+Video+Wire Diagram CD Disk
What the system can do:
Basic funtion: swipe card/key fob, input PIN code or use card + PIN to open door.
Easily add/delete/activate/disable the user open privilege by professional management software.
Support phone app to open door locally or remotely.
Can be used for high security area, the control board as master unit is put inside room.
Can check/download/export the detail history entrance record.
Allow access for certain door at certain time for different users.
Can keep door auto open during business hour and then auto close at set time, support holiday security control.
Can swipe certain times to keep open and swipe certain times to close door.
Can be used for user attendance check also.
A lot other features such as anti-pass back, 1st card open, multi-card open. etc.
Power Supply Box:
4 Door Access Control Kit Infrared None Touch Exit Button Keypad Reader Magnetic Lock Power Supply
Power: 60W
Rated Current: 5A
Input Voltage: 110V-240V, can be used all over the world.
Output: DC12V to power on the whole System(11-14V can be fine-tuned).
Color of the box: black
Size of the box: 279mm * 234mm * 67mm
Also act as the cabinet for the control board.
With power cable to insert to electric outlet box.
4 Door Access Control Panel:
4 Door Access Control Kit Infrared None Touch Exit Button Keypad Reader Magnetic Lock Power Supply
Control 4 doors, get in by swipe card/key fob, input PIN code or use card + PIN, and get out door by exit button.
Door controlled: 4
Support 4 readers.
Control of user capacity up to 20, 000 user / up to 100, 000 history records.
Network communication via TCP/IP.
Access control management software includes all-in-one-card management system, such as normal shift and multi-shifts time attendance management system, meeting attendance management system, ect.
Application software support win7/win8/win10 32bit and 64 bit, not support MAC.
Support web interface(no advanced control, can add/delete user and check records. etc basic function).
Support phone app to open door even you are not there.
Record never lost in case of power failure.

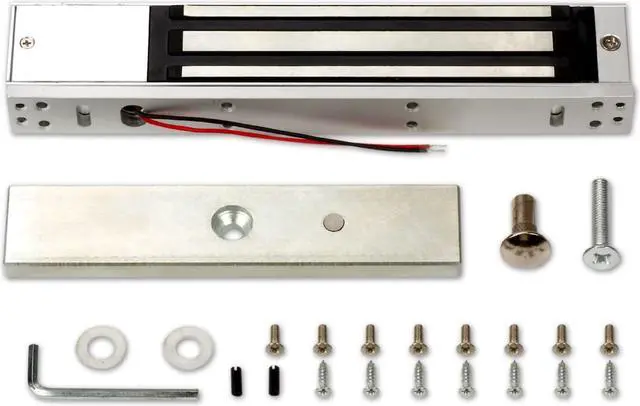

Electromagnetic lock / Keypad Reader / Infrared Exit Button:
Voltage/Current: 12V/500mA
Lock body size: 9.84L x 1.89W x 0.98H (inch);
Plate size: 7.09L x 1.50W x 0.47H (inch)
It is a high-performance 600lbs holding force electric magnetic lock which suit for many access control system.
NC mode (Locked while supplied with power).
Performance testing: 1000000 times aging test.
Suitable for: wooden door, metal door, etc.
Safety function: built-in voltage spike suppressor
Anti-residual magnetism designed. Design without mechanical failure. MOV provides reverse current protection.
High strength stainless steel material, anodized aluminum housing.
Dual insulative housing increase the holding force.
-----------
Input Voltage: DC 12V
Operating current: 120mA

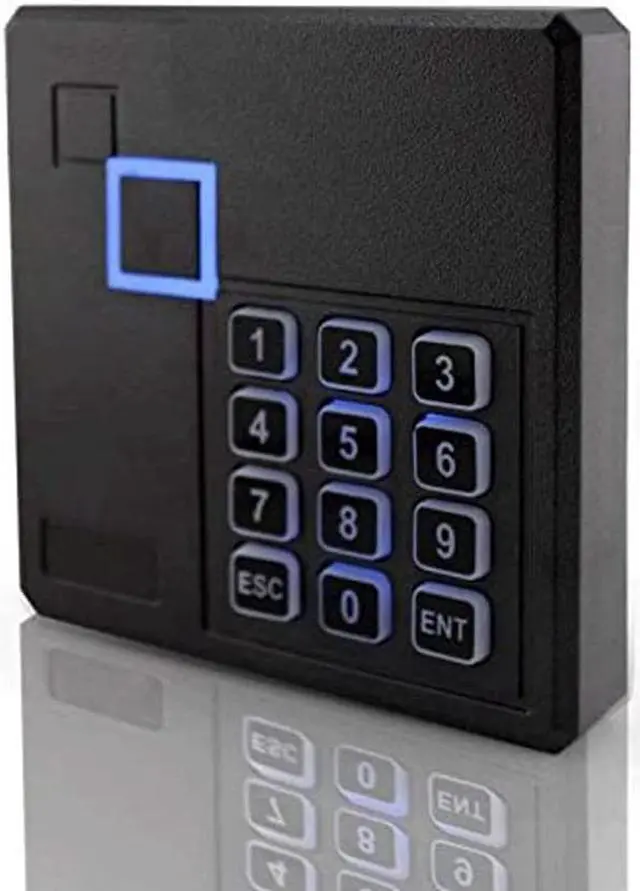

Reading range: 3-15 cm
Durable keytop. High Quality.
Built-in LED and loud speaker
Built-in LED and loud speaker (buzzer)
Supports card, PIN, card + PIN, work together with the control board
Size: 86*86*18 mm/ 3-3/8" (W) x 3-3/8" (H) x 3/4" (D) inch
RFID reader support Wiegand 26/34 bit. It can read EM 125khz RFID cards/key fobs.
Material: PVC
Color: Black
-----------

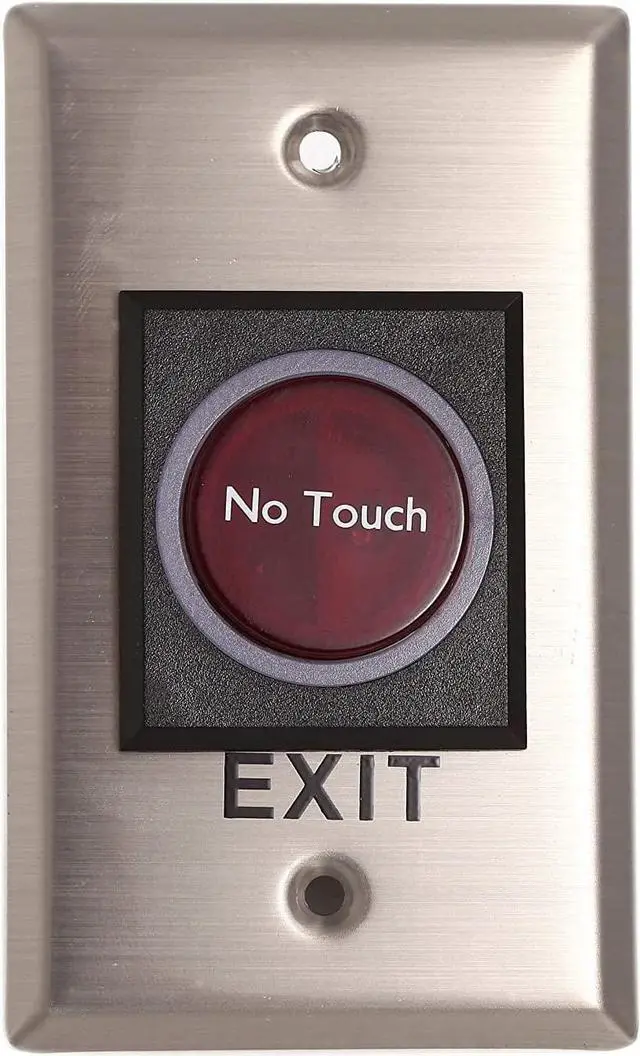

No touch / Touch free exit sensor (diffused detection)
Contact rating: 3A/AC120V, DC30V
Input voltage: DC12V
Operation temperature range: -20C-55C
Life: 500, 000 times
Dimension: 114 x 70 x 29 (mm) / 4.49 x 2.76 x 1.14 (inch)
Weight: 85g
