ZK F22 WIFI TCP/IP USB Biometric Fingerprint RFID Card Door Access Control Time Attendance Office Attendance System (ZK-F22_Standard Version (with WIFI)

Description


F22 is an ultra-thin fingerprint time attendance and access control terminal with BioID sensor and Wi-Fi, which offers unparalleled performance with advanced algorithm for reliability, precision and excellent matching speed.



F22 features the fastest commercial- based fingerprint matching algorithm and high-performance, high-image quality infrared detection fingerprint sensor.



F22 provides a superior touching experience with touch keypad, and offers flexibility for standalone installation or with any third-party access control panel that supports standard wiegand signal. TCP/IP, RS485 and Wi-Fi are also available that the device can be used in different networks.



Features:

2.4 -inch TFT color screen and Touch keys

Ultra thin and elegant design

Full Access Control Features: Anti-passback, access control interface for 3rd party electric lock, door

sensor, exit button, alarm

Standard Wi-Fi

Network interface by TCP/IP or RS485

Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch

Multiple Verification Modes: Multi-verification methods (card is optional) providing user various choices

Specifications

:
Model F22
Display 2.4 -inch TFT LCD Color Screen
Fingerprint sensor Optical Sensor
Algorithm Version Finger V 10.0
Fingerprint Capacity 3, 000
Card Capacity 5, 000
Log Capacity 50, 000
RF Card Optional ID/IC
Authentication Method FP only, RF only, PIN only, FP/RF/PIN, PIN&FP, PIN&RF

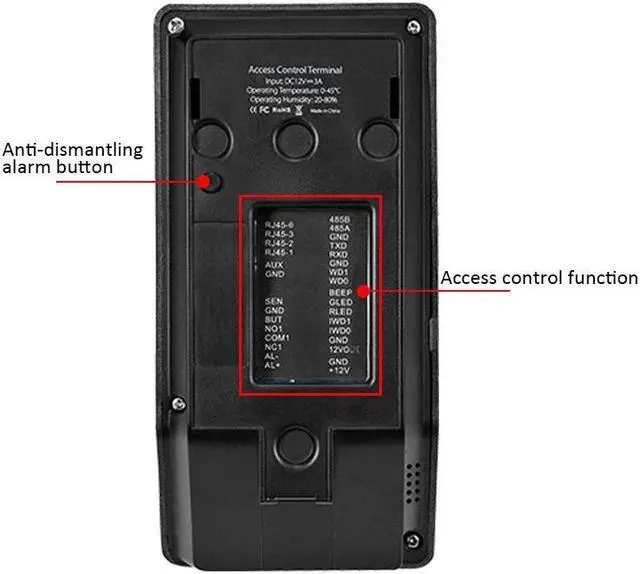

Access Control Interface Electric lock, Door sensor, Alarm, Exit button
Communication WIFI, TCP/IP, RS232/485, USB-host
Wiegand Signal Wiegand input&output
Functions DST, Automatic status switch, Record query, T9 input, 14 digit user ID, Anti-passback, Scheduled-Bell, ADMS (Optional)
Power Supply 12VDC 3A
Operating Temperature 0~ 45

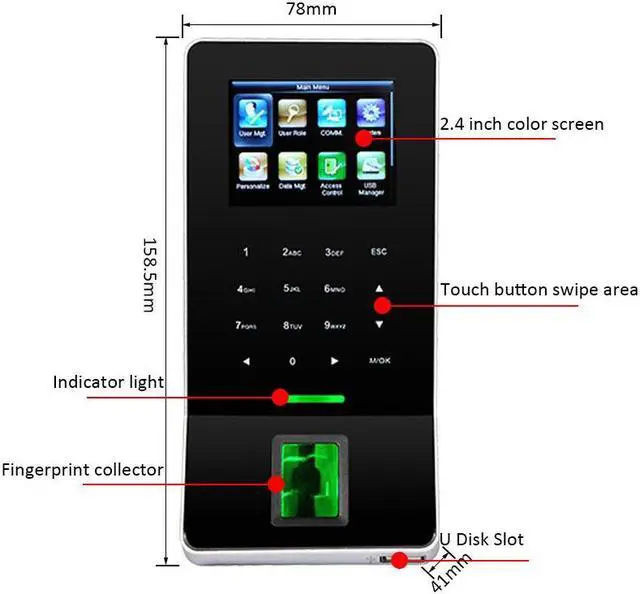

Dimensions (W×H×D) 158.5 mm×78mm× 19.4 mm
Gross Weight 0.65 kg
SDK and software Standalone SDK, ZKAccess 3.5 software
