16CH DVR Package - H.264 High Quality DVR and 16 of 620TVL Ultra High Resolution outdoor Cameras (1TB HDD)

16CH DVR Package - H.264 High Quality DVR and 16 of 620TVL Ultra High Resolution outdoor Cameras (with 1TB HDD)

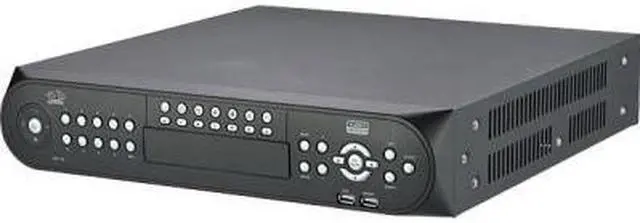

Eyemax HX-Series 16Ch 480 FPS DVR (with 1TB HDD) DVST HX-16

¦Triplex (Live Display, Recording, Network)
¦H.264 Hardware compression (High Quality video)
¦Embedded Linux Operating System
¦Simultaneous Monitoring via Composite, VGA
¦Backup and Firmware Update by USB drive
¦Multiple Screen division (1 / 4 / 9 / 16 / PIP)
¦Easy to Use and convinient GUI
¦Fast operation by mouse and remote controller
¦Network: DHCP & Static IP Supported
¦Event Recording: Motion detection and sensor
¦No DVDRW

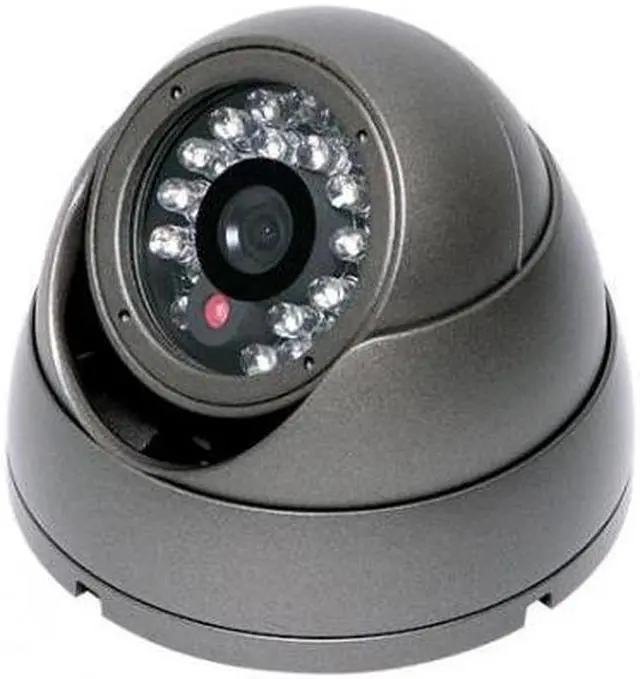

Eyemax Eyeball 620tvl 60ft Vandal Dome IR Camera
¦1/3” Sony Super HAD II CCD
¦3.6mm
¦620 TVL : Razor sharp high resolution
¦0.1 Lux at F1.2 (Color) / 0.01 Lux (B/W)
¦60ft Infrared Range / 25 IR LED
¦Weather Proof Out/indoor Camera
¦2D DNR : 2D Digital Noise Reduction Function
¦DC 12V


High-Res 620 TV Line

The camera is powered by NEXT chipset that is embodied the top grade of the world at 620 TVL resolution be own image signal technology which is to change the frequency of luminance signal adaptively by a monitoring sector.

2D DNR (2D DIGITAL NOISE REDUCTION)

Improved S/N ratio 50dB and more sharp and noiseless low light image quality provided by built-in noise reduction (2DDNR: 2D Digital Noise Reduction) function.

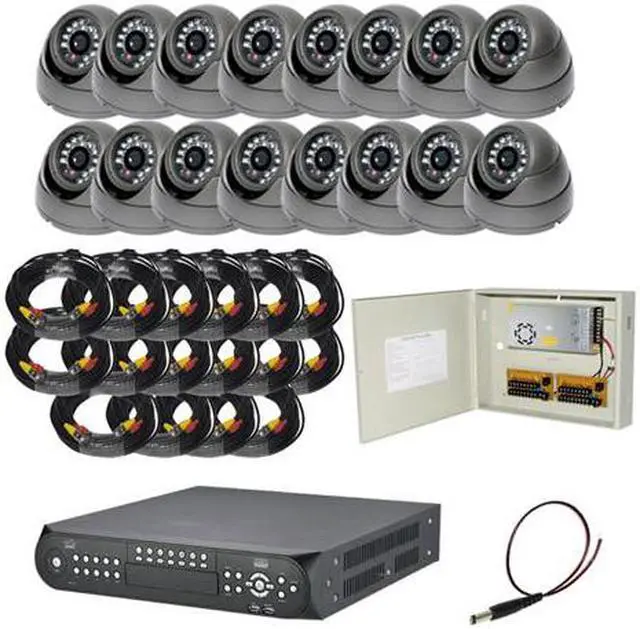

*****Package Includes*****

x1 HX-16: Standalone DVR (with 1TB)
x16 IB 6025: 620TVL Indoor Dome Camera

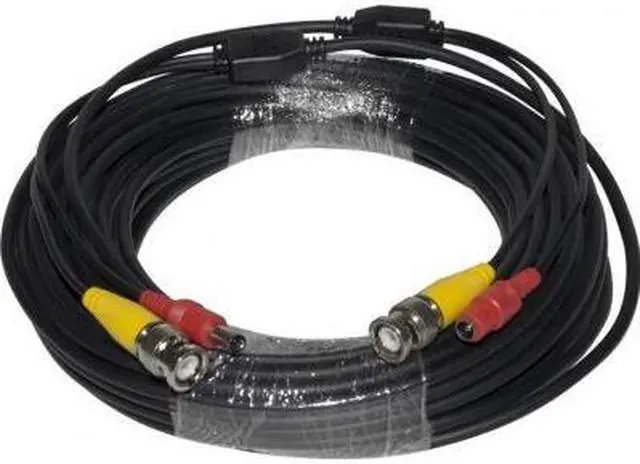

x16 CB PREMADE-70: 70FT Premade Siamese Cable
x1 TR W12VDC16P25A: 16CH 25Amps : 16Ch, 25Amps , 12V Power Box
x16 TR PIGTAILM: DC Power Pigtail male
x16 TR PIGTAILF: DC Power Pigtail Female
