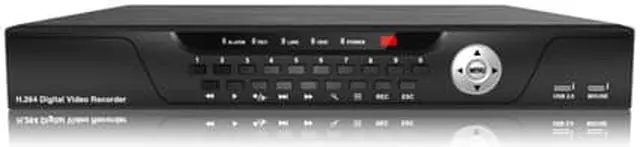

16CH 960H Full Realtime Network DVR system, HDMI, VGA, and BNC output 16CH Audio 1TB
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
16CH 960H Full Realtime Network DVR system, HDMI, VGA, and BNC output 16CH Audio 1TB
Video Input/Output:*Video Input/Output: BNC 16CH In/ 1CH Out/ VGA 1CH Out
HDMI 1CH Out
Audio Input/Output: RCA 16CH In/ 1CH Out
Alarm Input/Output: Alarm 4CH In/ 1CH Out
Compression Method: H.264
Real time recording support:
CIF:352×240 with 480 Fps (NTSC); 352×288 with 400 Fps (PAL) *D1:720×480 with 480 Fps (NTSC); 704×576 with 400 Fps (PAL)
960H:960×480 with 480 Fps (NTSC); 960×576 with 400 Fps (PAL)
Preview resolution: 960 x 480 (NTSC), 960x 576 (PAL);
Playback resolution:4*960H
Hexaplex operation simultaneously: Preview, recording, playback, and *network live, backup, playback
1 RJ-45 Ethernet connector, Static, Dynamic IP and DDNS , Support *Internet Explorer and special client software
Remote Control, PTZ, RS485 x2, 2 × USB, 1 × IR Controller
2 SATA Hard Disk interface
Backup: USB2.0 and Network(Up to 8TB)

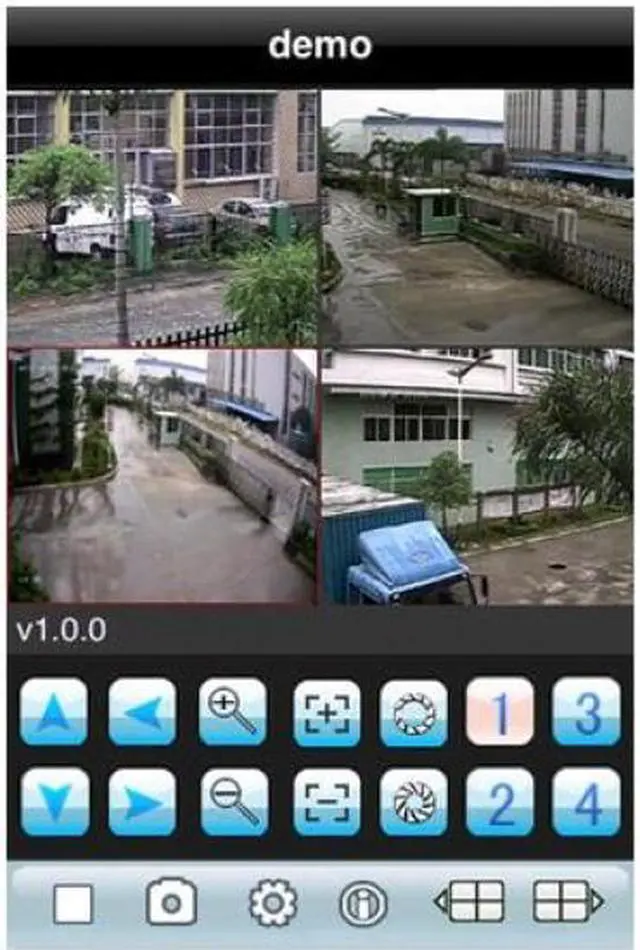

Support remote view by Mobilephone

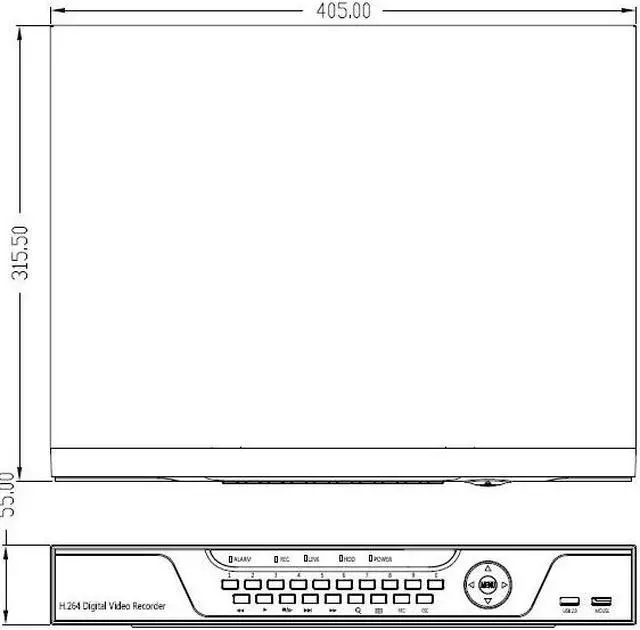

Dimensions (L×W×H):405mm×325mm×65mm, weight:6kg
1TB
Video Input/Output:*Video Input/Output: BNC 16CH In/ 1CH Out/ VGA 1CH Out
HDMI 1CH Out
Audio Input/Output: RCA 16CH In/ 1CH Out
Alarm Input/Output: Alarm 4CH In/ 1CH Out
Compression Method: H.264
Real time recording support:
CIF:352×240 with 480 Fps (NTSC); 352×288 with 400 Fps (PAL) *D1:720×480 with 480 Fps (NTSC); 704×576 with 400 Fps (PAL)
960H:960×480 with 480 Fps (NTSC); 960×576 with 400 Fps (PAL)
Preview resolution: 960 x 480 (NTSC), 960x 576 (PAL);
Playback resolution:4*960H
Hexaplex operation simultaneously: Preview, recording, playback, and *network live, backup, playback
1 RJ-45 Ethernet connector, Static, Dynamic IP and DDNS , Support *Internet Explorer and special client software
Remote Control, PTZ, RS485 x2, 2 × USB, 1 × IR Controller
2 SATA Hard Disk interface
Backup: USB2.0 and Network(Up to 8TB)
Support remote view by Mobilephone
Dimensions (L×W×H):405mm×325mm×65mm, weight:6kg
1TB
