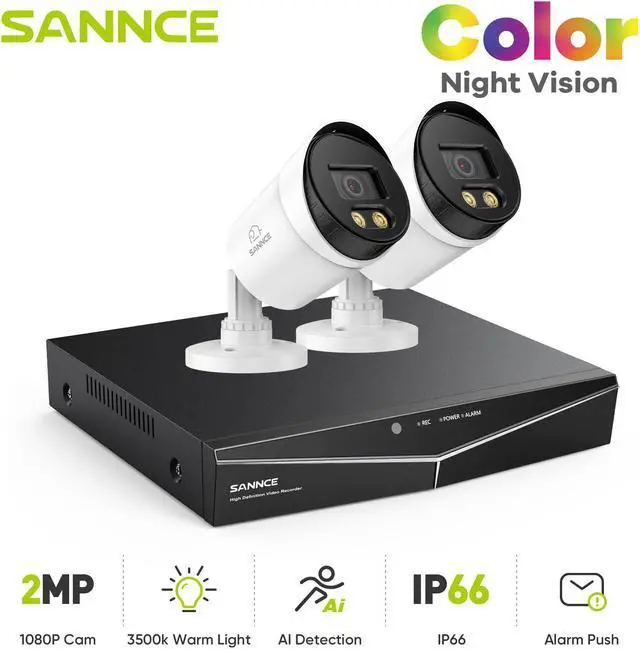

DVR
". Support 4CH 1080N definition encoding
. Support AHD, TVI, CVI, CVBS, IP video input
. HDMI/VGA simultaneous video output
. 1 SATA (Up to 8TB)
. 1*10/100Mbps auto-adaptive Ethernet port, RJ45 port
. Automatic networking support, a key to add equipment

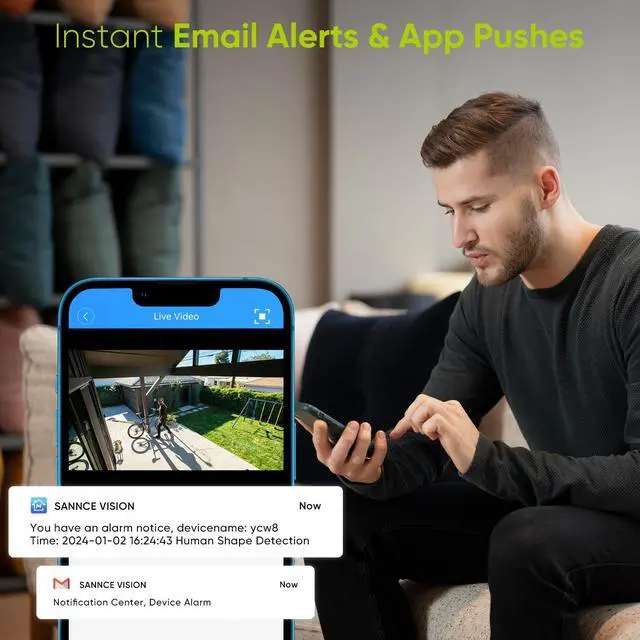

. Support alarm information push to phone
. Support remote access, support ARSP
. Mobile phone remote monitoring (iOS, Android)
. Support Multi browser access, VMS PC client"
Video & Audio:
Codec: H. 264+

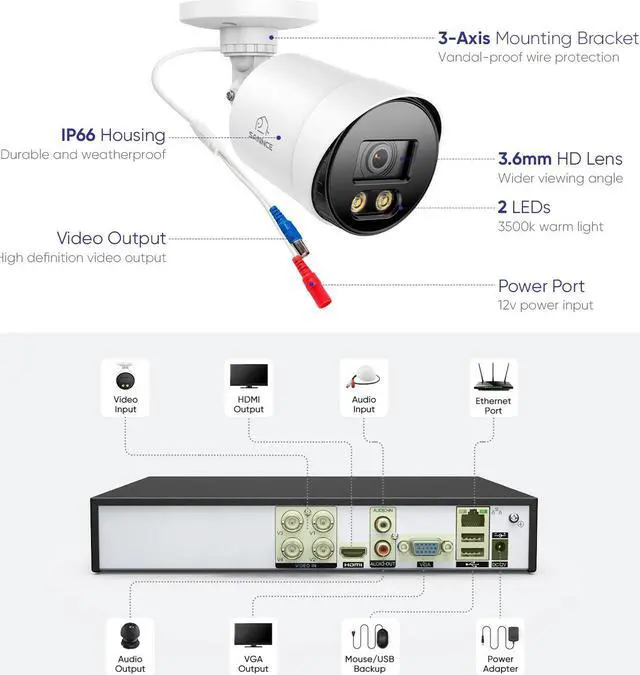

Video input: 4*BNC
HDMI output: 1*HDMI (MAX: 1080P)
VGA output: 1*VGA (MAX: 1080P)
Audio I/O: 1/1
Encode: 4*1080N@15fps
Decode: 4*1080N@15fps
Multi-mode: Analog: 4*1080N@15fps;
Hybird: 4*1080N@15fps (analog) +2*1080P
IP: 8*1080P; 4*5MP
Playback: 4CH (Analog mode)
Compression: G. 711a
Intercom: Support
Hard Drive:
HDD: 1*SATA interface
HDD Capacity: Up to 8TB Capacity
General:
Power supply: 12V/2A
Consumption: <10W(Without HDD)
Temperature: 0 - + 55
Humidity: 10% -90% RH
Dimension: 255 (L) * 236mm (W) * 44mm (H)
Weight: Around 1KG
HD Camera
TVI 1080P high clarity bullet camera
Two warm light, Full color night vision
3.6 mm lens brings everything back to life
IP66 Dust and Waterproof Rating
Image sensor: 1/ 2.9" Progressive Scan CMOS
Video Resolution: 1920 (H) × 1080 (V)
Signal system: PAL/NTSC
Frame Rate: PAL: 1080p@25fps NTSC: 1080p@30fps
Lens: 3.6 mm
Min.
Illumination: 3 Lux @ (F 2.0, AGC ON)
Angle of View: 82.2 °
Number of warm light: 2
Light Distance: 100ft/30M
DNR: 3D DNR
Wide Dynamic Range: Digital WDR
IR Cut Filter: /
Video Output: HD BNCx1
General:
Housing: Plastic
Color: White
Operating Power: DC12V
Operating Temperature: -4 °F 122 °F /-20 °C 50 °C
Indoor/Outdoor: Indoor/Outdoor
Weatherproof Rating: IP66
Dimension (L x W x H): 6.06 x 2.80 x 2.80 / 154mm*71mm*71mm
Weight: 203g

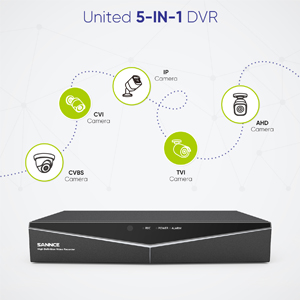

Powerful 5-in-1 DVR: The hybrid digital video recorder works with TVI, AHD, CVI, CVBS analog and IP security cameras (up to 1080p Full HD resolution). You may add any type of security camera you want to this DVR for 24/7 recording.
H264+ Video Compression: The H.264+ coding standard reduces the bandwidth required for data transmission, providing smooth video streaming. Also, the H.299+ code condenses the video files and lowers storage space requirements, saving the cost of buying extra HDDs.
Adjustable Warm Light: Full-color distance covers up to 100ft/30m. 3535K warm lights with low power consumption can automatically adjust light intensity according to the environment.
1080P Full-Color Footage with Floodlights: This Full-color night vision bullet camera captures smooth videos and clear images in 1080P HD with 37 built-in ultra-bright array LEDs, easily see things in great detail, and presents true-to-life color in the day and night.

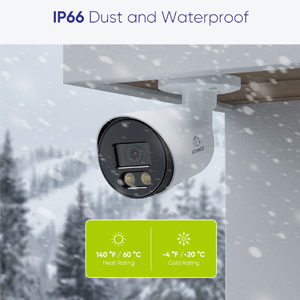

Wider Field Of View & IP66 Weatherproof Rating:82.2-degree field of view enables a wider viewing scene. You can fix the security camera to any desired angle with an adjustable 3-axis stand. It withstands most unforgiving weather conditions and extreme temperatures from -4°F to 175 °F, perfect for indoor/outdoor security.
