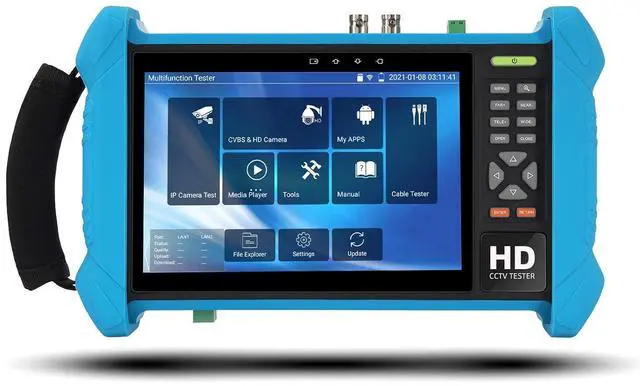

Koolertron 7" IPS Touch Screen 4K H.265 IP Camera Tester - POE/WiFi, CVBS Analog Tester, HDMI Output, RJ45 TDR, 8GB TF Card, Dual Window Test, Firmware Upgrade

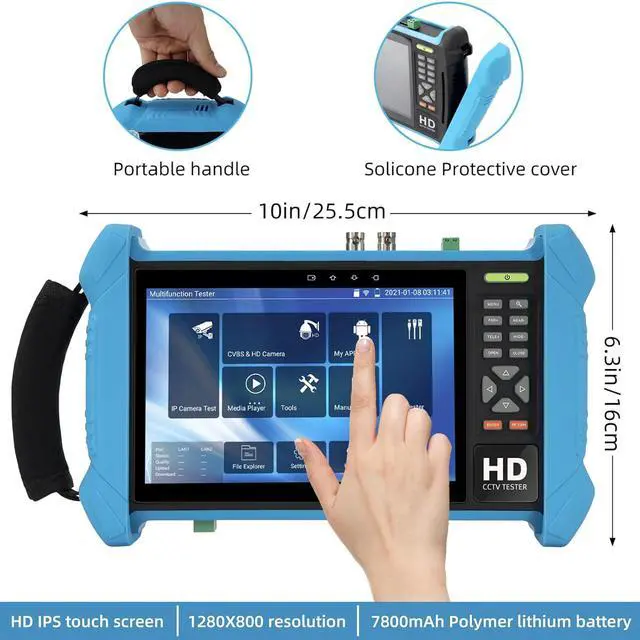

- Advanced Video Support & High-Resolution Display : Supports H.265/H.264 encoding and 4K video display via mainstream protocols. Features a 1280x800 resolution IPS touch screen for clear and detailed visuals. (Note: The product box and manual are generic and include all functions. Actual product functionality is as described)
- Comprehensive Cable Testing & Reporting : Equipped with RJ45 cable TDR testing for accurate cable quality assessment. Automatically detects and displays video signals, and generates detailed testing reports for quick diagnostics

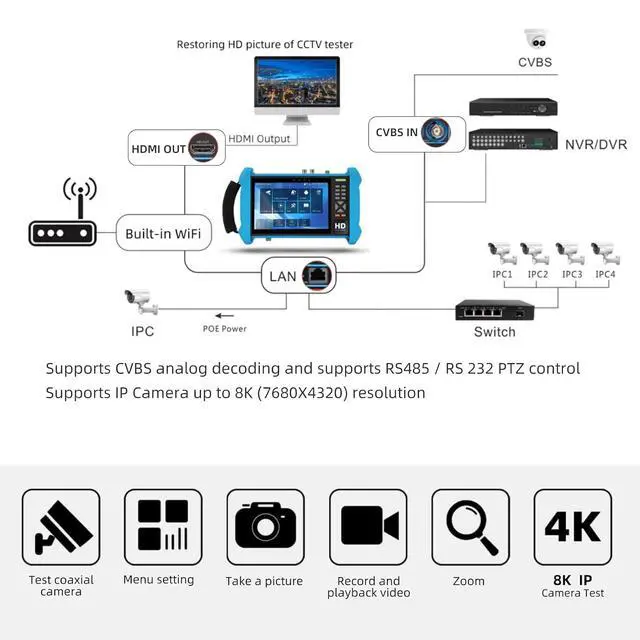

- Dual Window Testing & Multi-Platform Display : Supports simultaneous testing of IP and analog cameras with dual-window functionality. Compatible with TesterPlay, Android devices, and PC displays for versatile monitoring and testing
- HDMI Output & Office Tools : Features HDMI output with 1080p resolution for high-quality video display. Includes quick office tools for viewing Excel, Word, and PPT documents, along with UTP cable testing cap
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
CPU/RAM/ROM/System/Display 4-core 2.0GH z/1GB (DDR) /8GB (EMMC), Android 11.0 operate system, 7 inch IPS touch screen, 1280*800 resolution, Backlit buttons IP camera test max 8K 32MP IP camera test main stream supports up to 8K 32MP 8160x3616 24fps 4K 12MP 4000x3000P/3840*2160P resolution. IP Discovery/ONVIF/IPC test /RTSP play / Client APK, Rapid Video, Auto view the video, create testing report. For Hik test tool, pressing just one key to activate for hikvision camera, Image test, can modify the user name, password and IP parameters. For Dahua test tool, modify the user name, password and IP parameters CVBS camera test 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt).
Support CVBS color bar test. PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as for PELCO-D/P, for Samsung, for Panasonic etc. CVBS loop test, The tester send and receive CVBS color bar generator signal, check BNC cable IP & CVBS test & Zoom Image 1 channel HDMI input, support 4K 3840x216IP& CVBS test at the same time, converter test from analog to digital with dual test window. 4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back.
0P 30fps, 1 channel HDMI output, support

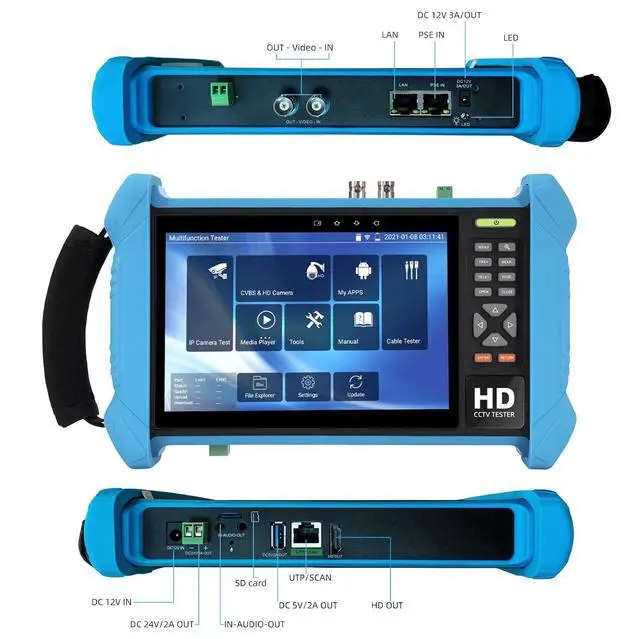

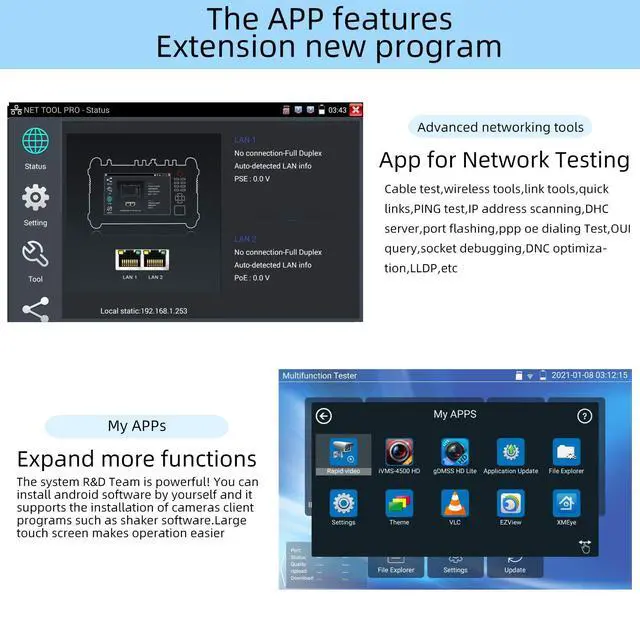

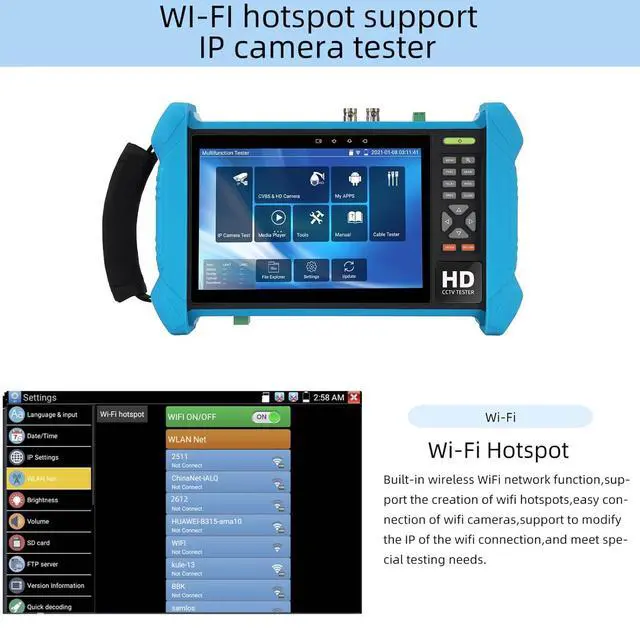

4K 3840x2160P 60fps (NOTE: HDMI output havr 2 output modes, please view details). 1 channel VGA input, support 1920x1080P 60fps HDMI output 1 channel HDMI output, support 4K 3840x2160P 60fps POE & Power output Standard PoE power output, DC48V, max power 25.5W. USB DC5V/2A power output, as a power bank. DC12V/3A power output, supply temporarily power for the camera. DC24V/2A power output, supply temporarily power for the speed dome camera Power output Power output USB DC5V/2A power output, as a power bank. DC12V/3A power output, supply temporarily power for the camera. DC24V/2A power output, supply temporarily power for the speed dome camera UTP/RJ45 TDR cable test Test UTP cable connection status and display on the screen. Read the number on the screen. Test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180M WiFi & Wifi Anylanyzer Built-in WIFI, 2.4GH z, speed 150Mbps, display wireless camera image. Support view wifi information, test wifi strength, analyze channel occupancy and channel level, etc Network test & interface Trace route, Link monitor, DHCP server, port flashing, Ping test.
RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive Power management/Data monitor View real-time data such as voltage and power of POE, DC12, DC24V output/PSE, and DC12V input. Captures and analyzes the command data from controlling device, also can send hexadecimal Drop-down menu & TesterPlay You can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface.
Screen projection: tester, mobile phone and PC display at the same time (only for android mobile phone) Audio test 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone Battery & Power supply Built-in 7.6V Lithium polymer battery, 7800mAh, 59.28W h. After charging 3 to 4hours, normal working time 15 hours. DC12V/2A power supply Operation languages OSD menu, select
your desired language: English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese, etc Dimension Weight 253x160x45mm / 1100g.
Working Temperature: '-10 to +50 (14 to 122).
Working Humidity: 30% to 90% Multiple network testing tools
Support CVBS color bar test. PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as for PELCO-D/P, for Samsung, for Panasonic etc. CVBS loop test, The tester send and receive CVBS color bar generator signal, check BNC cable IP & CVBS test & Zoom Image 1 channel HDMI input, support 4K 3840x216IP& CVBS test at the same time, converter test from analog to digital with dual test window. 4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back.
0P 30fps, 1 channel HDMI output, support
4K 3840x2160P 60fps (NOTE: HDMI output havr 2 output modes, please view details). 1 channel VGA input, support 1920x1080P 60fps HDMI output 1 channel HDMI output, support 4K 3840x2160P 60fps POE & Power output Standard PoE power output, DC48V, max power 25.5W. USB DC5V/2A power output, as a power bank. DC12V/3A power output, supply temporarily power for the camera. DC24V/2A power output, supply temporarily power for the speed dome camera Power output Power output USB DC5V/2A power output, as a power bank. DC12V/3A power output, supply temporarily power for the camera. DC24V/2A power output, supply temporarily power for the speed dome camera UTP/RJ45 TDR cable test Test UTP cable connection status and display on the screen. Read the number on the screen. Test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180M WiFi & Wifi Anylanyzer Built-in WIFI, 2.4GH z, speed 150Mbps, display wireless camera image. Support view wifi information, test wifi strength, analyze channel occupancy and channel level, etc Network test & interface Trace route, Link monitor, DHCP server, port flashing, Ping test.
RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive Power management/Data monitor View real-time data such as voltage and power of POE, DC12, DC24V output/PSE, and DC12V input. Captures and analyzes the command data from controlling device, also can send hexadecimal Drop-down menu & TesterPlay You can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface.
Screen projection: tester, mobile phone and PC display at the same time (only for android mobile phone) Audio test 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone Battery & Power supply Built-in 7.6V Lithium polymer battery, 7800mAh, 59.28W h. After charging 3 to 4hours, normal working time 15 hours. DC12V/2A power supply Operation languages OSD menu, select
your desired language: English, Polish, Italian, Korean, Russian, Spanish, Japanese, French, German, Turkish, Portuguese, Vietnamese, etc Dimension Weight 253x160x45mm / 1100g.
Working Temperature: '-10 to +50 (14 to 122).
Working Humidity: 30% to 90% Multiple network testing tools
