5MP Super HD at 20 fps
The outdoor PoE security camera, with professional 5MP OmniVision sensor and 2.8 mm lens, delivers sharpest Super HD images and 100 ft EXIR 2.0 night vision (2592 X 1944 pixels) at 20 fps.
Smart IR for Clear Images
The smart IR technology enables the security camera to balance the lighting for perfect brightness levels in the strongest lighting contrast conditions.
Audio Recording with Built-in Mic
With the built-in microphone, the smart PoE video camera records crisp videos with audio. Watch and hear to know what happened around your home.
Easy Plug & Play PoE Installation
Plug the PoE camera to the NVR with just a network cable for both data and power transmission. Even a beginner can install the system within minutes. The 8CH 4K NVR supports up to 8 pcs 4K IP cameras for clearer images.

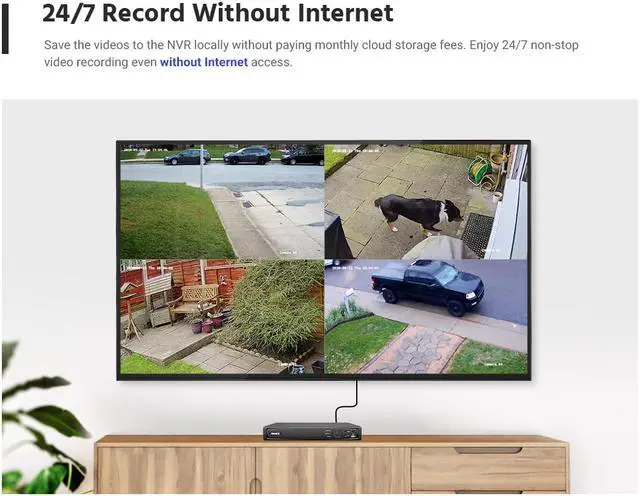

24/7 Record Without Internet
Save the videos to the NVR locally without paying monthly cloud storage fees. Enjoy 24/7 non-stop video recording even without Internet access.

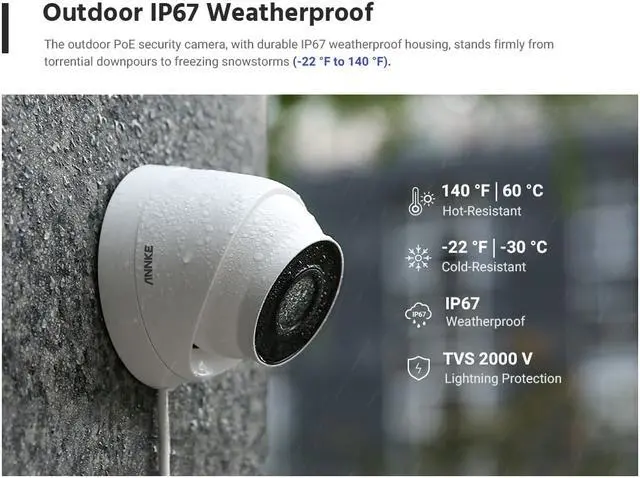

Outdoor IP67 Weatherproof
The outdoor PoE security camera, with durable IP67 weatherproof housing, stands firmly from torrential downpours to freezing snowstorms (-22 ?F to 140 ?F).
120 dB True WDR & 3D DNR
120 dB true WDR automatically adjusts the image brightness for crystal images in strongest light contrast conditions. 3D DNR helps to produce sharp footages without noise.
Advanced H.265+ Stream & ONVIF Compatibility
The whole CCTV IP system supports H.265+ coding, providing fast stream without latency & saving storage space. ONVIF & RTSP protocols help the system work with all ONVIF devices & third-party software, like Blue Iris, Synology, etc.
| Video Compression |
H.264+/H.264/H.265/H.265+/MPEG4 |
| Video Output |
HDMI up to 4K, VGA up to 1080p |
| Incoming Bandwidth |
80 M |
| Max Playback Channel |
8CH |
| ONVIF Protocols |
Support |
| HDD Capacity |
Up to 6 TB Capacity for Each HDD |
| PoE |
8 Ports (IEEE802.3af/at) |
| Operating Power |
DC 48 V |
| IP Video Input |
8CH PoE |
| Audio Input/Output |
1/1 RCA |
| Max Recording Resolution |
Up to 8MP (3840 X 2160) |
| Max Playback Capacity |
4-CH@1080p, 1-CH@8MP |
| HDD |
1 SATA Interface |
| Network Interface |
RJ45 X1 (10/100/1000 M) |
| USB |
2X USB 2.0 |
| Power Consumption |
<=10 W (Without HDD and PoE) PoE: Max 25.5 W for Single Port |
Camera Specifications
Image Sensor: 1/3''Progressive Scan CMOS
Video Compression: H.265+/H.265/H.264+/H.264
Video Bitrate : 32 Kbps - 8 Mbps
Audio Compression : G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Input: Built-in Microphone
Lens: 2.8 mm
Min. Illumination: Color: 0.028 Lux @(F2.0, AGC On)
Angle of View: Horizontal FOV 98?, vertical FOV 53?, diagonal FOV 115?
Number of Infrared LEDs: 2 pcs
Night Vision Distance: Up to 100 ft/30 m
DNR: 3D DNR
Wide Dynamic Range: 120 dB WDR
ONVIF: Support
IR-Cut Filter: Yes
Ethernet : RJ45 X1 (10 M/100 M)
Housing: Metal & Plastic
Storage: Built-in MicroSD/SDHC/SDXC Slot, up to 256 GB
Hardware Reset: Yes
Operating Power: DC 12 V; PoE (802.3af)
Operating Temperature: -22 ?F - 140 ?F/-30 ?C- 60 ?C
Indoor/Outdoor Use: Indoor/Outdoor
What's in the Box?
- 1* NVR
- 1* USB Mouse
- 1* Power Adapters
- 8* Cameras
- 4*Network Cables
- 8* Mounting Screw Bags
- 1* Remote Control
- 1* User Manual
Description:
NVR:
· 8MP high definition Real-time live viewing
· Live view, recording&playback up to 8 MP resolution
· Up to 8 channel IP cameras can be connected with built-in PoE inputs
· Advanced H. 265+ Video Compression
· Supports iPhoneiPadAndroid mobile remote monitoring
· Connectable to the third-party network cameras
· HDMI Video output at up to 4K (4096 × 2160) resolution
· Annke Vision for easy remote view
· Support 4-ch Human and vehicle targets detection"
Video & Audio:
Decoding Format: H. 264+/H. 264/H. 265/H. 265+
IP Video Input: 8CH PoE
Video Output: HDMI up to 4K (4096 × 2160), VGA up to 1080p(1920 × 1080)
Audio Input/Output: 1/1 RCA
Incoming/outgoing Bandwidth: 80/80 M
Max Recording Resolution: Up to 8MP (3840 X 2160) @30fps (Frame rate depends on IP camera)
Max Playback Resolution: Up to 8MP (3840 X 2160) @30fps (Frame rate depends on IP camera)
Max Playback Channel: 8CH
Max Playback Capacity: 1-ch@8 MP (30 fps) /3-ch@4 MP (30 fps) /6-ch@1080p (30 fps)
Hard Drive:
HDD: 1 SATA Interface
HDD Capacity: Up to 8 TB Capacity
External Interface:
Network Interface: 1, RJ-45 10/100Mbps self-adaptive Ethernet interface
PoE 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at
USB interface: USB 2.0 *2
General:
Operating Power: DC 48 V
Power Consumption: 10 W (Without HDD and PoE)
PoE: Max 25.5 W for Single Port
Working Temperature: 14 °F ~ 131 °F/-10 °C ~+55 °C
Dimensions (W X H X D): 12.4 X 9.4 X 1.9 /315 X 240 X 48 mm
Weight (Without Hard Disk): 2.2 lbs/1 kg
IP Camera:
3K IR Network Camera with 16:9 image scale
4mm lens brings everything back to life
Efficient H. 265+ compression technology
Motion detection 2.0 with human & Vehicle Detection
Up to 100ft night vision with EXIR 2.0
Clear day and night vision with 3D DNR and 120DB WDR
IP67 Dust and Waterproof Rating
Support PoE &DC12V "
Camera:
Image Sensor: 1/3" Progressive Scan CMOS
Max resolution 3K (3072*1728), 16: 9 picture ratio is more suitable for the most popular display
Main Stream: "50
Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
60 Hz: 20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)"
Substream: "50
Hz: 25 fps (1280 X 720, 640 X 480, 640 X 360)
60 Hz: 24 fps (1280 X 720, 640 X 480, 640 X 360)"
Video Compression: "Main
stream: H. 265+/H. 265/H. 264+/H. 264
Sub-stream: H. 265/H. 264/MJPEG"
Video Bitrate: 32 Kbps - 6 Mbps
Audio Compression: G. 711ulaw/G. 711alaw/G. 722.1 /G. 726/MP2L2/PCM/AAC
Audio Input: Built-in Microphone, record with audio
Lens: 4 mm
Min.
Illumination:
Color: 0.01 Lux @ (F 2.0, AGC ON), B/W: 0 Lux with IR
Angle of View: Horizontal FOV 76°, vertical FOV 41°, diagonal FOV 90°
Number of Infrared LEDs: 2 pcs
Night Vision Distance: Up to 100 ft/30 m
Motion detection 2.0: Supoort, include Human & Vehicle detection
Image Enhancement: BLC, HLC, 3D DNR
Wide Dynamic Range: 120 dB WDR
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP
ONVIF: Support
Region of Interest (ROI): 1 fixed region for main stream
Privacy Mask: 4 programmable polygon privacy masks
General Function: Mirror, rotate, password protection, video tampering alarm, remote access
Ethernet: 1 RJ45 10 M/100 M self-adaptive Ethernet port
General:
Housing: Metal & Plastic
Color: White
Storage: Built-in microSD/SDHC/SDXC Slot, up to 256 GB
Hardware Reset: Yes
Operating Power: DC 12 V± 25%, max. 5 W; PoE ( 802.3 af), max. 6.5 W
Operating Temperature: -22 °F
