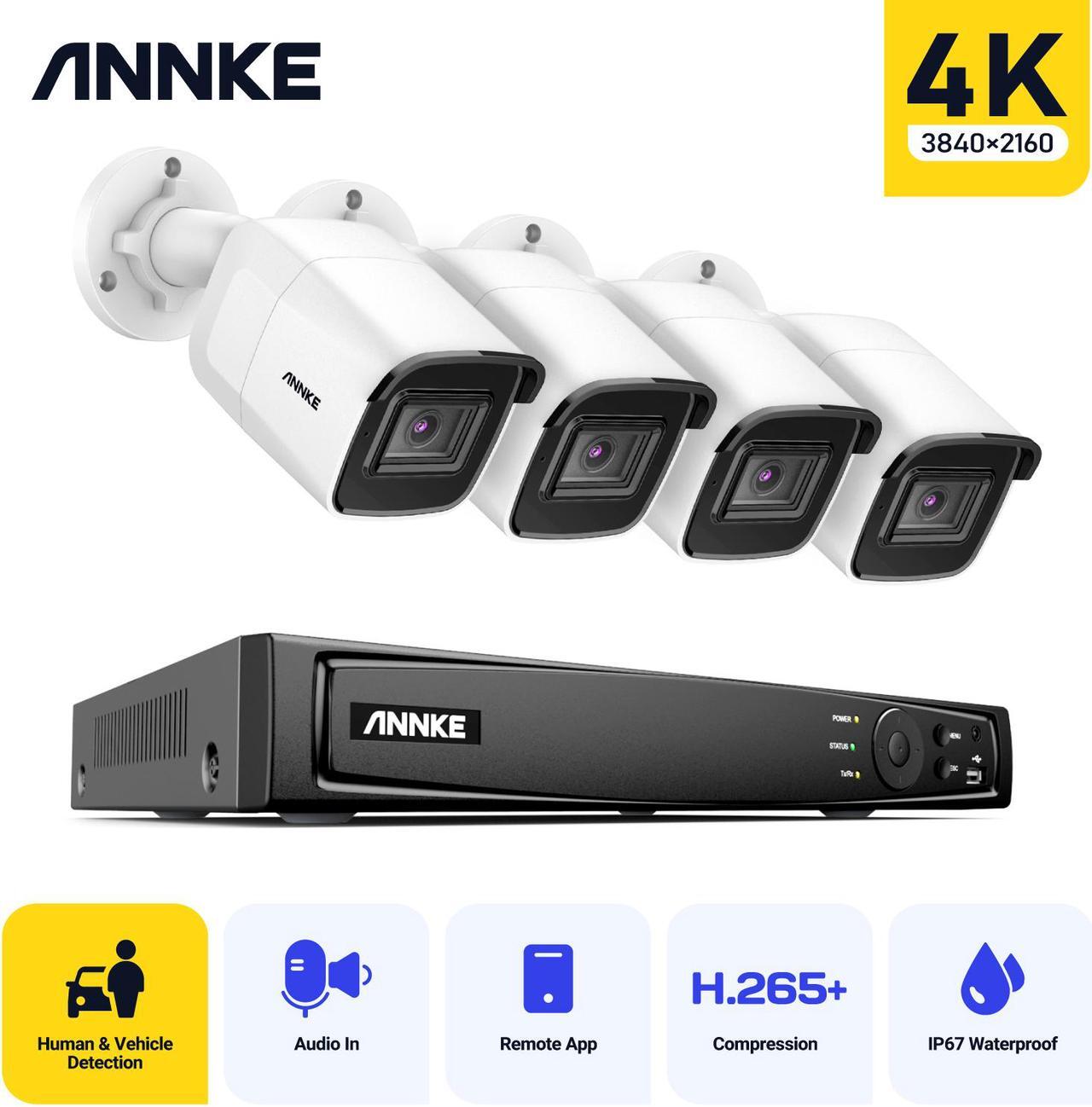

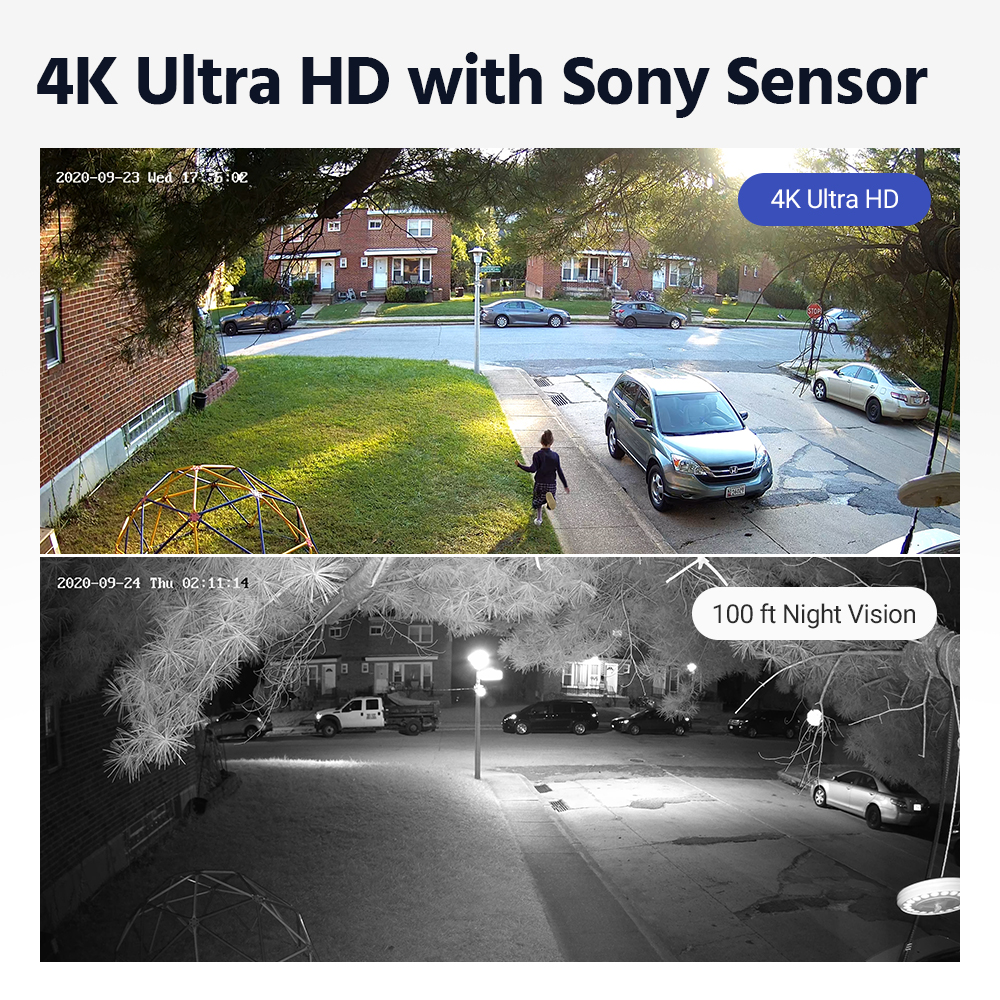

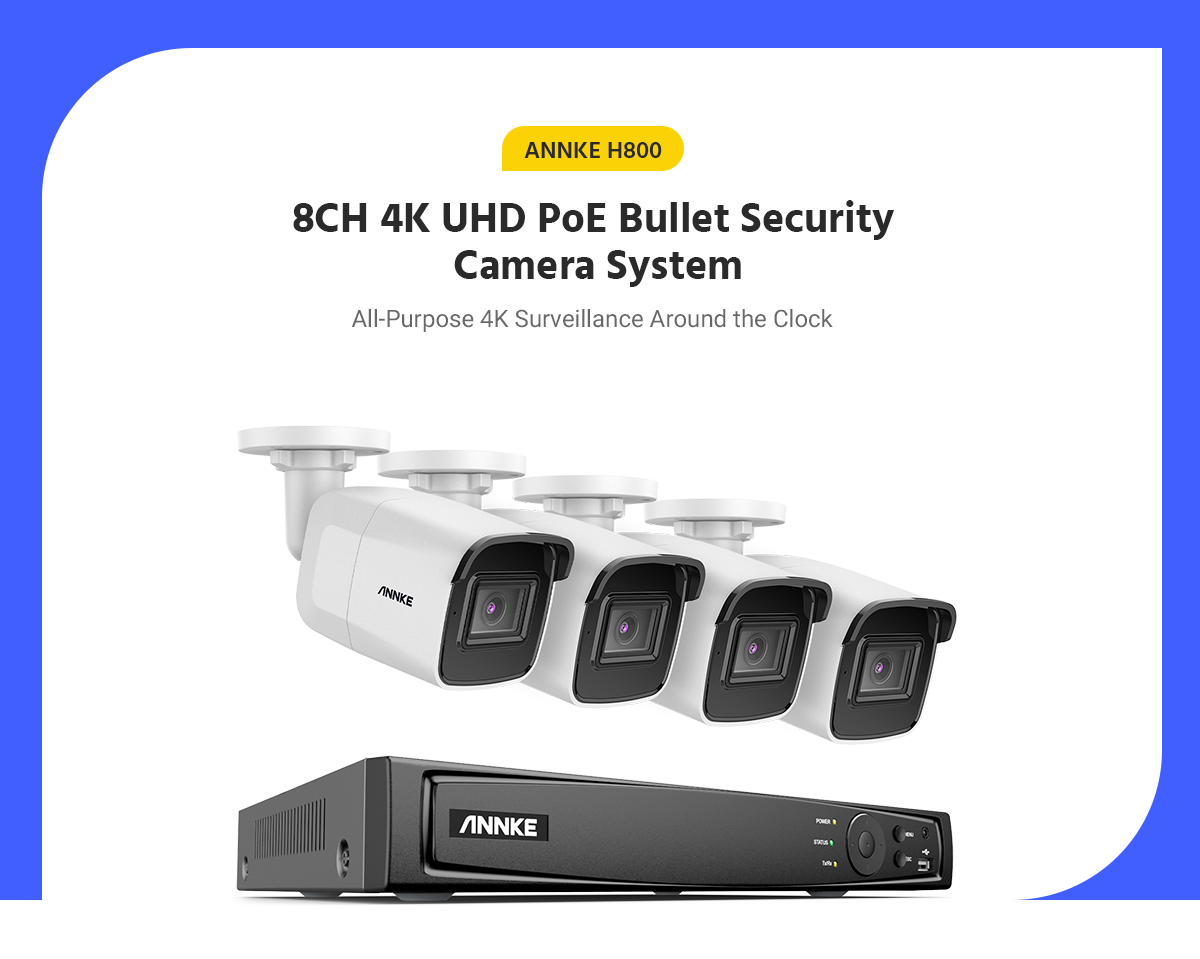

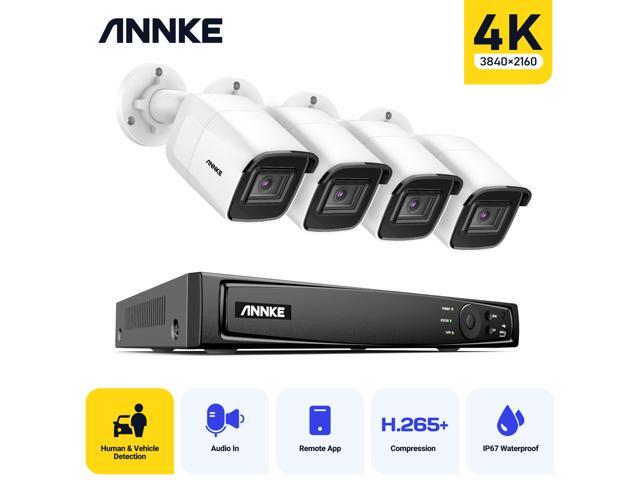

The advanced Sony CMOS image sensor enables the PoE dome IP camera to capture the clearest 4K Ultra HD images, much clearer than other 8MP cameras.
The microphone built in the PoE security camera system enables you to hear and record the sounds of events around your home & business.

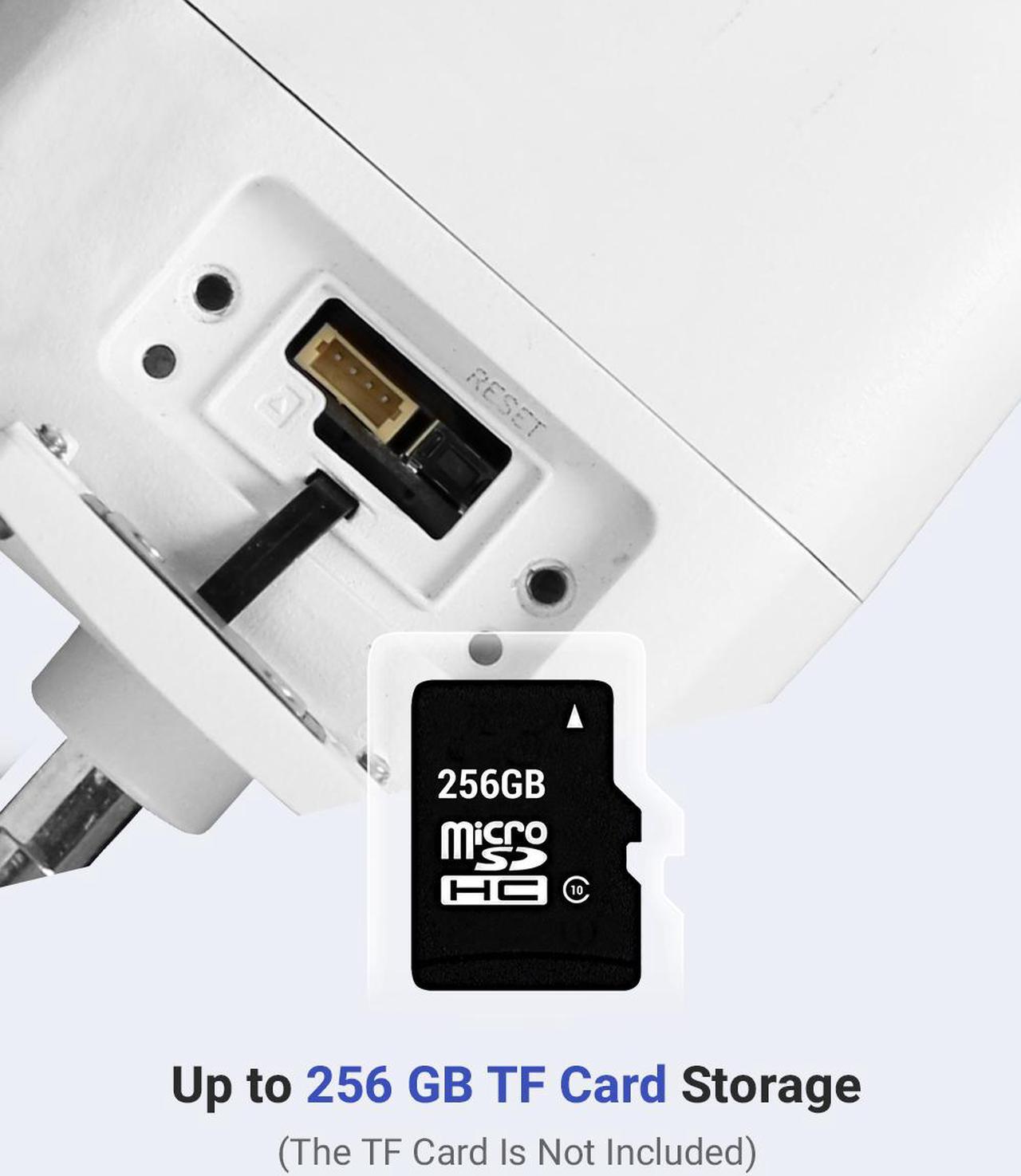

The Ethernet IP camera comes with a TF card slot, enabling you to insert an up to 256 GB TF card for recording motion-triggered videos. Save videos to NAS for another data backup way.
With the ONVIF & RTSP compatibility, users can integrate other ONVIF security cameras to the NVR and control the system via third-party software, such as Blue Iris, Synology, Milestone, etc.
The true WDR fixes the overexposed or underexposed image issues and provides the crystal videos under the strongest light contrast. The 3D DNR removes the image noise greatly for clean images in darkness.

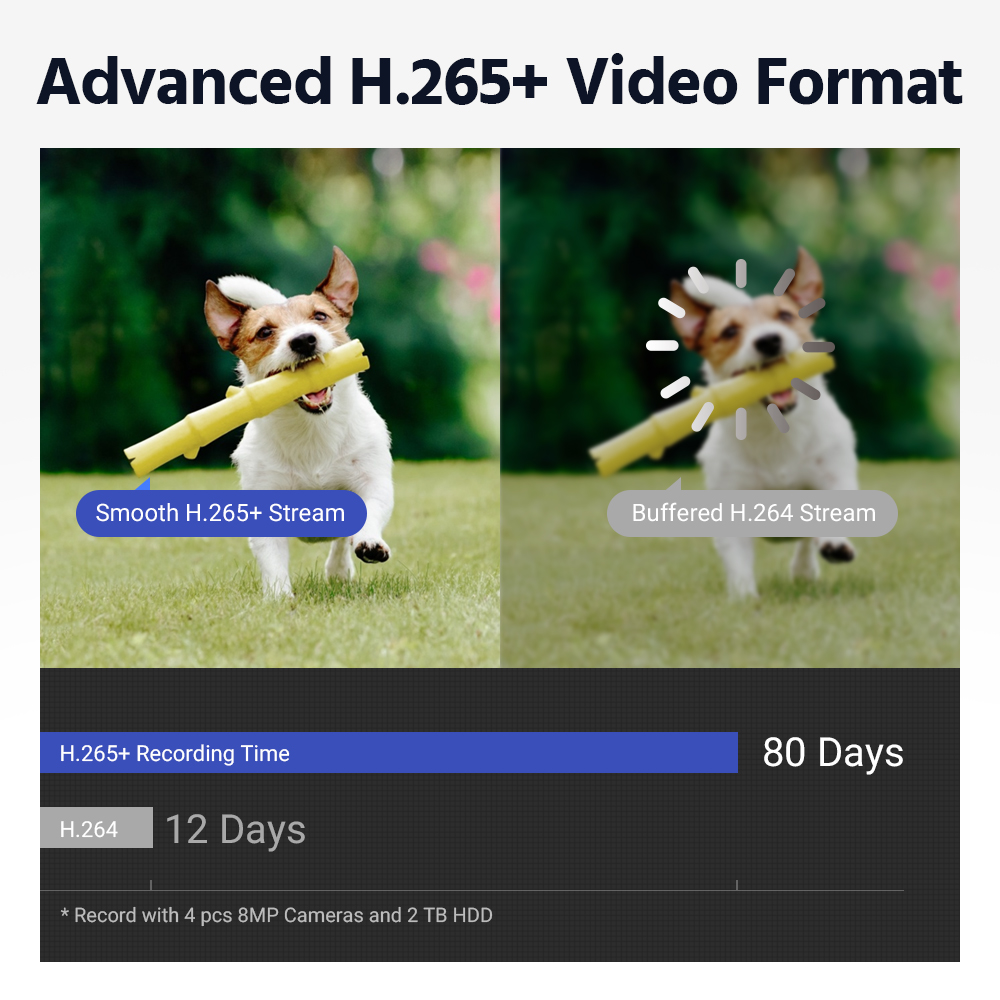

The H.265+ coding transmits clearer and smoother videos without latency. Consume less storage space and bandwidth than H.265, H.264+ & H.264 video camera systems.

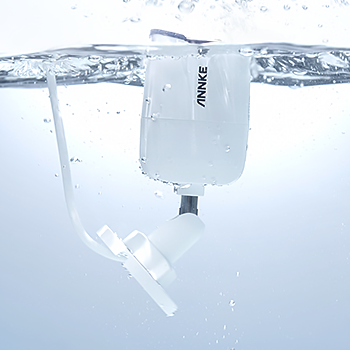

The IP67 weatherproof & all-metal housing ensure the PoE video camera works in all extremely severe weather. The IK10 vandal-proof enables the IP camera endure the violent impacts.

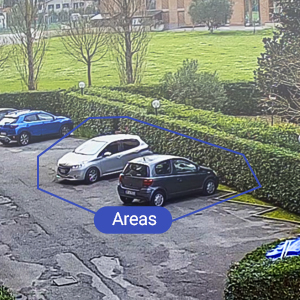

Customize any vital area of your property to get alerted only when motion events happened in the marked areas.

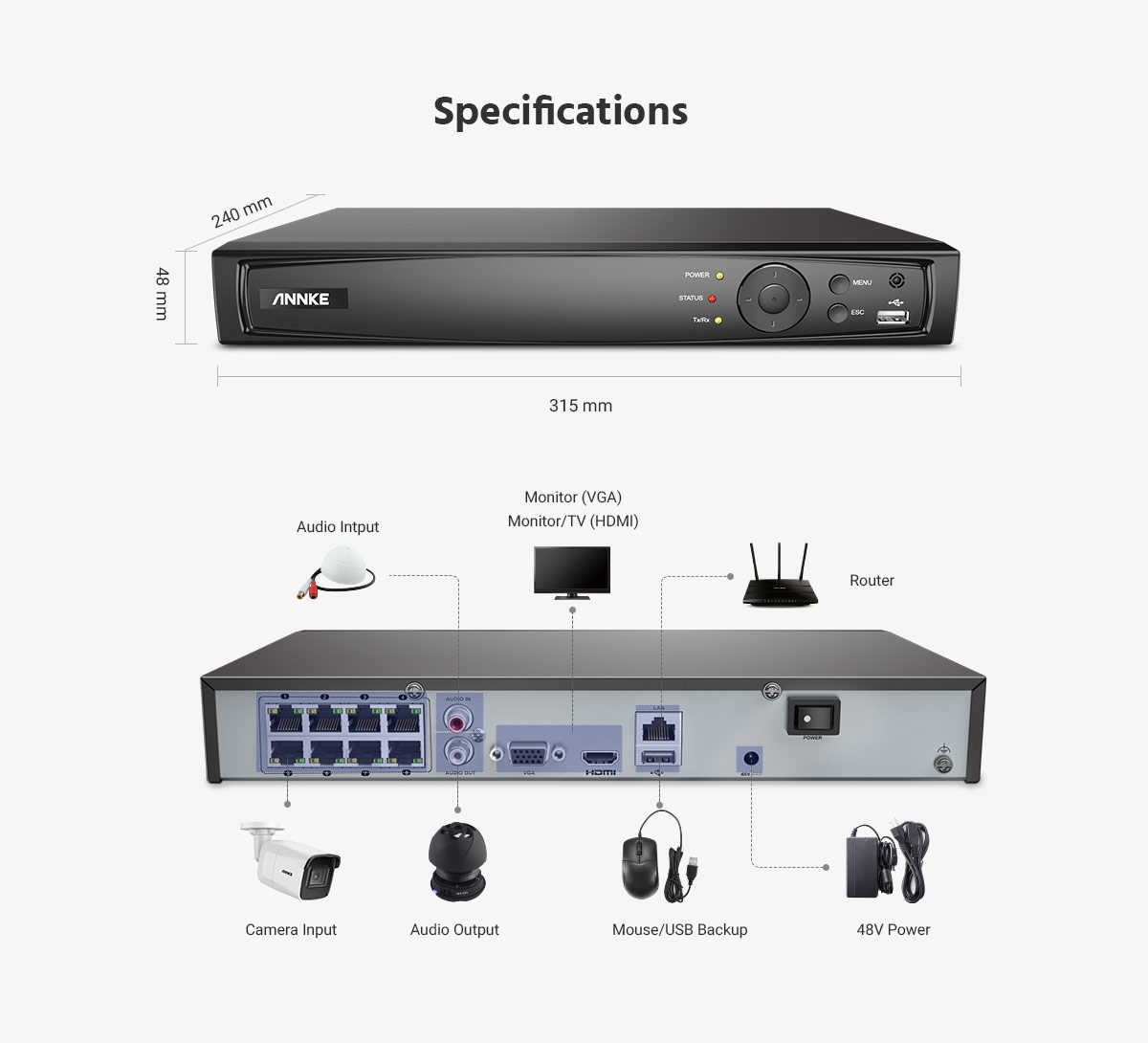

Video Compression: H.264+/H.264/H.265/H.265+/MPEG4
IP Video Input: 8CH PoE
Video Output :HDMI up to 4K, VGA up to 1080p
Audio Input/Output: 1/1 RCA
Incoming Bandwidth: 80 M
Max Recording Resolution :Up to 8MP (3840 X 2160)
Max Playback Resolution :Up to 8MP (3840 X 2160)
Max Playback Channel: 8CH
Max Playback Capacity :4-CH@1080p, 1-CH@8MP
ONVIF Protocols: Support
HDD: 1 SATA Interface
HDD Capacity: Up to 6 TB Capacity for Each HDD
Network Interface: RJ45 X1 (10/100/1000 M)

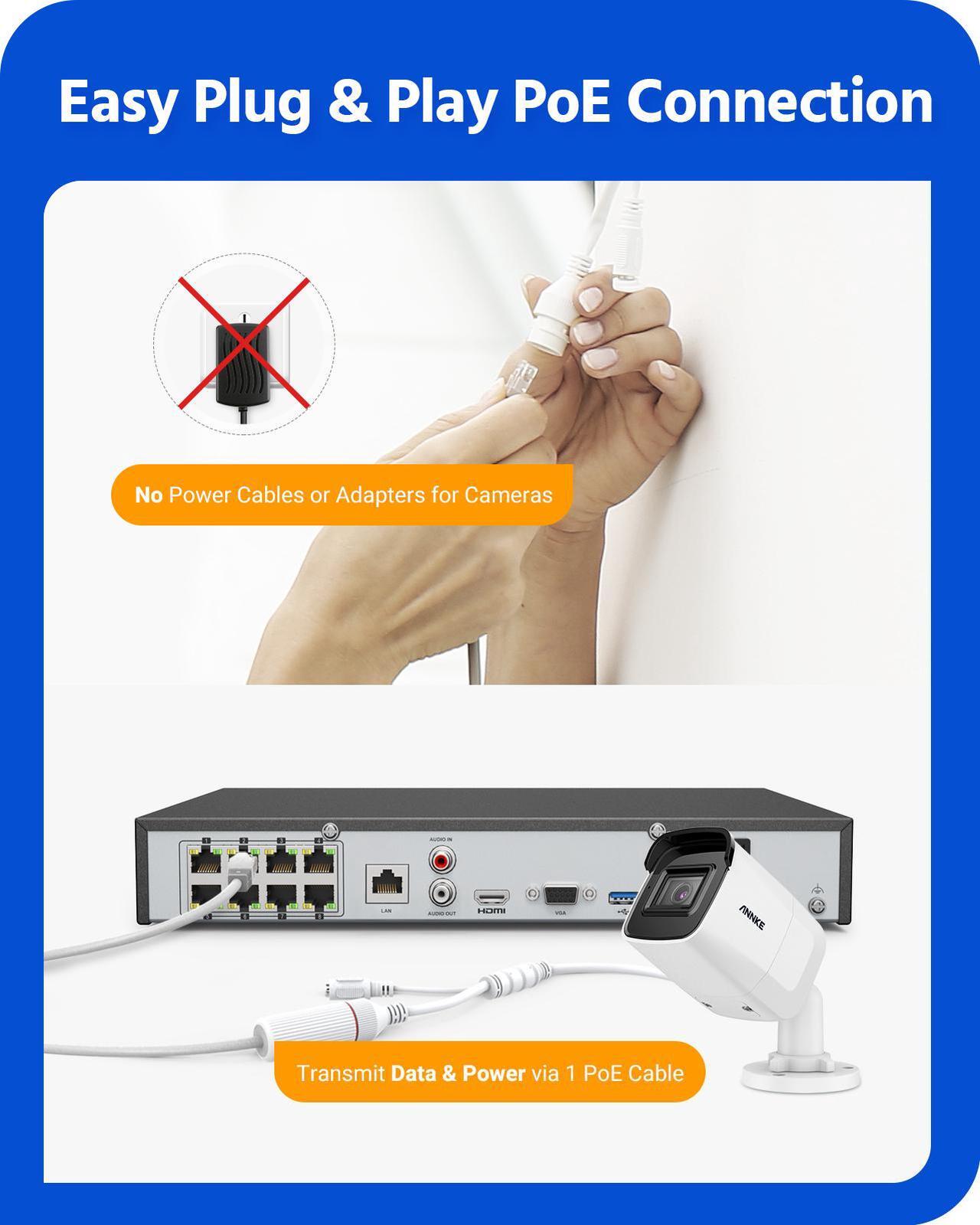

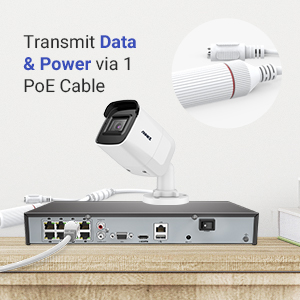

PoE: 8 Ports (IEEE802.3at/af)
USB: 2X USB 2.0
Operating Power: DC 48 V
Power Consumption: < =10 W (Without HDD and PoE)
PoE: Max 25.5 W for Single Port
Working Temperature :14 ?F~ 131 ?F/-10 ?C~+55 ?C
Dimensions (W X H X D) :12.4''X 9.4'' X 1.9''/315 X 240 X 48 mm
Weight (Without Hard Disk) : 2.2 lbs./1 kg

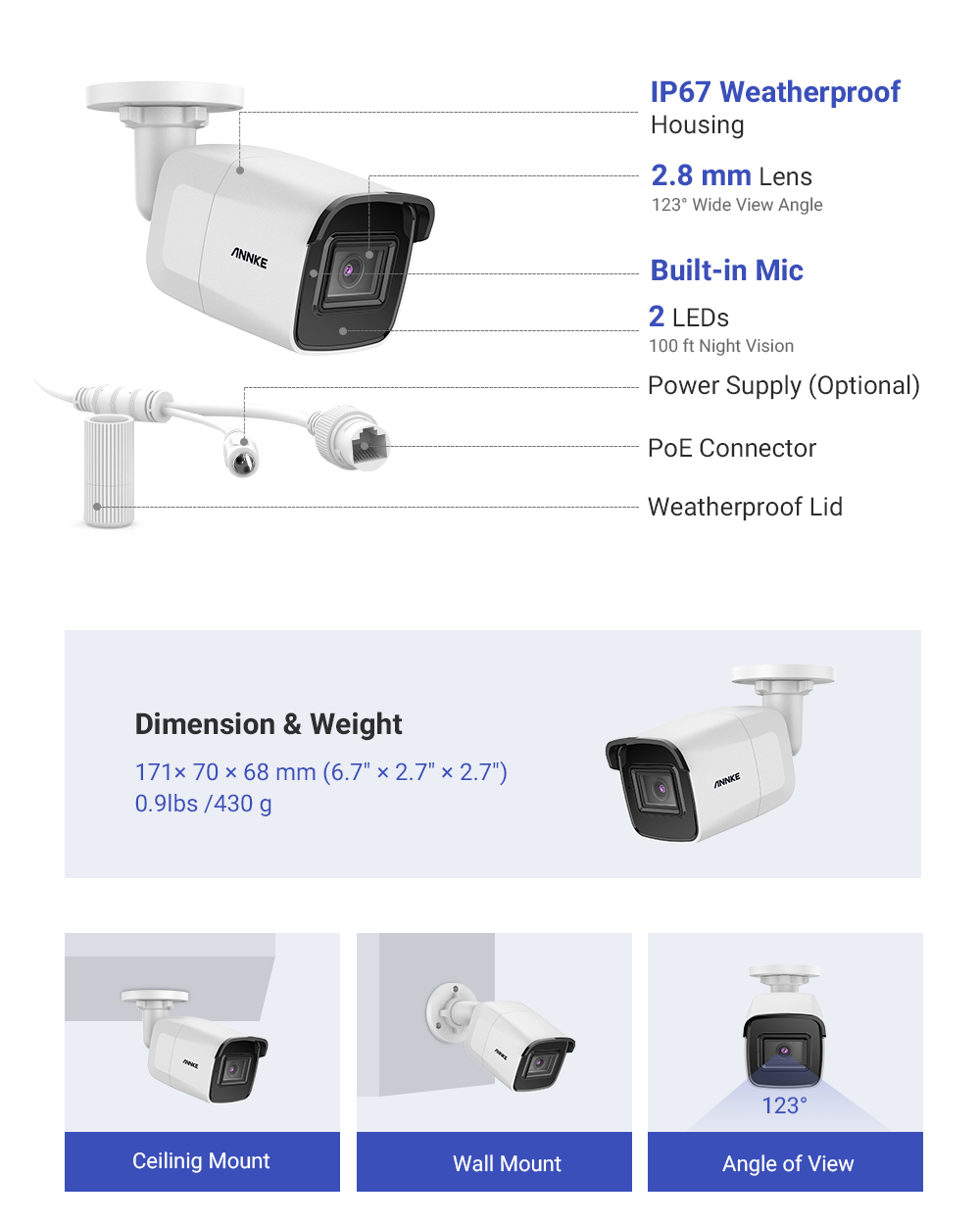

Image Sensor: 1/2.5'' Progressive Scan CMOS
Video Compression: H.265+/H.265
Video Bitrate: 32 Kbps - 16 Mbps
Audio Input/Output: Built-in Microphone
Lens: 2.8 mm
Min. Illumination: 0.01 Lux@(F2.0, AGC On)
Angle of View: Horizontal FoV 102?, Vertical FoV 53?, Diagonal FoV 123?
Number of Infrared LEDs: 2 pcs

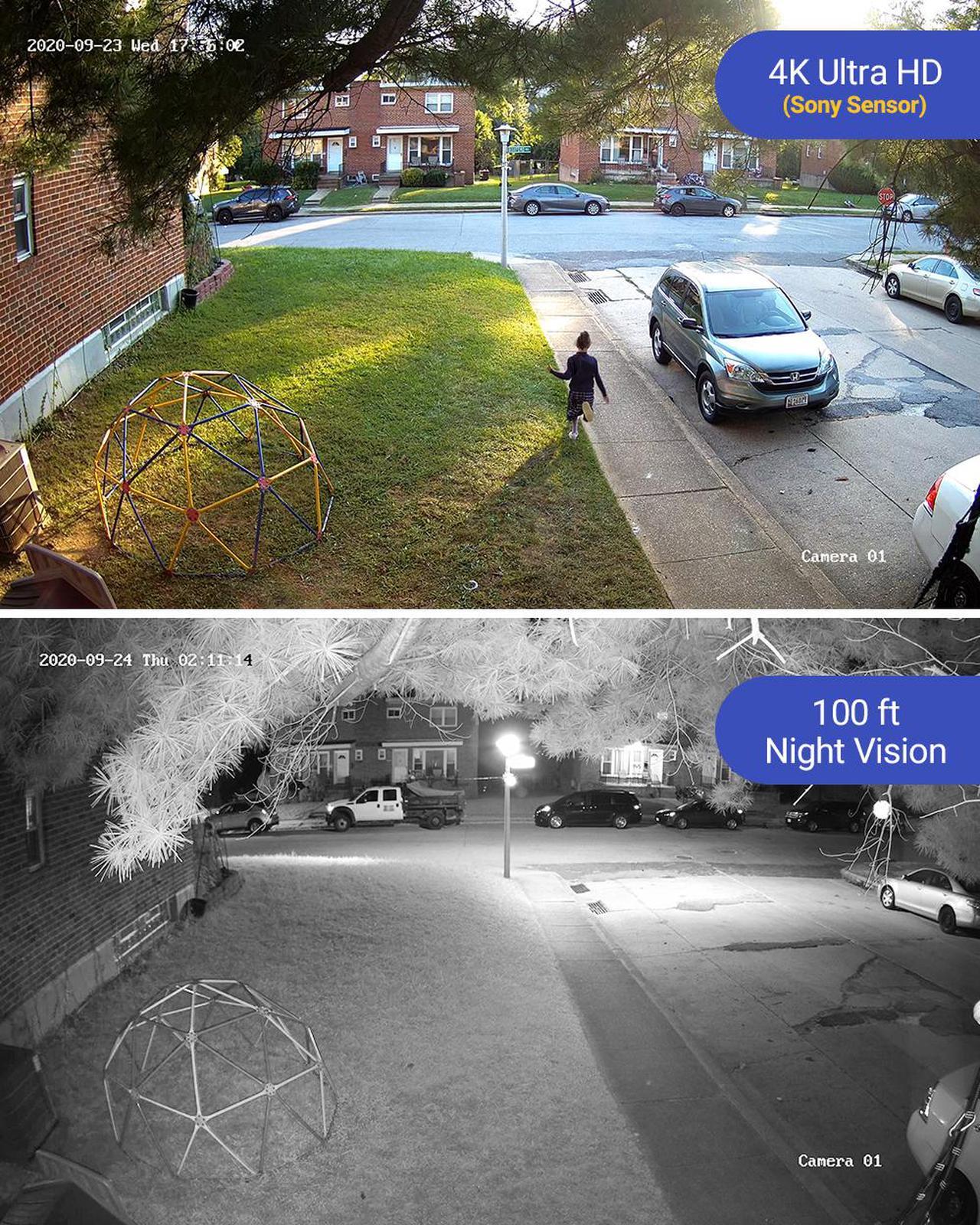

Night Vision Distance :Up to 100 ft/30 m
DNR: 3D DNR
Wide Dynamic Range: 120 dB WDR
Network Storage: Local Storage & NAS (NFS, SMB/CIFS)
ONVIF: Support
Day/Night Switch: Day, Night, Auto, Schedule
Ethernet: RJ45 X1 (10 M/100 M)
Housing :Aluminum Alloy for Main Body
Operating Power: PoE (802.3af), 12 V DC ? 25%

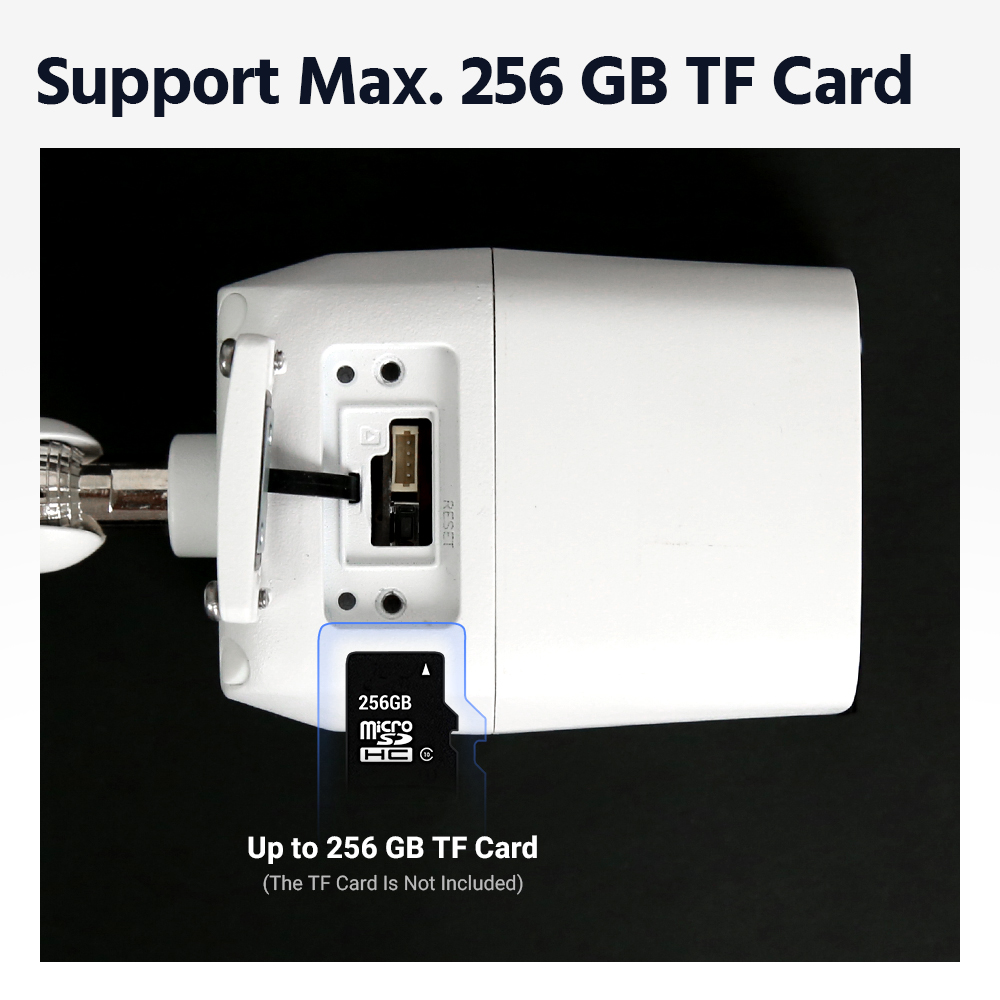

Storage: Built-in MicroSD/SDHC/SDXC Slot, up to 256 GB
Hardware Reset: Yes
Operating Temperature: -22 ?F - 140 ?F /-30 ?C - 60 ?C
Indoor/Outdoor: Indoor/Outdoor
Weatherproof Rating: IP67 & IK10
