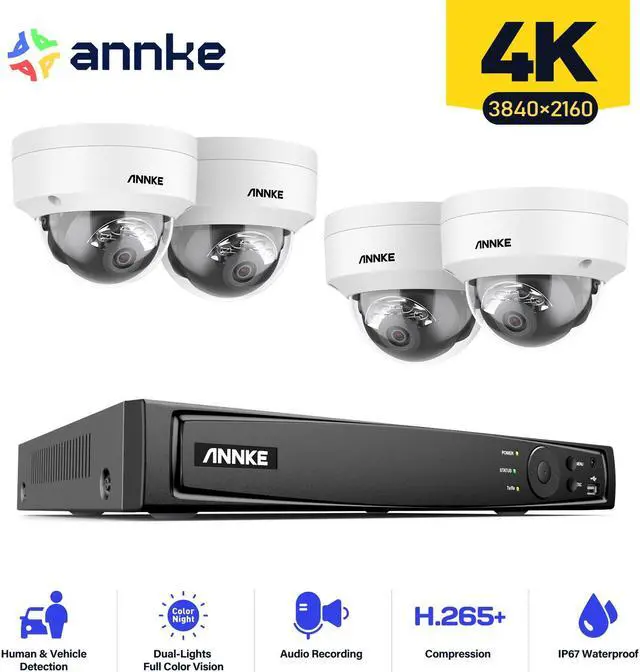

ANNKE H800 PoE IP system with IK10 vandal-proof dome IP cameras captures everything in true 4K Ultra HD with the Sony sensor. The PoE connection enables users to link the camera to the NVR with a network cable without messy wiring. Place the Ethernet IP cameras anywhere with the IP67 weatherproof, IK10 vandal-proof, & all-metal housing, like front/back door, garden, garage, office, home, villa, warehouse, etc. outdoors or indoors.
The Sony CMOS image sensor, advanced EXIR 2.0 night vision tech, 120 dB true WDR & 3D DNR, all enable the 4K 8MP Ultra HD PoE dome security cameras to deliver the sharpest images at 3840 X 2160 pixels both day & night (even in 0.01 lux darkness).
Access & control the whole PoE security camera system remotely via your smartphone, tablet or computer. Get instant app pushes & email alerts with snapshots upon there are motion events.
- The Ethernet IP camera has the built-in microphone for recording vivid sound.
- View, record and play back videos with voice without just boring silent videos.
- Save motion-triggered videos locally by inserting an up to 256 GB TF card (not included). Never miss any important event.
- Users can also record videos 24/7 by connecting the PoE CCTV camera to the NVR with just a network cable.
- Connect the PoE surveillance video camera to the NVR with just a single network cable without messy wiring.
- The video cameras connect to the NVR via their proprietary Internet. Get 24/7 non-stop recording even without network access.
Customize any vital area of your property to get alerted only when motion events happened in the marked areas.
You can draw any shape of the areas for much more accurate alerts, like customizing the areas of your front door, parking position, etc.
The IP67 weatherproof & all-metal housing ensure the PoE video camera works in all extremely severe weather. The IK10 vandal-proof enables the IP camera endure the violent impacts.
- Balance all areas of an image with the 120 dB true WDR. Capture the crystal pictures even in the overexposed or underexposed light conditions.
- The 3D DNR removes the image noise greatly for sharp videos even in extremely low-light conditions.
Video Compression: H.264+/H.264/H.265/H.265+/MPEG4
IP Video Input: 8CH PoE
Video Output: HDMI up to 4K, VGA up to 1080p
Audio Input/Output: 1/1 RCA
Incoming Bandwidth :80 M
Max Recording Resolution: Up to 12MP(4096 X 3072)
Max Playback Resolution: Up to 12MP(4096 X 3072)
Max Playback Channel: 8CH
Max Playback Capacity: 4-CH@1080p, 1-CH@8MP
ONVIF Protocols: Support
HDD: 1 SATA Interface
HDD Capacity: Up to 6 TB Capacity for Each HDD
Network Interface: RJ45 X1 (10/100/1000 M)
PoE :8 Ports (IEEE802.3at/af)
USB: 2X USB 2.0
Operating Power :DC 48 V
Power Consumption: < =10 W (Without HDD and PoE)
PoE: Max 25.5 W for Single Port
Working Temperature :14 °F ~ 131 °F/-10 °C ~+55 °C
Image Sensor:1/2.5''Progressive Scan CMOS
Video Compression: H.265+/H.265
Video Bitrate :32 Kbps- 16 Mbps
Audio Input/Output:Built-in Microphone
Lens:2.8 mm
Number of Infrared LEDs: 2 pcs
Night Vision Distance:Up to 100 ft/30 m
DNR :3D DNR
Wide Dynamic Range :120 dB WDR
ONVIF: Support
Day/Night Switch: Day, Night, Auto, Schedule
Housing :Aluminum Alloy for Main Body
Color: White
Storage: Built-in MicroSD/SDHC/SDXC Slot, up to 256 GB
Hardware Reset:Yes
Operating Temperature:-22 °F - 140 °F /-30 °C - 60 °C
Indoor/Outdoor:Indoor/Outdoor
Weatherproof Rating: IP67 & IK10
