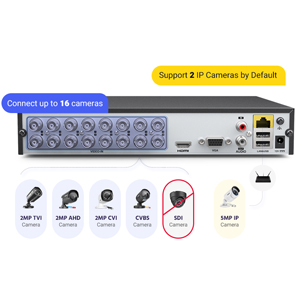

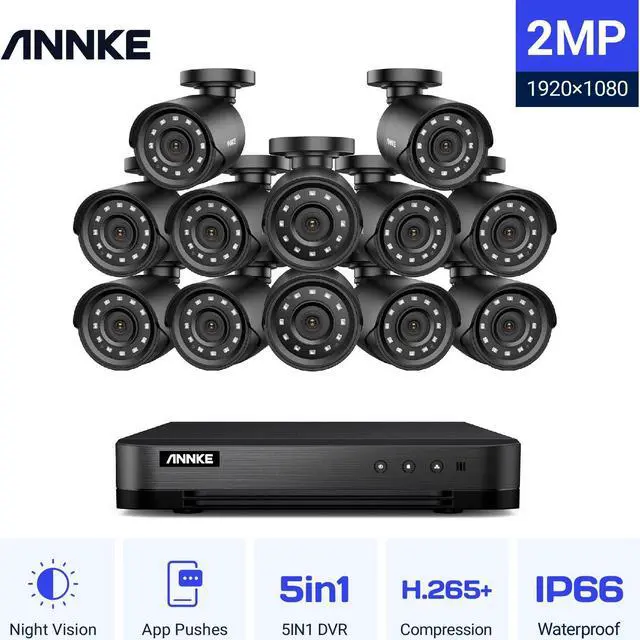

The expandable hybrid digital video recorder, combing the features of DVR/NVR/HVR, supports up to 16 pcs TVI, AHD, CVI, CVBS & extra 2 IP cameras. So, you have full-range security camera choices for your property. It is highly recommended that this DVR works with ANNKE wired cameras to to achieve optimal performance.

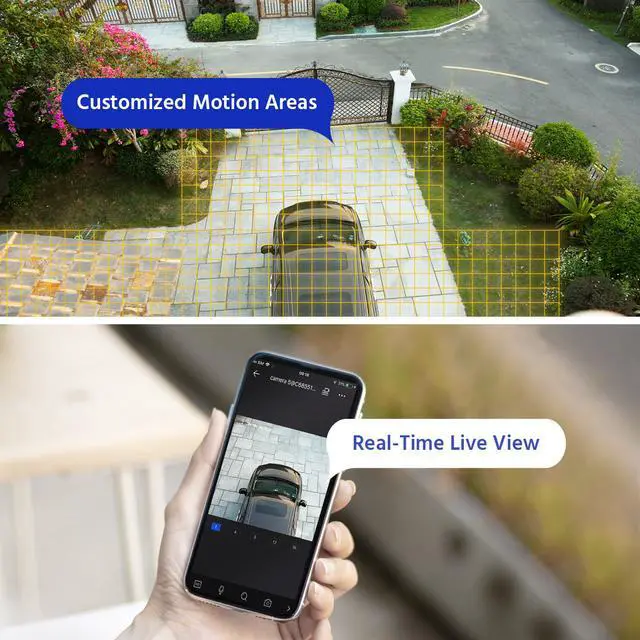

You can always customize motion detection through this digital video recorder with specific motion zones. The DVR will push instant app pushes & email alerts with snapshots only when motion events happen in the customized areas.
H.265+ coding offers longer recording time before having to overwrite the older recordings, saving up to 50% of storage space than H.265 systems. You'll enjoy fast & smooth streaming without latency when accessing the DVR.
Link the DVR to a router and download ANNKE Vision App to control the DVR remotely. Access the DVR via 3G/4G/5G or WiFi with your smartphones, tablets, computers and browsers (Google Chrome, Firefox, Microsoft Edge, Internet Explorer, etc.).

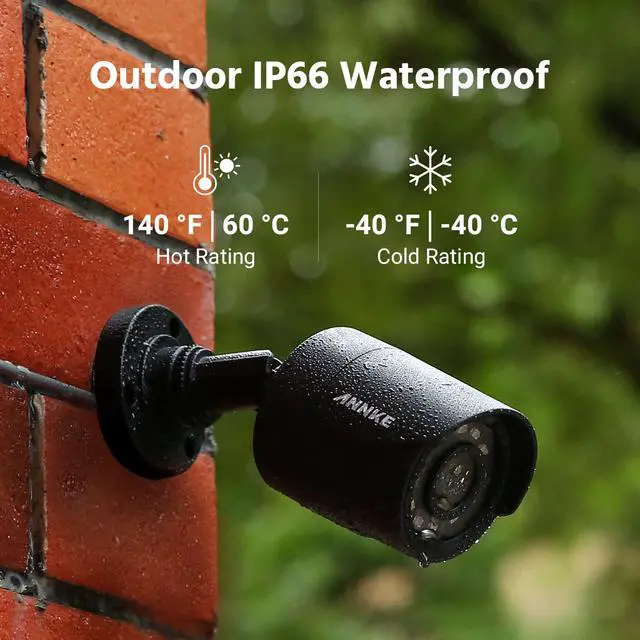

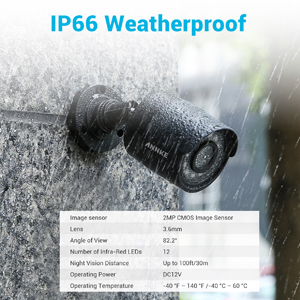

The camera, with an IP66 waterproof rating, braves the harshest weather & captures clear images in extremely hot/cold climates. The housing, made from the best ABS materials, provides fast heat dissipation & a long lifespan without fading
Camera:
Image sensor: 2MP CMOS Image Sensor
Video Resolution: 1920 (H) × 1080 (V)
Signal System: PAL/NTSC
Frame Rate: PAL: 1080p@25fps NTSC: 1080p@30fps
Lens: 3.6 mm
Min.
Illumination:
Color: 0.02 Lux @ (F 1.2, AGC ON), 0 Lux with IR
Angle of View: 82.2 °
Number of Infra-Red LEDs: 12
Night Vision Distance: Up to 100ft/30m
DNR: Support
Wide Dynamic Range: Digital WDR
IR Cut Filter: Yes
Video Output: HD BNCx1
General:
Housing: Plastic
Color: Black
Operating Power: DC12V
Operating Temperature: -40 °F 140 °F /-40 °C 60 °C
Indoor/Outdoor: Indoor/Outdoor
Weatherproof Rating: IP66
Dimension (L x W x H): 2.76" × 6.08" / 70 × 154.5 mm
Weight: 0.88 lbs / 400g
DVR:
Video & Audio:
Video Compression: H. 265+/H. 265/H. 264+/H. 264
Video Input: 16CH Analog HD/Analog+2CH IP
Video Output: HDMI and VGA Up to 1080P
Audio Input/Output: 1/1 RCA
Analog HD Recording Resolution: 1080P Lite(960×1080)/720p(1280×720): 15fps
Analog HD Playback Resolution: 1080P Lite (960×1080)/720p(1280×720): 15fps
IPC Recording Resolution: 2CH, Up to 5MP
IPC Playback Resolution: 2CH, Up to 5MP
Max Playback Channel: 16CH
Onvif Protocols: Support
General:
Operating Power: DC12V
Working Temperature: 14 °F 131 °F /-10 °C 55 °C
Dimensions (W x H x D): 10.2" × 8.7" × 1.8 / 260 × 222 × 45mm
Weight (without hard disk): 2.4 lbs / 1.1KG (without HDD)
Hard Drive:
HDD: 1 SATA interface
HDD Capacity: Up to 10TB capacity
HD Camera:

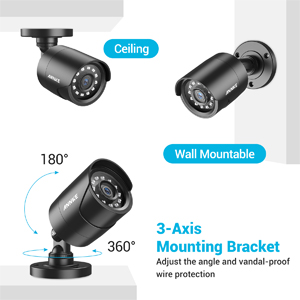

1080P HD TVI Bullet Security Camera

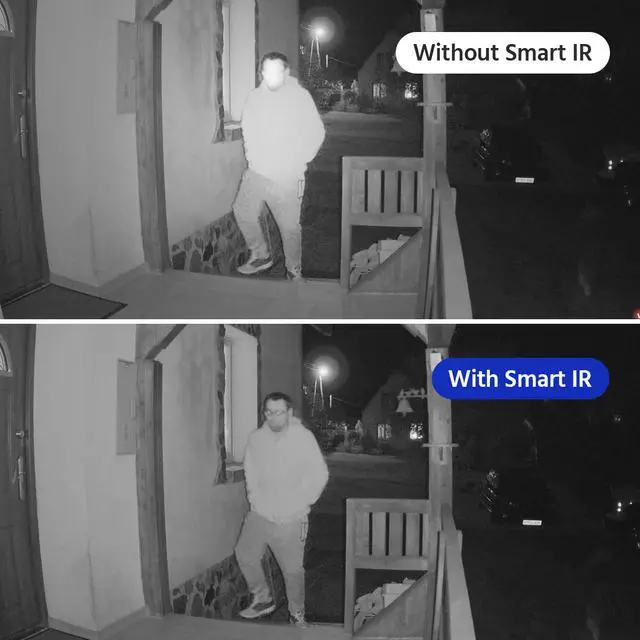

Up to 30m night vision with Smart IR
3.6 mm lens brings everything back to life

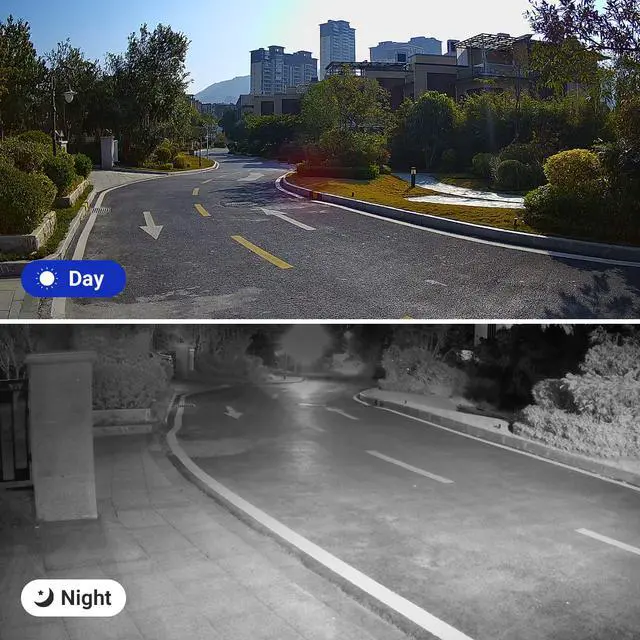

Clear day and night vision with auto IR-cut
IP66 Dust and Waterproof Rating
