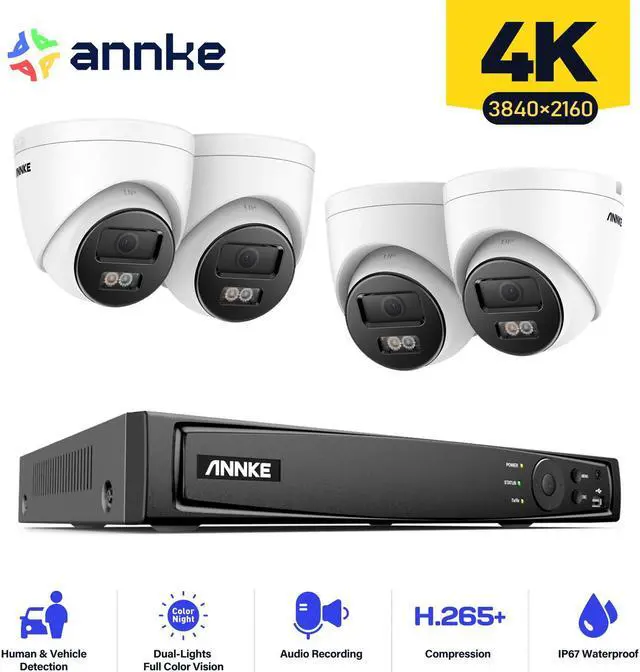

ANNKE H.265+ 4K 8CH PoE Outdoor Surveillance Camera Set, 12MP 8CH NO Hard Drive NVR with 4x 4K PoE IP Turret Camera Outdoor Surveillance, Spotlights, Person/Vehicle Detection, All-weather Color/IR Nig
- Turbo 4K and image scaling: the 4K resolution is the focus of clearer live stream clarity and a more budget-friendly approach. Monitors on the market typically have a 16:9 image aspect ratio equivalent to the 4K cam, while the aspect ratio of other 5MP cams is 4:3, resulting in distortion.
- More Convenience - Flexible Night Modes: 3 switchable night modes: smart light mode, white light mode and IR light mode. Choose your preferred setting for a safe and quiet night. (The smart light mode is the standard.)
- Increased accuracy, increased rest: an advanced algorithm analyses people and vehicles with 99% accuracy and sends real warnings via app notifications and emails. No more false alarms caused by errors or leaves with specific zone settings.
- 12MP 8-port NVR with expandable capacity: the 12MP 8-port NVR not only improves your surveillance system, but also allows the support of up to 8 PoE cameras. So you can add 8MP, 6MP, or 4MP PoE bullet or dome cameras to expand the capacity as needed.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
NVR:
· Live view, recording&playback up to 12 MP resolution
· Up to 8 channel IP cameras can be connected with built-in PoE inputs
· Advanced H.265+ Video Compression
· Supports iPhoneiPadAndroid mobile remote monitoring
· Connectable to the third-party network cameras
· HDMI Video output at up to 4K (40960 × 2160) resolution
· Annke Vision for easy remote view
· Support 4-ch Human and vehicle targets detection""
Video & Audio:
Decoding Format: H.264+/H.264/H.265/H.265+
IP Video Input: 8CH PoE
Video Output: HDMI up to 4K (4096 × 2160), VGA up to 1080p(1920 × 1080)
Audio Input/Output: 1/1 RCA
Incoming/outgoing Bandwidth: 80/80 Mbps
Max Recording Resolution: Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)
Max Playback Resolution: Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)
Max Playback Channel: 8CH
Max Playback Capacity: 1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
Hard Drive:
HDD: 1 SATA Interface
HDD Capacity: Up to 8 TB Capacity
General:
Operating Power: DC 48 V
Power Consumption: 10 W (Without HDD and PoE)
PoE: Max 25.5 W for Single Port
Working Temperature: 14 °F ~ 131 °F/-10 °C ~+55 °C
Dimensions (W X H X D): 12.4 X 9.4 X 1.9/315 X 240 X 48 mm
Weight (Without Hard Disk): 2.2 lbs/1 kg
IP Camera
4K smart dual light turret network camera
[email protected] lens brings everything back to life
Efficient H.265+ compression technology
Motion detection 2.0 with human & Vehicle Detection
Clear day and night vision with 3D DNR and 120DB WDR
Built-in microphone for real-time audio security
Support on-board storage up to 512 GB (SD card slot)
IP67 Dust and Waterproof Rating
Support PoE &DC12V ""
Camera:
Image Sensor: 1/2.4"" Progressive Scan CMOS
Max resolution: 3840*2160(8MP)
Main Stream: ""50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)""
Substream: ""50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)""
Video Compression: ""Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG""
Video Bitrate: 32 Kbps - 16 Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
Audio Input: Built-in Microphone, record with audio
Lens: 4 mm
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Angle of View: Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
Supplement Light Type: Smart Dual-Light, IR, White Light
Supplement Light Range: IR: up to 30 m, white Light: up to 20 m
Motion detection 2.0: Supoort, include Human & Vehicle detection
Image Enhancement: BLC, HLC, 3D DNR
Wide Dynamic Range: 120 dB WDR
Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
API: Open Network Video Interface Version (Profile S, Profile T, Profile G)
Region of Interest (ROI): 1 fixed region for main stream
Privacy Mask: 4 programmable polygon privacy masks
General Function: Rotate mode, mirror, password protection, remote access
Ethernet: 1 RJ45 10 M/100 M self-adaptive Ethernet port
General:
Housing: Metal & Plastic
Color: White
Storage: Built-in microSD/SDHC/SDXC Slot, up to 512 GB
Hardware Reset: Yes
Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
Operating Temperature: -22 °F 140 °F/-30 °C 60 °C
Indoor/Outdoor Use: Indoor/Outdoor
Interface Protect
