DVR
· Up to 3K high definition live viewing
· Up to 3K Lite recording and playback
· Advanced H.265 Pro+ Video Compression
· Support TVI AHD CVI CVBS IPC input. 5 in 1
· Supports iPhoneiPadAndroid mobile remote monitoring
· Deep learning based human and vehicle targets classification of Motion Detection 2.0 for all analog channels
· Quick search by object or event type
· Audio via coaxial cable"
Video and Audio:
Video Input: 8CH Analog HD Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on)
Video Output: HDMI and VGA Up to 1080P
Audio Input: 1-ch RCA, 8-ch via coaxial cable
Support CVBS Input;
IPC Playback Resolution: Up to 6MP
Max Playback Channel: 8-ch
Total Bandwidth: 96Mbps
Remote Connection: 64
Motion Detection 2.0: All analog channels support human and vehicle detection to reduce false alarm
Hard Drive:
HDD: 1 SATA interface
HDD Capacity: Up to 10TB capacity
General:
Dimensions(W x H x D): 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)

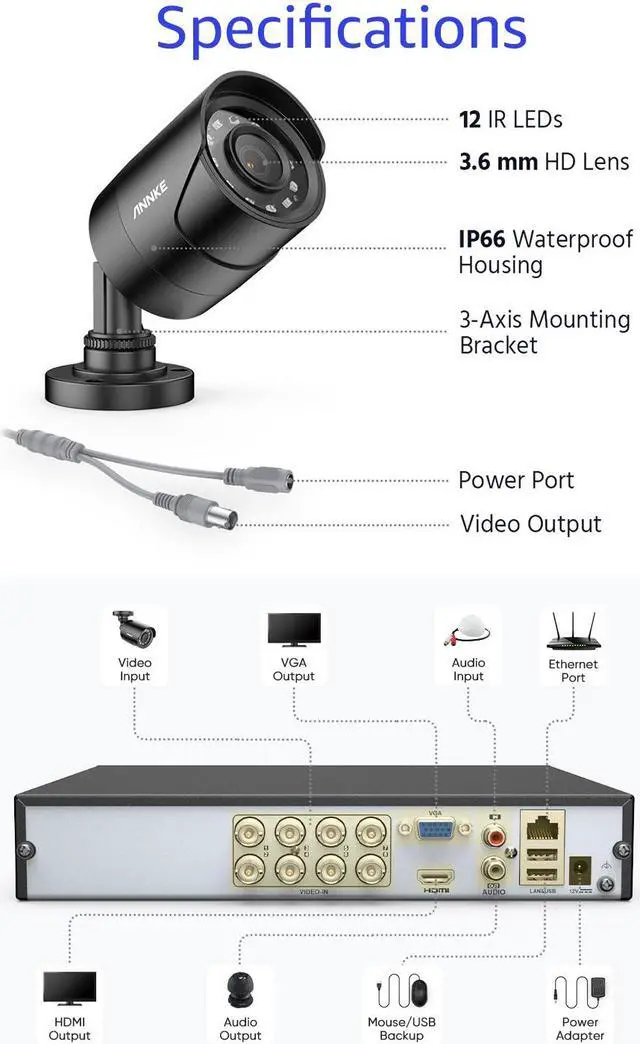

HD Camera:
1080P HD TVI Bullet Security Camera
Up to 30m night vision with Smart IR
3.6mm lens brings everything back to life
Clear day and night vision with auto IR-cut
IP66 Dust and Waterproof Rating
Image sensor: 2MP CMOS Image Sensor
Video Resolution: 1920 (H) × 1080 (V)
Signal System: PAL/NTSC
Lens: 3.6mm
Number of Infra-Red LEDs: 12
Night Vision Distance: Up to 100ft/30m
DNR: Support
Wide Dynamic Range: Digital WDR
IR Cut Filter: Yes
Video Output: HD BNCx1
General:
Housing: Plastic
Color: Black
Operating Power: DC12V
Operating Temperature: -40 °F 140 °F /-40 °C 60 °C
Indoor/Outdoor: Indoor/Outdoor
Weatherproof Rating: IP66
Dimension (L x W x H): 2.76" × 6.08"/ 70 × 154.5 mm
Weight: 0.88lbs / 400g
Whats Included?
* 1× 3MP Surveillance DVR
* 4× 1080P Cameras
* 1× Power Adapter for DVR
* 1× Power Adapter for Cameras
*1× 5.9ft/1.8m HDMI Cable
* 1× 3.2ft/1m Ethernet Cable
* 4× 60ft/18.3m BNC Cables
* 1× 4-to-1 Power Splitter
* 1× USB Mouse
* 1× User Manual & Software CD
* 4× Mounting Screw Kit
Driving AI to the next level, human&vehicle detection and flexible detection area are more accurate than before. For quicker locating in crucial moments, human&vehicle smart searching in recordings offers you great help.

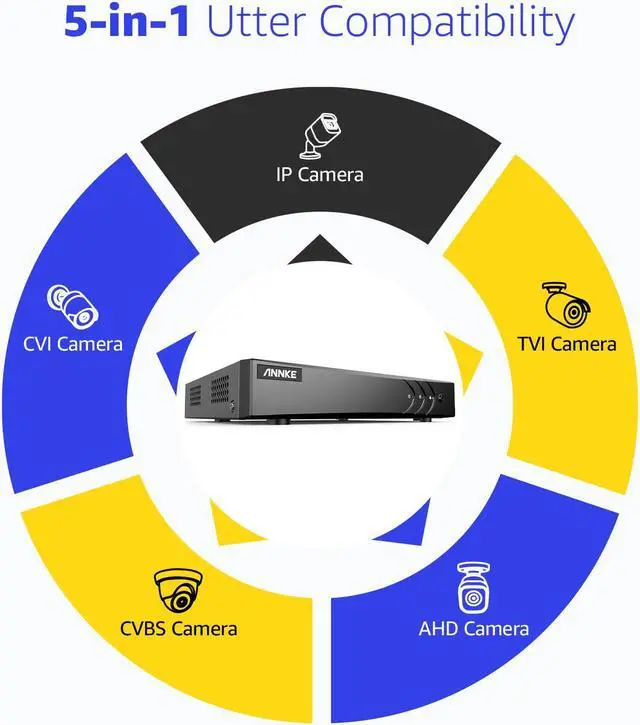

This one-stop security solution works with TVI, AHD, CVI, CVBS & IP cameras. The 8CH 3K lite DVR can hook up with 1080P@30fps or 3K/5MP@20fps cams. Plus, the advanced sensor & smart IR capture clear images up to 100ft away.
Upgraded to H.265+, the recording time is lengthened, and the bandwidth is lessened.
Whenever real threats are detected, immediate pushes pop up on your phone, and you can check it out via 3G/4G/5G/Wi-Fi. However far away you are from home, this reliable security system secures your peace of mind day&night.
With IP66 weatherproof and the ABS exterior housing, these wired cameras can stand from cold to hot, from -40°C/-40°F to 60°C/140°F. Every detail is designed for a longer lifespan.
