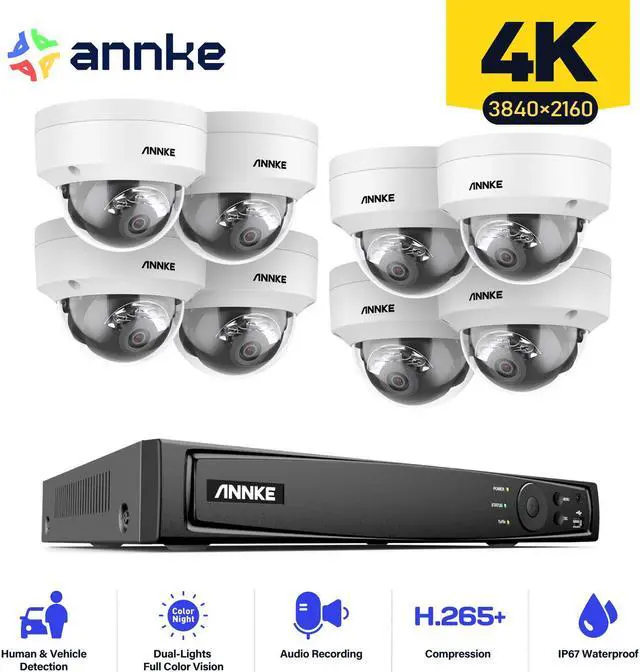

ANNKE H800 4K 16CH PoE Camera System, H.265+ 12MP NVR w/8pcs Dome Security IP Cameras, AI Motion Detection, Audio, 0TB HDD, Spotlight Color Night Vision, IP67 Weatherproof IK10 Vandal-Proof, Not PTZ

Description:

NVR

"· Live view, recording&playback up to 12 MP resolution

· Up to 16 channel IP cameras can be connected with built-in PoE inputs

· Advanced H.265+ Video Compression

· Supports iPhoneiPadAndroid mobile remote monitoring

· Connectable to the third-party network cameras

· HDMI Video output at up to 4K (3840 × 2160) resolution

· 2 SATA interfaces connectable for recording and backup

· Annke Vision for easy remote view

· Support 4-ch Human and vehicle targets detection

Video & Audio:

Video Compression: H.264+/H.264/H.265/H.265+

IP Video Input: 16CH PoE

Video Output HDMI: up to 4K, VGA up to 1080p

Audio Input/Output: 1/1 RCA

Incoming/Outgoing Bandwidth 160/80 M

Max. Recording Resolution: Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)

Max. Playback Resolution: Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)

Max. Playback Channel: 16CH

Max. Playback Capacity: 1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)

Hard Drive:

HDD: 2 SATA Interface

HDD Capacity: Up to 8 TB Capacity for each disk

General:

Operating Power: AC 100-240 V

Power Consumption: 15 W (Without HDD and PoE)

PoE: Max. 25.5W for Single Port

Working Temperature: 14 °F 131 °F/-10 °C 55 °C

Dimensions (W X H X D): 15.2 X 12.4 X 2.0/385 X 315 X 52 mm

Weight (Without Hard Disk): 6.6 lbs./3 kg

IP Camera

" 4K smart dual light bullet network camera

[email protected] lens brings everything back to life

Efficient H.265+ compression technology

Motion detection 2.0 with human & Vehicle Detection

Clear day and night vision with 3D DNR and 120DB WDR

Built-in microphone for real-time audio security

Support on-board storage up to 512 GB (SD card slot)

IP67 Dust and Waterproof Rating

Support PoE &DC12V "

Camera:

Image Sensor: 1/2.4" Progressive Scan CMOS

Max resolution: 3840*2160(8MP)

Main Stream: "50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)"

Substream: "50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)"

Video Compression: "Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG"

Video Bitrate: 32 Kbps - 16 Mbps

Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC

Audio Input: Built-in Microphone, record with audio

Lens: 4 mm

Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Angle of View: Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°

Supplement Light Type: Smart Dual-Light, IR, White Light

Supplement Light Range: Up to 30 m

Motion detection 2.0: Supoort, include Human & Vehicle detection

Image Enhancement: BLC, HLC, 3D DNR

Wide Dynamic Range: 120 dB WDR

Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP

API: Open Network Video Interface Version (Profile S, Profile T, Profile G)

Region of Interest (ROI): 1 fixed region for main stream

Privacy Mask: 4 programmable polygon privacy masks

General Function: Rotate mode, mirror, password protection, remote access

Ethernet: 1 RJ45 10 M/100 M self-adaptive Ethernet port

General:

Housing: Metal & Plastic

Color: White

Storage: Built-in microSD/SDHC/SDXC Slot, up to 512 GB

Hardware Reset: Yes

Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W

Operating TemperatureL: -22 °F 140 °F/-30 °C 60 °C

Indoor/Outdoor Use: Indoor/Outdoor

Interface Protection: IP67 & IK08

Dimension (L X W X H): Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84")

Weight: 1.2 lb./550 g
