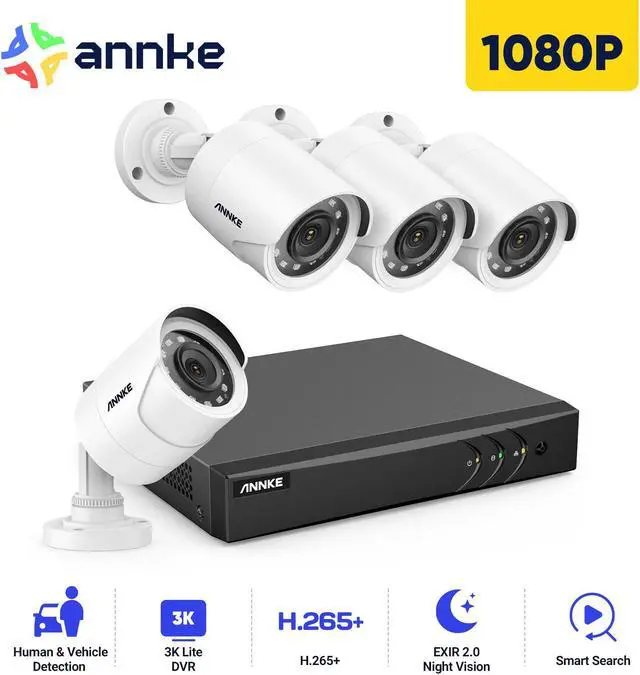

ANNKE H.265+ 8CH 5MP DVR 2MP Wired Security Camera System, 4x2MP Weatherproof Bullet Camera, 100ft Night Vision, AI Human/Vehicle Detection, Motion Alert,Remote Access, NO HDD, 24/7 Recor,Security Kit
- This one-stop security solution for proven true security protection includes 4 1080p wired cameras and 8CH 3K lite DVR, which can be used in conjunction with TVI, AHD, CVI, CVBS, and IP cameras. DVR can be connected 5MP@20fps Cam or 3K@20fps One. In addition, the advanced sensors and intelligent infrared of the Surveillance System Kit capture clear images up to 100 feet away.
- AI motion detection 2.0 takes AI to a new level, with more accurate detection of people and vehicles, as well as detection of crossing lines or area entrances than before. The intelligent search of humans and vehicles in recordings provides great assistance for faster positioning at critical moments.
- Upgrading the Surveillance Security Camera System to H.265+results in longer recording times and reduced bandwidth. The Security Kit supports up to 10TB of HDD and can be expanded according to your needs. (Note: Excluding hard drives.)
- 24/7 peace of mind: Whenever a real threat is detected, a push notification will im
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
DVR
· Up to 3K high definition live viewing
· Up to 3K Lite recording & playback
· Advanced H. 265 Pro+ Video Compression
· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1
· Supports iPhoneiPadAndroid mobile remote monitoring
· Deep learning based human and vehicle targets classification of Motion Detection 2.0 for all analog channels
· Quick search by object or event type
· Audio via coaxial cable
Video & Audio:
Video Compression: H. 264+/H. 264/H. 265/H. 265 Pro+
Video Input: 8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on)
Video Output: HDMI and VGA Up to 1080P
Audio Input: 1-ch RCA, 8-ch via coaxial cable
Audio Output: 1-ch RCA
Supported Camera Types: Support
HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p;
Support AHD Input: 5MP (20FPS) 4MP, 1080p, 720P;
Support CVI Input: 5MP (20FPS), 4MP, 1080p, 720P;
Support CVBS Input;
Support IP Video Input: 6MP/5MP/4MP/3MP/1080P/720P
Analog HD Playback Resolution: 3K Lite/5MP Lite/4MP Lite@12fps, 1080p/720p@15fps
IPC Playback Resolution: Up to 6MP
Max Playback Channel: 8-ch
Network Protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS
Total Bandwidth: 96Mbps
Remote Connection: 64
Motion Detection 2.0: All analog channels support human and vehicle detection to reduce false alarm
Hard Drive:
HDD: 1 SATA interface
HDD Capacity: Up to 10TB capacity
General:
Operating Power: DC12V, 12W (without HDD)
Working Temperature: -14 °F 131 °F /-10 °C 55 °C
Dimensions (W x H x D): 260 × 222 × 45 mm ( 10.2 × 8.7 × 1.8 inch)
Weight (without hard disk): 1 kg ( 2.2 lb) (without HDD)
HD Camera
1080P HD TVI Bullet Security Camera
Up to 30m night vision with Smart IR
3.6 mm lens brings everything back to life
Clear day and night vision with auto IR-cut
IP66 Dust and Waterproof Rating
Camera:
Image Sensor: 2MP CMOS Image Sensor
Video Resolution: 1920 (H) X 1080 (V)
Signal System: PAL/NTSC
Frame Rate: PAL: 1080p@25 fps NTSC: 1080p@30 fps
Lens: 3.6 mm
Min.
Illumination:
Color: 0.02 Lux @(F 1.2, AGC On); 0 Lux with IR
Angle of View: 82.2 °
Number of Infrared LEDs: 12
Night Vision Distance: Up to 100 ft/30 m
DNR: Support
Wide Dynamic Range: Digital WDR
IR-Cut Filter: Yes
Video Output: HD BNC X1
General:
Housing: Plastic
Color: White
Operating Power: DC 12 V
Operating Temperature: -40 °F 140 °F/-40 °C 60 °C
Indoor/Outdoor: Indoor/Outdoor
Weatherproof Rating: IP66
Dimension (L X W X H): 2.76X 6.08 /70 X 154.5 mm
Weight: 0.88 lb. /400 g
DVR
· Up to 3K high definition live viewing
· Up to 3K Lite recording & playback
· Advanced H. 265 Pro+ Video Compression
· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1
· Supports iPhoneiPadAndroid mobile remote monitoring
· Deep learning based human and vehicle targets classification of Motion Detection 2.0 for all analog channels
· Quick search by object or event type
· Audio via coaxial cable
Video & Audio:
Video Compression: H. 264+/H. 264/H. 265/H. 265 Pro+
Video Input: 8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on)
Video Output: HDMI and VGA Up to 1080P
Audio Input: 1-ch RCA, 8-ch via coaxial cable
Audio Output: 1-ch RCA
Supported Camera Types: Support
HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p;
Support AHD Input: 5MP (20FPS) 4MP, 1080p, 720P;
Support CVI Input: 5MP (20FPS), 4MP, 1080p, 720P;
Support CVBS Input;
Support IP Video Input: 6MP/5MP/4MP/3MP/1080P/720P
Analog HD Playback Resolution: 3K Lite/5MP Lite/4MP Lite@12fps, 1080p/720p@15fps
IPC Playback Resolution: Up to 6MP
Max Playback Channel: 8-ch
Network Protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS
Total Bandwidth: 96Mbps
Remote Connection: 64
Motion Detection 2.0: All analog channels support human and vehicle detection to reduce false alarm
Hard Drive:
HDD: 1 SATA interface
HDD Capacity: Up to 10TB capacity
General:
Operating Power: DC12V, 12W (without HDD)
Working Temperature: -14 °F 131 °F /-10 °C 55 °C
Dimensions (W x H x D): 260 × 222 × 45 mm ( 10.2 × 8.7 × 1.8 inch)
Weight (without hard disk): 1 kg ( 2.2 lb) (without HDD)
HD Camera
1080P HD TVI Bullet Security Camera
Up to 30m night vision with Smart IR
3.6 mm lens brings everything back to life
Clear day and night vision with auto IR-cut
IP66 Dust and Waterproof Rating
Camera:
Image Sensor: 2MP CMOS Image Sensor
Video Resolution: 1920 (H) X 1080 (V)
Signal System: PAL/NTSC
Frame Rate: PAL: 1080p@25 fps NTSC: 1080p@30 fps
Lens: 3.6 mm
Min.
Illumination:
Color: 0.02 Lux @(F 1.2, AGC On); 0 Lux with IR
Angle of View: 82.2 °
Number of Infrared LEDs: 12
Night Vision Distance: Up to 100 ft/30 m
DNR: Support
Wide Dynamic Range: Digital WDR
IR-Cut Filter: Yes
Video Output: HD BNC X1
General:
Housing: Plastic
Color: White
Operating Power: DC 12 V
Operating Temperature: -40 °F 140 °F/-40 °C 60 °C
Indoor/Outdoor: Indoor/Outdoor
Weatherproof Rating: IP66
Dimension (L X W X H): 2.76X 6.08 /70 X 154.5 mm
Weight: 0.88 lb. /400 g
