Description:

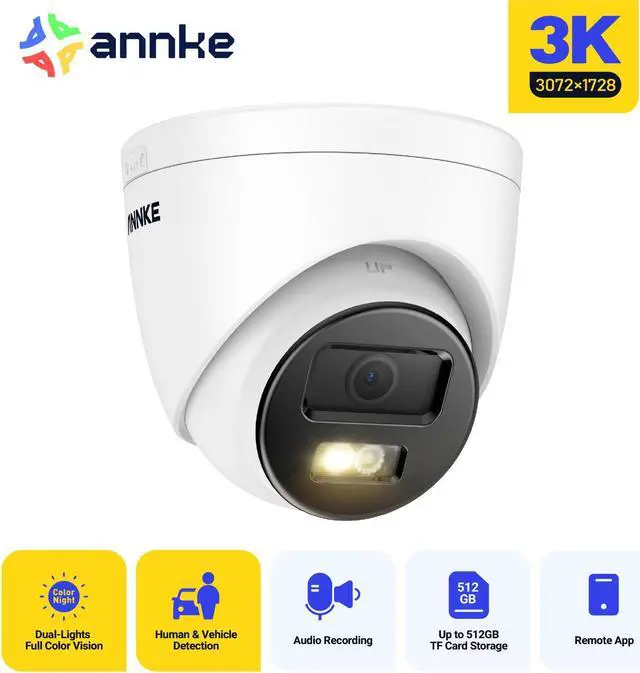

" 3K IR Network Camera with 16:9 image scale
2.8mm lens brings everything back to life
Efficient H.265+ compression technology
Motion detection 2.0 with human & Vehicle Detection
Smart Dual-Light: advanced technology with long range
Clear day and night vision with 3D DNR and 120DB WDR

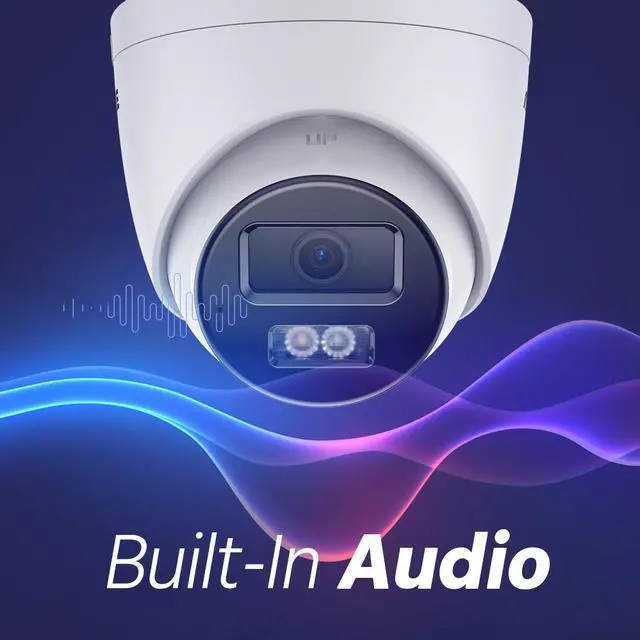

Built-in microphone for real-time audio security
Support on-board storage up to 512 GB (SD card slot)
IP67 Dust and Waterproof Rating
Support PoE &DC12V "
Camera:
Image Sensor: 1/3" Progressive Scan CMOS
Max resolution: 3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
Main Stream: "50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
60 Hz: 20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)"
Substream: "50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)
60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)"
Video Compression: "Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG"
Video Bitrate: 32 Kbps - 6 Mbps
Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Input: Built-in Microphone, record with audio
Lens: 2.8 mm
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Angle of View: Horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
Supplement Light Type: Smart Dual-Light, IR, White Light
Supplement Light Range: Up to 30 m
Motion detection 2.0: Supoort, include Human & Vehicle detection
Image Enhancement: BLC, HLC, 3D DNR
Wide Dynamic Range: 120 dB WDR
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
API: Open Network Video Interface Version 18.12
Region of Interest (ROI): 1 fixed region for main stream
Privacy Mask: 4 programmable polygon privacy masks
General Function: Mirror,rotate,password protection, remote access
Ethernet: 1 RJ45 10 M/100 M self-adaptive Ethernet port
General:
Housing: Metal & Plastic
Color: White
Storage: Built-in microSD/SDHC/SDXC Slot, up to 512 GB
Hardware Reset: Yes
Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
Operating Temperature: -22 °F 140 °F/-30 °C 60 °C
Indoor/Outdoor Use: Indoor/Outdoor
Interface Protection: IP67
Dimension (L X W X H): Ø110 mm × 89.2 mm (Ø4.3" × 3.5")
Weight: Approx. 340 g (0.7 lb.)
Packaging Contents:
Camera: 4
Ethernet Cable: 60 ft/18 m X2; 100 ft/30 m X2
Mounting Screw Bag: 4
User Manual for Camera: 1
New-Trend 3K Def: 3K outshines other cameras with lower resolution, providing vivid pictures with finer details. While 3K gives another budget-friendly choice than 4K cams, and the quality is also not far behind 4K.
100% Perfect Fit Ratio: Most cameras' aspect ratio is 4:3, while monitors in the market usually have a ratio of 16:9. Our 6MP NVR with 3K cams is 16:9 which eliminates distortion when previewing or playing back video.
Record Picture & Sound: With the built-in mic, images and voices are simultaneously captured to reveal the whole picture in the given area. No more mute clips to the real scenario.
IP67 Dust & Weatherproof: IP67 brings stronger-than-ever outdoor adaptability that is super dust & water-proof. From pouring rain to roaring wind, Low as -40 °F/-40 °C to high as 140 °F/ 60 °C. Not a problem at all.
Convenient Remote Access: Free ANNKE Vision App is available on phones, tablets, laptops or PCs, allowing you and your family to check live stream or playback anytime, anywhere.
Super H.265+: Cutting-edge H.265+ consumers have 75% less bandwidth and recording space than H.264. You can record longer and smoother videos at th
