Description:

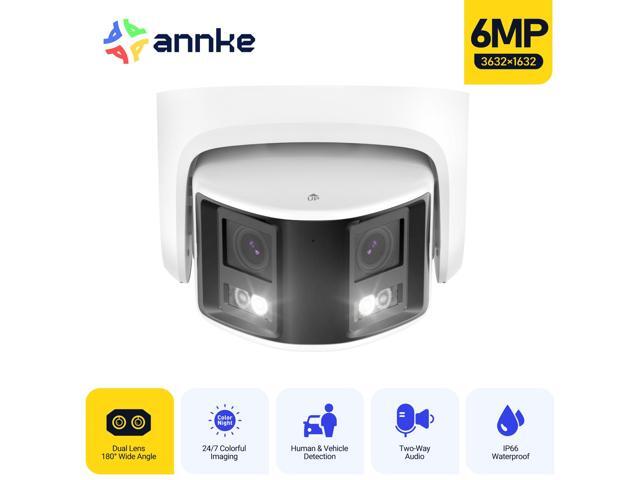

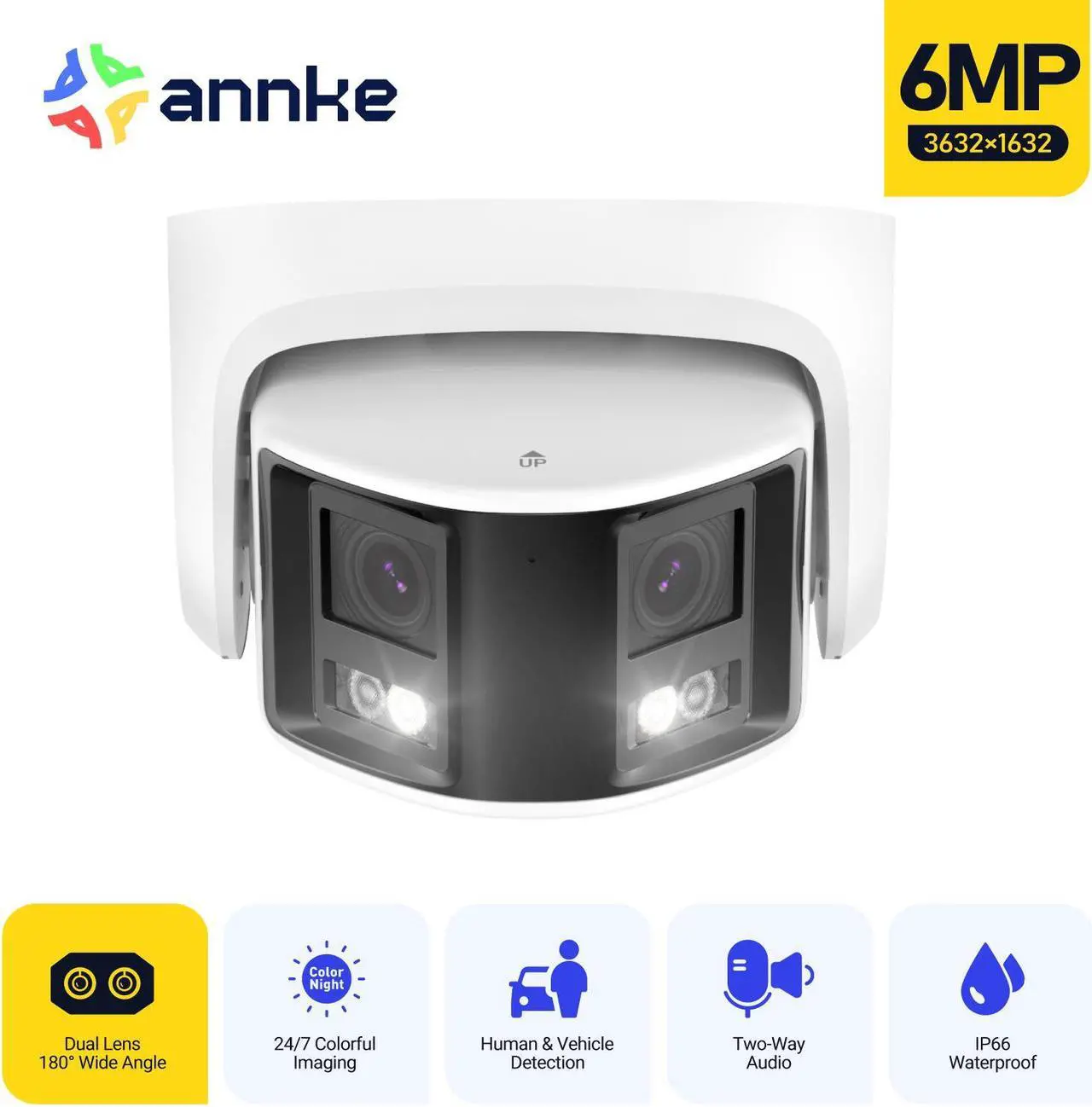

" 6 MP Panoramic 180°Fixed Turret Network Camera

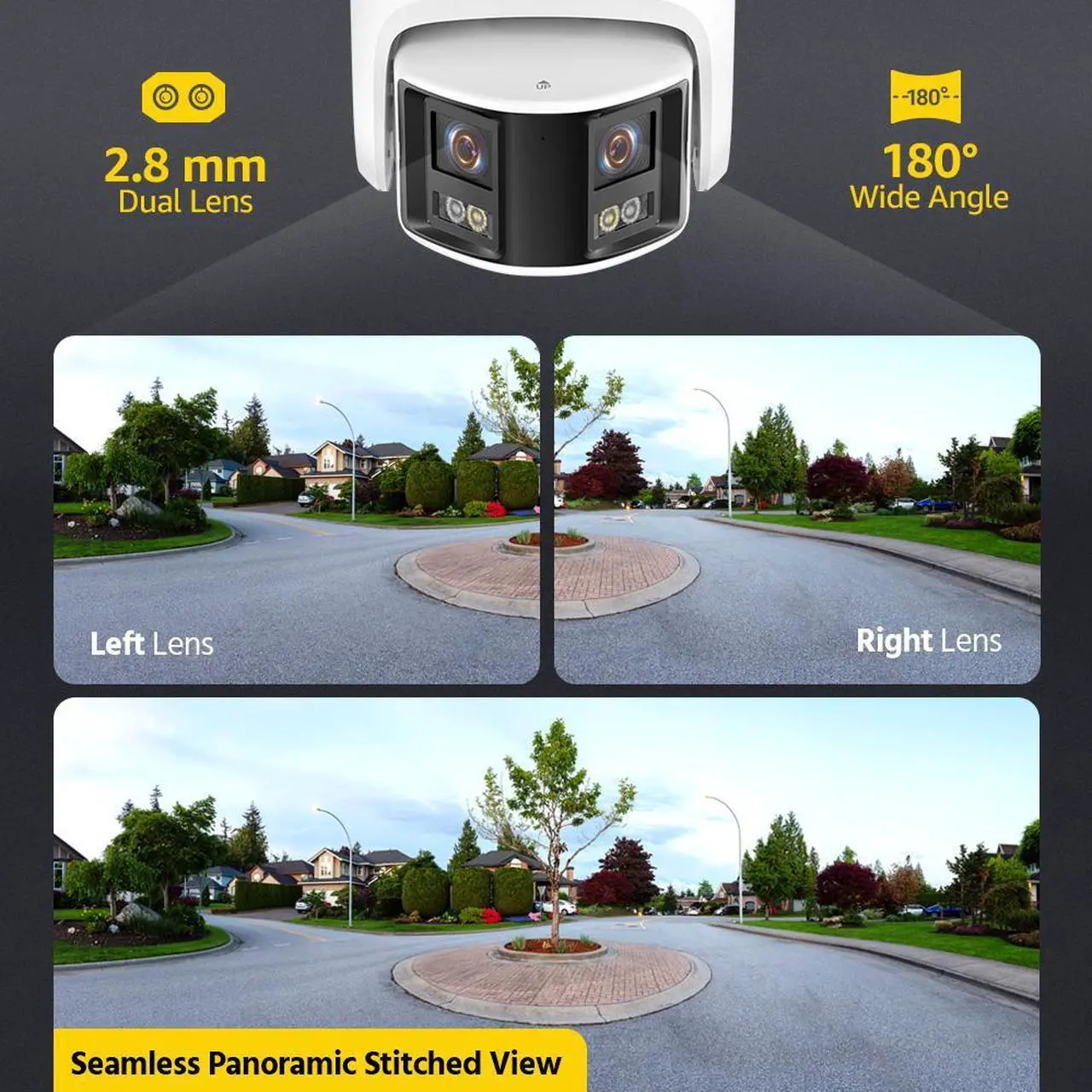

One image that presents all the scenes covered by the camera
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB WDR technology
Focus on human and vehicle classification based on deep learning
Audio alarm to warn intruders off
White light up to 20 m, IR light up to 30m

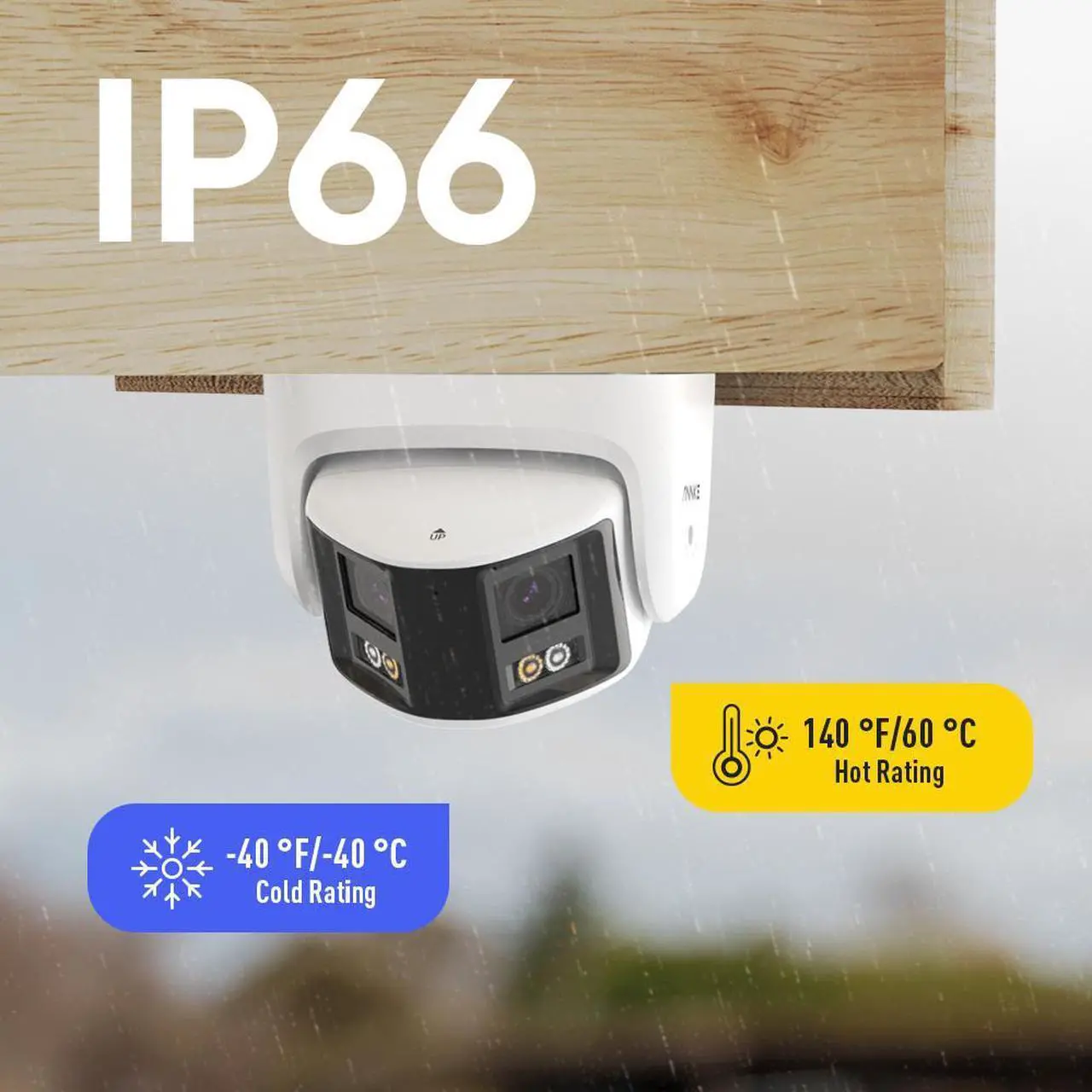

Water and dust resistant (IP66)
Support 256 GB TF storage space
Two way audio"
Camera;
Image sensor: 2×1/2.5" Progressive Scan CMOS
Main Stream: "50 Hz: 20 fps (3632 × 1632)
60 Hz: 20 fps (3632 × 1632) "
Sub Stream: "50 Hz:20 fps(1200 × 536,960 × 432)
60 Hz:20 fps(1200 × 536,960 × 432)"
Video compression: "Main Stream: H.265+/H.265/H.264+/H.264
Sub Stream: H.265/H.264/MJPEG"
Video Bit Rate: 32 Kbps to 16 Mbps
Built-in Microphone: Yes, support environment noise filtering
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
Built-in Speaker: Yes, max. sound pressure: 10 cm: 95 dB
Lens: Dual lens: 2.8 mm
Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Angle of View: Horizontal FOV: 180° ± 10°, Vertical FOV: 81° ± 10°
Supplement Light: White light + IR
Supplement Light Range: White light up to 20 m, IR light up to 30m
Image Parameters Switch: Yes
Image Enhancement: BLC, HLC, 3D DNR
Wide Dynamic Range: 120dB WDR
Network Protocols TCP/IP,ICMP,HTTP,HTTPS,802.1x,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,UPnP,SMTP,IGMP,QoS,IPv6,UDP,Bonjour,SSL/TLS,WebSocket,Onvif
Basic Event: Motion detection (support human and vehicle detection), video tampering
Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection(support human and vehicle detection)
Audio Alarm: Support(Parameters adjustable,support custom audio, can be triggered from APP)
General:
Housing: Plastic, White color
Operating Power: PoE (802.3af),12 VDC ± 25%,Ø 5.5 mm coaxial power plug
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB, support NAS, NVR
DC12V output: DC12 V,100 mA output
Audio input/output: 1 input (line in),1 output (line out)
Alarm nput/output: 1 input, 1 output (max. 24 VDC, 1 A)
Hardware Reset: Yes
Operating Temperature: -22 °F 140 °F /-30 °C 60 °C
Indoor/Outdoor: Indoor/Outdoor
Weatherproof Rating: IP66
Dimension (L x W x H): 138.1 × 101.1 × 120.4 mm
Weight: Approx. 600 g (1.32 lb.)
Packaging Contents:
IP Camera: 1
Fixed adapter plate: 1
1m Network cable: 1
Waterproof connector: 1
Mounting Screws Bag: 1
User's Manual For Camera: 1
