Description:
4K smart dual light bullet network camera
4mm@F 1.6 lens brings everything back to life
Efficient H. 265+ compression technology
Motion detection 2.0 with human & Vehicle Detection
Clear day and night vision with 3D DNR and 120DB WDR
Built-in microphone for real-time audio security
Support on-board storage up to 512 GB (SD card slot)
IP67 Dust and Waterproof Rating
Support PoE &DC12V "
IP Camera:
Image Sensor: 1/ 2.4" Progressive Scan CMOS
Max resolution: 3840*2160 (8MP)
Main Stream: "50
Hz: 12.5 fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)"
Substream: "50
Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)"
Video Compression "Main stream: H. 265+/H. 265/H. 264+/H. 264
Sub-stream: H. 265/H. 264/MJPEG"
Video Bitrate: 32 Kbps - 16 Mbps
Audio Compression G. 711/G. 722.1 /G. 726/MP2L2/PCM/ AAC-LC
Audio Input: Built-in Microphone, record with audio
Lens: 4 mm
Min.
Illumination:
Color: 0.005 Lux @ (F 1.6, AGC ON), B/W: 0 Lux with IR
Angle of View: Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
Supplement Light Type: Smart Dual-Light, IR, White Light
Supplement Light Range: Up to 30 m
Motion detection 2.0: Supoort, include Human & Vehicle detection
Image Enhancement: BLC, HLC, 3D DNR
Wide Dynamic Range: 120 dB WDR
Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
API: Open Network Video Interface Version (Profile S, Profile T, Profile G)
Region of Interest (ROI): 1 fixed region for main stream
Privacy Mask: 4 programmable polygon privacy masks
General Function: Rotate mode, mirror, password protection, remote access
Ethernet: 1 RJ45 10 M/100 M self-adaptive Ethernet port
General:
Housing: Metal & Plastic
Color: White
Storage: Built-in microSD/SDHC/SDXC Slot, up to 512 GB
Hardware Rese: Yes
Operating Power: DC 12 V± 25%, max. 5 W; PoE ( 802.3 af), max. 6.5 W
Operating Temperature: -22 °F 140 °F/-30 °C 60 °C
Indoor/Outdoor Use: Indoor/Outdoor

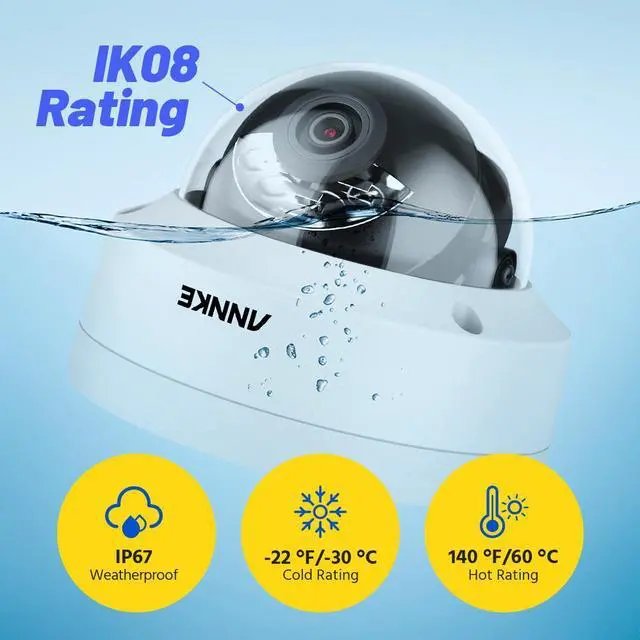

Interface Protection: IP67 & IK08
Dimension (L X W X H): Ø 121.4 mm × 97.6 mm (Ø 4.78" × 3.84" )
Weight: 1.2 lb. /550 g
