Advanced AI Motion Detection 2.0 separates humans & vehicles from distractions like moving leaves or bugs, with accuracy of up to 99%
Hear What's HappeningEquipped with a built-in microphone to record clear audio synced with video, providing you with real-time conversations directly from your phone
1/2.4" Progressive Scan CMOS Max resolution3840*2160(8MP)
Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Substream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Video Bitrate32 Kbps - 16 Mbps Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
Audio InputBuilt-in Microphone, record with audio Lens4 mm
Video CompressionMain stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° Supplement Light TypeSmart Dual-Light, IR, White Light
Supplement Light RangeUp to 30 m Motion detection 2.0Supoort, include Human & Vehicle detection
Image EnhancementBLC, HLC, 3D DNR Wide Dynamic Range120 dB WDR
ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP APIOpen Network Video Interface Version (Profile S, Profile T, Profile G)
Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks
General FunctionRotate mode, mirror, password protection, remote access Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port

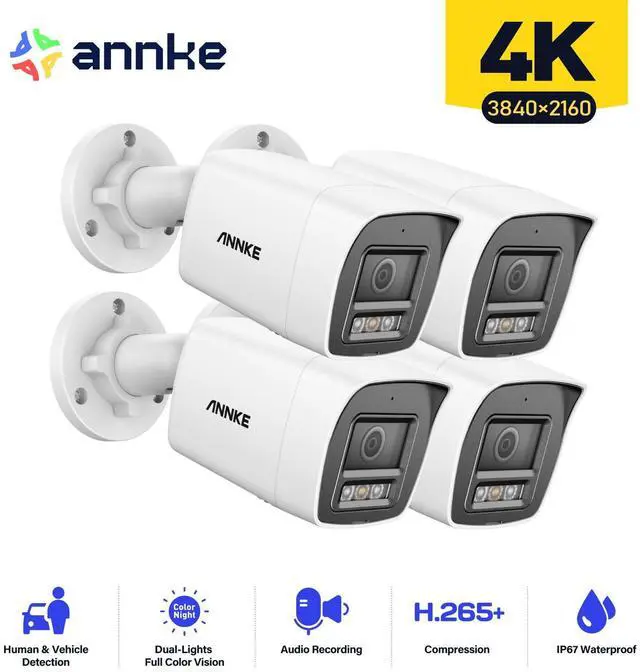

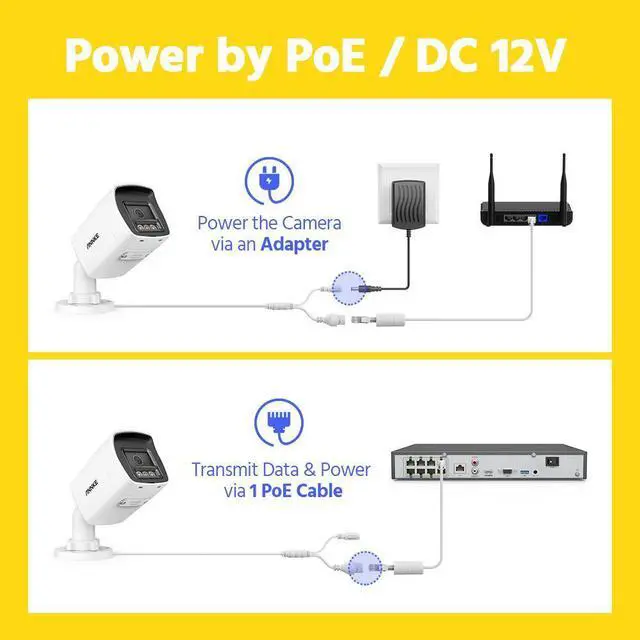

The ANNKE 4-camera 4K PoE security camera set is designed for homeowners and small businesses that want outdoor coverage with human and vehicle detection, a 96° view, built-in audio, and night vision up to 100 feet; each camera uses one Ethernet cable for power and video.
| Attribute | Value |
|---|---|
| Best For | Four-camera outdoor PoE surveillance for monitoring areas such as garages, front doors, or shops, with human and vehicle detection |
| Camera Configuration | 4 cameras |
