Description:

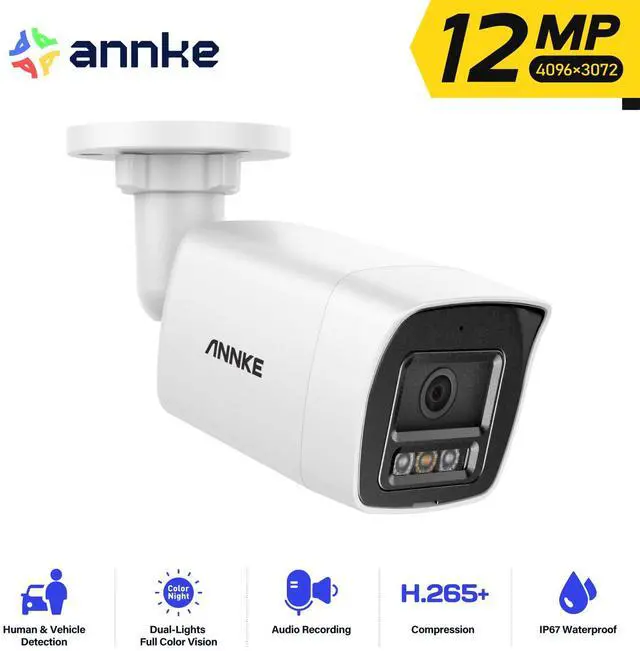

12MP smart dual light bullet network camera
2.8 mm lens brings everything back to life
Efficient H. 265+ compression technology
Motion detection 2.0 with human & Vehicle Detection
Clear day and night vision with 3D DNR and 120DB WDR
Built-in microphone for real-time audio security
Support on-board storage up to 512 GB (SD card slot)
IP67 Dust and Waterproof Rating
Support PoE &DC12V "
Camera:
Image Sensor: 1/ 2.7" Progressive Scan CMOS
Max resolution: 4096*3072 (12MP)
Main Stream: "50
Hz: 10 fps@4096*3072, 12.5 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720)
60 Hz: 10 fps@4096*3072, 15 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720)"
Substream: "50
Hz: 12.5 fps (1280*720, 640*480, 640*360)
60 Hz: 15 fps (1280*720, 640*480, 640*360)"
Video Compression: "Main
stream: H. 265+/H. 265/H. 264+/H. 264
Sub-stream: H. 265/H. 264/MJPEG"
Video Bitrate: 32 Kbps - 16 Mbps
Audio Compression: G. 711ulaw/G. 711alaw/G. 722.1 /G. 726/MP2L2/PCM/AAC-LC
Audio Input: Built-in Microphone, record with audio
Lens: 2.8 mm
Min.
Illumination:
Color: 0.01 Lux @ (F 2.0, AGC ON), B/W: 0 Lux with IR
Angle of View: Horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°
Supplement Light Type: Smart Dual-Light, IR, White Light
Supplement Light Range: Up to 30 m
Motion detection 2.0: Supoort, include Human & Vehicle detection
Image Enhancement: BLC, HLC, 3D DNR
Wide Dynamic Range: 120 dB WDR
Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
API: Open Network Video Interface Version 19.12 (Profile S, Profile T, Profile G)
Region of Interest (ROI): 1 fixed region for main stream
Privacy Mask: 4 programmable polygon privacy masks
General Function: Rotate mode, mirror, password protection, remote access
Ethernet: 1 RJ45 10 M/100 M self-adaptive Ethernet port
General:
Housing: Metal & Plastic
Color: White & Black
Storage: Built-in microSD/SDHC/SDXC Slot, up to 512 GB
Hardware Reset: Yes
Operating Power: DC 12 V± 25%, max. 5 W; PoE ( 802.3 af), max. 6.5 W
Operating Temperature: -22 °F 140 °F/-30 °C 60 °C
Indoor/Outdoor Use: Indoor/Outdoor
Interface Protection: IP67
Dimension (L X W X H): 170.8 mm × 66 mm × 69.1 mm ( 6.7" × 2.6" × 2.7" )
Weight: 0.6 lb. /285 g
