| Image sensor |
2×1/2.5" Progressive Scan CMOS |
| Max resolution |
4K(4096 × 1840), 20: 9 picture ratio |
| Main Stream |
"50 Hz: 20 fps (4096 × 1840) ;60 Hz: 20 fps (4096 × 1840) " |
| Sub Stream |
50 Hz:20 fps(1200 x 536,960 x 432);60 Hz:20 fps(1200 x 536,960 x 432) |
| Video compression |
"Main Stream: H.265+/H.265/H.264+/H.264;Sub Stream: H.265/H.264/MJPEG" |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| Built-in Microphone |
Built-in Microphone, record with audio |
| Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3 |
| Built-in Speaker |
Yes, max. sound pressure: 10 cm: 95 dB |
| Lens |
Dual lens: 2.8 mm |
| Min. Illumination |
Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Angle of View |
Horizontal FOV: 180° ± 10°, Vertical FOV: 81° ± 10° |
| Supplement Light Type |
White light, IR |
| Supplement Light Range |
White light up to 20 m, IR light up to 30m |
| Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
| Image Parameters Switch |
Yes |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Wide Dynamic Range |
120dB WDR |
| Network Protocols |
TCP/IP,ICMP,HTTP,HTTPS,802.1x,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,UPnP,SMTP,IGMP,QoS,IPv6,UDP,Bonjour,SSL/TLS,WebSocket, SNMP |
| API |
Open Network Video Interface Version 19.12 |
| Basic Event |
Motion detection (support human and vehicle detection), video tampering, exception detection |
| Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting detection(support human and vehicle detection) |
| Audio Alarm |
Support(Parameters adjustable,support custom audio, can be triggered from APP) |
| Region of Interest (ROI) |
1 fixed region for main stream |
| General Function |
IP Address Filter |
| Housing |
Plastic, White color |
| Operating Power |
PoE (802.3af),12 VDC ± 25%,Ø 5.5 mm coaxial power plug |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Storage |
Built-in micro SD/SDHC/SDXC slot, up to 256 GB, support NAS, NVR |
| DC12V output |
DC12 V,100 mA output |
| Audio input/output |
1 input (line in),1 output (line out) |
| Alarm nput/output |
1 input, 1 output (max. 24 VDC, 1 A) |
| Hardware Reset |
Yes |
| Operating Temperature |
22 °F-140 °F/-30 °C-60 °C |
| Indoor/Outdoor |
Indoor/Outdoor |
| Weatherproof Rating |
IP66 |
| Dimension (L x W x H) |
103.6 × 76 × 193.4 mm |
| Weight |
Approx. 600 g (1.32 lb.) |
Description:
4K Panoramic 180°Fixed Turret Network Camera
One image that presents all the scenes covered by the camera
Efficient H. 265+ compression technology
Clear imaging against strong back light due to 120 dB WDR technology
Focus on human and vehicle classification based on deep learning
Audio alarm to warn intruders off
White light up to 20 m, IR light up to 30m
Water and dust resistant (IP66)
Support 256 GB TF storage space
Two way audio"
Camera:
Image sensor: 2×1/ 2.5" Progressive Scan CMOS
Max resolution: 4K(4096 × 1840), 20: 9 picture ratio
Main Stream: "50 Hz: 20 fps (4096 × 1840)
60 Hz: 20 fps (4096 × 1840) "
Sub Stream: "50
Hz: 20 fps(1200 × 536, 960 × 432)
60 Hz: 20 fps(1200 × 536, 960 × 432)"
Video compression: "Main
Stream: H. 265+/H. 265/H. 264+/H. 264
Sub Stream: H. 265/H. 264/MJPEG"
Video Bit Rate: 32 Kbps to 16 Mbps
Built-in Microphone: Built-in Microphone, record with audio
Audio Compression: G. 711/G. 722.1 /G. 726/MP2L2/PCM/AAC-LC/MP3
Built-in Speaker: Yes, max
. sound pressure: 10 cm: 95 dB
Lens Dual lens: 2.8 mm
Min.
Illumination Color: 0.005 Lux @ (F 1.2, AGC ON), 0 Lux with IR
Angle of View: Horizontal
FOV: 180° ± 10°, Vertical
FOV: 81° ± 10°
Supplement Light Type: White light, IR
Supplement Light Range: White light up to 20 m, IR light up to 30m
Motion detection 2.0: Supoort, include Human & Vehicle detection
Image Parameters Switch: Yes
Image Enhancement: BLC, HLC, 3D DNR
Wide Dynamic Range: 120dB WDR
Network Protocols TCP/IP, ICMP, HTTP, HTTPS, 802.1 x, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, SNMP
API: Open Network Video Interface Version 19.12
Basic Event: Motion detection (support human and vehicle detection), video tampering, exception detection
Smart Event Line: crossing detection, intrusion detection, region entrance detection, region exiting detection (support human and vehicle detection)

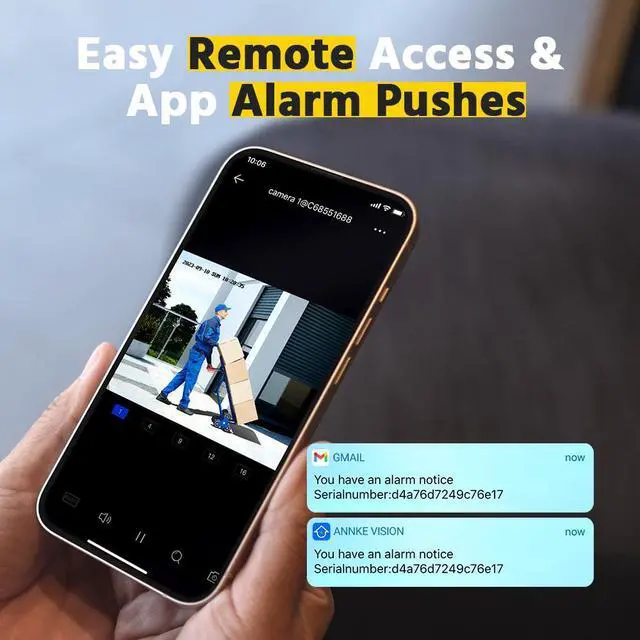

Audio Alarm: Support(Parameters adjustable, support custom audio, can be triggered from APP)
Region of Interest (ROI): 1 fixed region for main stream
General Function: IP Address Filter
General:
Housing: Metal&Plastic, White color
Operating Power: PoE ( 802.3 af), 12 VDC ± 25%, Ø 5.5 mm coaxial power plug
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB, support NAS, NVR
DC12V output: DC12 V, 100 mA output
Audio input/output: 1 input (line in), 1 output (line out)
Alarm nput/output: 1 input, 1 output (max. 24 VDC, 1 A)
Hardware Reset: Yes
Operating Temperature: -22 °F 140 °F /-30 °C 60 °C
Indoor/Outdoor: Indoor/Outdoor
Weatherproof Rating: IP66
Dimension (L x W x H): 103.6 × 76 × 193.4 mm
Weight: Approx. 600 g ( 1.32 lb. )
