Description:

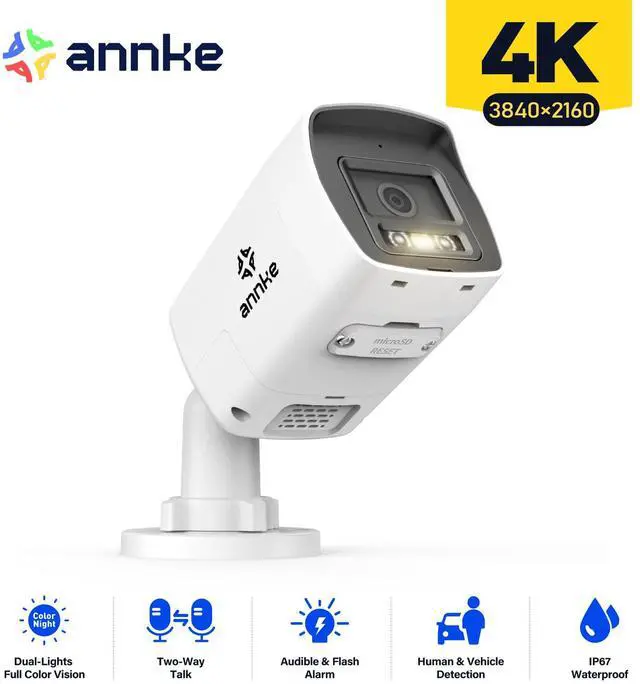

4K smart bullet network camera with 16:9 image scale
4mm@F 1.6 lens brings everything back to life
Efficient H. 265+ compression technology
Provide real-time security via built-in two-way audio
Motion detection 2.0 with human & Vehicle Detection
Smart Dual-Light: advanced technology with long range
Clear day and night vision with 3D DNR and 120DB WDR
Support flashing alarm & Audio alarm
Support on-board storage up to 512 GB (SD card slot)
IP67 Dust and Waterproof Rating
Support PoE &DC12V ""
Camera:
Image Sensor: 1/ 2.4"" Progressive Scan CMOS
Max resolution: 3840*2160 (8MP)
Main Stream: ""50
Hz: 12.5 fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)""
Substream: ""50
Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)""
Video Compression: ""Main
stream: H. 265+/H. 265/H. 264+/H. 264
Sub-stream: H. 265/H. 264/MJPEG""
Video Bitrate: 32 Kbps - 16 Mbps
Audio Compression: G. 711/G. 722.1 /G. 726/MP2L2/PCM/AAC-LC
Audio Input: Built-in Microphone, record with audio
Audio Output: Built-in Speaker, max
. sound pressure level: 10 cm: 95 dB
Lens: 4 mm
Min.
Illumination:
Color: 0.005 Lux @ (F 1.6, AGC ON), B/W: 0 Lux with IR
Angle of View: Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
Supplement Light Type: Smart Dual-Light, IR, White Light
Supplement Light Range: Up to 30 m
Motion detection 2.0: Supoort, include Human & Vehicle detection
Flashing Light Alarm: High/Medium/Low Frequency
Audio Alarm: Warning/Prompt/Custom Audio
Image Enhancement: BLC, HLC, 3D DNR
Wide Dynamic Range: 120 dB WDR
Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
API: Open Network Video Interface Version (Profile S, Profile T, Profile G)
Region of Interest (ROI): 1 fixed region for main stream
Privacy Mask: 4 programmable polygon privacy masks
General Function: Rotate mode, mirror, password protection, remote access
Ethernet: 1 RJ45 10 M/100 M self-adaptive Ethernet port
General:
Housing: Metal & Plastic
Color: White
Storage: Built-in microSD/SDHC/SDXC Slot, up to 512 GB
Hardware Reset: Yes
Operating Power: DC 12 V± 25%, max. 8 W; PoE ( 802.3 af), max. 9.5 W
Operating Temperature: -22 °F 140 °F/-30 °C 60 °C
Indoor/Outdoor Use: Indoor/Outdoor
Interface Protection: IP67
Dimension (L X W X H): 179 mm × 67.4 mm × 69.1 mm ( 7.1"" × 2.7"" × 2.7"" )
Weight: 0.6 lb. /285 g
