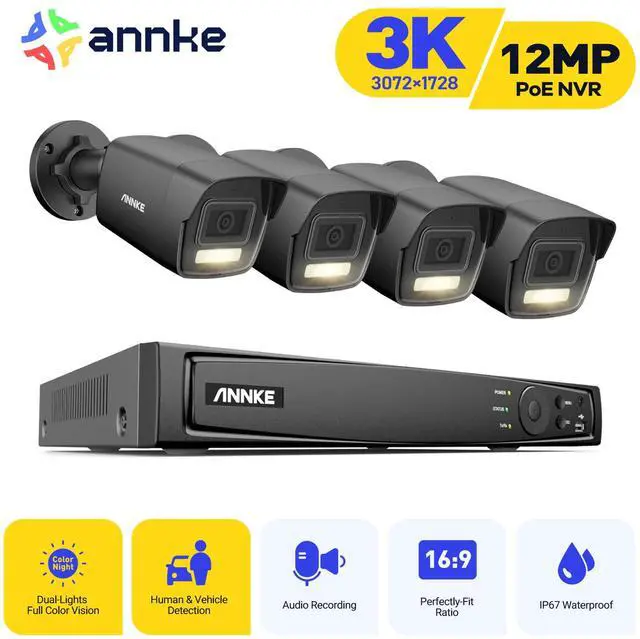

ANNKE H.265+ 8CH PoE Surveillance Camera Set, 12MP NVR Recorder and 4 x 3K Outdoor Surveillance Bullet Camera, Colour Night Vision, Person and Vehicle Detection, Smart Dual Light, 0TB Hard Drive
- Automatically switches from IR to white light mode when a person or vehicle is detected, with an IR range of 30 meters and a white light range of 20 meters.
- High-performance PoE surveillance camera with 3K resolution and 16:9 aspect ratio for improved clarity and an impressive viewing experience.
- Advanced detection with deep learning algorithms for higher accuracy and fewer false alarms. Adjust sensitivity settings to monitor specific areas.
- IP67 waterproof rating to withstand all weather conditions. High-sensitivity microphone supports listening to audio for improved audio quality for real-time monitoring.
- Advanced H.265+ uses only half the bandwidth and storage space of outdated H.264, allowing you to capture large amounts of seamless video without compromising quality and utilize up to 256G of microSD card storage longer and more fully.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
NVR:
· Live view, recording&playback up to 12 MP resolution
· Up to 8 channel IP cameras can be connected with built-in PoE inputs
· Advanced H. 265+ Video Compression
· Supports iPhoneiPadAndroid mobile remote monitoring
· Connectable to the third-party network cameras
· HDMI Video output at up to 4K (40960 × 2160) resolution
· Annke Vision for easy remote view
· Support 4-ch Human and vehicle targets detection""
Video & Audio:
Decoding Format: H. 264+/H. 264/H. 265/H. 265+
IP Video Input: 8CH PoE
Video Output: HDMI up to 4K (4096 × 2160), VGA up to 1080p(1920 × 1080)
Audio Input/Output: 1/1 RCA
Incoming/outgoing Bandwidth: 80/80 Mbps
Max Recording Resolution: Up to 12MP (4096 X 3072) @30fps (Frame rate depends on IP camera)
Max Playback Resolution: Up to 12MP (4096 X 3072) @30fps (Frame rate depends on IP camera)
Max Playback Channel: 8CH
Max Playback Capacity: 1-ch@12 MP (4096 X 3072) (30 fps) /3-ch@4 MP (30 fps) /6-ch@1080p (30 fps)
Hard Drive:
HDD: 1 SATA Interface
HDD Capacity: Up to 8 TB Capacity
General:
Operating Power: DC 48 V
Power Consumption: 10 W (Without HDD and PoE)
PoE: Max 25.5 W for Single Port
Working Temperature: 14 °F ~ 131 °F/-10 °C ~+55 °C
Dimensions (W X H X D): 12.4 X 9.4 X 1.9 /315 X 240 X 48 mm
Weight (Without Hard Disk): 2.2 lbs/1 kg
IP Camera:
3K IR Network Camera with 16:9 image scale
2.8 mm@F 1.6 lens brings everything back to life
Efficient H. 265+ compression technology
Motion detection 2.0 with human & Vehicle Detection
Smart Dual-Light: advanced technology with long range
Clear day and night vision with 3D DNR and 120DB WDR

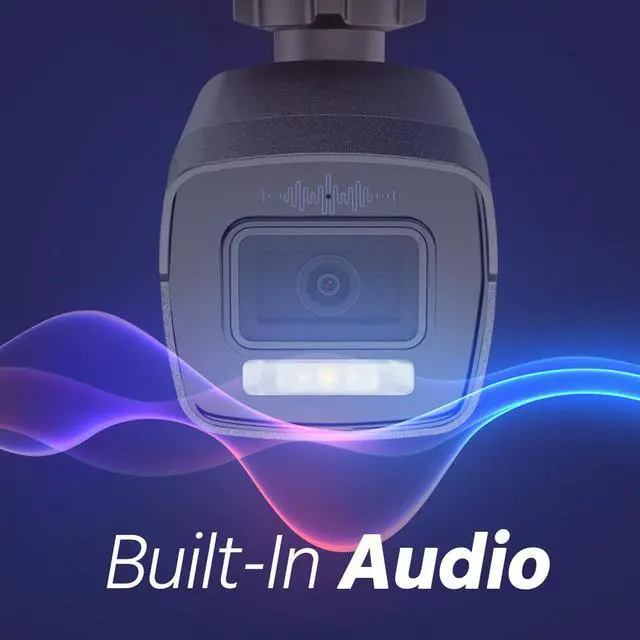

Built-in microphone for real-time audio security
Support on-board storage up to 512 GB (SD card slot)
IP67 Dust and Waterproof Rating
Support PoE &DC12V ""
Camera:
Image Sensor: 1/3"" Progressive Scan CMOS
Max resolution: 3K (3072*1728), 16: 9 picture ratio is more suitable for the most popular display
Main Stream: ""50
Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
60 Hz: 20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)""
Substream: ""50
Hz: 25 fps (1280 X 720, 640 X 480, 640 X 360)
60 Hz: 24 fps (1280 X 720, 640 X 480, 640 X 360)""
Video Compression: ""Main
stream: H. 265+/H. 265/H. 264+/H. 264
Sub-stream: H. 265/H. 264/MJPEG""
Video Bitrate: 32 Kbps - 6 Mbps
Audio Compression: G. 711ulaw/G. 711alaw/G. 722.1 /G. 726/MP2L2/PCM/AAC
Audio Input: Built-in Microphone, record with audio
Lens: 2.8 mm
Min.
Illumination:
Color: 0.005 Lux @ (F 1.6, AGC ON), B/W: 0 Lux with IR
Angle of View: Horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
Supplement Light Type: Smart Dual-Light, IR, White Light
Supplement Light Range: Up to 30 m
Motion detection 2.0: Supoort, include Human & Vehicle detection
Image Enhancement: BLC, HLC, 3D DNR
Wide Dynamic Range: 120 dB WDR
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
API: Open Network Video Interface Version 18.12
Region of Interest (ROI): 1 fixed region for main stream
Privacy Mask: 4 programmable polygon privacy masks
General Function: Mirror, rotate, password protection, remote access
Ethernet: 1 RJ45 10 M/100 M self-adaptive Ethernet port
General:
Housing: Metal & Plastic
Color: Black
Storage: Built-in microSD/SDHC/SDXC Slot, up to 512 GB
Hardware Reset: Yes
Operating Power: DC 12 V± 25%, max. 5 W; PoE ( 802.3 af), max. 6.5 W
Operating Temperature: -22 °F 140 °F/-30 °C 60 °C
Indoor/Outdoor Use: Indoor//Outdoor
Interface Protection: IP67
Dimension (L X W X H): 170.8 mm × 66 mm × 69.1 mm ( 6.7" × 2.6" × 2.7" )
Weight: 0.6 lb. /270 g
NVR:
· Live view, recording&playback up to 12 MP resolution
· Up to 8 channel IP cameras can be connected with built-in PoE inputs
· Advanced H. 265+ Video Compression
· Supports iPhoneiPadAndroid mobile remote monitoring
· Connectable to the third-party network cameras
· HDMI Video output at up to 4K (40960 × 2160) resolution
· Annke Vision for easy remote view
· Support 4-ch Human and vehicle targets detection""
Video & Audio:
Decoding Format: H. 264+/H. 264/H. 265/H. 265+
IP Video Input: 8CH PoE
Video Output: HDMI up to 4K (4096 × 2160), VGA up to 1080p(1920 × 1080)
Audio Input/Output: 1/1 RCA
Incoming/outgoing Bandwidth: 80/80 Mbps
Max Recording Resolution: Up to 12MP (4096 X 3072) @30fps (Frame rate depends on IP camera)
Max Playback Resolution: Up to 12MP (4096 X 3072) @30fps (Frame rate depends on IP camera)
Max Playback Channel: 8CH
Max Playback Capacity: 1-ch@12 MP (4096 X 3072) (30 fps) /3-ch@4 MP (30 fps) /6-ch@1080p (30 fps)
Hard Drive:
HDD: 1 SATA Interface
HDD Capacity: Up to 8 TB Capacity
General:
Operating Power: DC 48 V
Power Consumption: 10 W (Without HDD and PoE)
PoE: Max 25.5 W for Single Port
Working Temperature: 14 °F ~ 131 °F/-10 °C ~+55 °C
Dimensions (W X H X D): 12.4 X 9.4 X 1.9 /315 X 240 X 48 mm
Weight (Without Hard Disk): 2.2 lbs/1 kg
IP Camera:
3K IR Network Camera with 16:9 image scale
2.8 mm@F 1.6 lens brings everything back to life
Efficient H. 265+ compression technology
Motion detection 2.0 with human & Vehicle Detection
Smart Dual-Light: advanced technology with long range
Clear day and night vision with 3D DNR and 120DB WDR
Built-in microphone for real-time audio security
Support on-board storage up to 512 GB (SD card slot)
IP67 Dust and Waterproof Rating
Support PoE &DC12V ""
Camera:
Image Sensor: 1/3"" Progressive Scan CMOS
Max resolution: 3K (3072*1728), 16: 9 picture ratio is more suitable for the most popular display
Main Stream: ""50
Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
60 Hz: 20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)""
Substream: ""50
Hz: 25 fps (1280 X 720, 640 X 480, 640 X 360)
60 Hz: 24 fps (1280 X 720, 640 X 480, 640 X 360)""
Video Compression: ""Main
stream: H. 265+/H. 265/H. 264+/H. 264
Sub-stream: H. 265/H. 264/MJPEG""
Video Bitrate: 32 Kbps - 6 Mbps
Audio Compression: G. 711ulaw/G. 711alaw/G. 722.1 /G. 726/MP2L2/PCM/AAC
Audio Input: Built-in Microphone, record with audio
Lens: 2.8 mm
Min.
Illumination:
Color: 0.005 Lux @ (F 1.6, AGC ON), B/W: 0 Lux with IR
Angle of View: Horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
Supplement Light Type: Smart Dual-Light, IR, White Light
Supplement Light Range: Up to 30 m
Motion detection 2.0: Supoort, include Human & Vehicle detection
Image Enhancement: BLC, HLC, 3D DNR
Wide Dynamic Range: 120 dB WDR
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
API: Open Network Video Interface Version 18.12
Region of Interest (ROI): 1 fixed region for main stream
Privacy Mask: 4 programmable polygon privacy masks
General Function: Mirror, rotate, password protection, remote access
Ethernet: 1 RJ45 10 M/100 M self-adaptive Ethernet port
General:
Housing: Metal & Plastic
Color: Black
Storage: Built-in microSD/SDHC/SDXC Slot, up to 512 GB
Hardware Reset: Yes
Operating Power: DC 12 V± 25%, max. 5 W; PoE ( 802.3 af), max. 6.5 W
Operating Temperature: -22 °F 140 °F/-30 °C 60 °C
Indoor/Outdoor Use: Indoor//Outdoor
Interface Protection: IP67
Dimension (L X W X H): 170.8 mm × 66 mm × 69.1 mm ( 6.7" × 2.6" × 2.7" )
Weight: 0.6 lb. /270 g
