Description:
"· 8MP video viewing, recording and playback

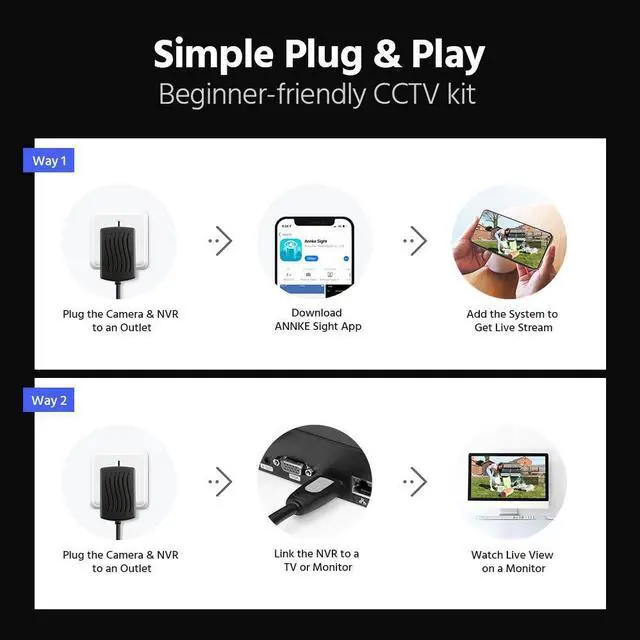

· Wi-Fi access, real plug-and-play system
· Advanced H. 264+ Video Compression
· Up to 16 channels, 8MP wireless IPC access
· Two-way voice intercom, built-in microphone and speaker
· Instant motion detection email alert
· HDMI and VGA outputs for TV, monitor and computer
· Simple-to-use app for mobile monitoring
· True day and night continuous protection

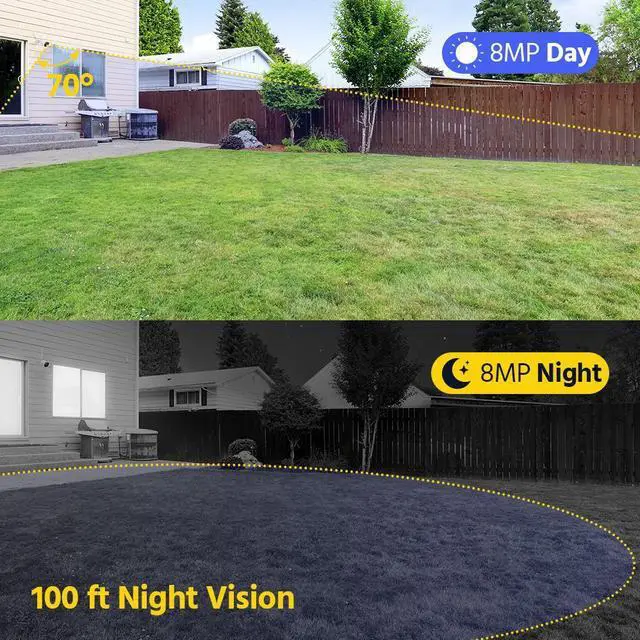

· Up to 100ft night vision with Smart IR
· IP66 weatherproof indoor and outdoor cameras"

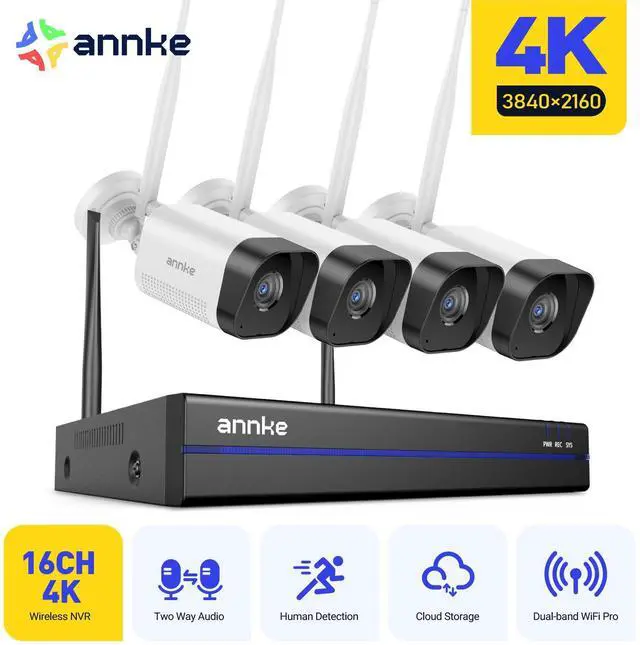

NVR
Video Format: H. 264+
IP Video Input: 16CH Wireless
Video Output: HDMI Up to 4K
Audio Output: Support
Max Recording Resolution: Up to 8M
Max Playback Resolution: Up to 8M
Max Playback Channel: 4CH
Max Playback Capacity: 4CH 5MP/2CH 8MP
Hard Drive
HDD: 1 SATA interface
HDD Capacity: Up to 8TB capacity( 2.5 & 3.5 inches)
External Interface
Network Interface: RJ45x1(10/100M)
Wireless antenna: 3 Ports( 2.4G & 5.8G dual-band, IEEE 802.11 b/g/n/ac)
USB: USB 2.0 x2
General:
Housing: Metal for mainpart
Operating Power: DC12V
Power Consumption: 6 W (Without HDD)
Working Temperature: 14 °F ~ 131 °F/-10 °C ~ 55 °C
Dimensions (W X H X D): 260 X 245 X 47 mm
Weight (Without Hard Disk): 760 g (Without HDD)
IP Camera
Camera
Video Resolution: 8MP (3840 X 2160)
Image Sensor: 1/ 2.7" Progressive Scan CMOS
Video Compression: H. 264+
Audio Compression: G. 711A
Lens: 3.6 mm
Angle of View: 70°
Number of Infra-Red LEDs: 18
Night Vision Distance: Up to 100ft/30m
IR-Cut Filter: Yes
Ethernet: RJ45x1(10M/100M)
Wireless: 2.4G & 5.8G dual-band, IEEE 802.11 b/g/n/ac
General:
Housing: Plastic for Main Part
Operating Power: DC12V
Operating Temperature: -4 °F 140 °F/-20 °C 60 °C
Indoor/Outdoor: Indoor/Outdoor
Weatherproof Rating: IP66
Packaging Contents
NVR: 1
Camera: 4
Cat5e Ethernet Cable: 3.3 ft/1m x1
USB Mouse: 1
HDMI Cable: 1
Power Adapter: 5
Antenna: 4
Surveillance Sign: 4
Quick Start Guide: 1
Mounting Screws Bag: 5
