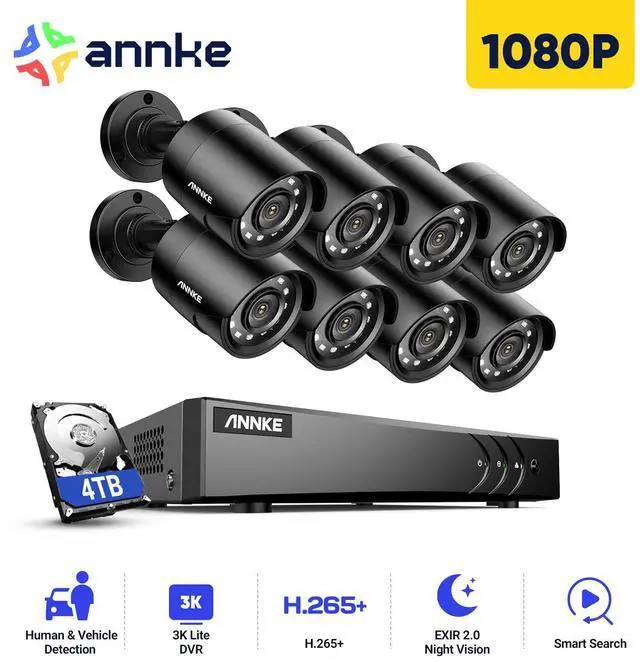

ANNKE 16CH 3K Lite FHD AI Surveillance Security Camera System with 4TB HDD and 8X 2MP Outdoor Weatherproof CCTV Cameras, Smart Human Vehicle Detection, Day/Night Vision, Smartphone Remote View
Limited time offer, ends10/31 By Security ANNKE Technology
- The sturdy and durable 16CH 3K Lite five in one DVR perfectly complements the IP66 weather resistant camera. You can enjoy 1080P high-definition live streaming, 1080P Lite recording and playback, with a night vision range of up to 100 feet.
- By adopting this advanced technology, storing the same surveillance video will save more storage space. It helps provide smoother video recording and saves you the cost of purchasing additional hard drives.
- By setting up pedestrian and vehicle detection, motion detection alerts will only be received when the vehicle is in the frame. Try to minimize unnecessary alarms caused by insects, animals, leaves, etc. Easily access and control the system remotely through 3G/4G/5G or smartphones, tablets, and computers.
- You can remotely access and control the entire monitoring system through the ANNKE Vision APP on your mobile device. Therefore, you can view and watch real-time videos anytime, anywhere.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
DVR
· Up to 3K high definition live viewing
· Up to 3K Lite recording & playback
· Advanced H. 265+ Video Compression
· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1
· Supports iPhoneiPadAndroid mobile remote monitoring
· Deep learning based human and vehicle targets classification of Motion Detection 2.0 for all analog channels
· Quick search by object or event type
· Audio via coaxial cable"
Video & Audio:
Video Compression: H. 264+/H. 264/H. 265/H. 265+
Video Input: 16CH Analog HD/Analog + 2CH IP Video (up to 24 channel when IP enhanced mode on)
Video Output: HDMI and VGA Up to 1080P
Audio Input: 1-ch RCA, 16-ch via coaxial cable
Audio Output: 1-ch RCA
Supported Camera Types: "Support
HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p;
Support AHD Input: 4MP, 1080p, 720P;
Support CVI Input: 4MP, 1080p, 720P;
Support CVBS Input;
Support IP: Video Input: 6MP/5MP/4MP/3MP/1080P/720P"
Analog HD Playback Resolution: 3K Lite/5MP Lite/4MP Lite@12fps, 1080p/720p@15fps
IPC Playback Resolution: Up to 6MP
Max Playback Channel: 4-ch
Protocols TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS
Motion Detection 2.0: All analog channels support human and vehicle detection to reduce false alarm
Hard Drive:
HDD: 1 SATA interface
HDD Capacity: Up to 10TB capacity
General:
Operating Power: DC12V, 20W (without HDD)
Working Temperature: -14 °F 131 °F /-10 °C 55 °C
Dimensions (W x H x D): 260 × 222 × 45 mm ( 10.2 × 8.7 × 1.8 inch)
Weight (without hard disk): 1.2 kg ( 2.6 lb) (without HDD)

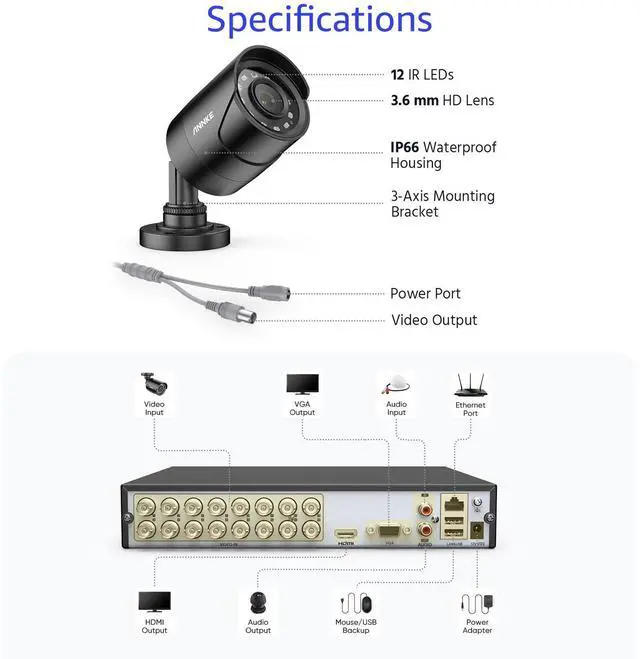

Camera:
1080P HD TVI Bullet Security Camera
Up to 30m night vision with Smart IR
3.6 mm lens brings everything back to life
Clear day and night vision with auto IR-cut
IP66 Dust and Waterproof Rating
Image sensor: 2MP CMOS Image Sensor
Video Resolution: 1920 (H) × 1080 (V)
Signal System: PAL/NTSC
Frame Rate: PAL: 1080p@25fps NTSC: 1080p@30fps
Lens: 3.6 mm
Min.
Illumination:
Color: 0.02 Lux @ (F 1.2, AGC ON), 0 Lux with IR
Angle of View: 82.2 °
Number of Infra-Red LEDs: 12
Night Vision Distance: Up to 100ft/30m
DNR: Support
Wide Dynamic Range: Digital WDR
IR Cut Filter: Yes
Video Output: HD BNCx1
General:
Housing: Plastic
Color: Black
Operating Power: DC12V
Operating Temperature: -40 °F 140 °F /-40 °C 60 °C
Indoor/Outdoor: Indoor/Outdoor
Weatherproof Rating: IP66
Dimension (L x W x H): 2.76" × 6.08" / 70 × 154.5 mm
Weight: 0.88 lbs / 400g
· Up to 3K high definition live viewing
· Up to 3K Lite recording & playback
· Advanced H. 265+ Video Compression
· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1
· Supports iPhoneiPadAndroid mobile remote monitoring
· Deep learning based human and vehicle targets classification of Motion Detection 2.0 for all analog channels
· Quick search by object or event type
· Audio via coaxial cable"
Video & Audio:
Video Compression: H. 264+/H. 264/H. 265/H. 265+
Video Input: 16CH Analog HD/Analog + 2CH IP Video (up to 24 channel when IP enhanced mode on)
Video Output: HDMI and VGA Up to 1080P
Audio Input: 1-ch RCA, 16-ch via coaxial cable
Audio Output: 1-ch RCA
Supported Camera Types: "Support
HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p;
Support AHD Input: 4MP, 1080p, 720P;
Support CVI Input: 4MP, 1080p, 720P;
Support CVBS Input;
Support IP: Video Input: 6MP/5MP/4MP/3MP/1080P/720P"
Analog HD Playback Resolution: 3K Lite/5MP Lite/4MP Lite@12fps, 1080p/720p@15fps
IPC Playback Resolution: Up to 6MP
Max Playback Channel: 4-ch
Protocols TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS
Motion Detection 2.0: All analog channels support human and vehicle detection to reduce false alarm
Hard Drive:
HDD: 1 SATA interface
HDD Capacity: Up to 10TB capacity
General:
Operating Power: DC12V, 20W (without HDD)
Working Temperature: -14 °F 131 °F /-10 °C 55 °C
Dimensions (W x H x D): 260 × 222 × 45 mm ( 10.2 × 8.7 × 1.8 inch)
Weight (without hard disk): 1.2 kg ( 2.6 lb) (without HDD)
Camera:
1080P HD TVI Bullet Security Camera
Up to 30m night vision with Smart IR
3.6 mm lens brings everything back to life
Clear day and night vision with auto IR-cut
IP66 Dust and Waterproof Rating
Image sensor: 2MP CMOS Image Sensor
Video Resolution: 1920 (H) × 1080 (V)
Signal System: PAL/NTSC
Frame Rate: PAL: 1080p@25fps NTSC: 1080p@30fps
Lens: 3.6 mm
Min.
Illumination:
Color: 0.02 Lux @ (F 1.2, AGC ON), 0 Lux with IR
Angle of View: 82.2 °
Number of Infra-Red LEDs: 12
Night Vision Distance: Up to 100ft/30m
DNR: Support
Wide Dynamic Range: Digital WDR
IR Cut Filter: Yes
Video Output: HD BNCx1
General:
Housing: Plastic
Color: Black
Operating Power: DC12V
Operating Temperature: -40 °F 140 °F /-40 °C 60 °C
Indoor/Outdoor: Indoor/Outdoor
Weatherproof Rating: IP66
Dimension (L x W x H): 2.76" × 6.08" / 70 × 154.5 mm
Weight: 0.88 lbs / 400g
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 90 days
- This item is covered by Security ANNKE Technology Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
LOADING...
The ANNKE 16-channel 3K Lite security system includes a DVR, eight 2MP IP66 outdoor cameras, and a 4TB HDD, making it a fit for homeowners or small businesses seeking multi-camera coverage, human-and-vehicle alerts, and remote viewing.
Recommended For
- Homeowners or small businesses that want several outdoor areas—such as entrances, driveways, stockrooms, or parking areas—recorded on one DVR, with room to add cameras as coverage needs grow.
- Property owners who want alerts focused on people and vehicles around a home or business, rather than every movement from passing traffic or environmental activity.
- Owners who prefer a fixed-camera setup with local DVR recording and want to check live views remotely when away from the property.
- Users who value broad property coverage and event monitoring more than highly detailed close-up footage; the included cameras are 2MP, so the system is aimed at general surveillance rather than fine detail at a distance.
Real-World Use Scenarios
- To keep an eye on several outdoor areas—such as the driveway, entrances, and side or back yards—a household can place the included cameras around the property and view their feeds from the central DVR. This provides one place to check activity across multiple camera views.
- When a person or vehicle approaches a monitored area, the system can classify the motion and send more relevant alerts than basic motion-only detection, helping users focus on activity around the property.
- While away from home, users can open the ANNKE Vision app to check live camera views and see what is happening around the property, provided the recorder and phone have internet access.
- After a missed delivery or unexpected activity, users can select a camera and time in the app to review recorded footage remotely, rather than relying only on live monitoring.
- For nighttime checks of outdoor areas, users can review camera footage from the property’s darker zones; the listed cameras provide night vision, though useful detail depends on distance and scene conditions.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Multi-camera property surveillance with centralized DVR recording |
| Storage Capacity | Includes a 4TB HDD for surveillance video storage |
