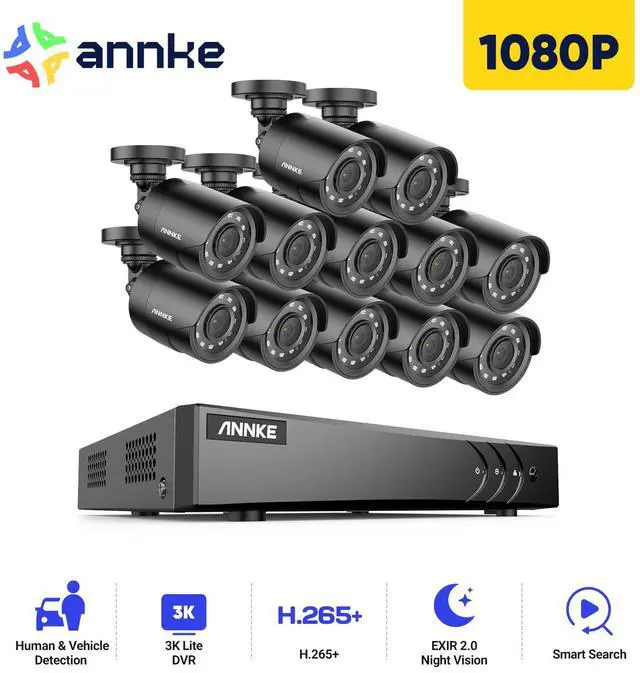

DVR
· Up to 3K high definition live viewing
· Up to 3K Lite recording & playback
· Advanced H. 265+ Video Compression

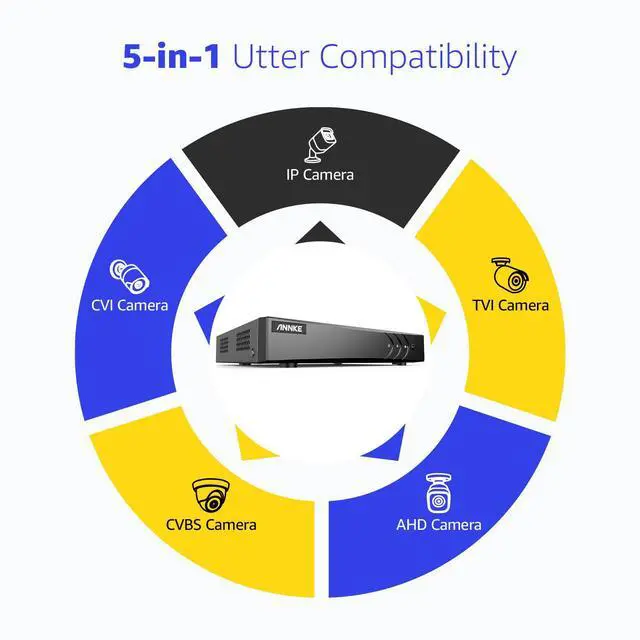

· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1
· Supports iPhoneiPadAndroid mobile remote monitoring
· Deep learning based human and vehicle targets classification of Motion Detection 2.0 for all analog channels
· Quick search by object or event type
· Audio via coaxial cable"
Video & Audio:
Video Compression: H. 264+/H. 264/H. 265/H. 265+
Video Input: 16CH Analog HD/Analog + 2CH IP Video (up to 24 channel when IP enhanced mode on)
Video Output: HDMI and VGA Up to 1080P
Audio Input: 1-ch RCA, 16-ch via coaxial cable
Audio Output: 1-ch RCA
Supported Camera Types: "Support
HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p;
Support AHD Input: 4MP, 1080p, 720P;
Support CVI Input: 4MP, 1080p, 720P;
Support CVBS Input;
Support IP: Video Input: 6MP/5MP/4MP/3MP/1080P/720P"
Analog HD Playback Resolution: 3K Lite/5MP Lite/4MP Lite@12fps, 1080p/720p@15fps
IPC Playback Resolution: Up to 6MP
Max Playback Channel: 4-ch
Protocols TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS
Motion Detection 2.0: All analog channels support human and vehicle detection to reduce false alarm
Hard Drive:
HDD: 1 SATA interface
HDD Capacity: Up to 10TB capacity
General:
Operating Power: DC12V, 20W (without HDD)
Working Temperature: -14 °F 131 °F /-10 °C 55 °C
Dimensions (W x H x D): 260 × 222 × 45 mm ( 10.2 × 8.7 × 1.8 inch)
Weight (without hard disk): 1.2 kg ( 2.6 lb) (without HDD)
Camera:
1080P HD TVI Bullet Security Camera
Up to 30m night vision with Smart IR
3.6 mm lens brings everything back to life
Clear day and night vision with auto IR-cut
IP66 Dust and Waterproof Rating
Image sensor: 2MP CMOS Image Sensor
Video Resolution: 1920 (H) × 1080 (V)
Signal System: PAL/NTSC
Frame Rate: PAL: 1080p@25fps NTSC: 1080p@30fps
Lens: 3.6 mm
Min.
Illumination:
Color: 0.02 Lux @ (F 1.2, AGC ON), 0 Lux with IR
Angle of View: 82.2 °
Number of Infra-Red LEDs: 12
Night Vision Distance: Up to 100ft/30m
DNR: Support
Wide Dynamic Range: Digital WDR
IR Cut Filter: Yes
Video Output: HD BNCx1
General:
Housing: Plastic
Color: Black
Operating Power: DC12V
Operating Temperature: -40 °F 140 °F /-40 °C 60 °C
Indoor/Outdoor: Indoor/Outdoor
Weatherproof Rating: IP66
Dimension (L x W x H): 2.76" × 6.08" / 70 × 154.5 mm
Weight: 0.88 lbs / 400g
