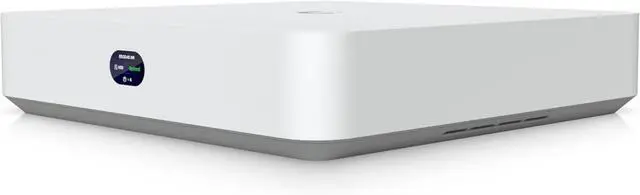

Compact Form Factor: Space-saving desktop NVR with wall and DIN rail mount options.

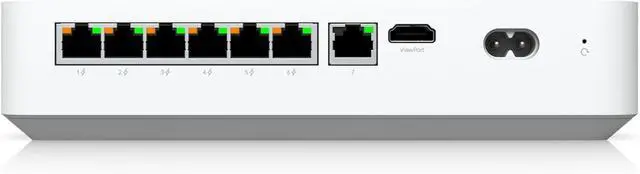

Integrated PoE Switch: 6 × GbE PoE downlink ports with 40W PoE budget.
Local Video Output: HDMI viewport for direct camera monitoring.

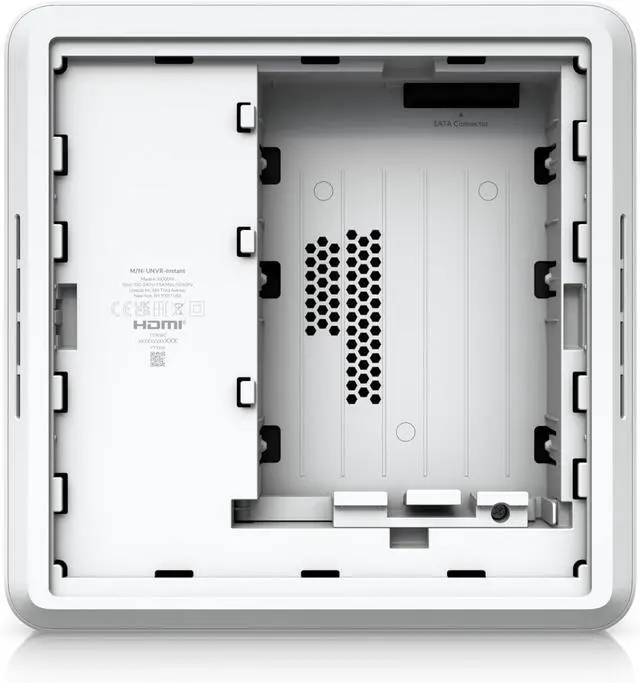

Flexible Storage: Supports one 3.5" HDD for extended video retention.
Camera Support: Up to 15 HD, 8 2K, or 6 4K UniFi cameras.
Multi-Application Ready: Runs UniFi Protect and UniFi Access simultaneously.
Efficient Performance: Powered by a quad-core ARM Cortex-A55 processor with 4 GB memory.
Durable Build: Polycarbonate enclosure, lightweight yet robust.
Dimensions : 220 × 220 × 47 mm (8.7 × 8.7 × 1.9") Weight : 1.04 kg (2.3 lb) Managed Cameras : 15 HD, 8 2K, or 6 4K cameras Storage Capacity : 1 × 3.5" HDD bay Networking Interfaces : 1 × GbE uplink, 6 × GbE PoE downlinks, 1 × HDMI PoE Budget : 40W total, 15.4W max per port Processor : Quad-core ARM Cortex-A55 at 1.7 GHz Memory 4 GB Power Supply : AC/DC internal, 60W; Universal AC input 100240VAC Max. Power Consumption : 9W (excluding HDD and PoE budget) Operating Temperature : 0 to 40 °C (32 to 104 °F) Operating Humidity : 5 to 95% noncondensing Applications : UniFi Protect, UniFi Access Compliance : NDAA Compliant, CE, FCC, IC Mounting Options Wall, DIN rail (included)
