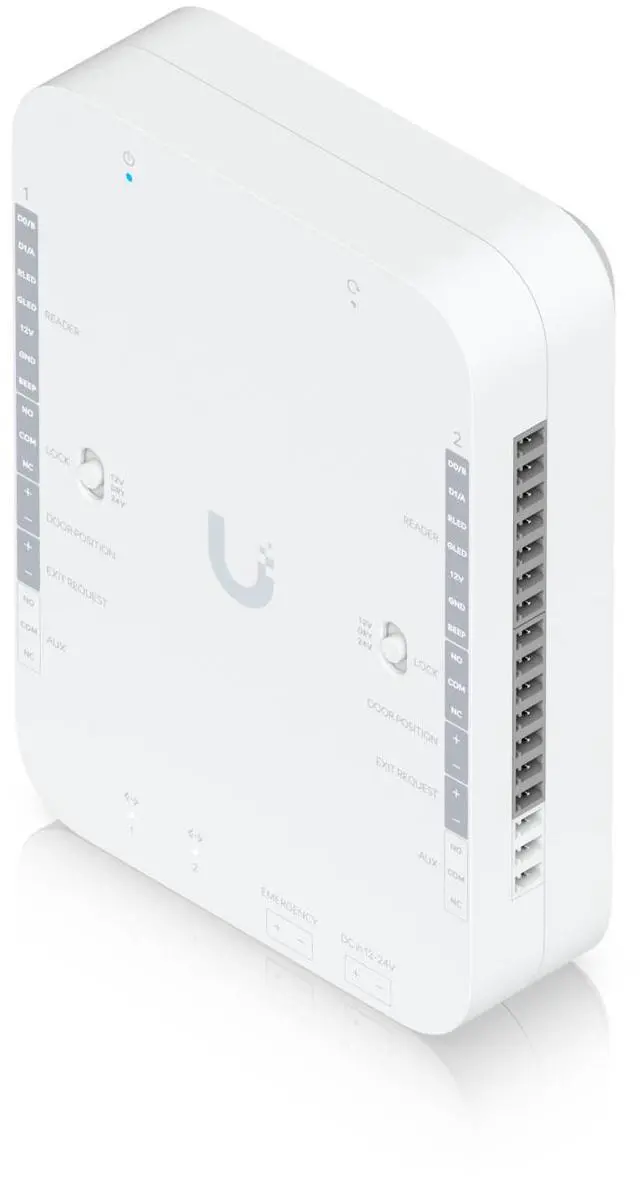

Ubiquiti UniFi Access Retrofit Hub (UA-Retrofit-Hub-2)

Ubiquiti UniFi Access Retrofit Hub (UA-Retrofit-Hub-2) - Dual-Door Access Control Hub

DC-powered hub that supports Wiegand and OSDP readers and provides entry and exit control for up to two doors.

General:

1. Supported doors: 2
2. Maximum users: 10,000
3. UniFi Application Suite: Access
4. NDAA compliant: Yes

Dimensions & Construction:

1. Dimensions: 140 × 120 × 45 mm (5.5 × 4.7 × 1.8")
2. Weight: 420 g (14.8 oz)
3. Enclosure material: Polycarbonate
4. Mount material: SGCC steel

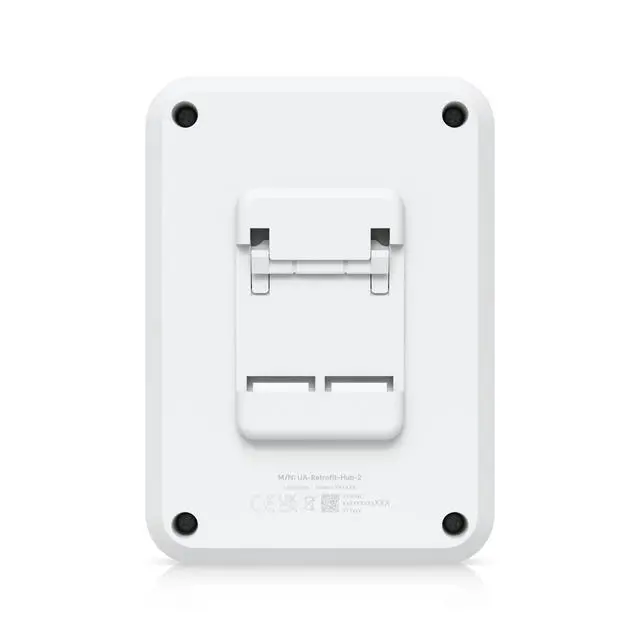

5. Mounting: DIN-rail (included)

Power:

1. Power Supply: DC 12V / 24V
2. Maximum power consumption: 50W

Networking:

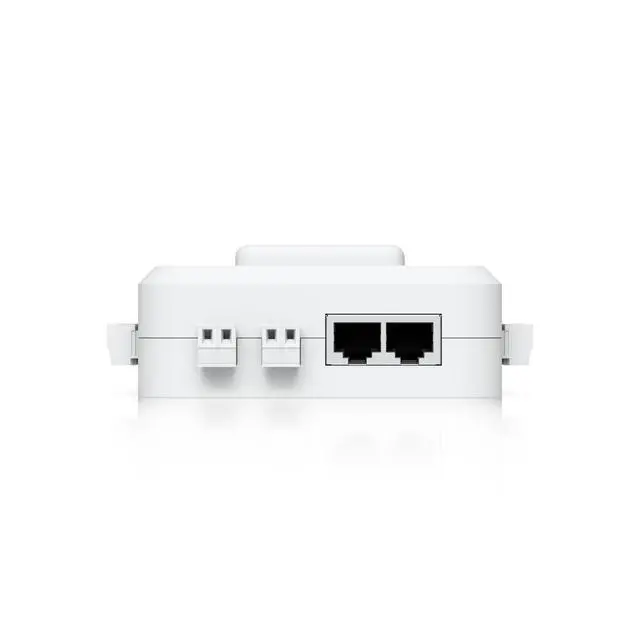

1. (2) 10/100 MbE RJ45 ports

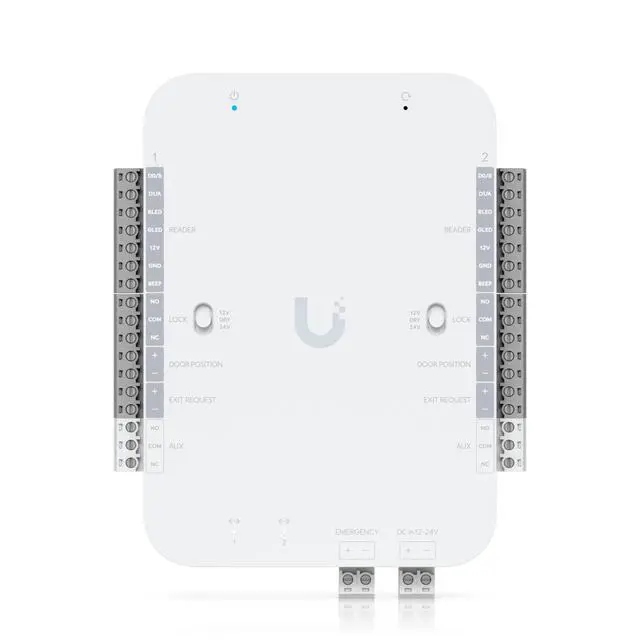

Digital Inputs:

1. (2) Third-party Wiegand Reader / UniFi Retrofit Reader
2. (2) Door exit request
3. (2) Door position
4. (1) Emergency

Dry Output Relays:

1. Lock: 30V DC, up to 1A
2. Aux: 30V DC, up to 1A

Powered Output Relays:

1. 12V lock: 12V DC, up to 1A
2. 24V lock: 24V DC, up to 0.5A

Environment:

1. Use: Indoor only
2. Operating temperature: 10 to 40°C (14 to 104°F)
3. Operating humidity: 5 to 90% non-condensing

Indicators & Controls:

1. LEDs: W / B
2. Buttons: (1) Factory reset & (2) 12V/Dry/24V switch
