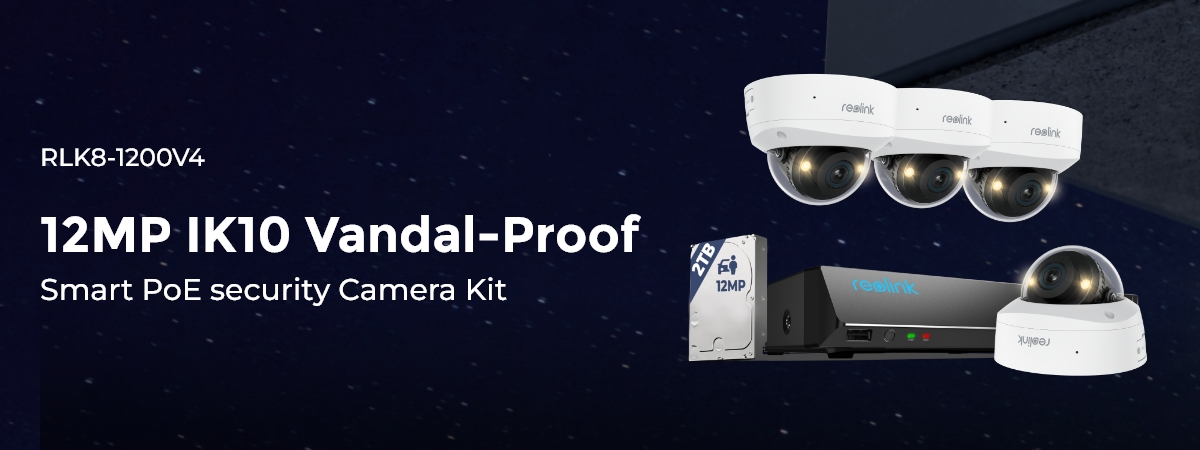

Smart 12MP IK10 PoE Surveillance System with 145° View
12MP UHD with Spotlight Night Vision
145° Super-Wide Viewing Angle
IK10 Vandal-Proof
8-Channel NVR with 2TB HDD
Two-Way Talk and Dual Deterrents
Communicate directly through your camera with clear two-way audio, accessible via the Reolink App or Client. Hear what's happening and respond in real-time, whether to greet a visitor or warn off an intruder. With the spotlight and siren deterrents, your home security is further enhanced.

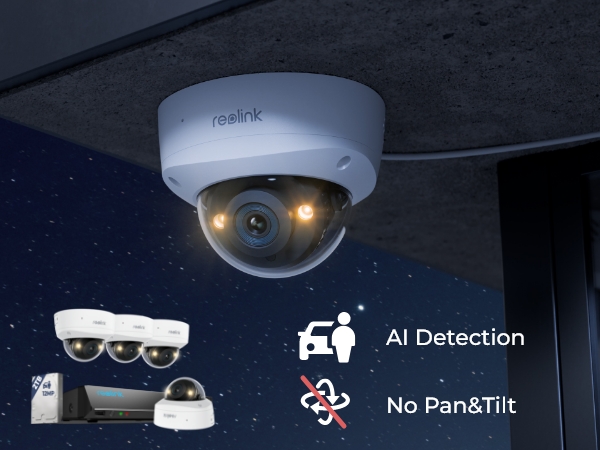

Smart Detection for Peace of Mind
Experience fewer false alarms with our intelligent detection system. Accurately distinguish between people, vehicles, and animals, ensuring you only receive relevant alerts. Get instant push notifications directly to your phone, keeping you informed and in control, all without any monthly fees.

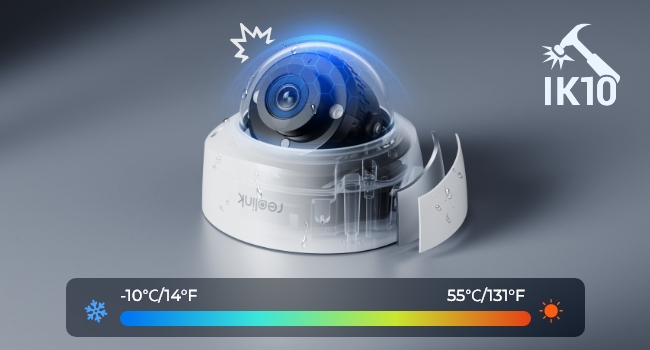

Rugged and Discreet
An IK10-rated housing with a small form factor allows for flexible placement in tight spaces or inconspicuous locations, blending seamlessly with its surroundings. Remain discreet and undetected, with a solution that is steadfast and tamper-proof.

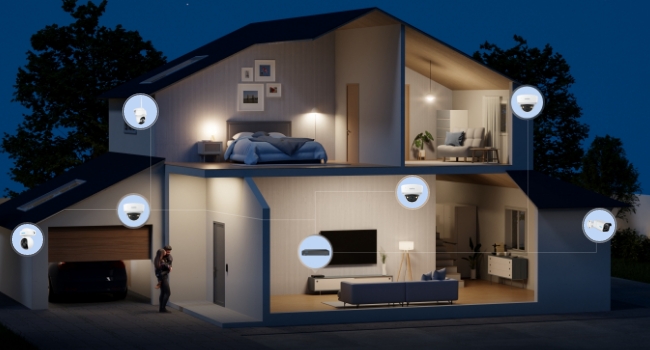

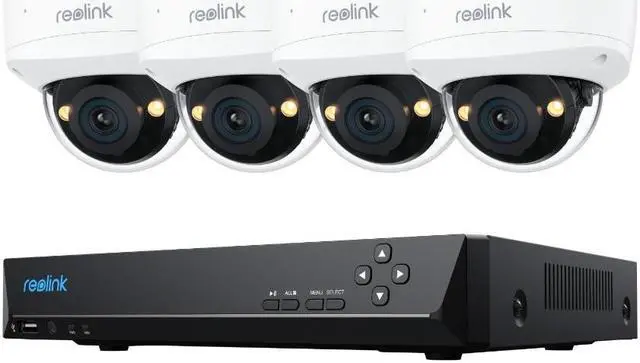

Your Security Command Center with NVR
Comprehensive protection backed by our NVR-centered system. Efficiently manage your cameras from a single interface, adapting to various installation scenarios.

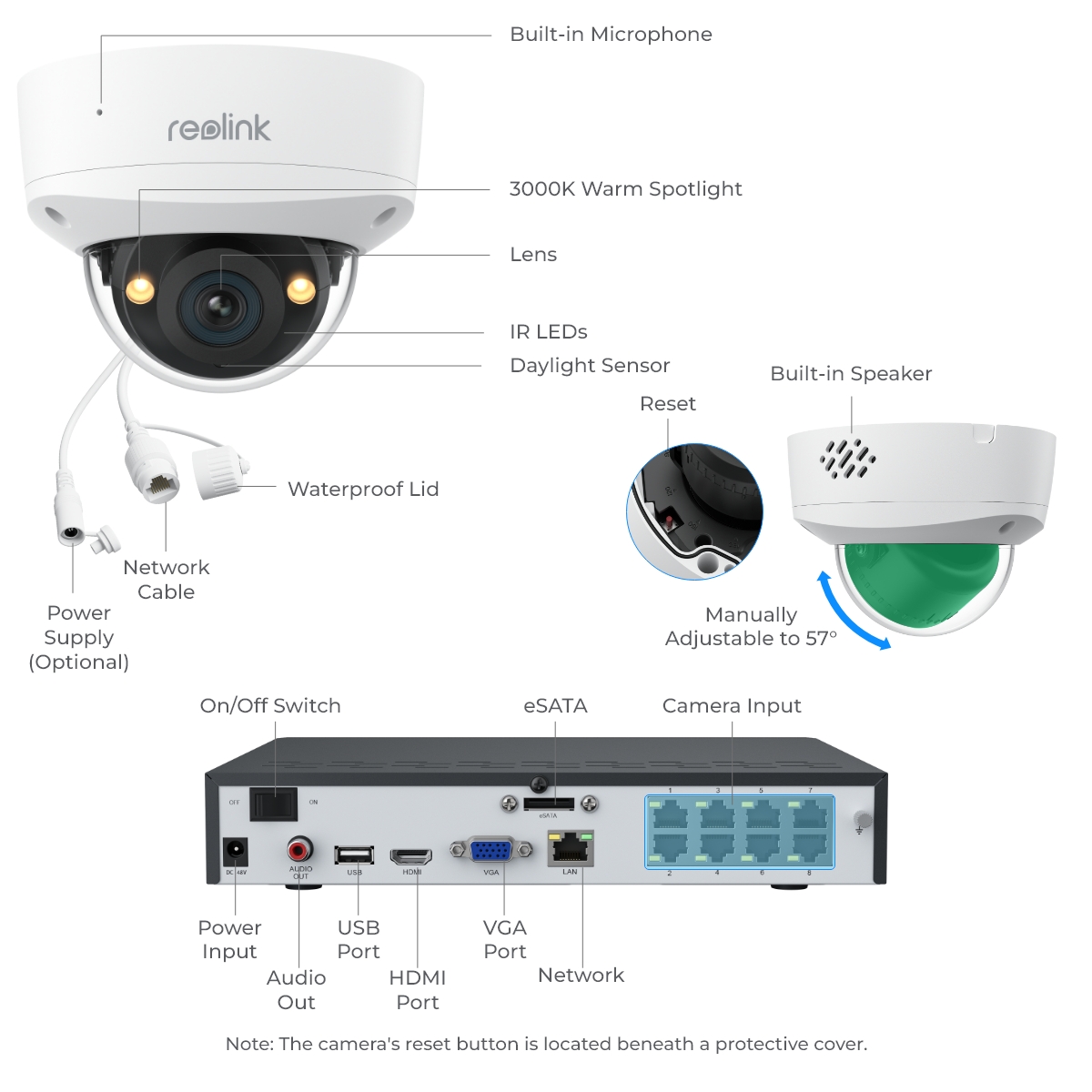

8-Channel NVR
Pre-installed with a 2TB HDD
Four 12MP Cameras
High-Resolution PoE Cameras Included
Expandable up to 16TB
Local Storage Capacity
12MP Clarity. Day or Night.
Capture every detail in stunning 12MP HD, even in low-light conditions. Choose from multiple night vision modes: illuminate the darkness with motion-activated or always-on color night vision, or switch to traditional infrared for discreet surveillance. With adjustable brightness and a warm 3000K glow, the spotlight ensures comfortable viewing and true-to-life colors.

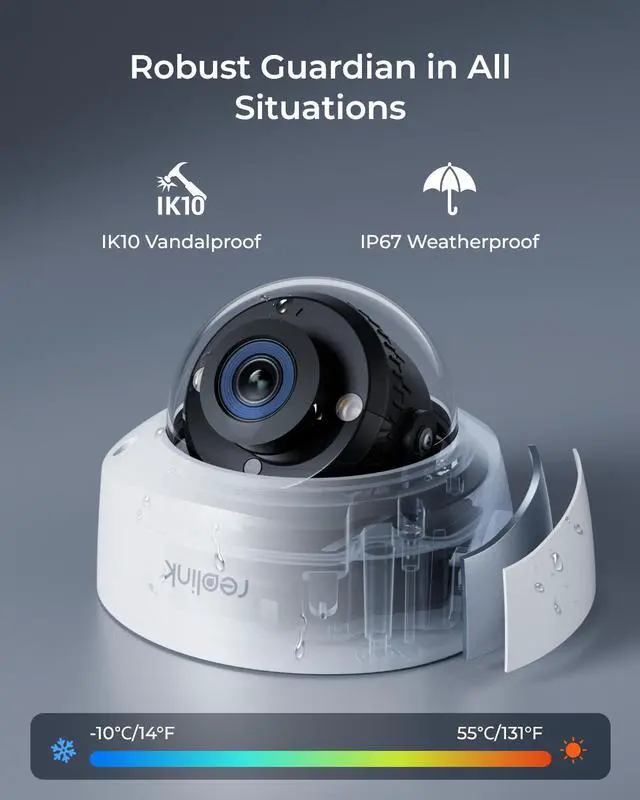

Weatherproof Reliability with IP67 Rating
Rain or shine, your security remains uncompromised. With an IP67 weatherproof rating, these cameras are built to withstand the elements, making them suitable for both indoor and outdoor use. Install them confidently knowing they'll continue to protect your property, no matter the weather conditions.
| NVR | Smart PoE Video Recorder: RLN8-410 |
|---|---|
| IP Video Input | PoE IP Camera x 8 |
| Image Sensor | 1/2.49" CMOS sensor |
| Video Compression | H.265 (more than 5MP); H.264 (others) |
| Color Night Vision | With spotlights: 2pcs/3W/3000K (adjustable) |
| Power Port | DC power port |
| Working Temperature | -10°C to 55°C (14°F to 131°F) |
| Camera Waterproof | IP67 |
|---|---|
| Video Resolution | 4512×2512(12 Megapixels)@20FPS |
| Lens | f=2.8mm F2.0 |
| Infrared Night Vision | Up tp 30 meters(100ft); LED:2pcs/2W/850nm (Auto-switching with IR-cut filter) |
| Audio | Two-way audio |
| Field of View | Horizontal: 121° Vertical: 63.4° Diagonal: 145° |
| Operating Humidity | 10% to 90% |
Smart Alarm
Motion detection; person detection; vehicle detection; animal detection
Recording Modes
Motion-triggered recording (default); scheduled recording; 24/7 recording
Infrared Night Vision
Up tp 30 meters(100ft); LED:2pcs/2W/850nm (Auto-switching with IR-cut filter)
Color Night Vision
With spotlights: 2pcs/3W/3000K (adjustable)
Frame Rate
2fps - 20fps (default: 20fps)
Code Rate
Main stream: 1024Kbps - 10240Kbps (default: 8192Kbps)
Sub stream: 128Kbps -1228Kbps (default: 1024Kbps)
Image Sensor
1/2.49" CMOS sensor
Resolution
4512×2512(12 Megapixels)@20FPS
Lens
f=2.8mm F2.0
Video Compression
H.265 (more than 5MP); H.264 (others)
Field of View
Horizontal: 121°
Vertical: 63.4°
Diagonal: 145°

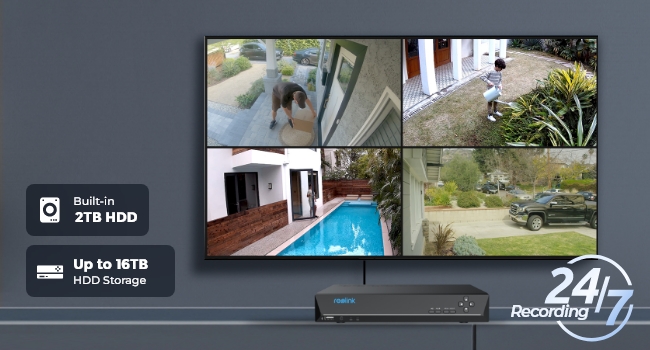

24/7 Recording for Uninterrupted Security
Your security never sleeps, and neither does your camera system. With a pre-installed 2TB hard drive, you can store footage from all four cameras, ensuring continuous recording around the clock. Need more space? Expand your storage capacity up to 16TB for even longer recording periods. True peace of mind, all with offline 24/7 recording.

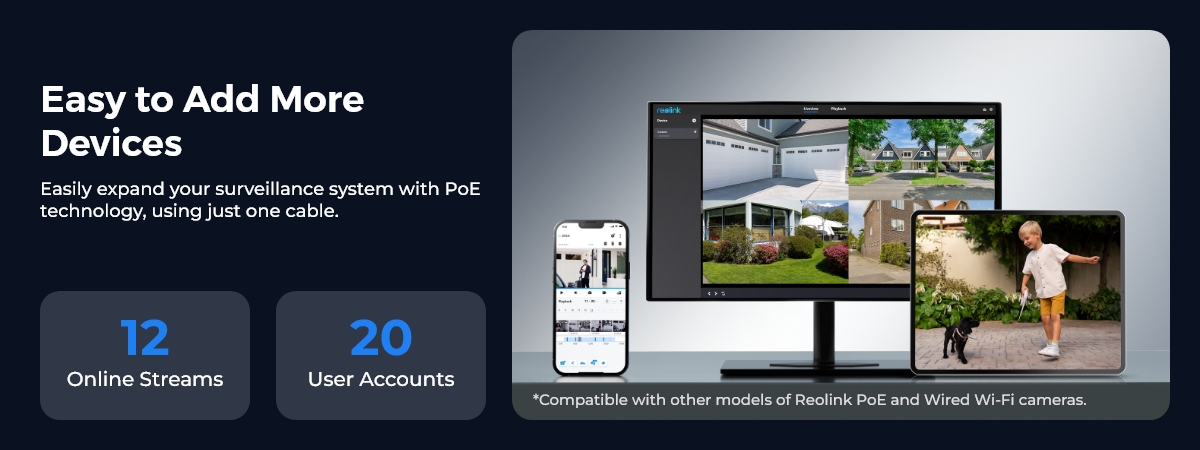

Expand Your System with Reolink Compatibility
Your security needs are unique, and your system should be too. This system offers exceptional expandability, seamlessly integrating with a wide range of Reolink cameras. Choose from various resolutions and styles, including PoE cameras for wired connections and Wi-Fi cameras for flexible placement.
Stay Connected and in Control
Real-Time Alerts
Receive instant push notifications and email alerts whenever motion is detected, ensuring you're always aware of what's happening.
Easy Live View
Monitor multiple cameras simultaneously on a single screen, giving you a comprehensive view of your surroundings.
Smart Playback
Filter recordings by type (motion, person, vehicle, animal) to save time and easily locate specific events.
Customizable Detection Zones
Tailor your motion detection to focus on specific areas of interest, ensuring you only receive alerts when it matters most.

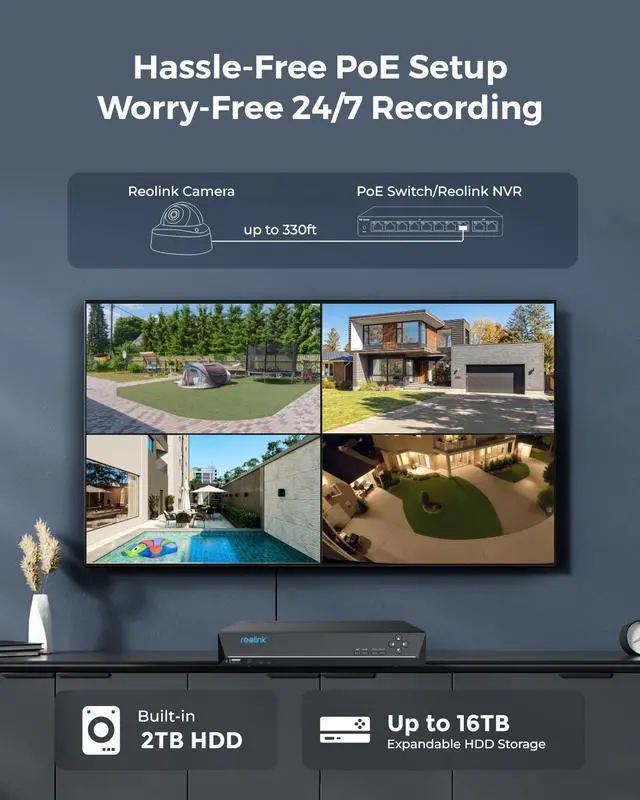

Hassle-Free Setup: Plug and Play PoE
Experience the convenience of plug-and-play installation with our PoE (Power over Ethernet) system. No need for separate power cables for each camera.
Step 1.
Set up the NVR
Connect the NVR to a power source and then to your router.
Step 2.
Set up the Cams
Use an Ethernet cable to connect each PoE camera directly to the NVR.
Step 3.
Scan & Preview
Scan the NVR's QR code using the Reolink App and view your live camera feeds
