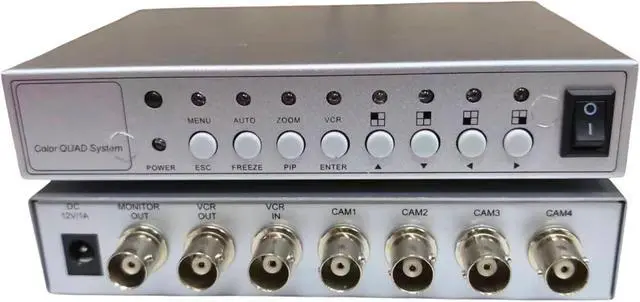

Evertech Office Home Analog Video Security Camera CCTV Color Quad Splitter Processor 4 Channel/Port Real Time with Remote Control (Silver or Black Casing)

Please note: the casing might be either black or silver, depending on the inventory. Compatible with all Traditional ANALOG Cameras
NOT Compatible 720P/1080P AHD-TVI-CVI-SDI Cameras
This is 4CH Digital Color Quad Processor with Remote Control and a standard power supply(12 Volt 1250 mA Adapter ) .It allows you to view eight camera in a monitor, such as surveillance Monitor/home TV by remote control.
High Resolution Display Quality
NTSC/PAL
4 image split, Quad image, PIP image, Dual image display
High speed display in 4 image split
Each image quality can independently adjust
The image can auto switch each other
2 PIP functions and 1PIP function, each PIP position can be adjustable and display channel number can be edited
Dual Split function, each picture position can adjustable and display channel number can be edited
ZOOM function, zoomed area can be moved while zoom function is invoked
High Quality image freeze function, more than one image can freeze in different channel
Support IR remote controller

Refresh rate : PAL: 200 feilds/sec NTSC: 240 feilds/sec
Resolution : PAL: 720x576 NTSC: 720x480
Video Input Port : 1.0 Vp-p75BNC
Video Input Signal : 1.0 Vp-p75 input
Video Output Signal : 1.o Vp-p75 output
Alarm Mode : Video loss alarm
Video Output Mode : Full screen, electronic amplification, 4 picture, Picture in Picture, Auto switch display mode
Operating Voltage : DC12V/1A or 500miliAmp
Environment Temperature : -30C-60C Dimension : 5 7/16 in. x 3 15/16 in. x 1 1/16 in. (LxWxH)
Net Weight : 700gr
