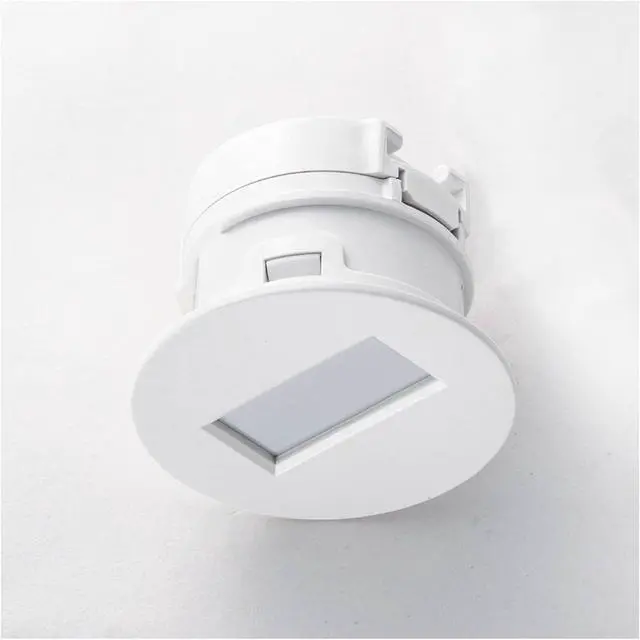

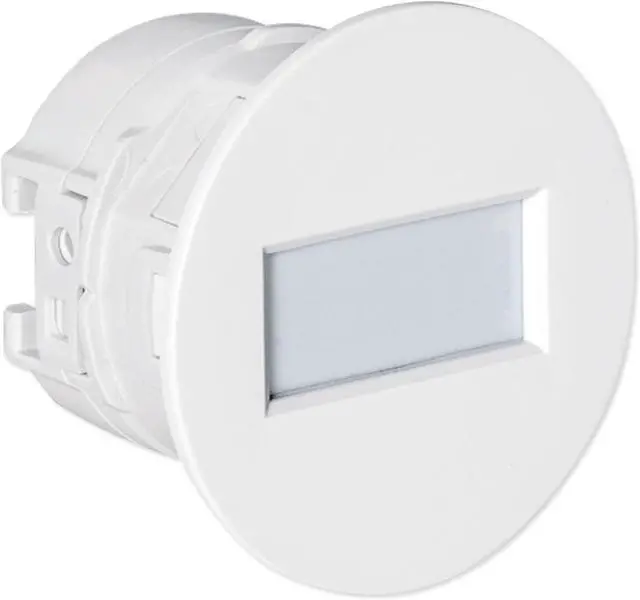

Optex AP-20NB(C) Indoor Recessed Mount PIR Detector, Curtain Detection, Wired

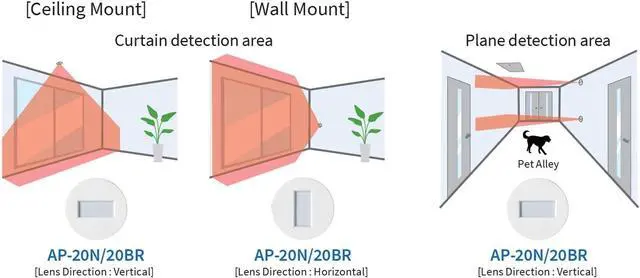

Ensure your home or business is well protected with discreet motion detection by installing the Optex Indoor Recessed Mount PIR Detector, Curtain Detection. This uniquely designed PIR motion detector has a compact design and installs discreetly on a wall or ceiling. It uses passive infrared technology to detect motion up to 20' x 3' 3" when installed on a ceiling at a mounting height of 14' 9", or 20' x 14'9" when installed on a wall at a mounting height of 4'11". It features a tamper switch and selectable detection sensitivity: High, Medium, and Low. It offers plane detection when the lens direction is vertical, making it ideal for hallway installations or it can be installed above or to the side of curtains where the lens direction can be either vertical or horizontal for best coverage.
Ceiling or wall mount installation for plane or curtain detection installation
Compact design allows for discreet installation
Selectable detection sensitivity: High, Medium, and Low
Tamper switch notifies when the device has been tampered with

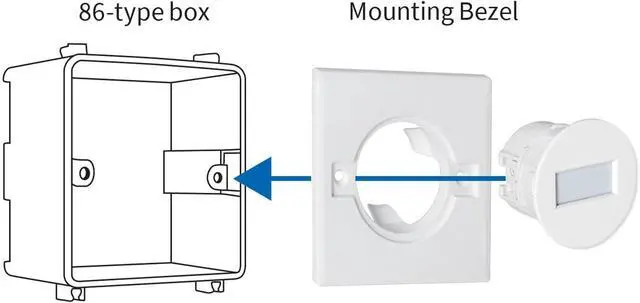

Ceiling or wall mount installation with 86-type box or without
ContentsIndoor Recessed Mount PIR Detector
Manual
Technical DetailsManufacturer Part #: AP-20NB(C)
UPC: 788924505046
Color: White
Type: Wired
Detection Method: Passive Infrared
Detection Area:
Ceiling mount: 6.0 m x 1.0 m (20' x 3'3") at 4.5 m (14'9") height
Wall mount: 6.0 m x 4.5 m (20' x 14'9") at 1.5 m (4'11") height
Mounting Height:
Ceiling mount: 2.5 m to 4.5 m (8'2" to 14'9")
Wall mount: 1.5 m (4'11"): Horizontal, 1.0 m (3'3"): Vertical
Mounting Type: Recessed ceiling mount/, Wall mount/ 86-type box mount
Sensitivity: 2.0°C at 0.6 m/s (3.6°F at 2'/s)
Detection Speed: 0.3 to 3.0 m/s (1'/s to 9'10"/s)
LED indicator:
Warm-up upon power on: blinking
Stand-by: off
Alarm: solid on
Alarm Cycle: Approx. 2 s
Alarm Output: N.O./N.C., 28 V DC 200 mA max.
Tamper switch:
N.C. 28 V DC 100 mA max
The contact opens once the casing is detached
Warm-up Time: Approx. 60 s
Power Supply: 9.5 to 16 V DC
Current:
12 V DC
Stand-by: 11mA, Max.: 13 mA
PIR Sensitivity: H/ M/ L
Weight: 50 g (1.76 oz)
Operation Temperature: -4°F to +122°F (-20 to +50°C)
Operation Humidity: <95%
Location: Indoors
Dimensions:
Diameter 2.05 x 1.40 inches (diameter 52 x 35.5 mm): without switch box mount
3.39 x 3.39 x 1.44 inches (86 x 86 x 36.5 mm): with 86-type box mount
