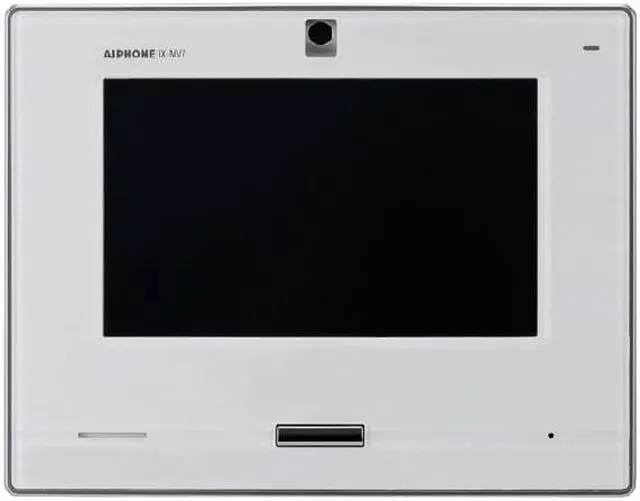

Aiphone IX-MV7-W 7-Inch TFT LCD Touchscreen Hands-free IP Video Master Station

Aiphone IX-MV7-W 7-Inch TFT LCD Touchscreen Hands-free IP Video Master Station

Brand:  Aiphone

Model:  IX-MV7-W

Product Type:  IP Video Master Station

Display:  7" TFT LCD touchscreen

Camera: 1.3" CMOS 720p

Connectivity:  IP/VoIP

Speaker:  8-Ohm 1/2-Watt

Min. illumination:  5 Lux

Audio Codec:  G.711 (μ-law, A law), G.722

Audio input:   600Ω

Video Codec:  H.264/AVC, Motion JPEG

Contact:  outputs 2, 4 trigger inputs

Additional Interfaces:  3.5mm stereo mini jack, microSD card slot

Protocols:  IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP,

Port Security:  IEEE 802.1X

Mounting:  Multi-angled desk stand (30°, 45°, 60°), or wall mount with included bracket

Features

SIP 2.0 Compliant allowing integration with Cisco Unified Call Manager

ONVIF Profile S Compliant

802.3af PoE, Class 0

7″ TFT LCD touchscreen

Use built-in cameras for two-way master-to-master video conferencing

Hands-free or push-to-talk communication

8 customizable speed dial buttons

Turn your master into a virtual receptionist – ideal for unmanned waiting areas or unstaffed lunch hours

Capture and store the audio and video of active conversations on a microSD card (not provided by Aiphone)

Picture-in-Picture (PIP) allows an ONVIF Profile S IP camera and an Aiphone video intercom to be viewed simultaneously

2 contact outputs, 4 trigger inputs

8Ω 1/2 watt speaker output provides better coverage for announcements

600Ω audio input
