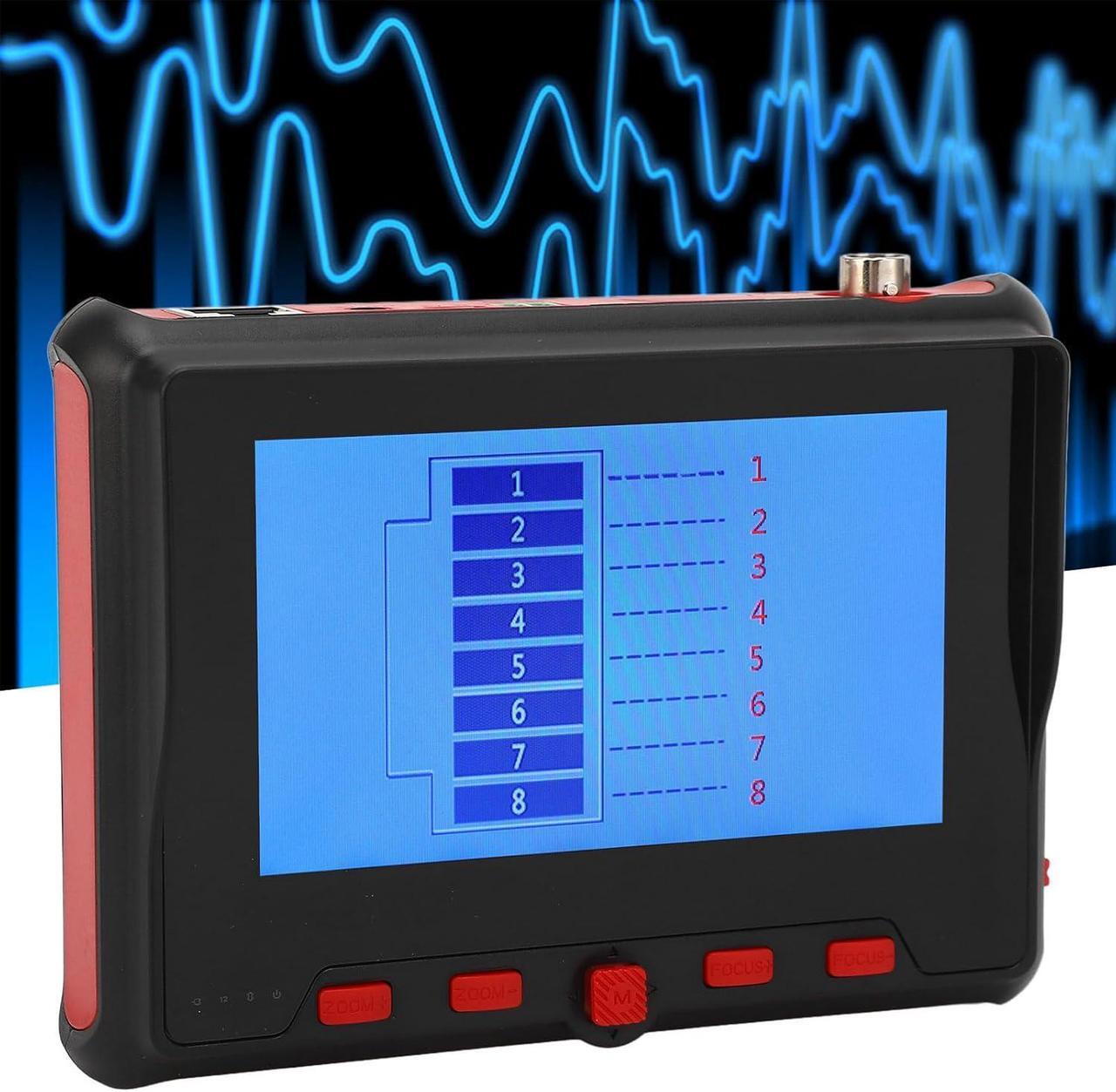

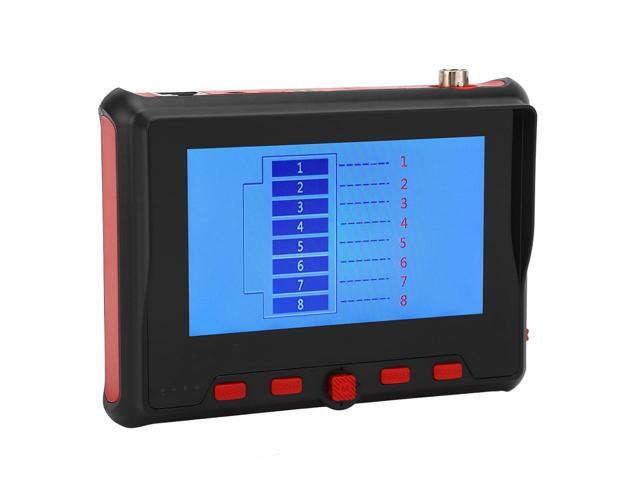

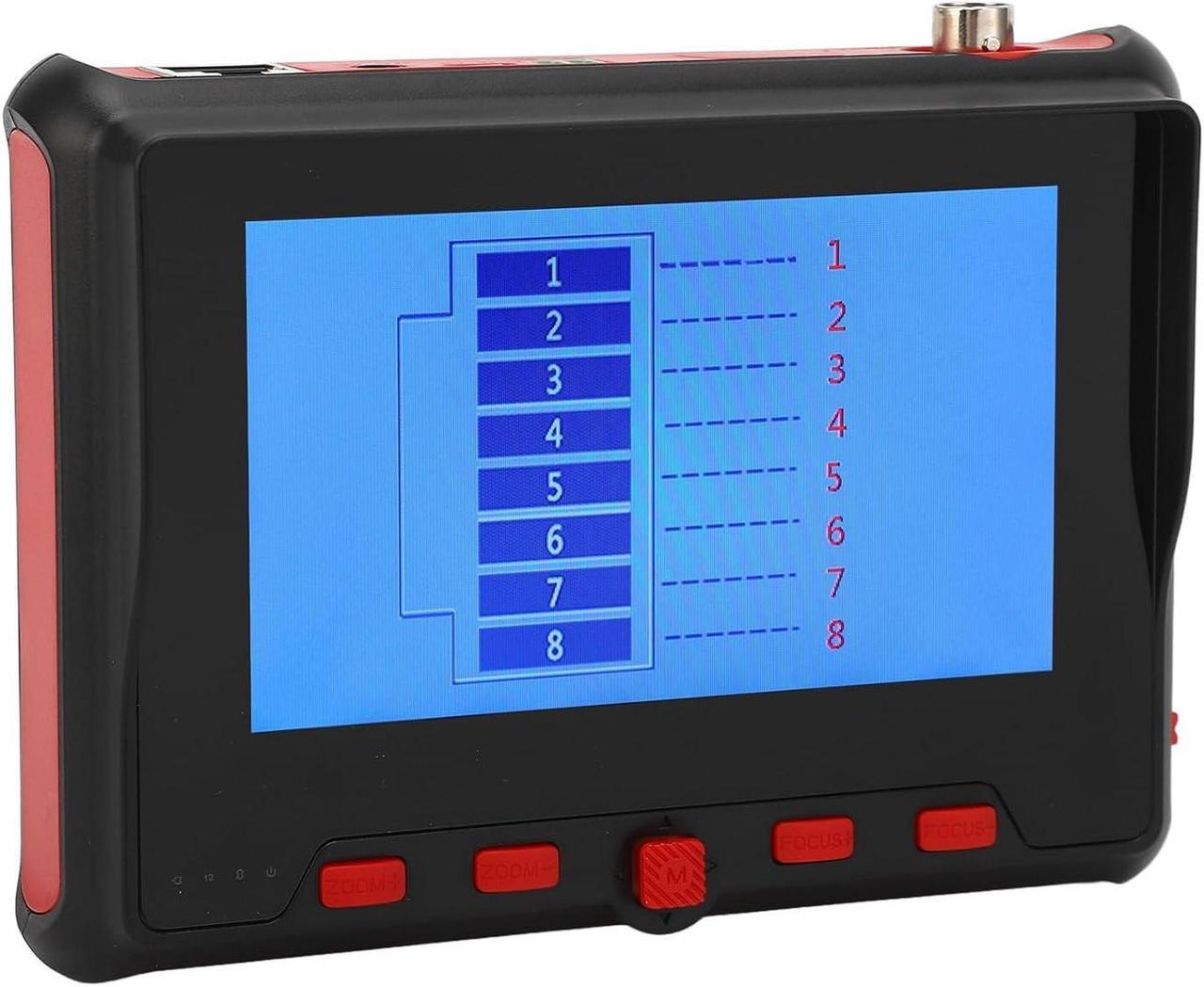

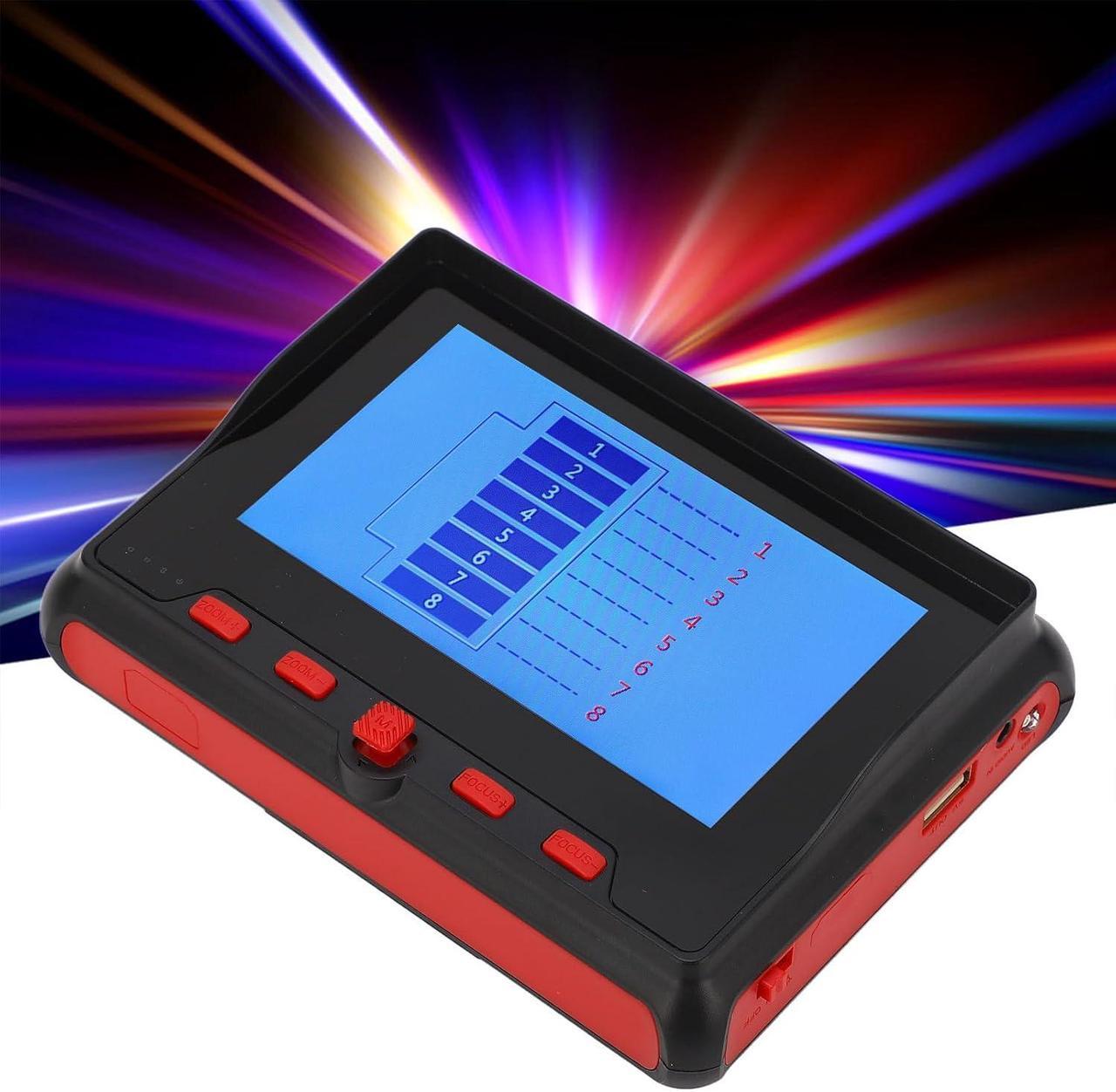

CCTV Test Monitor, 4.3in Display AHD TVI CVI UTP Cable Tester 8MP Security IP Camera Tester Multifunctional CCTV Tester Home Industrial Network Cable Tester for Maintenance Repair (US Plug)

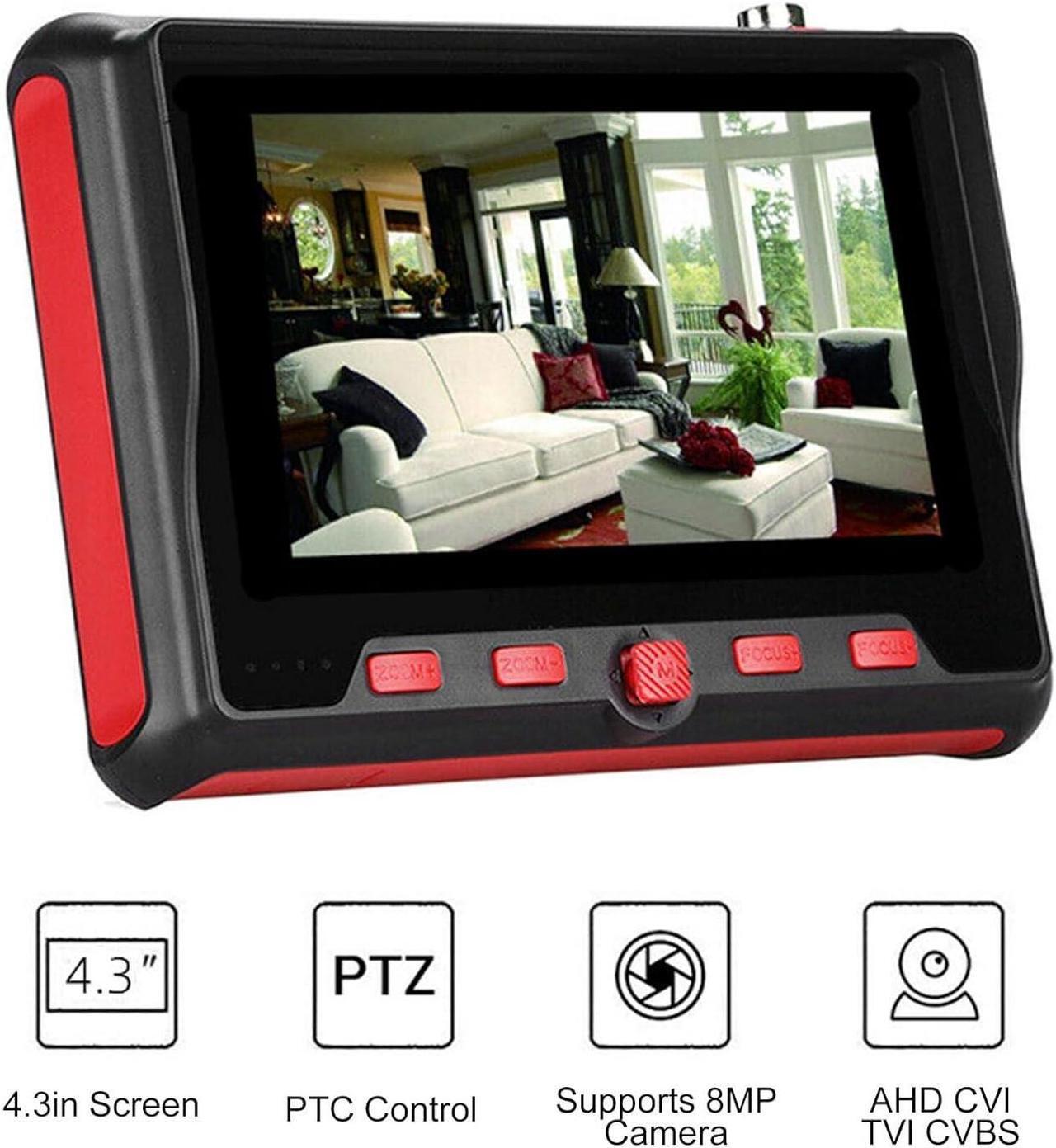

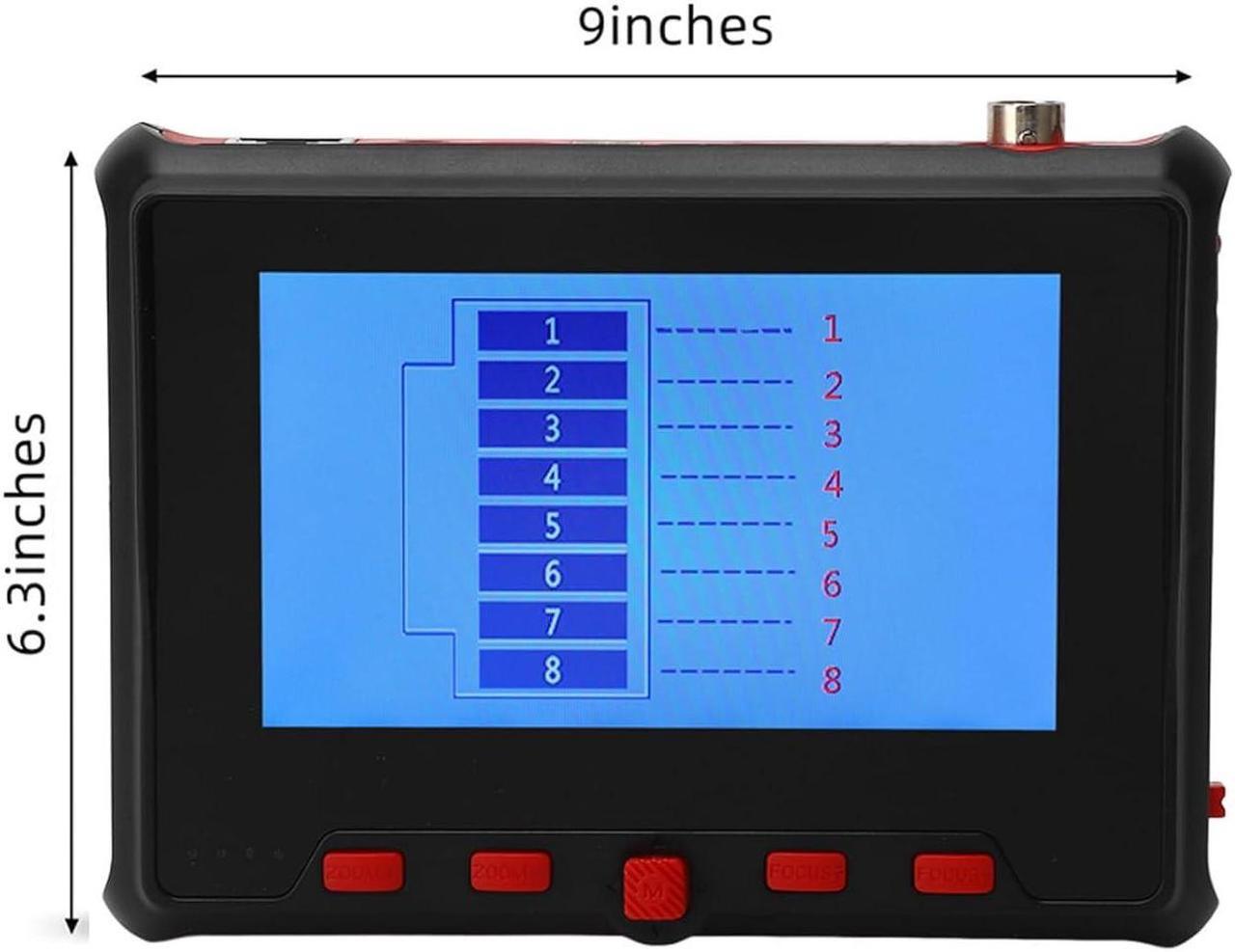

- 4.3in Display Screen: The CCTV test monitor has a mini 4.3in display screen, which is protected by film and rubber on both sides, allowing you to use it in different environments.
- Good Compatibility: This multifunctional CCTV tester also supports VGA input and High Definition Multimedia Interface input. You can use a monitor and DVR to work together conveniently and quickly.
- Easy Installation: Light in weight and compact in size as well, the CCTV test monitor is very convenient to carry and install for outdoor working.

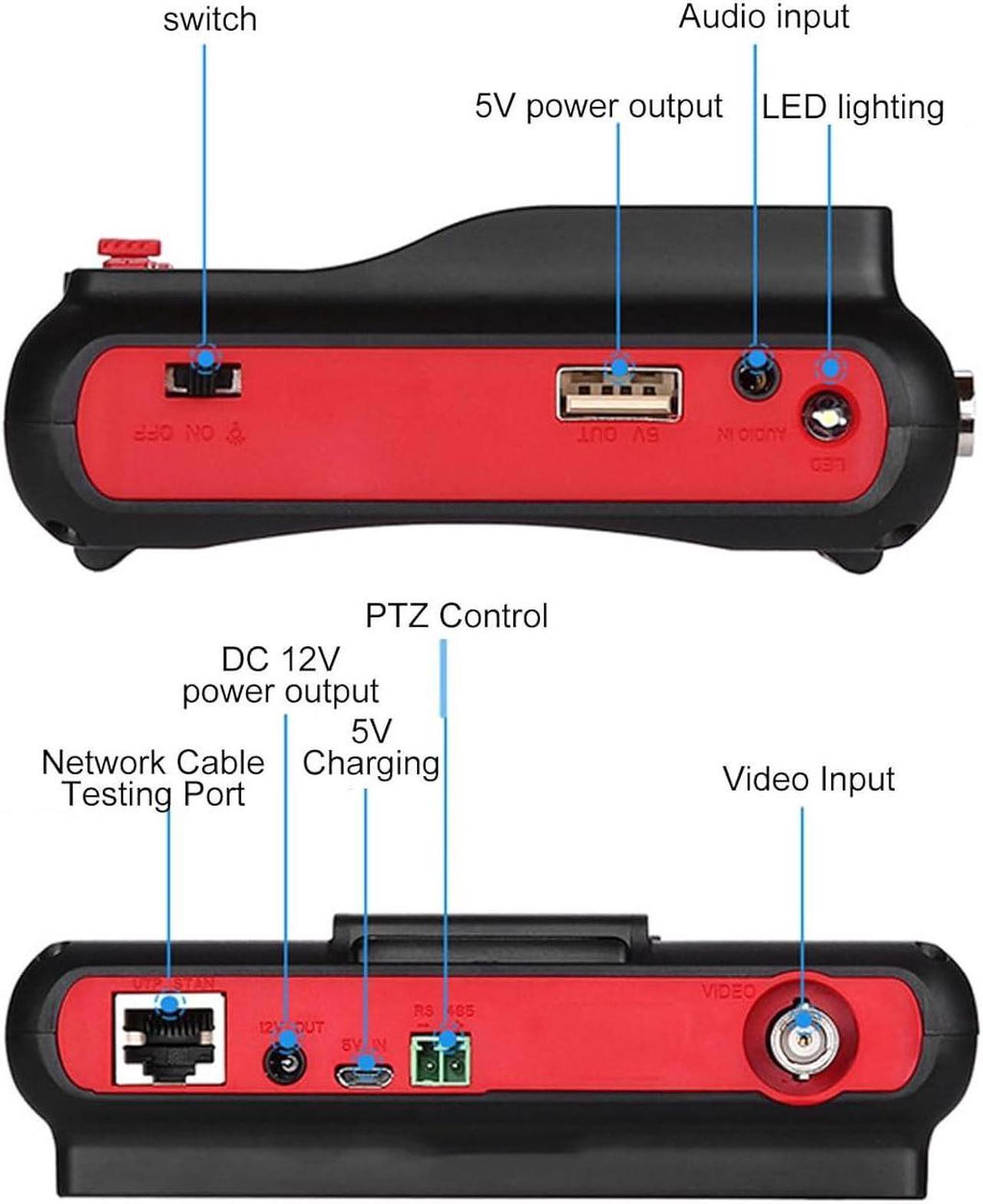

- Stable Operation: Large capacity batteries can make CCTV monitors work for a long time. This monitor has a 12V DC power output, and in cases where it is difficult to provide an independent power supply, you can power the camera separately.
- Match: Can perfectly test up to 8MP AHD cameras, TVI cameras, and CVI cameras, making it for upgrading old CCTV analog systems. The CCTV tester also supports UTP cable testing.
+
+
Overview
Specs
Reviews
Spec:
Item Type: CCTV Test Monitor
Battery: 1 x built in 3.7V polymer lithium battery with 3000 mAh capacity.
Language: Supports 12 languages.
Audio Input Test: Yes
PTZ Controller: Supports RS485, is compatible with for PELCO-D/P protocol, and has a baud rate of 2400-19200bps.
UTP Cable Tester: For UTP cable, with indicator light, testing distance up to 100 ~ 150m / 328.08 ~ 492.13ft (approx.)
Mode: NTSC/PAL, automatic adaptation.
Video Input: BNC analog, AHD, TVI, CVI input.
UTC OSD Control: UTC Control and call OSD menu.
Video Testing Function: High definition video monitoring tester, built in high definition 4.3in TFT LCD, 480 x 272 resolution wide angle display screen, supporting PAL/NTSC standard image .
Tilt Control Function: The video monitoring tester has built in for Pelco D/P and other PTZ control protocols. Through the RS485 interface, it can control the tilt up, down, left, right, zoom, focus, and aperture size.
How to Use:
Take out the product and use according to the user manual.

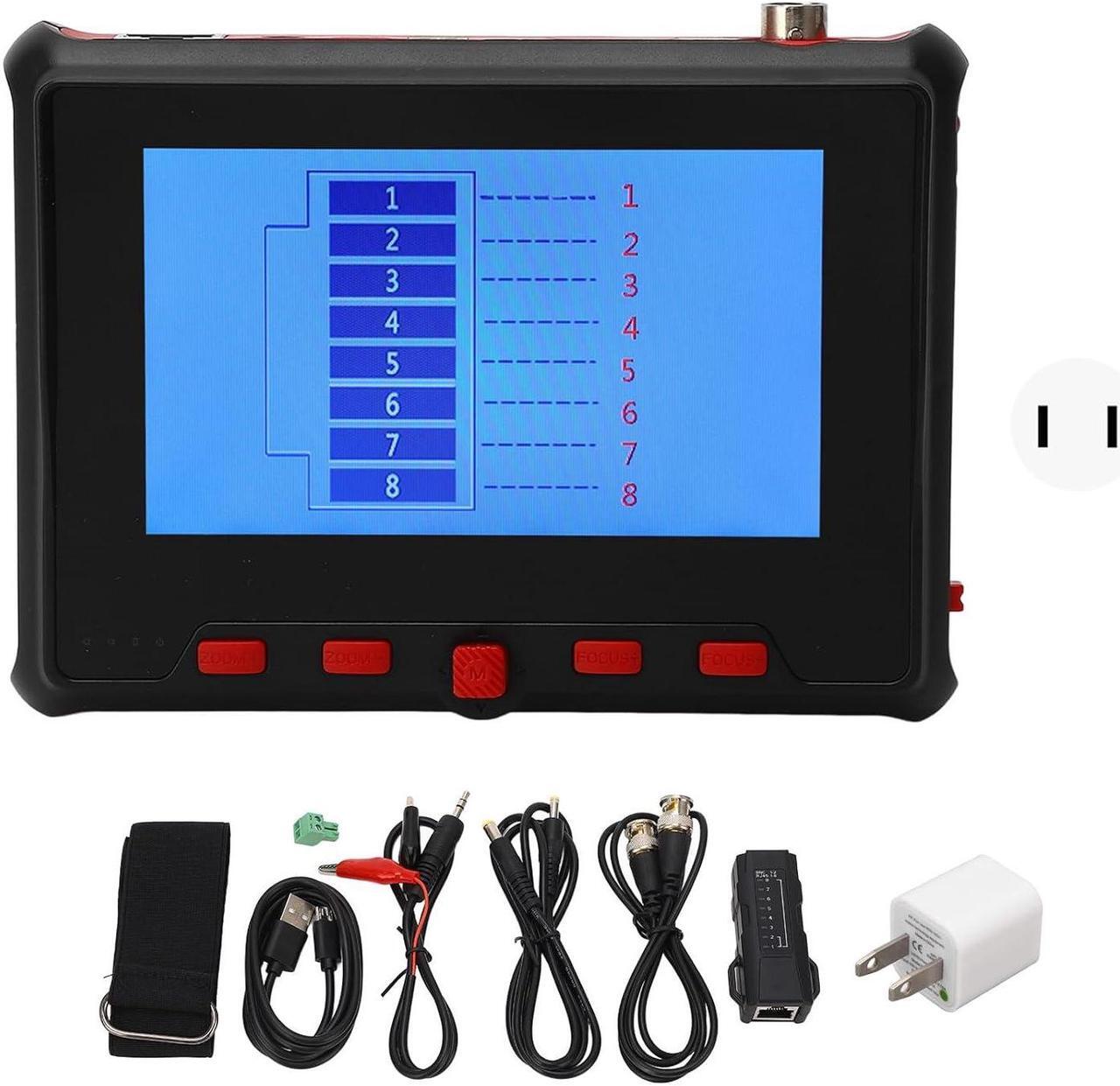

Packing List:
1 x CCTV Test Monitor
1 x Safety Cord
1 x BNC Cable
1 x Audio Test Cable
1 x RS485 Control Cable
1 x Charging Cable
1 x Test Box
1 x Charger
1 x Terminal
1 x User Manual
Previous page Life is your own, please dress up and be lovely as much as you like.Just take your time..Next page Luqeeg -Give Life to Enjoy!
Item Type: CCTV Test Monitor
Battery: 1 x built in 3.7V polymer lithium battery with 3000 mAh capacity.
Language: Supports 12 languages.
Audio Input Test: Yes
PTZ Controller: Supports RS485, is compatible with for PELCO-D/P protocol, and has a baud rate of 2400-19200bps.
UTP Cable Tester: For UTP cable, with indicator light, testing distance up to 100 ~ 150m / 328.08 ~ 492.13ft (approx.)
Mode: NTSC/PAL, automatic adaptation.
Video Input: BNC analog, AHD, TVI, CVI input.
UTC OSD Control: UTC Control and call OSD menu.
Video Testing Function: High definition video monitoring tester, built in high definition 4.3in TFT LCD, 480 x 272 resolution wide angle display screen, supporting PAL/NTSC standard image .
Tilt Control Function: The video monitoring tester has built in for Pelco D/P and other PTZ control protocols. Through the RS485 interface, it can control the tilt up, down, left, right, zoom, focus, and aperture size.
How to Use:
Take out the product and use according to the user manual.
Packing List:
1 x CCTV Test Monitor
1 x Safety Cord
1 x BNC Cable
1 x Audio Test Cable
1 x RS485 Control Cable
1 x Charging Cable
1 x Test Box
1 x Charger
1 x Terminal
1 x User Manual
