EMX ULT-PLG Vehicle Loop Detector 12-24VDC Dual Output Detect-on-Stop
- Plug-in vehicle loop detector for inductive loops used with gate and door operator systems

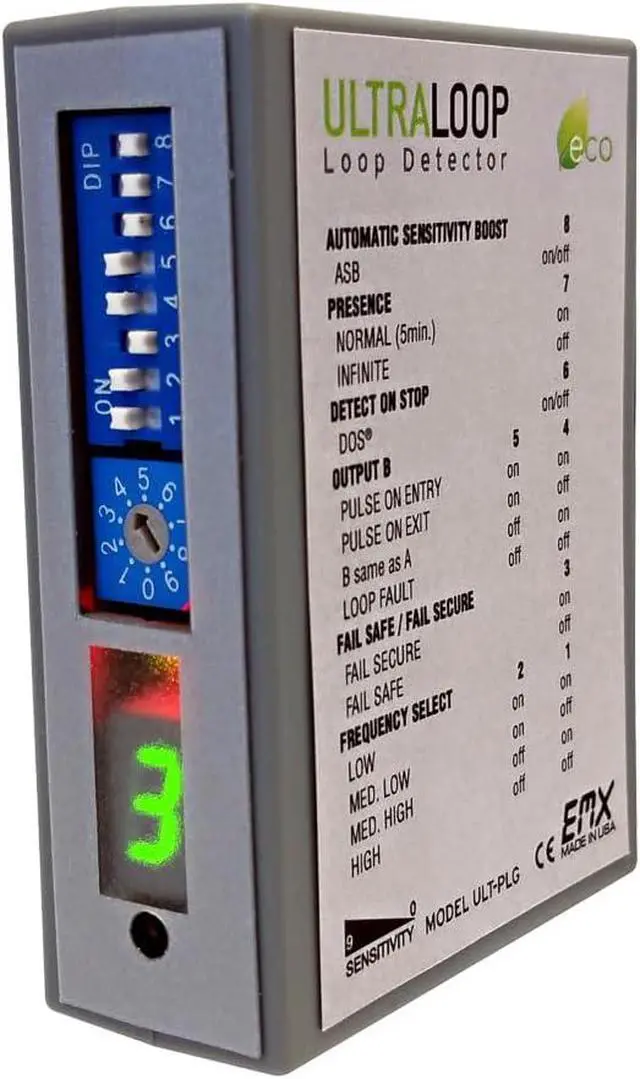

- ULTRAMETER display helps choose the right sensitivity setting, 10 sensitivity levels for fine tuning
- Dual solid-state open collector outputs, presence output plus Output B for presence loop fault or pulse entry exit
- Detect-on-Stop can trigger only after the vehicle stops on the loop, helps ignore cross traffic in tight spaces
- 12-24 VDC power, 15 mA current draw, 4 frequency settings, loop inductance 20-2000 µH, operating temp -40F to 180F
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Plug-in vehicle loop detector for inductive loops used with gate and door operator systems
ULTRAMETER display helps choose the right sensitivity setting, 10 sensitivity levels for fine tuning
Dual solid-state open collector outputs, presence output plus Output B for presence loop fault or pulse entry exit
Detect-on-Stop can trigger only after the vehicle stops on the loop, helps ignore cross traffic in tight spaces
12-24 VDC power, 15 mA current draw, 4 frequency settings, loop inductance 20-2000 µH, operating temp -40F to 180F
ULTRAMETER display helps choose the right sensitivity setting, 10 sensitivity levels for fine tuning
Dual solid-state open collector outputs, presence output plus Output B for presence loop fault or pulse entry exit
Detect-on-Stop can trigger only after the vehicle stops on the loop, helps ignore cross traffic in tight spaces
12-24 VDC power, 15 mA current draw, 4 frequency settings, loop inductance 20-2000 µH, operating temp -40F to 180F
