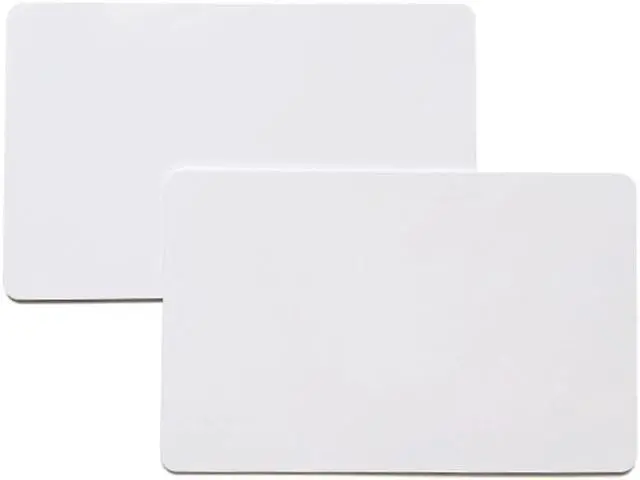

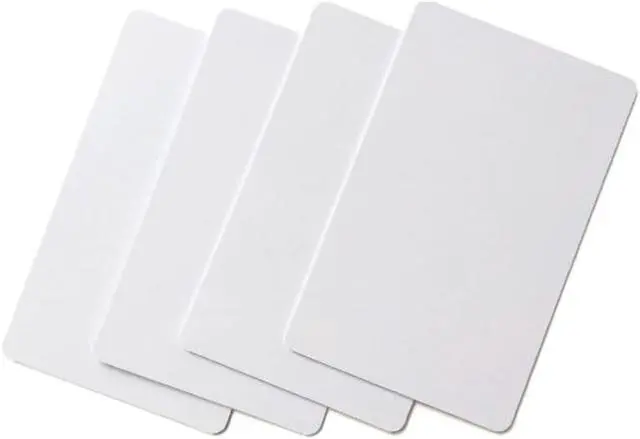

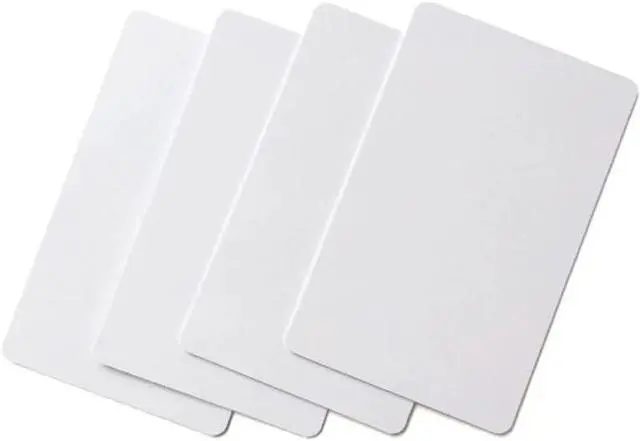

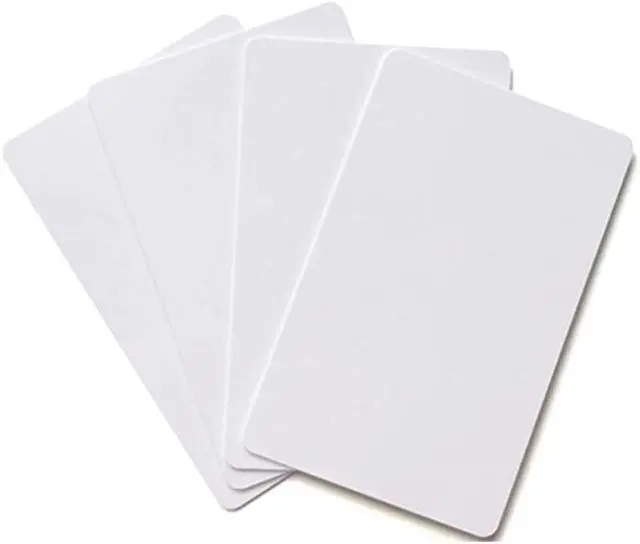

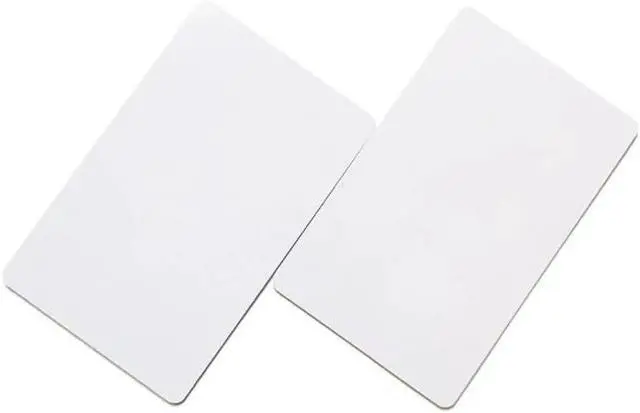

Classic 4K 13.56Mhz ISO14443A Blank PVC White RFID Smart Card 1000pcs
- Classic 4K Card *Contactless transmission of data and supply energy (no battery needed) *Operating distance: Up to 100mm (depending on antenna geometry) *Operating frequency: 13.56MHz *Data transfer: 106 kbit/s *Data integrity: 16 Bit CRC,parity,bit coding bit counting *Anticollision *Typical tickting transaction: <100 ms ( including backup management)
- EEPROM *4 Kbyte, organized in 32 sectors with 4 blocks and 8 sectors with 16 blocks ( one block consists of 16 byte) *User definable access conditions for each memory block *Data retention of 10 years. *Write endurance 100 000 cycles
- Security *Mutual three pass authentication( ISO/IEC DIS 9798-2) *Data encryption on RF-channel with replay attack protection *Individual key set per sector (per application) to support multi-application with key hierarchy *Unique serial number for each device *Transport key protects access to EEPROM on chip delivery
- Key features Dimensions: 86 x 54mm Thickness: 0.9mm Material: PVC Surface: lamination
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Classic 4K Card *Contactless transmission of data and supply energy (no battery needed) *Operating distance: Up to 100mm (depending on antenna geometry) *Operating frequency: 13.56MHz *Data transfer: 106 kbit/s *Data integrity: 16 Bit CRC,parity,bit coding bit counting *Anticollision *Typical tickting transaction: <100 ms ( including backup management)
EEPROM *4 Kbyte, organized in 32 sectors with 4 blocks and 8 sectors with 16 blocks ( one block consists of 16 byte) *User definable access conditions for each memory block *Data retention of 10 years. *Write endurance 100 000 cycles
Security *Mutual three pass authentication( ISO/IEC DIS 9798-2) *Data encryption on RF-channel with replay attack protection *Individual key set per sector (per application) to support multi-application with key hierarchy *Unique serial number for each device *Transport key protects access to EEPROM on chip delivery
Key features Dimensions: 86 x 54mm Thickness: 0.9mm Material: PVC Surface: lamination (gloss/matt/frosted) Data storage time: minimum 10 years Operating temperature: -20 to +60°C Stockage temperature: -20 to +65°C
Key applications *Public transportation *Access control *Event ticketing *Gaming & identity
EEPROM *4 Kbyte, organized in 32 sectors with 4 blocks and 8 sectors with 16 blocks ( one block consists of 16 byte) *User definable access conditions for each memory block *Data retention of 10 years. *Write endurance 100 000 cycles
Security *Mutual three pass authentication( ISO/IEC DIS 9798-2) *Data encryption on RF-channel with replay attack protection *Individual key set per sector (per application) to support multi-application with key hierarchy *Unique serial number for each device *Transport key protects access to EEPROM on chip delivery
Key features Dimensions: 86 x 54mm Thickness: 0.9mm Material: PVC Surface: lamination (gloss/matt/frosted) Data storage time: minimum 10 years Operating temperature: -20 to +60°C Stockage temperature: -20 to +65°C
Key applications *Public transportation *Access control *Event ticketing *Gaming & identity
