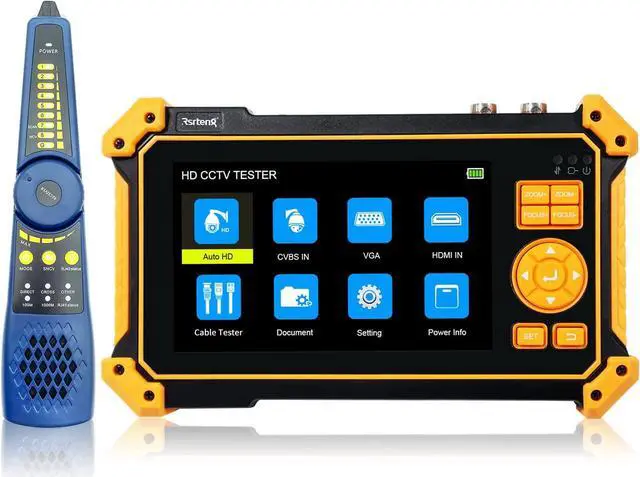

Rsrteng HD-3200C CCTV Tester HD Coaxial 4K 8MP TVI/CVI/AHD/SDI/CVBS Camera Tester with Cable Tracer 5 inch TFT-LCD Screen Monitor 5 in1Support Support RS485 Audio HD VGA DC12V Output PTZ Control

5-in-1 Multifunction CCTV coaxial camera test.Support Analog CVBS camera test, NTSC/PAL (Auto adapt); 8MP TVI test, 3840 x 2160P 12.5/15 FPS; 8MP AHD test, 3840 x 2160P 15 FPS; 8MP CVI test, 3840 x 2160P 12.5/15FPS; 8MP EX-SDI test, 3840 x 2160P 25/30FPS, coaxial PTZ & call OSD menu;NOTE:THIS TESTER DOESNT SUPPORT IP NETWORK CAMERA TESTER

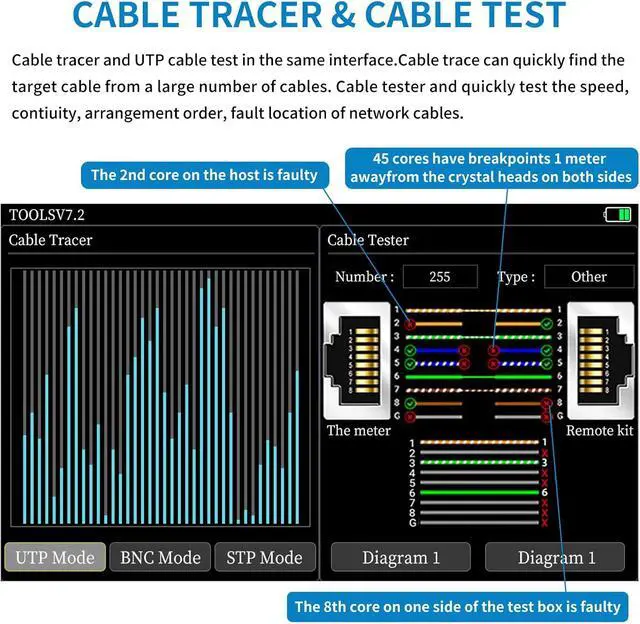

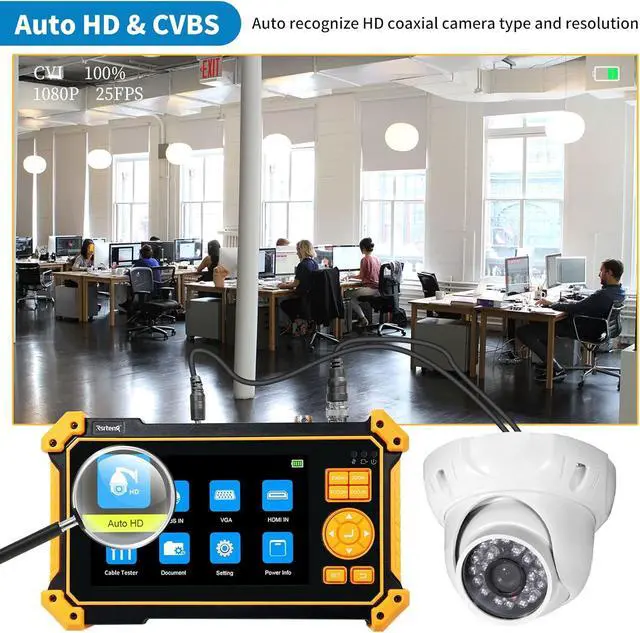

Auto HD app, auto recognize HD coax camera type and resolution, support video record & playback Coaxial PTZ (UTC control) & call OSD menu Support RS485.With Cable tracer, can quickly find out the target cable(BNC cable, network cable and telephone cable) from the mess cables. Support AC Voltage Detector.

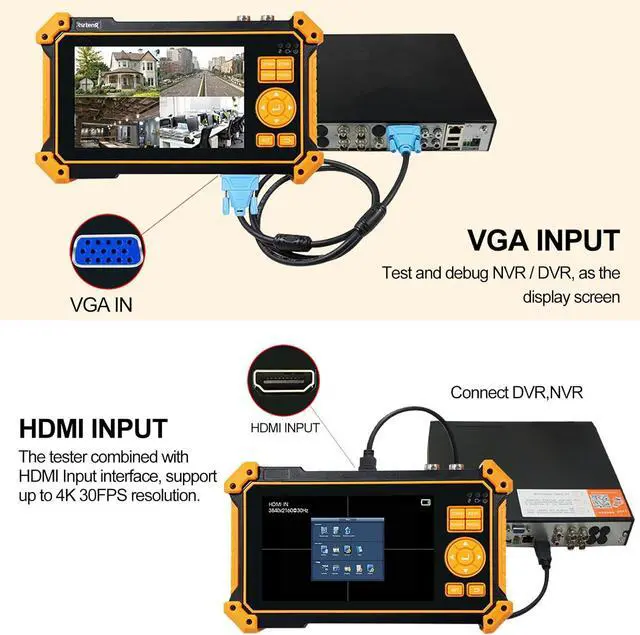

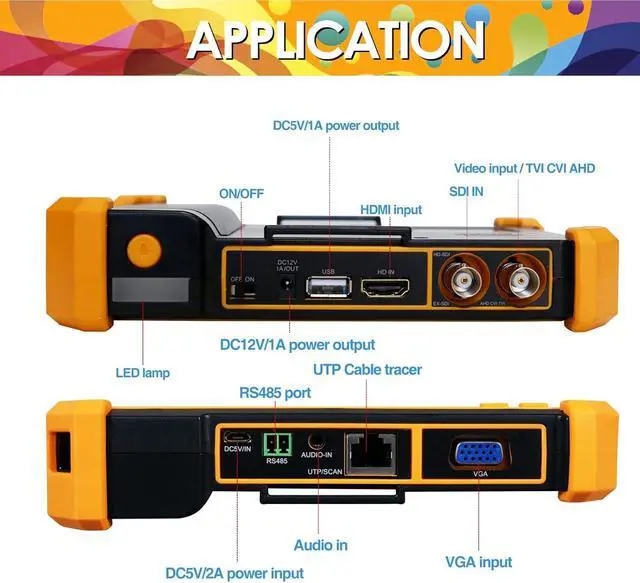

5 inch TFT-LCD screen, 800*480 resolution; Audio in, support record and save the audio LED lamp VGA input, up to 1920 x 1200 60fps HD Input, up to 4K 30fps, support snapshot, video record & playback DC12V/1A power output, supply temporarily power for the camera 5V 1A power output, support reading USB disk.

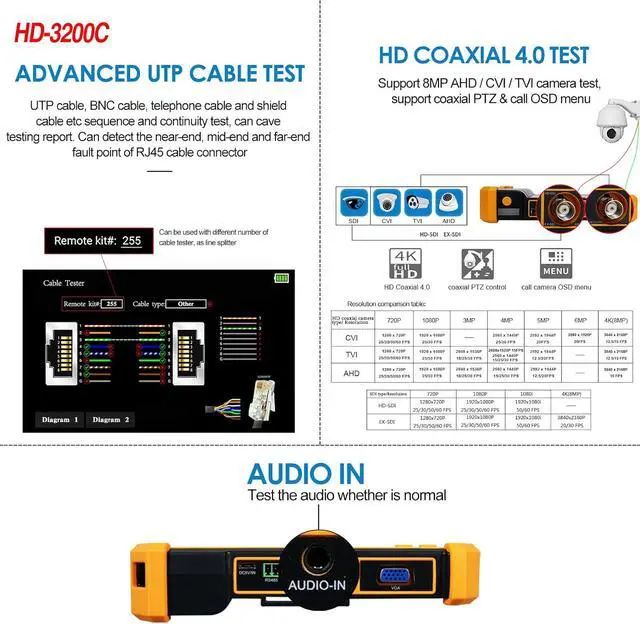

Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug Media player, 4K video files and MKV/MP4 media files play 1 channel audio signal input, test whether sound normal.
3.7 V /5200mAh rechargeable battery, after 4 hours charging, working time lasts 6.5 hours; DC5V/2A power input; Working Temperature: -10~50C, Humidity 30%-90%.Dimension/Weight: 184x110x41mm(7.24x4.33x1.61inch)/0.4kg(0.88lbs)
