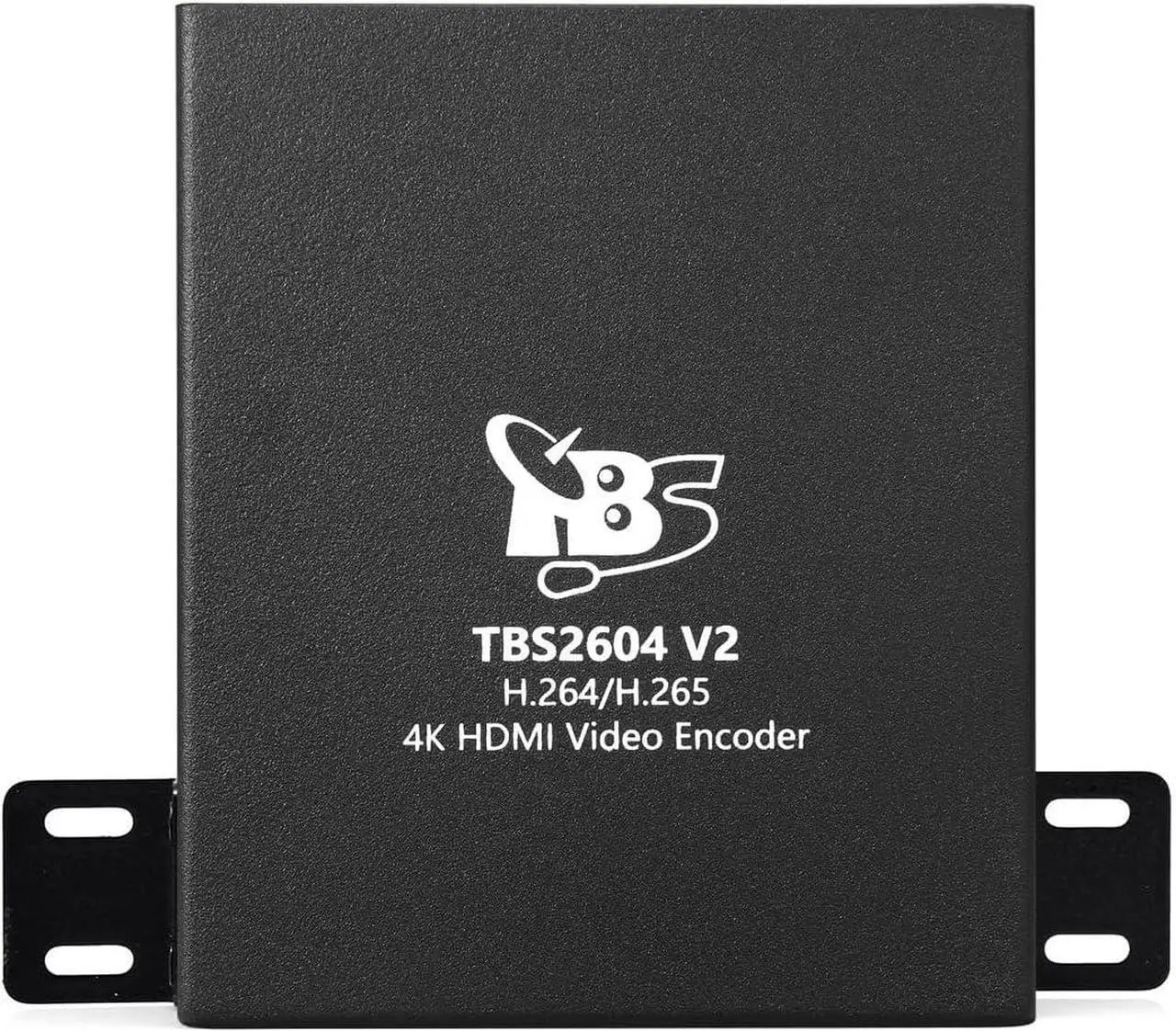

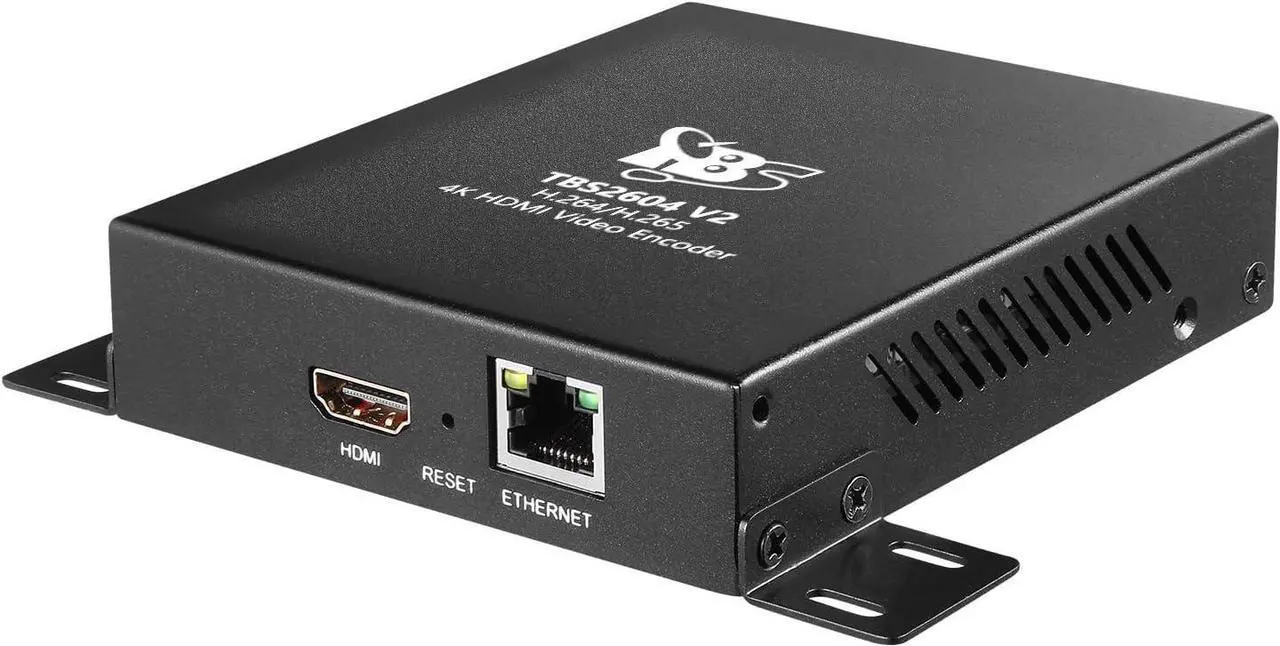

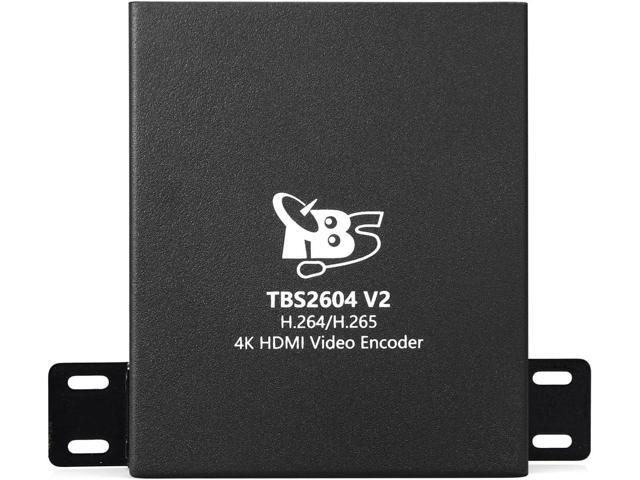

Gadpiparty HD 4K HDMI Encoder, TBS2604v2 UHD H.264/H.265 Video Encoder Support HTTP HLS(m3u8) RTSP UDP RTMP RTMPS SRT Protocol for IPTV with Web UI Control
- 4K ENCODER: It is a 4K UHD H.265 & H.264 HDMI Video Encoder, capable of up to max 3840 x 2160P@30fps
- H.264 H.265 ENCODING: Supports H.264 H.265 encoding, which is ideal choice for customers who need lower bit rate video transfer over LAN or WAN networks often due to internal network limitations, whilst maintaining high quality video
- PROTOCAL: Compliant with HTTP, HLS(m3u8), RTSP, UDP Unicast & Multicast, RTMP/RTMPS, SRT protocols
- DOULD CODE STREAM: It supports to encode with dual streams and streaming via IP, the main stream and the sub-stream can be encoded into different resolutions, bit rates, and then adapted to different terminals.
- REMOTE ACCESS: With Web UI managing system and Telnet remote access, which provide users flexible choices to control the encoder at anytime and anywhere Features
+
+
Overview
Specs
Reviews
Key Features:
3840x2160p@30hz In and 3840x2160p@30fps encode maximum
H.264/H.265 Encode
AAC-HE, AAC-LC, G.711 audio encoding
Bitrate of output video stream is adjustable from 500kbps to 20Mbps
Support HTTP, HLS(m3u8), RTSP, UDP Unicast & Multicast, RTMP/RTMPS, SRT
Support inserting Logo, Text (OSD overlay)
PCR adjustment
Support HDCP 1.4
Flexible and friendly webpage control
Stable and effective, support 7 x 24h working time
Specification:
Input: 1x HDMI 1.4a HDCP 1.4 supported
Video Input: 3840x2160p_30hz, 1920x1080p_60/50/30/25/24hz, 1920x1080i_60/50hz, 1280x720p_60/50hz, 720x576p, 720x480p, etc.
Encode Size: 3840x2160, 2560x1600, 2560x1440, 2048x1152, 1920x1080, 1680x1056, 1280x720, 1024x576, 720x576, 720x480, 704x576, 640x480, 640x360, auto
Video output: 3840x2160p@30fps, 2560x1600p@30fps, 2560x1440p@30fps, 2048x1152@30fps, 1920x1080p@60/50/30/25/24fps, 1280x720p@60/50/30/25fps, 1024x576p@60/50fps, 720x576p@60/50fps, 720x480p@60/50fps, 704x576p@60/50fps, 640x480p@60/50fps and etc
Video Codec: H.264/H.265
Profile: H.264: Baseline, Main, High; H.265: Main
Level: H264 Level 4.2; H265 Level 4.1
Bitrate Control : CBR/VBR/EVBR
Frame Rate: 5~60fps
Key Interval (gop): 5~180fps
GOP Structure: IPPP
Video Bitrate: 300~20000Kbps
Color depth: 8 bits
Chroma subsampling: 4:2:0
De-interlace: Supported. Force to do de-interlace when i (interlace) input
Audio Input: HDMI embedded
Audio Codec: AAC-LC, AAC-HE
Audio Bitrate: 24000/32000/44100/48000/64000/96000/128000/160000/ 192000/256000bps
Audio Resample: 48k, 44.1k, 32k
Audio Bitrate: 24000/32000/44100/48000/64000/96000/128000/256000bps
Control: web GUI
Protocols: http, hls m3u8, rtsp, srt caller & listener, udp unicast & multicast, rtmp/rtmps
Recommended Browser: Windows or Linux OS Google Chrome, Firefox, Microsoft Edge and etc.
Power Consumption: less than 5 Watt
Net Weight: 320g
Gross Weight: 760g
Operating temperature: 0 to 40
Storage temperature: 20 to 70
Relative Humidity: 5% to 90% (non-condensing)
3840x2160p@30hz In and 3840x2160p@30fps encode maximum
H.264/H.265 Encode
AAC-HE, AAC-LC, G.711 audio encoding
Bitrate of output video stream is adjustable from 500kbps to 20Mbps
Support HTTP, HLS(m3u8), RTSP, UDP Unicast & Multicast, RTMP/RTMPS, SRT
Support inserting Logo, Text (OSD overlay)
PCR adjustment
Support HDCP 1.4
Flexible and friendly webpage control
Stable and effective, support 7 x 24h working time
Specification:
Input: 1x HDMI 1.4a HDCP 1.4 supported
Video Input: 3840x2160p_30hz, 1920x1080p_60/50/30/25/24hz, 1920x1080i_60/50hz, 1280x720p_60/50hz, 720x576p, 720x480p, etc.
Encode Size: 3840x2160, 2560x1600, 2560x1440, 2048x1152, 1920x1080, 1680x1056, 1280x720, 1024x576, 720x576, 720x480, 704x576, 640x480, 640x360, auto
Video output: 3840x2160p@30fps, 2560x1600p@30fps, 2560x1440p@30fps, 2048x1152@30fps, 1920x1080p@60/50/30/25/24fps, 1280x720p@60/50/30/25fps, 1024x576p@60/50fps, 720x576p@60/50fps, 720x480p@60/50fps, 704x576p@60/50fps, 640x480p@60/50fps and etc
Video Codec: H.264/H.265
Profile: H.264: Baseline, Main, High; H.265: Main
Level: H264 Level 4.2; H265 Level 4.1
Bitrate Control : CBR/VBR/EVBR
Frame Rate: 5~60fps
Key Interval (gop): 5~180fps
GOP Structure: IPPP
Video Bitrate: 300~20000Kbps
Color depth: 8 bits
Chroma subsampling: 4:2:0
De-interlace: Supported. Force to do de-interlace when i (interlace) input
Audio Input: HDMI embedded
Audio Codec: AAC-LC, AAC-HE
Audio Bitrate: 24000/32000/44100/48000/64000/96000/128000/160000/ 192000/256000bps
Audio Resample: 48k, 44.1k, 32k
Audio Bitrate: 24000/32000/44100/48000/64000/96000/128000/256000bps
Control: web GUI
Protocols: http, hls m3u8, rtsp, srt caller & listener, udp unicast & multicast, rtmp/rtmps
Recommended Browser: Windows or Linux OS Google Chrome, Firefox, Microsoft Edge and etc.
Power Consumption: less than 5 Watt
Net Weight: 320g
Gross Weight: 760g
Operating temperature: 0 to 40
Storage temperature: 20 to 70
Relative Humidity: 5% to 90% (non-condensing)
