DVR Specification:
Operating System: Embedded LINUX
System Resources: Pentaplex function: live, recording, playback, backup & remote access
Display: 1/4/8/9/16
Encode capacity: 16x 720P@30fps
Decode capacity: 4x 720P@30fps
Recording Mode: Manual>Alarm>Video Detection>Continuous
Search Mode: Time/Date ,Alarm, Motion Detection & exact search
Video Outputs: 1CH HDMI +1CH VGA + 1CH CVBS

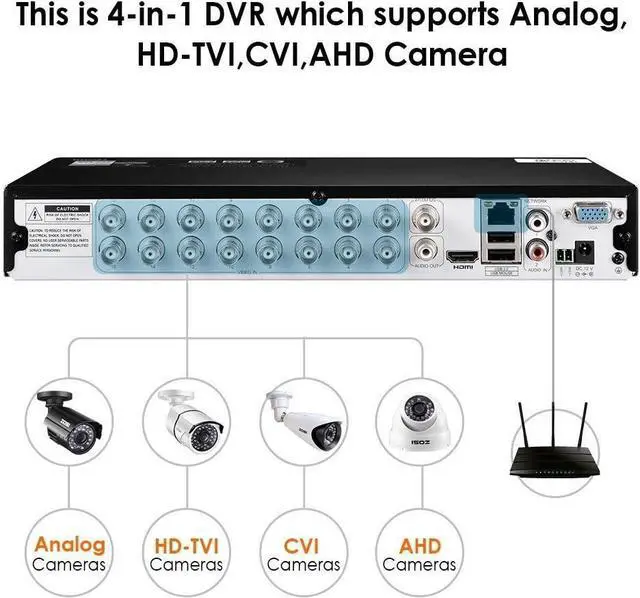

Video Inputs: 16CH
Audio Inputs/Outputs: 2CH/1CH
Alarm Inputs/Outputs: 2CH/1CH
Net Interface: RJ-45
PTZ Control: Support
Hard Disk: 1 SATA ports(Max 6TB)

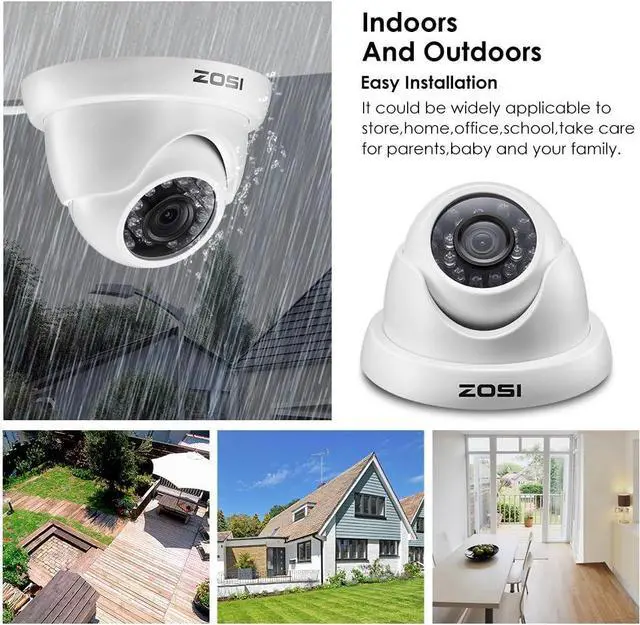

Camera Feature
TVI 1080P Resolution
High-Performance Night Vision
HAD IR-CUT, Clearer/More Real
Cameras provide color video during the daytime, black and white at night
Notice: This camera only compatible with 1080P TVI DVR System
Camera Specification
Color: White
Image Sensor: 1 /3'' Color CMOS with IR-Cut
Lens: 3.6mm
IR LEDs Amount: 24pcs, 5mm LEDs
IR Wavelength: 850nm
IR Distance: up to 65ft (20m)
Waterproof Level: IP66
BLC/WB/AGC: Auto
Power Supply: DC12V/500mA
Package Contents

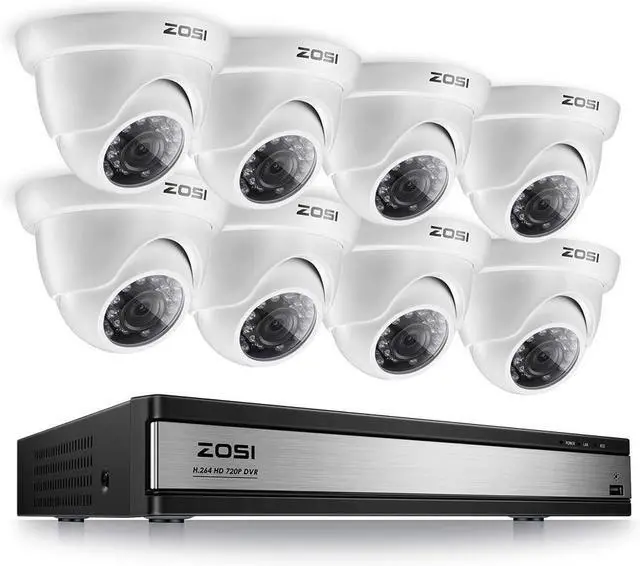

1 x 16CH 720P Digital Video Recorder
1 x 12V/2000mA Power Supply for DVR
1 x Mouse for DVR
1 x User guide for DVR
8 x 1080p Camera
8 x 60FT BNC+DC CCTV cable
2 x 12V/2000mA power supply
2 x 1 to 4 power splitter cable
8 x Mounting screw bag
1 x Instruction manual for camera
Please noted
This system did not come with hard drive. Assembling a 3.5inch SATA 500GB to 2TB hard drive is necessary
