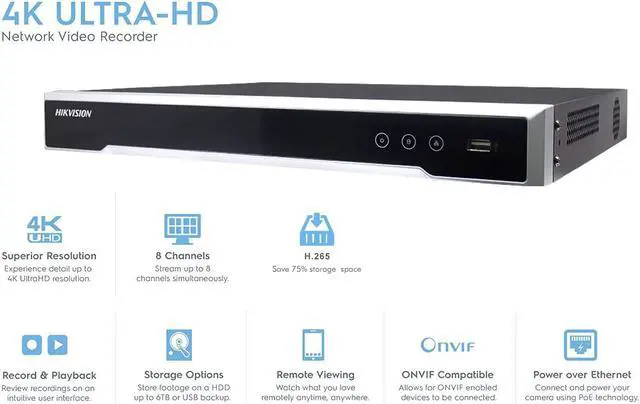

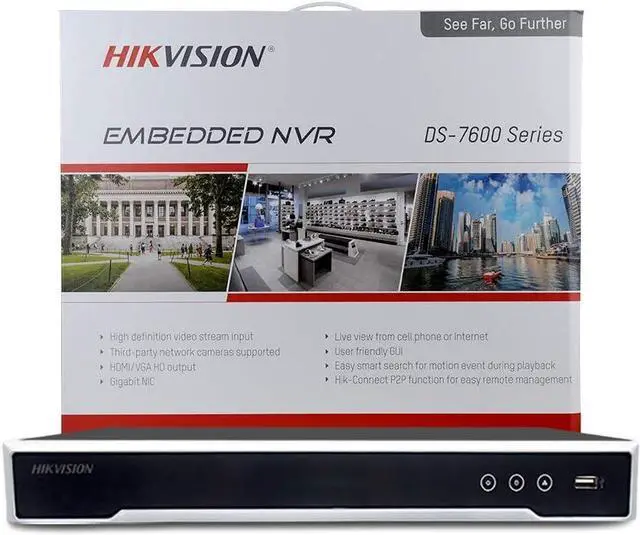

4K 8-Channel PoE Network Video Recorder NVR, Embedded Plug & Play DS-7608NI-I2/8P(2021 New Version)
- English original version ds-7608ni-i2/8p, support upgrade . BEST SERVICE: Connect us team by email, reply within 12 hours; We will provide the life-time and professional technical support.
- Embedded Plug & Play 4K 8 Channel PoE NVR with 2SATA Interfaces, Up to 6 TB capacity for each HDD (HDD Not included), Plug & Play with up to 8 independent 10 /100 Mbps PoE Ethernet interfaces
- Up to 12 Megapixels Resolution Recording and Playback, Support 1-ch HDMI, 1-ch VGA, HMDI up to 4K(3840x2160) Resolution, Support Two Way Audio and Alarm in/Out.
- New logical and visualized GUI design NVR 4.0, Support dual-os to ensure high reliablility of system running, ANR technology to enhance the storage reliability when the network is disconnected
- Support various VCA detection alarm and VCA search. real-time, highly reliable HD video without loss or delay, Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification
Video/Audio Input
Two-way audio input:1-ch, RCA (2.0 Vp-p, 1k)
IP video input:8-ch
Network
Remote connection:128
Incoming bandwidth:80Mbps
Outgoing bandwidth:256Mbps
Video/Audio Output
HDMI Output:1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution:12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output:1-ch, RCA (Linear, 1k)
Synchronous Playback:8-ch
VGA Output:1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Decoding
Capability:4-ch@8MP,8-ch@1080P
Live view / Playback:12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Hard Disk
SATA:2 SATA interfaces for 2 HDDs
Capacity:Up to 6TB capacity for each HDD

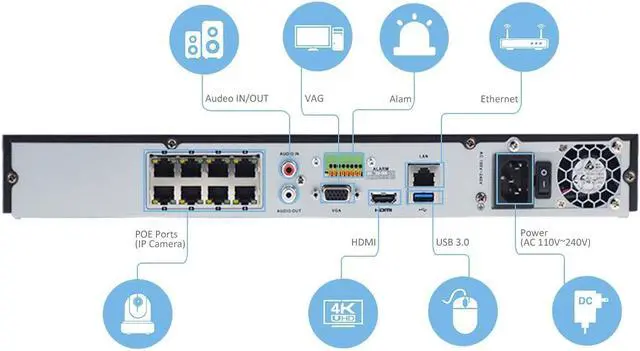

External Interface
Network Interface:1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
Serial Interface:RS-232
USB Interface:Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0
Alarm In:4-ch
Alarm Out:1-ch
POE
Supported Standard:AF and AT
Interface:8 independent 10/100 Mbps PoE Ethernet interfaces
Max. Power:200W
General
Power Supply:100 to 240 VAC, 50 to 60 Hz
Consumption(without hard disk and POE):15 W
Working Temperature:-10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity:10 % ~ 90 %
Chassis:380 chassis
Dimensions:380 × 290 ×45 mm (15.0"× 11.4" × 1.8")
Weight(without HDD): 3 Kg (6.6 lb)
Video/Audio Input
Two-way audio input:1-ch, RCA (2.0 Vp-p, 1k)
IP video input:8-ch
Network
Remote connection:128
Incoming bandwidth:80Mbps
Outgoing bandwidth:256Mbps
Video/Audio Output
HDMI Output:1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution:12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output:1-ch, RCA (Linear, 1k)
Synchronous Playback:8-ch
VGA Output:1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Decoding
Capability:4-ch@8MP,8-ch@1080P
Live view / Playback:12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Hard Disk
SATA:2 SATA interfaces for 2 HDDs
Capacity:Up to 6TB capacity for each HDD
External Interface
Network Interface:1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
Serial Interface:RS-232
USB Interface:Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0
Alarm In:4-ch
Alarm Out:1-ch
POE
Supported Standard:AF and AT
Interface:8 independent 10/100 Mbps PoE Ethernet interfaces
Max. Power:200W
General
Power Supply:100 to 240 VAC, 50 to 60 Hz
Consumption(without hard disk and POE):15 W
Working Temperature:-10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity:10 % ~ 90 %
Chassis:380 chassis
Dimensions:380 × 290 ×45 mm (15.0"× 11.4" × 1.8")
Weight(without HDD): 3 Kg (6.6 lb)
