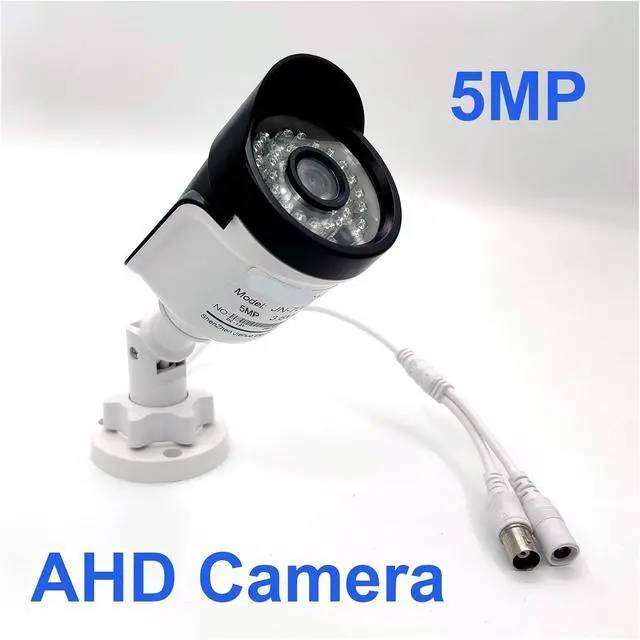

1080P & 5MP AHD Bullet CCTV Security Camera, HD Infrared Night Vision Waterproof Outdoor Surveillance Camera for Home(2.8mm,5MP_NTSC)

Welcome to our store! Our security cameras deliver crystal clear day & night footage, reliable WiFi connection, two-way audio and smart motion detection for indoor & outdoor home protection. Waterproof design, easy installation and flexible storage options keep your house, yard and pets safe all day long. Feel free to browse our camera series, any questions about setup, function or shipping, were always here to help you!
AHD Camera Analog Surveillance Infrared Night Vision
CCTV Security Home Indoor Outdoor Bullet Full Hd Cameras
AHD Analog High Definition Surveillance Infrared Camera
Why AHD
As the industry moves from standard definition to high definition, how can we ensure the whole surveillance system not only satisfies the resolution requirement, but also the total cost?
Super Video Technology presents Analog High Definition(AHD) technology to the market. AHD is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.
HD AHD Camera
1.HD camera
2.Resolution : 1080P / 5MP Camera

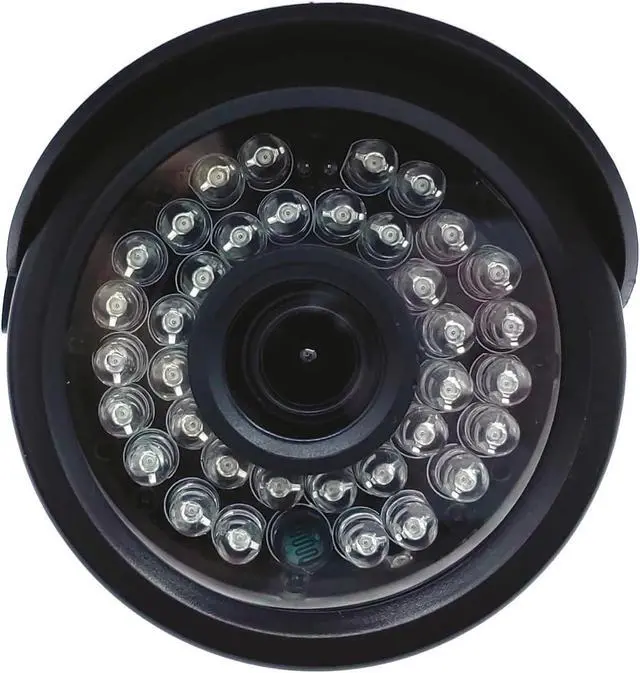

3.36PCS IR LEDS with 30M IR Distance
4. Built in IR-CUT Filter, Day & Night Vision

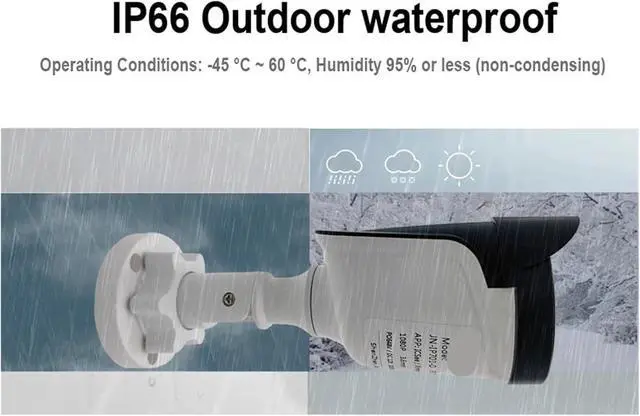

5 High Quality ABS Plastic Case Used Indoor/Outdoor, Waterproof IP66
6. Standard lens: HD 3.6mm Lens ( 6mm lens optional).
7.AHD (Analog High Definition), a new video format for enhanced CVBS (COMET*) & HD video transmission
8 HD AHD camera is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.
9. Usually use Coaxial-Cable, SYV-75-5 cable can transfer video over 500meters.
10. MUST work with AHD DVR
11. Best choice for project reconstruction.
12. You can upgrade an old analog security system to HD cameras without changing cable routes.
***P.S:
Before ordering, please confirm that you have a DVR that supports AHD. Normal DVR does not support AHD cameras.
Video capture card does not support AHD camera, does not support direct connection to TV
When ordering, please confirm the camera system you need, such as PAL or NTSC, which is very important.
Some AHD DVRs support changing the camera format, such as: XM AHD DVR, you can change it in the menu, or contact us
How to choose
1080P: digital signal, video resolution: 1920*1080, does not support TV and monitor connection, does not support analog DVR connection by default, supports entering Camera menu setting (XVI control entering menu) through AHD DVR, (note) supports connecting to AHD DVR list ( 1080N/1080P/4MP/5M-N/5MP/4K)
5MP: digital signal, video resolution: 2560*1920, does not support TV connection by default, does not support analog DVR connection by default, supports entering Camera menu settings through AHD DVR (XVI control to enter menu), (note) supports connecting to AHD DVR list ( 5M-N/5MP/4K )
****Do not support direct connection to electronic video
==========
Whether or Not 50Vac or 75Vdc or Higher Power Supply : No
Zoom type : None
Zoom : NONE
Lens Quantity : Single Lens
Color Night Vision : no
Operating Temperature : -10°-60°
IP Rating : IP66
Rechargeable Battery : NONE
Scene : Indoor and outdoor
Megapixels : 5 MP
Power Supply : Normal
Internal Storage : None
Installation : Normal,Wall Mounted,Stick,Pendant Mount,Vertical Pole Mount
is_customized : Yes
Audio Output : None
Minimum Illumination(Lux) : 1/2.7
Viewing Angle : 85°
Video Compression Format : H.264
IR Distance(m) : 25m
Camera Stabilization : NONE
Power Supply(V) : DC 12V 2A
Power Consumption(W) : 5W
Sensor : CMOS
Supported Operating Systems : No
Lens (mm) : 3.6mm,6mm,8mm,2.8mm
Connectivity : Closed System/CCTV Wired
High Definition : 1080P(Full-HD)
Style : Bullet Camera
JIENUO Model : JN-706D-AHD
Special Features : Waterproof / We
