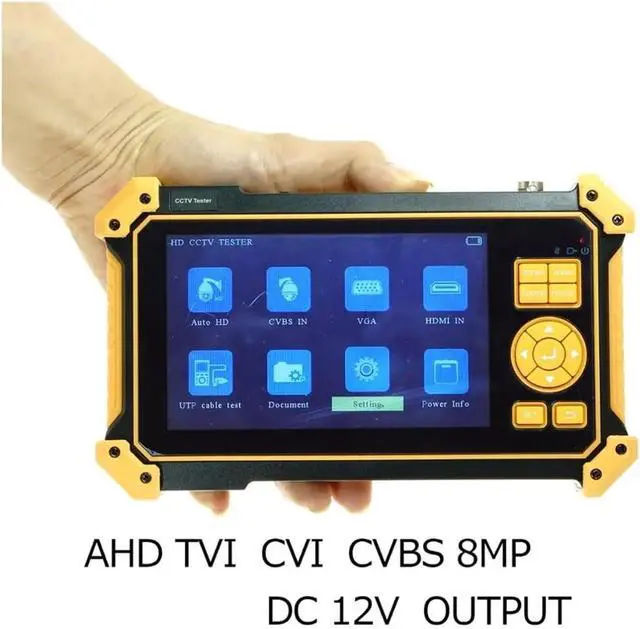

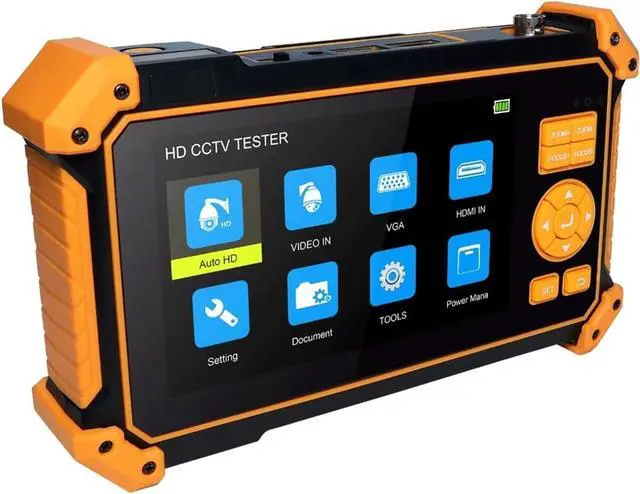

CCTV Tester, HD-3100 AHD/TVI/CVI CVBS CCTV Tester Monitor 5 Inch 1080P AHD Camera Professional Tool DC12V Output(HD3200)

Application:
CCTV system installation and maintenance
Network cabling project installation and maintenance
TVI CVI AHD SDI camera testing

PTZ controller
HD-3100 support : 8MP TVI CVI AHD test , input , VGA inpput .
HD-3200 Support : 8MP TVI CVI AHD test , input , VGA inpput , 8MP SDI .
N means the Digital cable tracer .
HD3100N means HD3100 Add cable tracer
HD3200N means HD3200 Add cable tracer

Comparison Table:
Feature/Model
HD-3100
HD-3200
8MP TVI camera test
8MP CVI camera test
8MP AHD camera test
8MP EX-SDI camera test *
NO
yes
4K 30FPS input

Analog camera test, PAL/NTSC auto adapt
Auto HD, auto recognize HD coax camera type and resolution
DC12V 1A power output
DC 5V 1A power output, support reading USB disk
UTP cable test, detect the near-end, mid-end and far-end fault point of the RJ45 cable
Camera test:
5 inch TFT-LCD screen, 800*480 resolution
8MP TVI test, 3840 x 2160P 12.5/15 FPS, coaxial PTZ control & call OSD menu
8MP AHD test 3840x2160P 15 FPS coaxial PTZ call OSD menu
8MP CVI test 3840 x 2160P 12515FPS, coaxial PTZ & call OSD menu
8MP EXSDI test 3840 x 2160P 2530FPS coaxial PTZ & call OSD menu
HDSDI test 1920 x 1080P 253050/60 FPS, coaxial PTZ & call OSD menu
3GSDI test 1920 x 1080P 5060 FPS coaxial PTZ & call OSD menu
Auto HD app auto recognize HD coax camera type and resolution support coaxial PTZ call OSD menu
