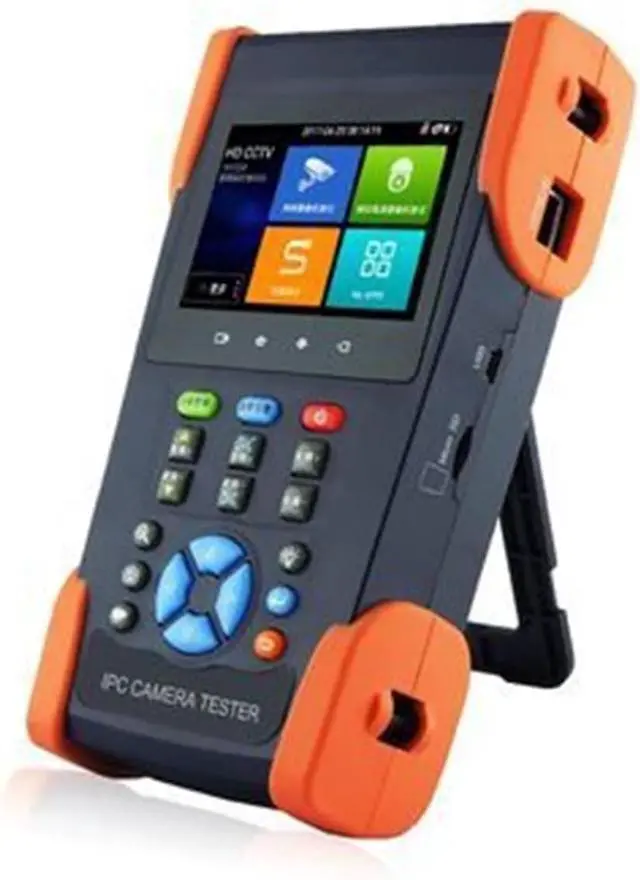

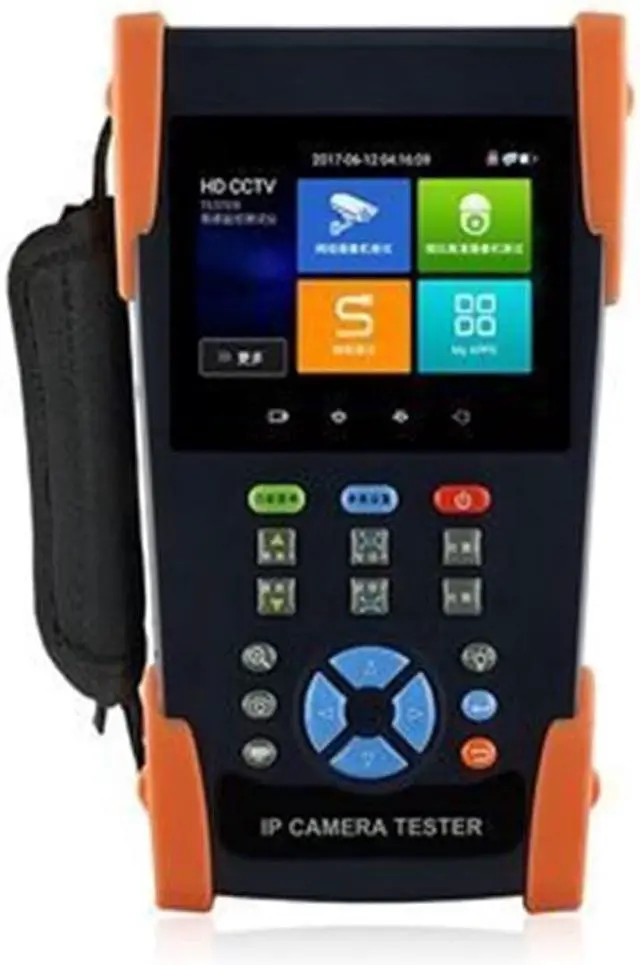

CCTV Tester, 3.5 Inch Touch Screen 2 in 1 CCTV Tester Support Upt to 4K IP Camera & CVBS Analog, with Keyboard/IP Discovery/WiFi/APP
- Display: 3.5 inches, high-definition capacitive touch screen, resolution 480x320
- You can install the software by yourself, and you can do both work and leisure. Brand new system, you can install software by yourself, such as surveillance camera protocol, client private protocol client, etc.
- Network cable TDR test: test network cable pair status, length, attenuation, quality, reflectivity, impedance, delay deviation and other parameters
- POE power supply output power test: detect POE switch output voltage, power supply line and power; also detect POE camera power (PS: 12V power supply input and output voltage, power test).
- Any two wires are connected: innovative 2-core to 8-core circuit test, any two wires are connected, and the line sequence arrangement, on-off condition can be tested and displayed. Schematic diagram of built-in network cable sorting, straight-through cable, crossover cable line sequence is displayed intuitively. A reference tool for making network cables
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
IP Camera Test HD Display Video Monitor,4KH.265 Network Analog Video Surveillance Tester,-with IP Discovery/PoE/WiFi/HDMI Output
Application: Network Analog Video Surveillance Tester

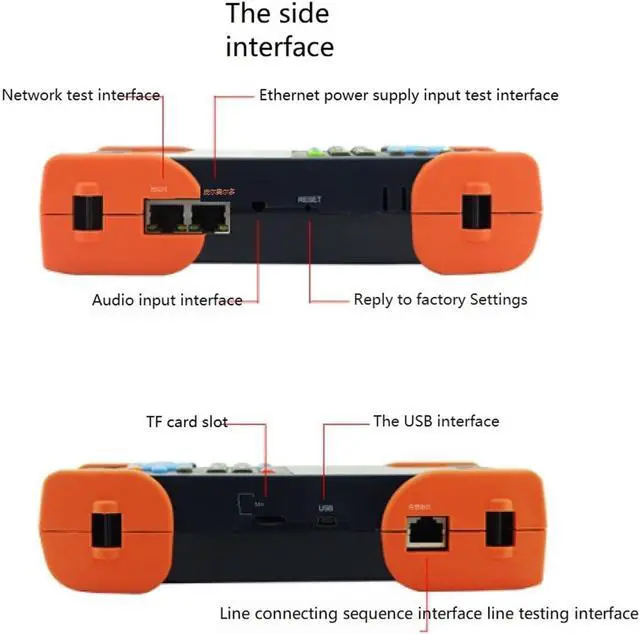

Network port:
10/100/1000M auto-adaptive, RJ45
:
Built-in wireless , rate 150M, receive wireless network camera images, etc.
H.265 main stream test:
Hardware decoding, support H.265 master code test camera image, support resolution 4K
One screen dual display:
Simultaneous testing of network and analog cameras
CVBS video signal test:
1 channel Video IN BNC input, 1 channel Video OUT BNC output, support PAL/NTSC format
CVBS video signal level measurement:
Measure peak-to-peak, sync level, burst level of video signals
Zoom in on the video image:
Support analog video image enlargement, IP network camera image enlargement and movement
External power supply: DC 5V (2A)
Battery power supply: built-in 7.4V polymer lithium battery, capacity 2800mAh
Charging: charging for 3-4 hours, one charge can be used normally for about 8 hours
Operation Settings: Capacitive Touch Screen
Auto Standby: Off/5-30 minutes
Working temperature: 10°C---+50°C
Working humidity: 30%-90%

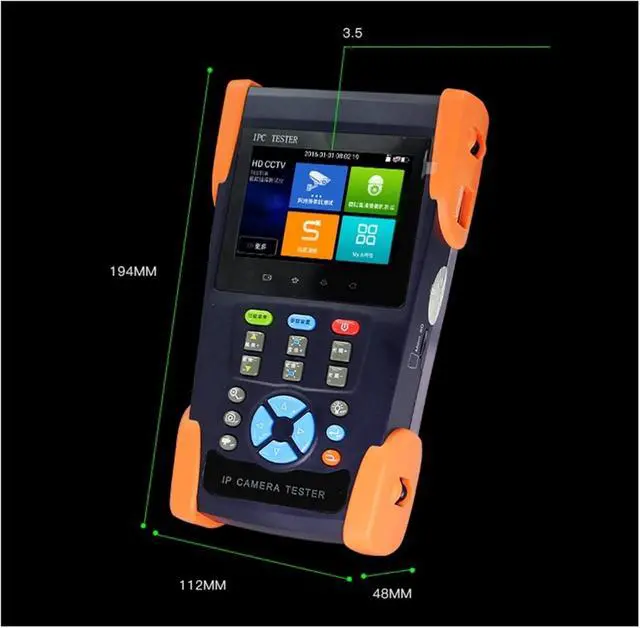

Dimensions: 194mm x 112mm x 48mm /540g
Application: Network Analog Video Surveillance Tester
Network port:
10/100/1000M auto-adaptive, RJ45
:
Built-in wireless , rate 150M, receive wireless network camera images, etc.
H.265 main stream test:
Hardware decoding, support H.265 master code test camera image, support resolution 4K
One screen dual display:
Simultaneous testing of network and analog cameras
CVBS video signal test:
1 channel Video IN BNC input, 1 channel Video OUT BNC output, support PAL/NTSC format
CVBS video signal level measurement:
Measure peak-to-peak, sync level, burst level of video signals
Zoom in on the video image:
Support analog video image enlargement, IP network camera image enlargement and movement
External power supply: DC 5V (2A)
Battery power supply: built-in 7.4V polymer lithium battery, capacity 2800mAh
Charging: charging for 3-4 hours, one charge can be used normally for about 8 hours
Operation Settings: Capacitive Touch Screen
Auto Standby: Off/5-30 minutes
Working temperature: 10°C---+50°C
Working humidity: 30%-90%
Dimensions: 194mm x 112mm x 48mm /540g
