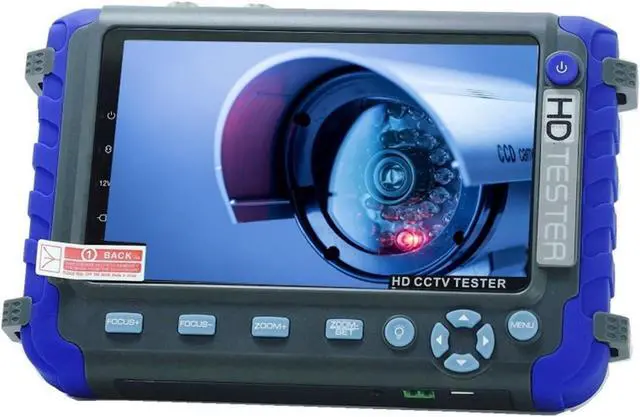

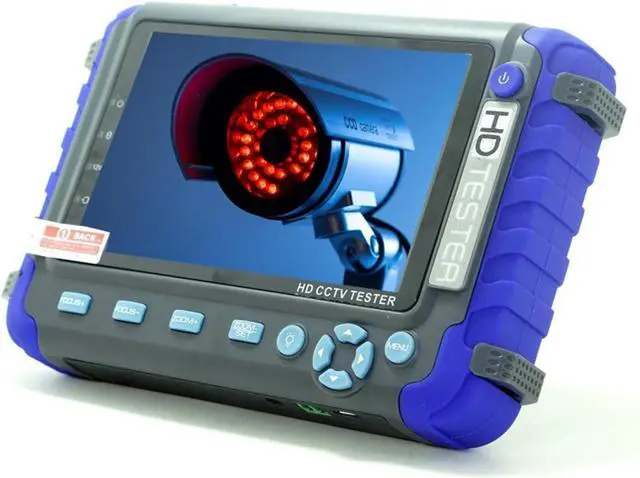

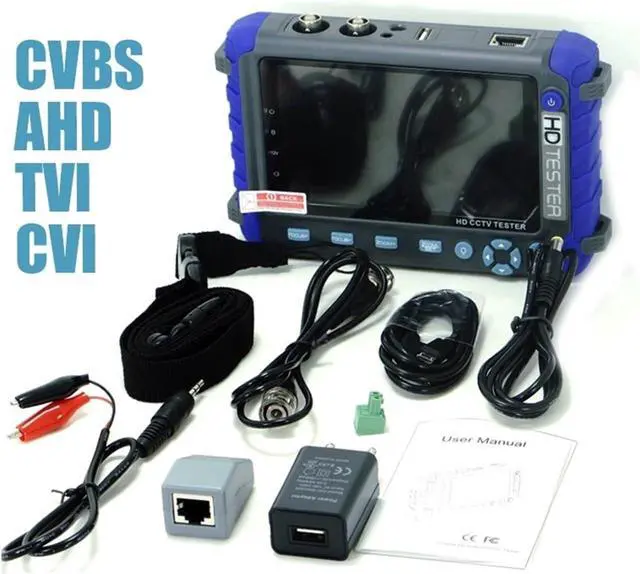

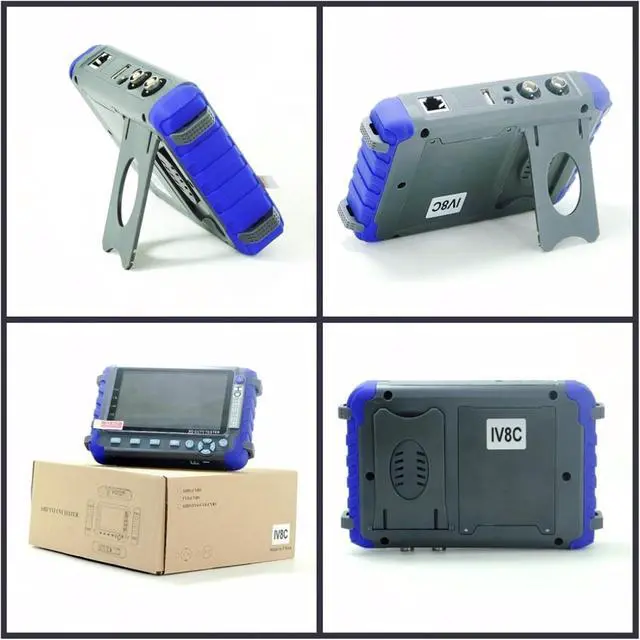

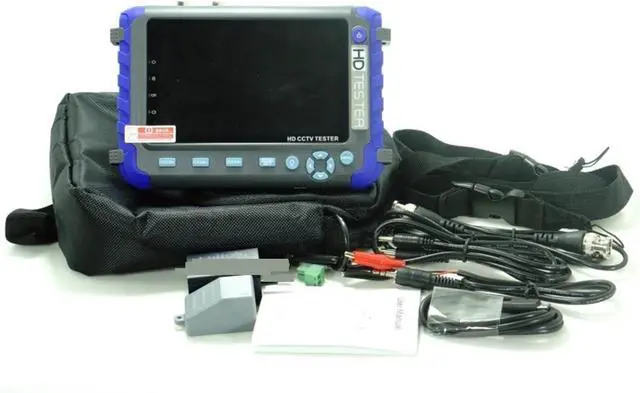

CCTV Tester, IV8C CCTV Camera Monitor Professional Testing Tool 5 Inch Display 8MP AHD TVI CVI CVBS Tester PTZ
- * Build in High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display,
- * Support PAL/NTSC standard video signal. CVBS testing.
- * PTZ controller Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, aperture size.
- * Image generator Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section
- * DC12V 1A output power Power the camera with DC12V (1A) power from the tester.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product overview:

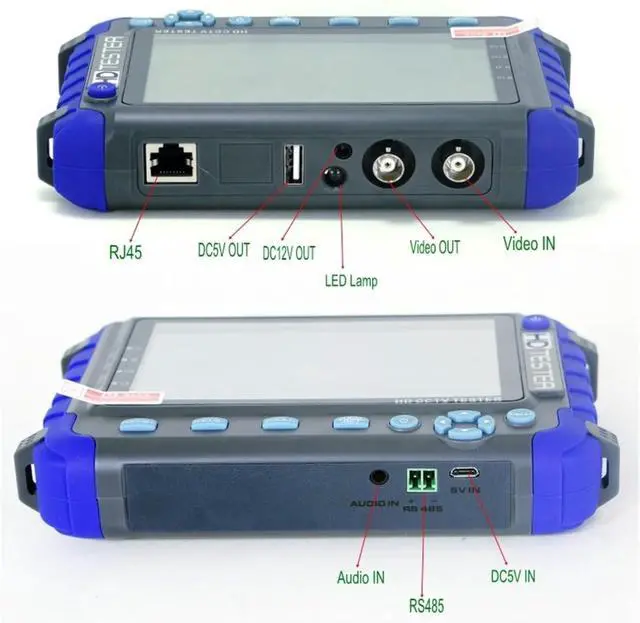

The HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, like TVI,CVI, AHD,Analog, CVBS. It also provides many useful functions, such as video display, PTZ control, DC12V output power, test, image generator, RS485 data searching, cable testing, LED lamp etc.
Item Descriptions:
Professional CCTV testing tool IV8C plus 5 Inch TFT LCD 8MP AHD 8MP TVI 8MP CVI CVBS CCTV Camera Tester Monitor support PTZ UTP Cable Test
Kindly pls note IV8C
not support VGA/ input
IV8C plus support CVBS + AHD (8MP) + TVI (8MP) + CVI (8MP) Camera VideoTest:
(1) AHD Signal test: 8MP 7MP 6MP 5MP 4MP 3MP 1080P 720P;
(2) TVI Signal test: 8MP 7MP 6MP 5MP 4MP 3MP 1080P 720P;
(3) CVI Signal test: 8MP 7MP 6MP 4MP 3MP 1080P 720P;
Main Features:
* testing
Test the input from pickup devices. Connect the tester and pickup device with the cable.
* Improvement cable test
UTP cable, telephone cable etc order and connectivity test, can save testing report
* TVI camera test
HD TVI video surveillance testing, support max 8MP. When TVI signal input, the tester will display HD TVI camera image.
* CVI camera test
HD CVI video surveillance testing, support max 8MP. When CVI signal input, the tester will display HD CVI camera image.
* AHD camera test
HD video surveillance testing, support max 8MP. When AHD signal input, the tester will display the AHD camera image.
* LED lamp
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
The HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, like TVI,CVI, AHD,Analog, CVBS. It also provides many useful functions, such as video display, PTZ control, DC12V output power, test, image generator, RS485 data searching, cable testing, LED lamp etc.
Item Descriptions:
Professional CCTV testing tool IV8C plus 5 Inch TFT LCD 8MP AHD 8MP TVI 8MP CVI CVBS CCTV Camera Tester Monitor support PTZ UTP Cable Test
Kindly pls note IV8C
not support VGA/ input
IV8C plus support CVBS + AHD (8MP) + TVI (8MP) + CVI (8MP) Camera VideoTest:
(1) AHD Signal test: 8MP 7MP 6MP 5MP 4MP 3MP 1080P 720P;
(2) TVI Signal test: 8MP 7MP 6MP 5MP 4MP 3MP 1080P 720P;
(3) CVI Signal test: 8MP 7MP 6MP 4MP 3MP 1080P 720P;
Main Features:
* testing
Test the input from pickup devices. Connect the tester and pickup device with the cable.
* Improvement cable test
UTP cable, telephone cable etc order and connectivity test, can save testing report
* TVI camera test
HD TVI video surveillance testing, support max 8MP. When TVI signal input, the tester will display HD TVI camera image.
* CVI camera test
HD CVI video surveillance testing, support max 8MP. When CVI signal input, the tester will display HD CVI camera image.
* AHD camera test
HD video surveillance testing, support max 8MP. When AHD signal input, the tester will display the AHD camera image.
* LED lamp
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
