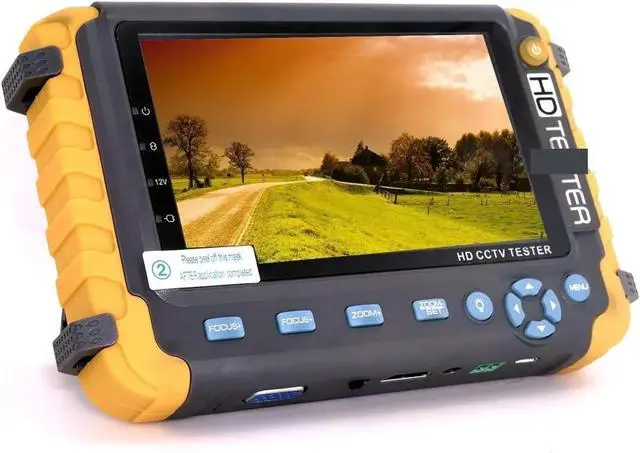

CCTV Tester, IV8W CCTV Tester Monitor for 8MP AHD TVI CVI CVBS Camera Testing RS485 PTZ Control VGA Input UTP Cable(IV8W with VGA)

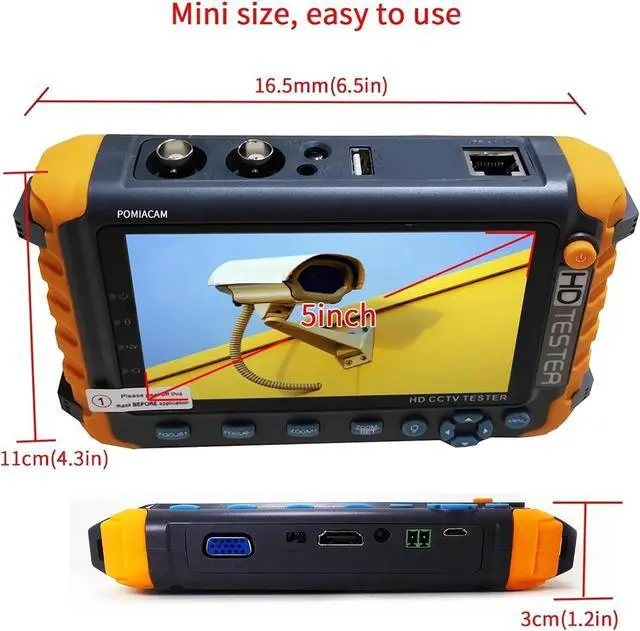

- Vedio monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality.
- Video monitor tester built-in Pelco-D / P PTZ control protocol, etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, aperture size.
- Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section
- Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available
- Test the input from pickup devices. Connect the tester and pickup device with the cable.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product overview

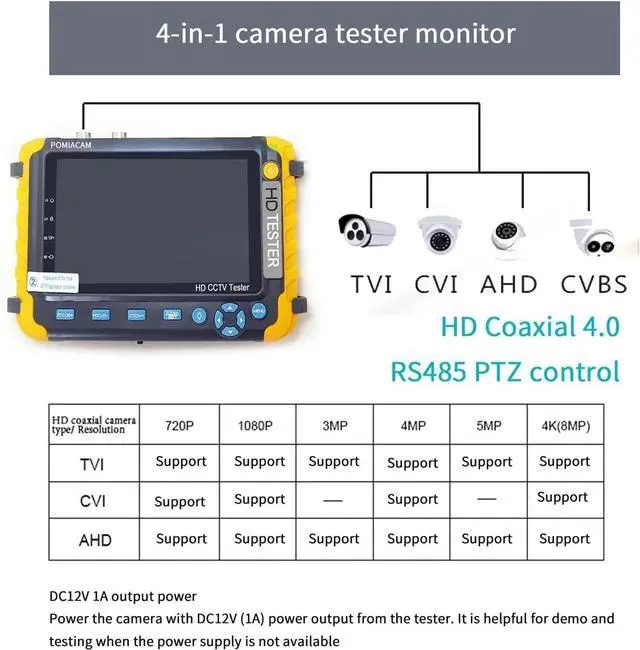

The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, having TVI, AHD,CVI. It also provides many useful functions, such as video display, PTZ control, DC12V output power, test, image generator, VGA video signal input, 1.0 signal input, RS485 data searching, cable testing, LED lamp etc.
Product Funtions
Enhanced network cable testing
By UTP CABLE TEST port on the meter, you can test the connection of network cable.
VGA/ input
Support VGA/ 1.0 video input, once connect VGA/ video, please switch selector to select or VGA mode. The maximum resolution is Max 8MP
TVI camera test
HD TVI video surveillance testing, support Max 8MP
. When TVI signal input, the tester will display HD TVI camera image.
AHD camera test
HD video surveillance testing, support AHD 2.0 version, Max 8MP
. When AHD signal input, the tester will display the AHD camera image.
CVI camera test
HD CVI video surveillance testing, support Max 8MP . When TVI signal input, the tester will display HD TVI camera image.
LED lamp
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
Cctv tester monitor, CCTV Monitor, CCTV Monitor & Display, Video Surveillance
The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, having TVI, AHD,CVI. It also provides many useful functions, such as video display, PTZ control, DC12V output power, test, image generator, VGA video signal input, 1.0 signal input, RS485 data searching, cable testing, LED lamp etc.
Product Funtions
Enhanced network cable testing
By UTP CABLE TEST port on the meter, you can test the connection of network cable.
VGA/ input
Support VGA/ 1.0 video input, once connect VGA/ video, please switch selector to select or VGA mode. The maximum resolution is Max 8MP
TVI camera test
HD TVI video surveillance testing, support Max 8MP
. When TVI signal input, the tester will display HD TVI camera image.
AHD camera test
HD video surveillance testing, support AHD 2.0 version, Max 8MP
. When AHD signal input, the tester will display the AHD camera image.
CVI camera test
HD CVI video surveillance testing, support Max 8MP . When TVI signal input, the tester will display HD TVI camera image.
LED lamp
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
Cctv tester monitor, CCTV Monitor, CCTV Monitor & Display, Video Surveillance
