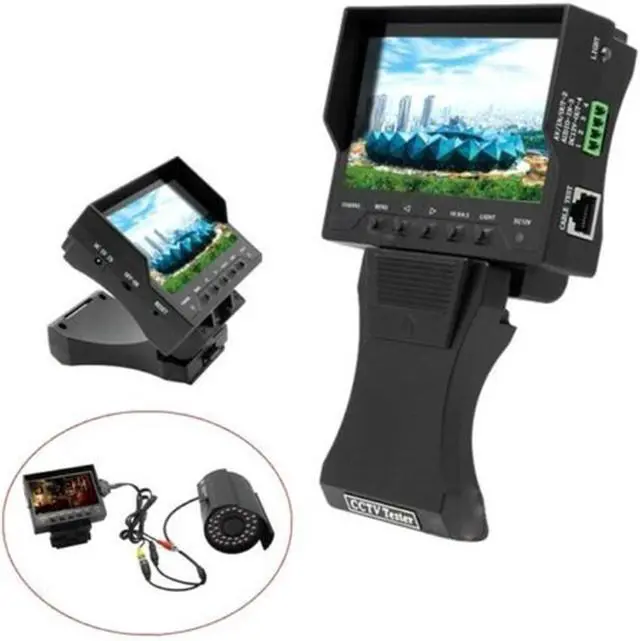

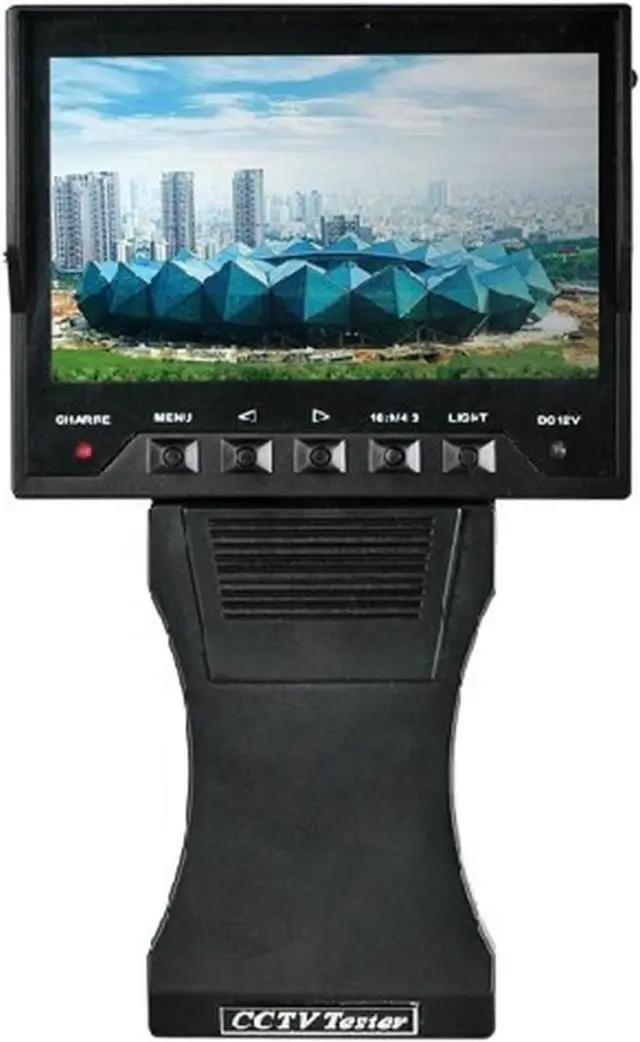

CCTV Tester, 4.3 Inch Handheld CCTV Monitor Tester, Video Format NTSC/PAL, IP Camera Security, DC12V Output
- 4.3-inch large screen: The display area is wider and clearer, and the camera image effect can be displayed more intuitively and conveniently.
- High-definition LCD display: LCD monitor brightness, contrast, color saturation adjustable, adjustable backlight brightness, suitable for field construction and maintenance.
- Test lens connection method: connect the lens to be tested with the engineering treasure through the data cable, and the detection and imaging effect of the lens to be tested can be observed directly on the display of the engineering treasure.
- Network cable test: first select the network cable test in the menu, and then press the left or right button on the side to test the network cable, which can test the quality of the network cable, short circuit and other problems.
- Color bar output: image generator, sending PAL standard color graphics bars (white, yellow, cyan, green, purple, red, blue).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Camonity Handheld 4.3" LCD Voice Video Security CCTV Analog Camera Tester 12V Output
Product Name: Monitoring Tester
Video format; NTSC/PAL
Display screen: 4.3-inch high-definition TET screen, suitable for use in various occasions, allowing the screen to present a clear image of 16:9 or 4:3
Video input: video input X1 (BNC interface)
Video output: 7 kinds of color bar signal output
Operation interface: OSD switch
Power output: Power supply DC output (supports general photography lens power / maximum current 500mA)
External power supply: external power supply DC5A 1.0A transformer
Battery power supply: Built-in rechargeable lithium battery: 3.7V3000mA/h, about 6 hours per charge, it can work continuously for 5-8 hours with battery power supply, and the use time is long (excluding CCD power supply)
Working environment temperature: Please use the machine in the environment of 0-60°C to avoid damage
Working environment humidity: 30%-90%

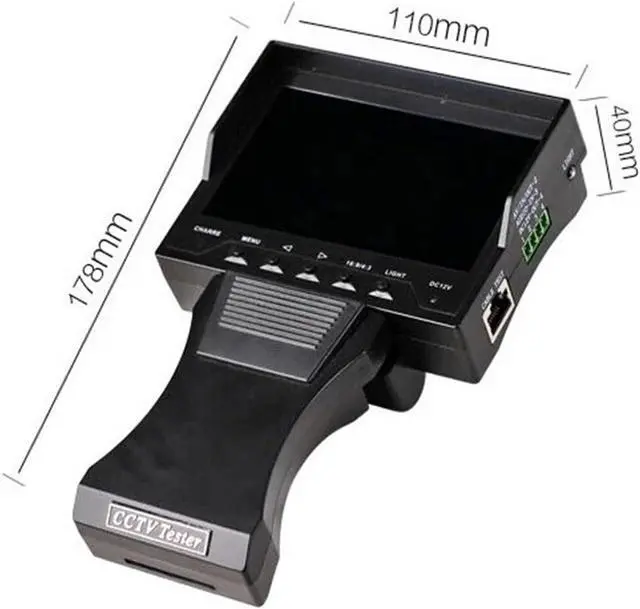

Dimensions: 178mm(L)X110mmX40mm(H)/350g
Function and name explanation of each part
1. 4.3" TFT LCD
2. When plugged into the transformer to charge, the indicator light (red) is on, and the indicator light will turn off when fully charged.
3. When the switch is turned on, the indicator light (green) is on, and the indicator light will be off when it is turned off.
4. Function menu Press this key to open or close the LCD setting menu.
5.6 After opening the function menu, press this key to adjust the brightness, contrast, color saturation, and volume. language selection
7. Choose the aspect ratio of the screen 16:9 or 4:3
8. Lighting switch. 9.5V power input AC/DC transformer, DC5V 1.0A.
10. Power switch.
11. The camera 12V power output, video and Voice signals are input and output through the interface, and the screen is displayed on the host screen.
12. Reset switch
13. High brightness LED lighting work light
14. Network cable detection port
15. Handle folding button
Product Name: Monitoring Tester
Video format; NTSC/PAL
Display screen: 4.3-inch high-definition TET screen, suitable for use in various occasions, allowing the screen to present a clear image of 16:9 or 4:3
Video input: video input X1 (BNC interface)
Video output: 7 kinds of color bar signal output
Operation interface: OSD switch
Power output: Power supply DC output (supports general photography lens power / maximum current 500mA)
External power supply: external power supply DC5A 1.0A transformer
Battery power supply: Built-in rechargeable lithium battery: 3.7V3000mA/h, about 6 hours per charge, it can work continuously for 5-8 hours with battery power supply, and the use time is long (excluding CCD power supply)
Working environment temperature: Please use the machine in the environment of 0-60°C to avoid damage
Working environment humidity: 30%-90%
Dimensions: 178mm(L)X110mmX40mm(H)/350g
Function and name explanation of each part
1. 4.3" TFT LCD
2. When plugged into the transformer to charge, the indicator light (red) is on, and the indicator light will turn off when fully charged.
3. When the switch is turned on, the indicator light (green) is on, and the indicator light will be off when it is turned off.
4. Function menu Press this key to open or close the LCD setting menu.
5.6 After opening the function menu, press this key to adjust the brightness, contrast, color saturation, and volume. language selection
7. Choose the aspect ratio of the screen 16:9 or 4:3
8. Lighting switch. 9.5V power input AC/DC transformer, DC5V 1.0A.
10. Power switch.
11. The camera 12V power output, video and Voice signals are input and output through the interface, and the screen is displayed on the host screen.
12. Reset switch
13. High brightness LED lighting work light
14. Network cable detection port
15. Handle folding button
