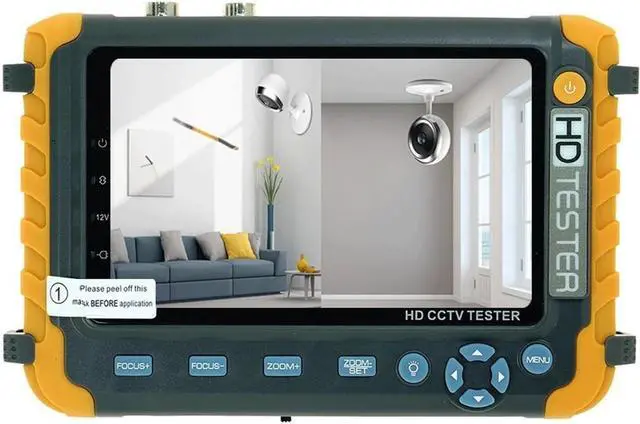

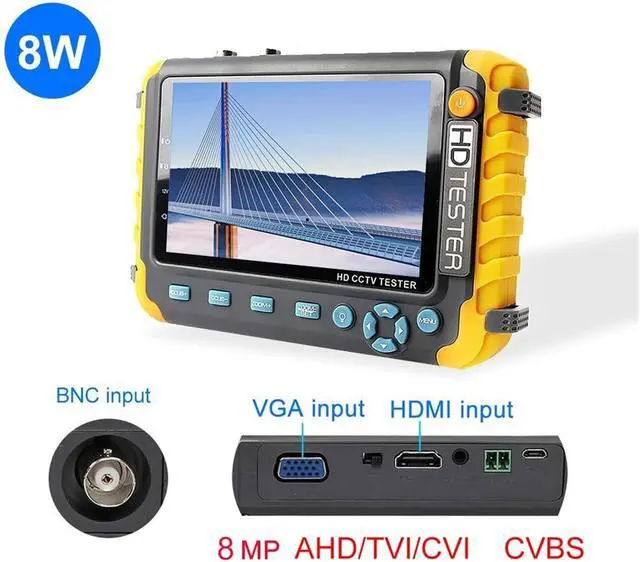

CCTV Tester, IV8W CCTV Camera Tester Monitor 8MP ADH CVI TVI CVBS 4 in 1 Cameras HD Coaxial DC12V Output Power Tool DDP
- Vedio monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality.
- Video monitor tester built-in -D / P PTZ control protocol, etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, , aperture size.
- Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available
- Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section
- Test the input from pickup devices. Connect the tester and pickup device with the cable.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product overview

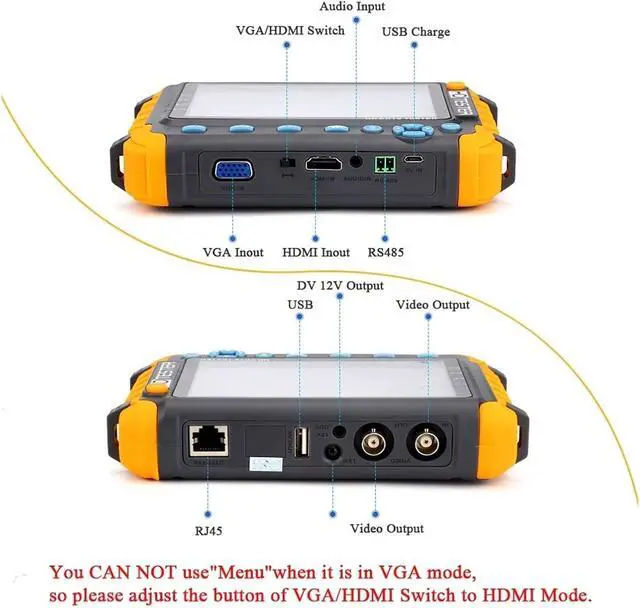

The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, having TVI, AHD,CVI. It also provides many useful functions, such as video display, PTZ control, DC12V output power, test, image generator, VGA video signal input, 1.0 signal input, RS485 data searching, cable testing, LED lamp etc.
Product Funtions
Enhanced network cable testing
By UTP CABLE TEST port on the meter, you can test the connection of network cable.
VGA/ input
Support VGA/ 1.0 video input, once connect VGA/video, please switch selector to select or VGA mode. The maximum resolution isMax 8MP
TVI camera test
HD TVI video surveillance testing, supportMax 8MP
. When TVI signal input, the tester will display HD TVI camera image.
AHD camera test
HD video surveillance testing, support AHD 2.0 version,Max 8MP
. When AHD signal input, the tester will display the AHD camera image.
CVIcamera test
HD CVIvideo surveillance testing, supportMax 8MP. When TVI signal input, the tester will display HD TVI camera image.
LED lamp
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
The battery graphic display
The tester has advanced power control and protection circuit, low-power energy-saving, 4 to 5 hours on a single charge, can be used normally for 12 hours.
Package
1*HD coaxial CCTV tester monitor .
1*Adapter DC5V 1A(with USB cable)
1*International Standard 18650 2600ma battery
1*BNC cable
1*RS485 connector
1*Power output conversion cable
1* cable
1*Lanyard
1*Tool bag
1*Instruction Manual
This CCTV tester not supported Digital Multimeter , can not test IP camera .
Cctv camera tester monitor,cctv tester tool,coaxial tester
The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, having TVI, AHD,CVI. It also provides many useful functions, such as video display, PTZ control, DC12V output power, test, image generator, VGA video signal input, 1.0 signal input, RS485 data searching, cable testing, LED lamp etc.
Product Funtions
Enhanced network cable testing
By UTP CABLE TEST port on the meter, you can test the connection of network cable.
VGA/ input
Support VGA/ 1.0 video input, once connect VGA/video, please switch selector to select or VGA mode. The maximum resolution isMax 8MP
TVI camera test
HD TVI video surveillance testing, supportMax 8MP
. When TVI signal input, the tester will display HD TVI camera image.
AHD camera test
HD video surveillance testing, support AHD 2.0 version,Max 8MP
. When AHD signal input, the tester will display the AHD camera image.
CVIcamera test
HD CVIvideo surveillance testing, supportMax 8MP. When TVI signal input, the tester will display HD TVI camera image.
LED lamp
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
The battery graphic display
The tester has advanced power control and protection circuit, low-power energy-saving, 4 to 5 hours on a single charge, can be used normally for 12 hours.
Package
1*HD coaxial CCTV tester monitor .
1*Adapter DC5V 1A(with USB cable)
1*International Standard 18650 2600ma battery
1*BNC cable
1*RS485 connector
1*Power output conversion cable
1* cable
1*Lanyard
1*Tool bag
1*Instruction Manual
This CCTV tester not supported Digital Multimeter , can not test IP camera .
Cctv camera tester monitor,cctv tester tool,coaxial tester
