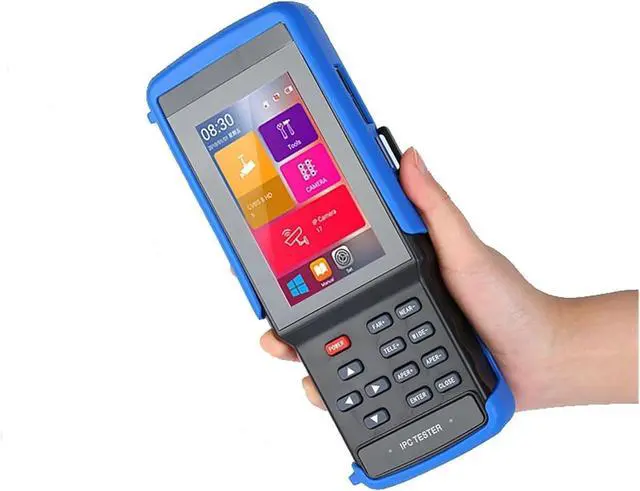

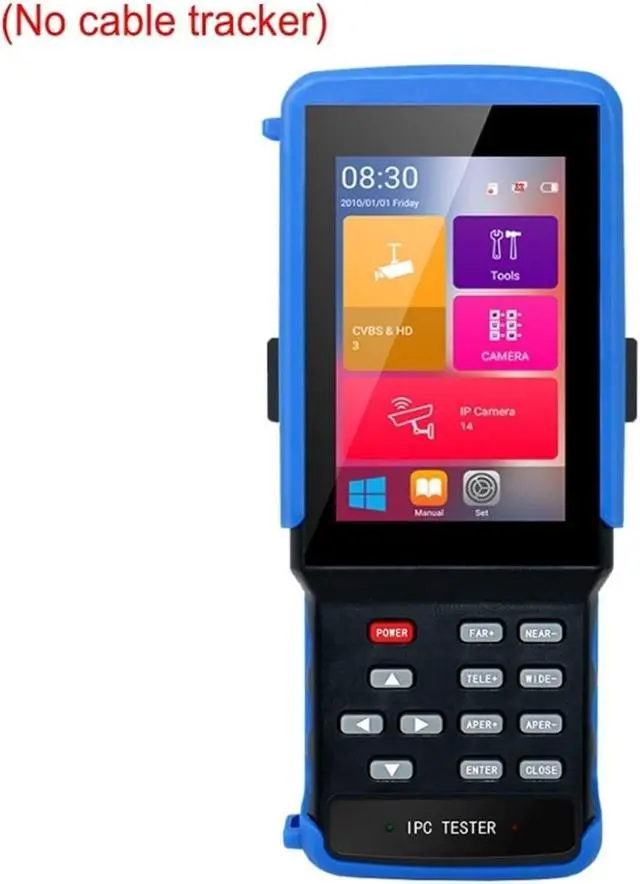

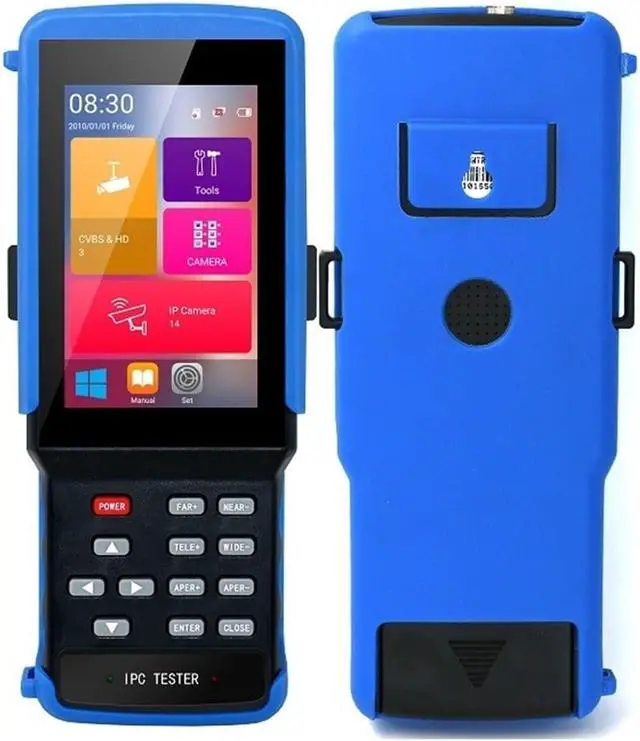

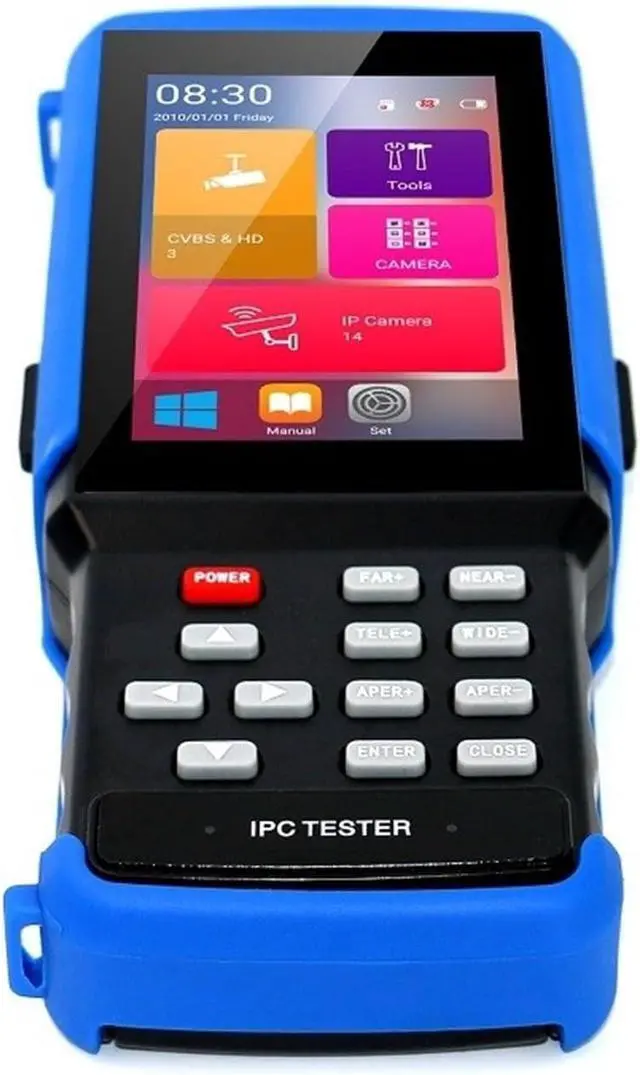

CCTV Tester IPC Tester 5-in-1 Monitor Coaxial HD H.265 4K IP Analog CCTV AHD CVI TVI CVBS Camera PoE Power Output Support IP Camera(No Cable Tracker)
- 4.5inch display : 4.5 inch 960*540 HD IPS touch screen display .
- ADD USB port : DC12V 2A Output.
- H.265 4K IP + AHD 5MP + TVI 8MP+ CVI 8MP + CVBS 5 in 1
- RJ45 Test + UTP test + POE + PSE + DC12V 3A + 3200mAh
- Screen Horizontal or Vertical operation 4.5' IPS touch screen
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview:
IPC9310 series CCTV tester is developed for the on-site installation or maintenance of CCTV cameras. It is protable, low-power consumption and , with IP/Analog/HD camera video display, RS485 PTZ control, DC12V/3A or 48V/24W PoE power output, camera video snapshot and record, various network test tools such as PING, IP address, port flicker control, LED lamp and RJ45 cable connection status test or cable tracking, which makes it much easier for a CCTV technician to install and maintain CCTV systems, improving work efficiency by reducing time in the field.
Main Features:
1. 4.3 inch full view IPS HD screen, resolution of 800 × 480, PPI up to 216
2. Adjustable display backlight brightness, up to 500cd, display contrast 800:1
3. G + G structure capacitive touch screen, hard and wear-resistant, corrosion-resistant, high transmittance
4. 7.4V 3200mAh high-capacity polymer lithium battery, low consumption, auto screen sleep, once fully charged work continually for 10 hours
5. Standard 48V/24W PoE power output for PoE camera testing, support PSE test, DC12V/3A power output, short-circuit protection, supply temporary power for all kinds of cameras including PTZ
6. Support Chinese, English, Spanish and other more than 10 kinds of languages
7. 4K H264/H265/MPEG4/MJPEG format IP camera test, high definition hardware decoder for video image display in real time without delay and enlarge max 8 times, support snapshot, video recording and playback
8. BNC input for HD camera TVI 8MP, CVI 8MP, AHD 5MP camera test, NTSC/PAL Analog CVBS video display
Parameters:

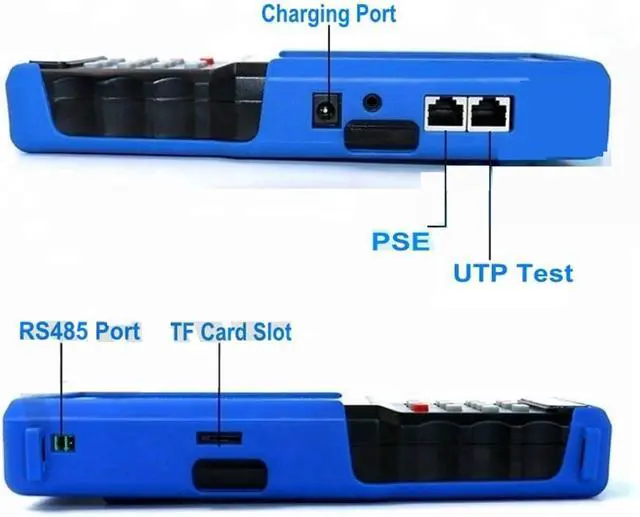

UTP network cable test
Test connection status and sequenceof any 2 network cables
DC12V power output
Battery
Built-in 7.4V polymer lithium battery, capacity 3200mAh, be able to work for about 10 hours
Language
Chinese Simplified, Chinese Traditional, English, Germany, Spanish, Portuguese, Russian, French, Polish, Korean, Japanese, Turkish and Italian 13 languages
IPC9310 series CCTV tester is developed for the on-site installation or maintenance of CCTV cameras. It is protable, low-power consumption and , with IP/Analog/HD camera video display, RS485 PTZ control, DC12V/3A or 48V/24W PoE power output, camera video snapshot and record, various network test tools such as PING, IP address, port flicker control, LED lamp and RJ45 cable connection status test or cable tracking, which makes it much easier for a CCTV technician to install and maintain CCTV systems, improving work efficiency by reducing time in the field.
Main Features:
1. 4.3 inch full view IPS HD screen, resolution of 800 × 480, PPI up to 216
2. Adjustable display backlight brightness, up to 500cd, display contrast 800:1
3. G + G structure capacitive touch screen, hard and wear-resistant, corrosion-resistant, high transmittance
4. 7.4V 3200mAh high-capacity polymer lithium battery, low consumption, auto screen sleep, once fully charged work continually for 10 hours
5. Standard 48V/24W PoE power output for PoE camera testing, support PSE test, DC12V/3A power output, short-circuit protection, supply temporary power for all kinds of cameras including PTZ
6. Support Chinese, English, Spanish and other more than 10 kinds of languages
7. 4K H264/H265/MPEG4/MJPEG format IP camera test, high definition hardware decoder for video image display in real time without delay and enlarge max 8 times, support snapshot, video recording and playback
8. BNC input for HD camera TVI 8MP, CVI 8MP, AHD 5MP camera test, NTSC/PAL Analog CVBS video display
Parameters:
UTP network cable test
Test connection status and sequenceof any 2 network cables
DC12V power output
Battery
Built-in 7.4V polymer lithium battery, capacity 3200mAh, be able to work for about 10 hours
Language
Chinese Simplified, Chinese Traditional, English, Germany, Spanish, Portuguese, Russian, French, Polish, Korean, Japanese, Turkish and Italian 13 languages
