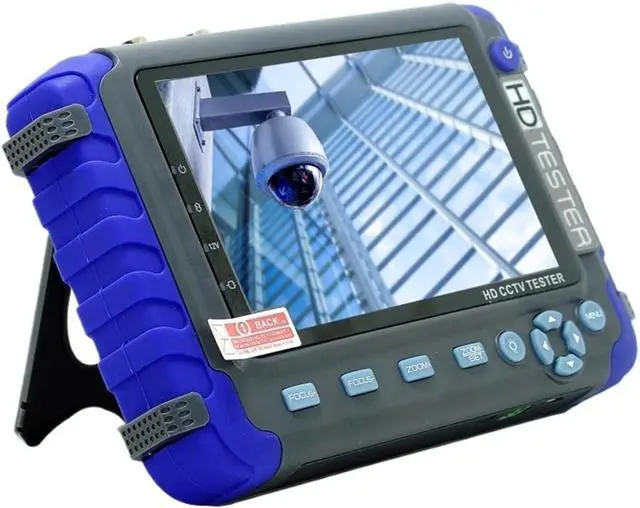

    CCTV Tester IV8W/8C/IV5 TFT LCD HD 8MP TVI AHD CVI CVBS in One CCTV Tester Analog Security Camera Monitor Wrist Design Test Tool Support IP Camera(8C no HDMI VGA)

    Be the first to review this product...
    • Vedio monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality.
    • Video monitor tester built-in Pelco-D / P PTZ control protocol, etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, aperture size.
    • Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section
    • Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available
    • Test the input from pickup devices. Connect the tester and pickup device with the cable.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    IV8W------5inch tester+8MP AHD+8MP CVI+8MP TVI(with and VGA)
    IV8C------5inch tester+8MP AHD+8MP CVI+8MP TVI(without and VGA)
    IV5------5inch tester+8MP AHD+8MP CVI+8MP TVI(without and VGA)

    Product overview

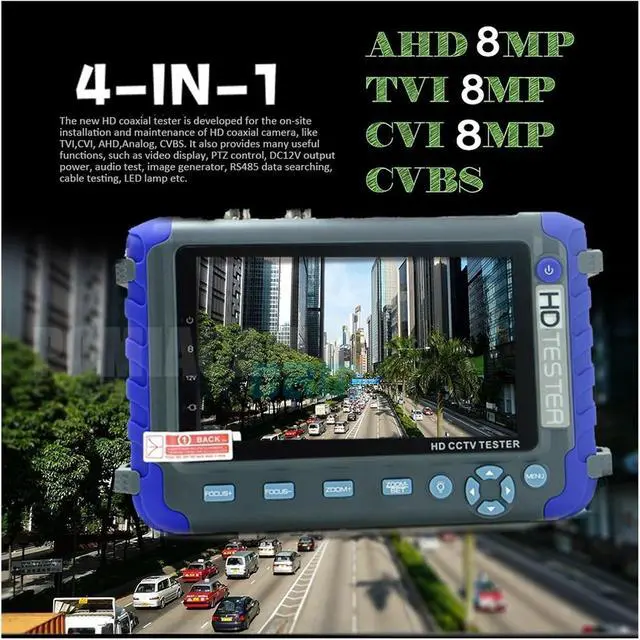

    The HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, having TVI, AHD,CVI. It also provides many useful functions, such as video display, PTZ control, DC12V output power, test, image generator, VGA video signal input, 1.0 signal input, RS485 data searching, cable testing, LED lamp etc.

    Specifications:
    Model IV8W
    LCDscreen 5.0inchTFT-LCD,800(RGB)x480resolution
    Videotest NTSC/PAL(Autoadapt)
    LCDadjustment Brightness,Contrast,Saturationadjustable
    PTZController SupportRS485
    UTPCableTest
    DisplayUTPcableconnectionstatuscabletypeand
    thesequenceofwiresaswellasreadthenumberofthetestbox
    DC12Vpoweroutput
    OutputDC12V1Apowerforcamera
    inputtest
    1channelsignalinput
    CoaxialHDtest
    TVItest
    1channelTVIinputBNCinterface
    support8MP
    CVITest
    1channelTVIinputBNCinterface
    support8MP
    AHDTest
    1channelAHDinputBNCinterface,
    supportAHD2.0version,8MP
    POWER
    PowerAdapter
    DC5V(1.5A)
    Battery Built-in186502600mAbatteryX2,
    Aftercharging3-4hour,workingtimelasts11hoursGeneral
    Language English
    WorkingHumidity 30%-90%
    Dimension 194mmx112mmx48mm/540g

    Product Funtions
    Enhanced network cable testing
    By UTP CABLE TEST port on the meter, you can test the connection of network cable.

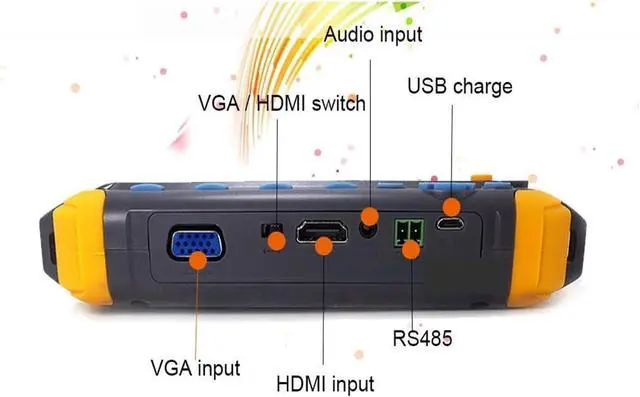

    VGA/ input
    Support VGA/ 1.0 video input, once connect VGA/ video, please switch selector to select or VGA mode. The maximum resolution is 1920 x 1440(IV8W ) / 1920X1080 (IV8S)
    TVI camera test
    HD TVI video surveillance testing, support 8MP (IV8W ) / 720p 25, 30, 50,60fps/ 1080p 25,30fps (IV8S). When TVI signal input, the tester will display HD TVI camera image.
